Modern House Plan 11×11 Meter 36×36 Feet 3 Beds PDF Plan

$29.99

Buy this Modern House Plan 11×11

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
6 Cross Section plans
Ceiling Lighting location Plan

Architectural Files included:

-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

Categories: , Tag:

Description

Modern House Plan 11×11 Meter 36×36 Feet 3 Beds PDF Plan 121 sqm Full Plans. This villa is perfect for family that have three bedrooms. Est. Price around 25k-35k usd construction only.

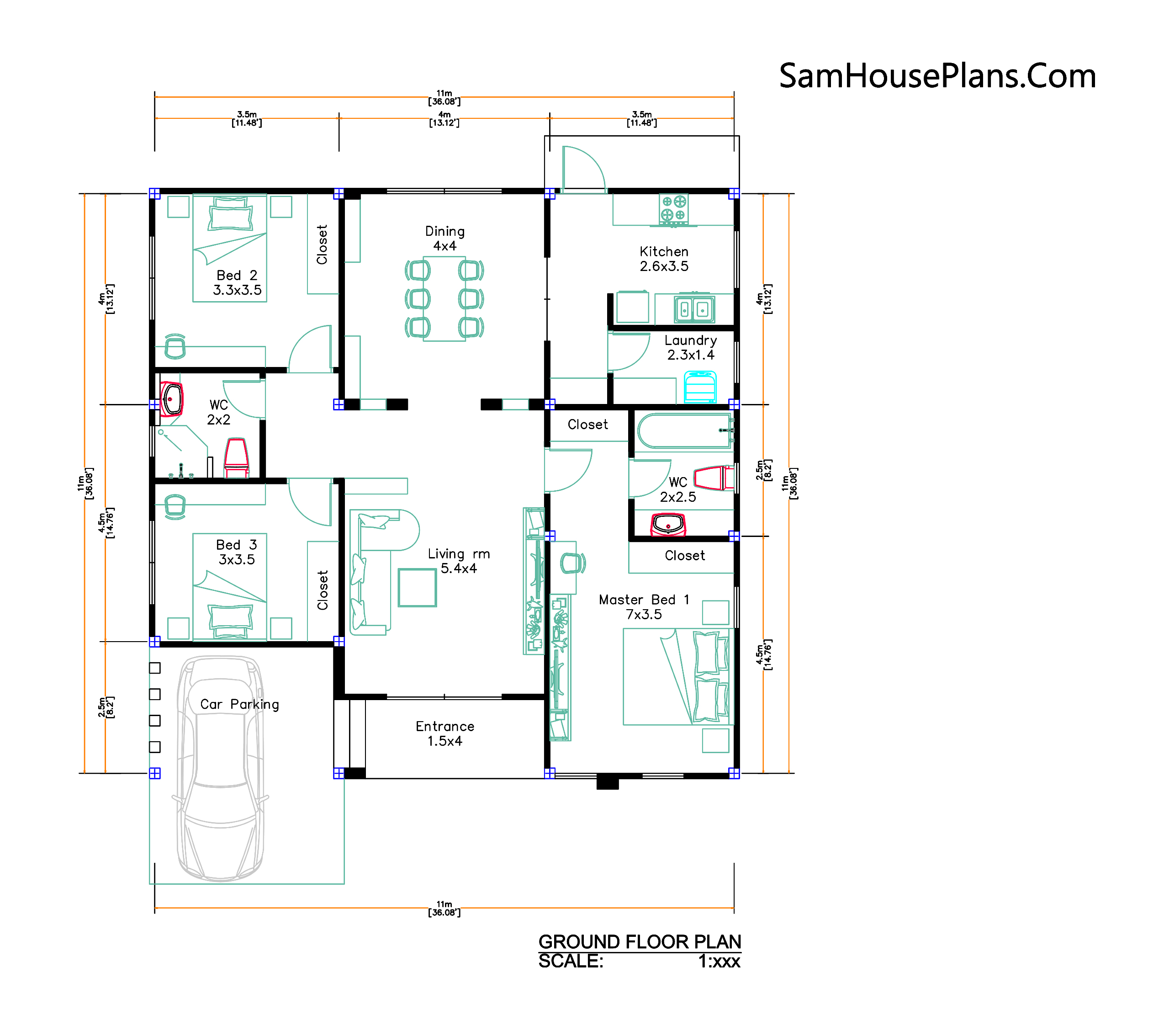

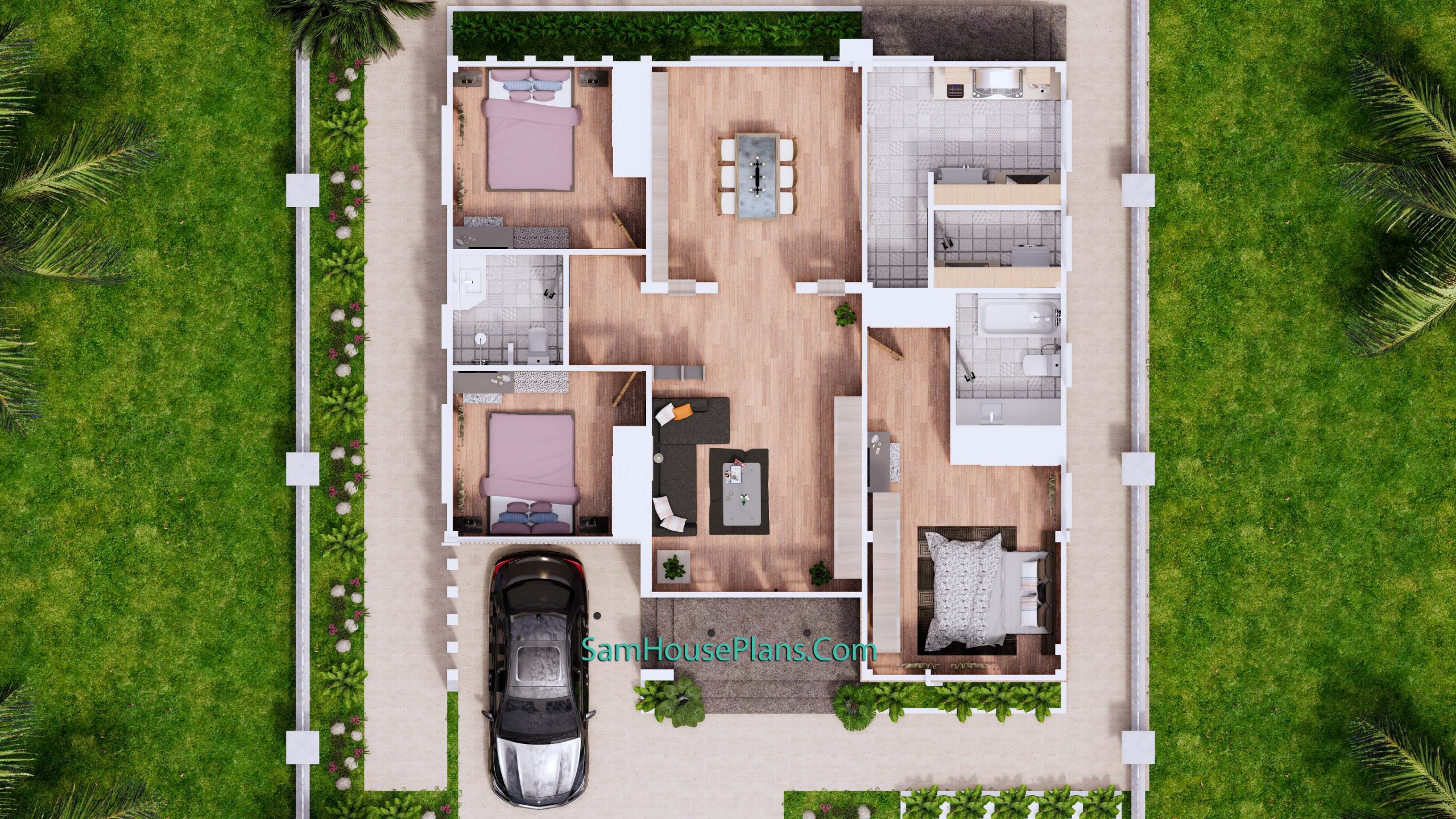

Modern House Plan 11×11 Floor Plans Has:

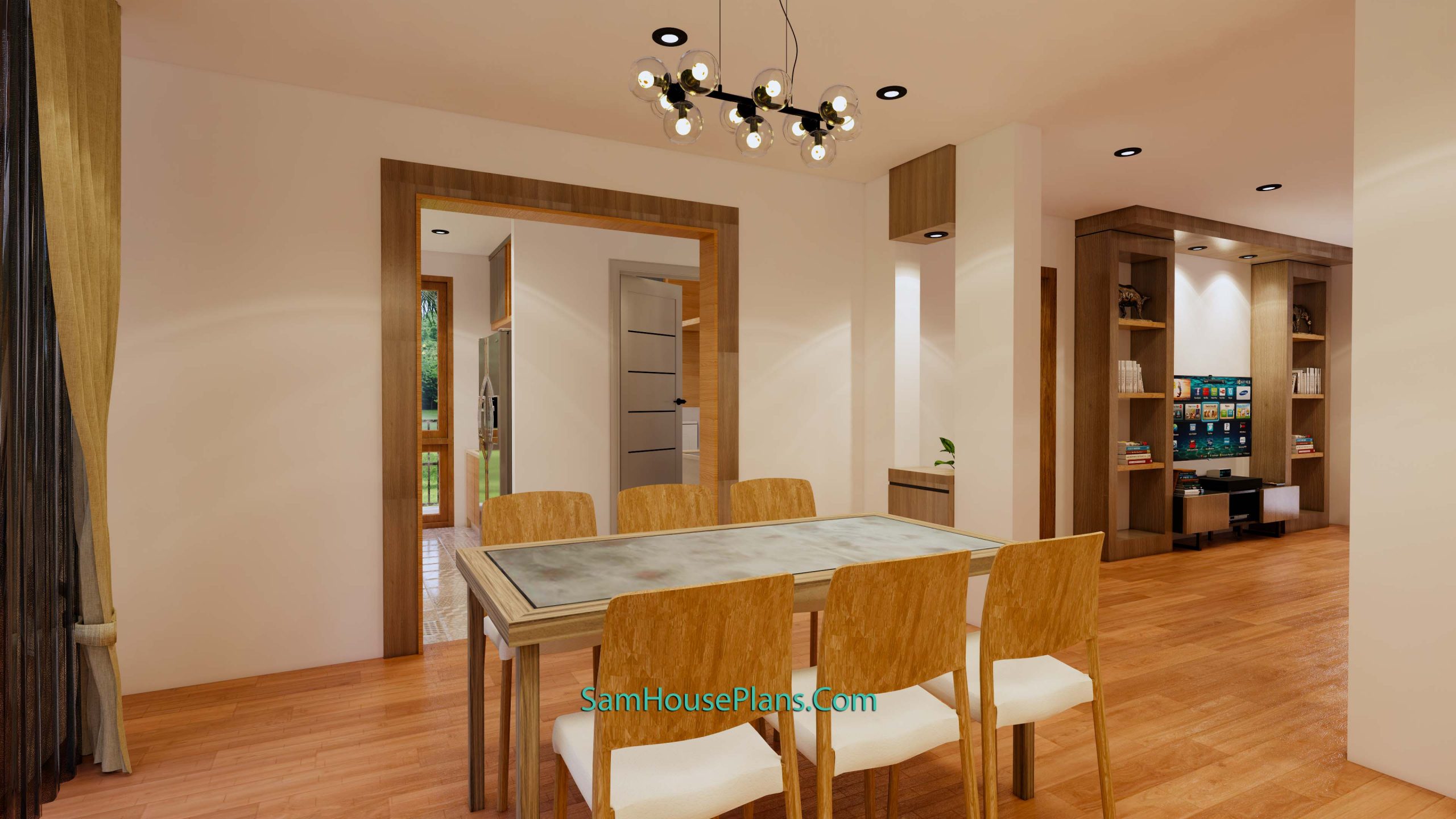

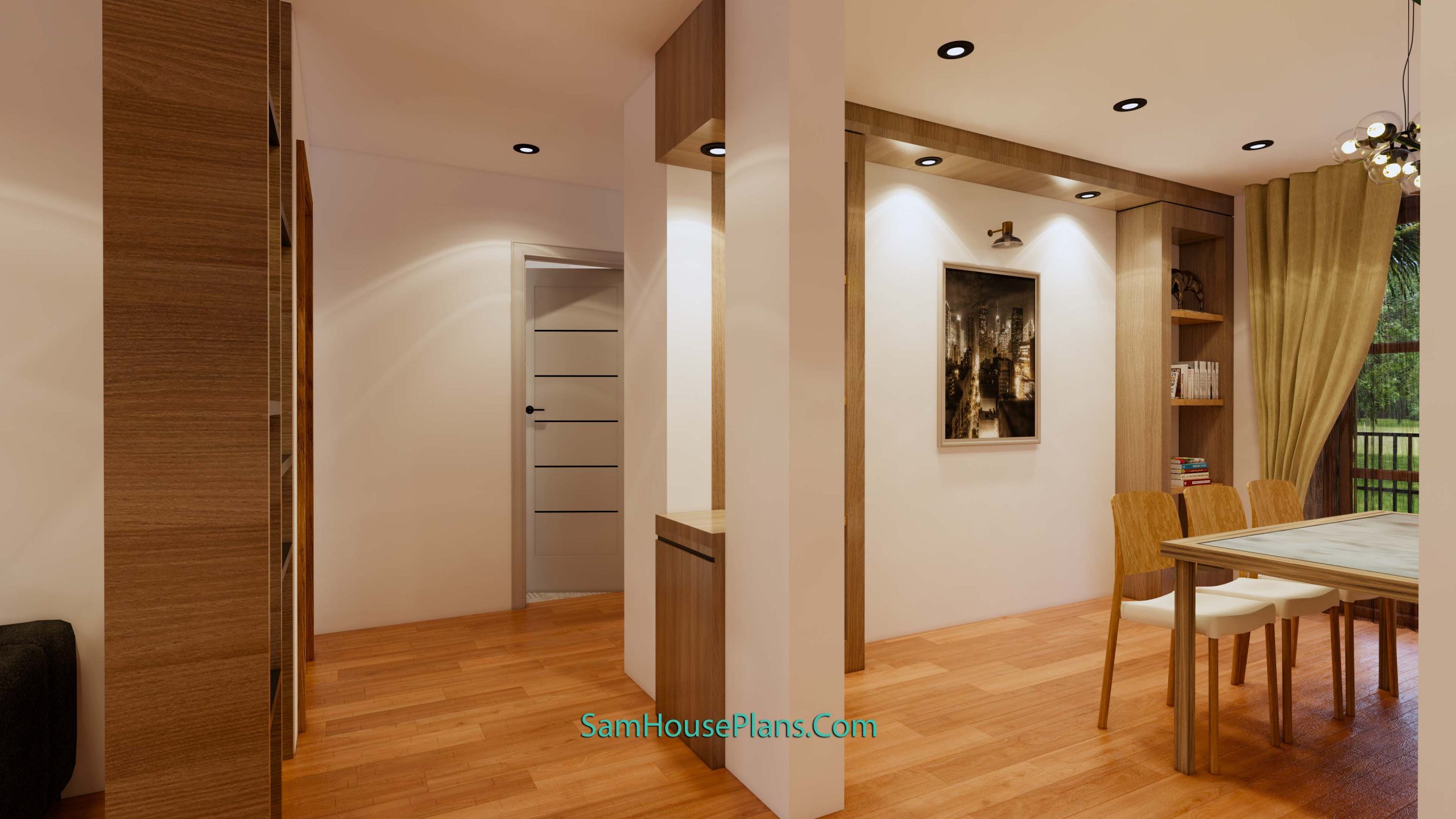

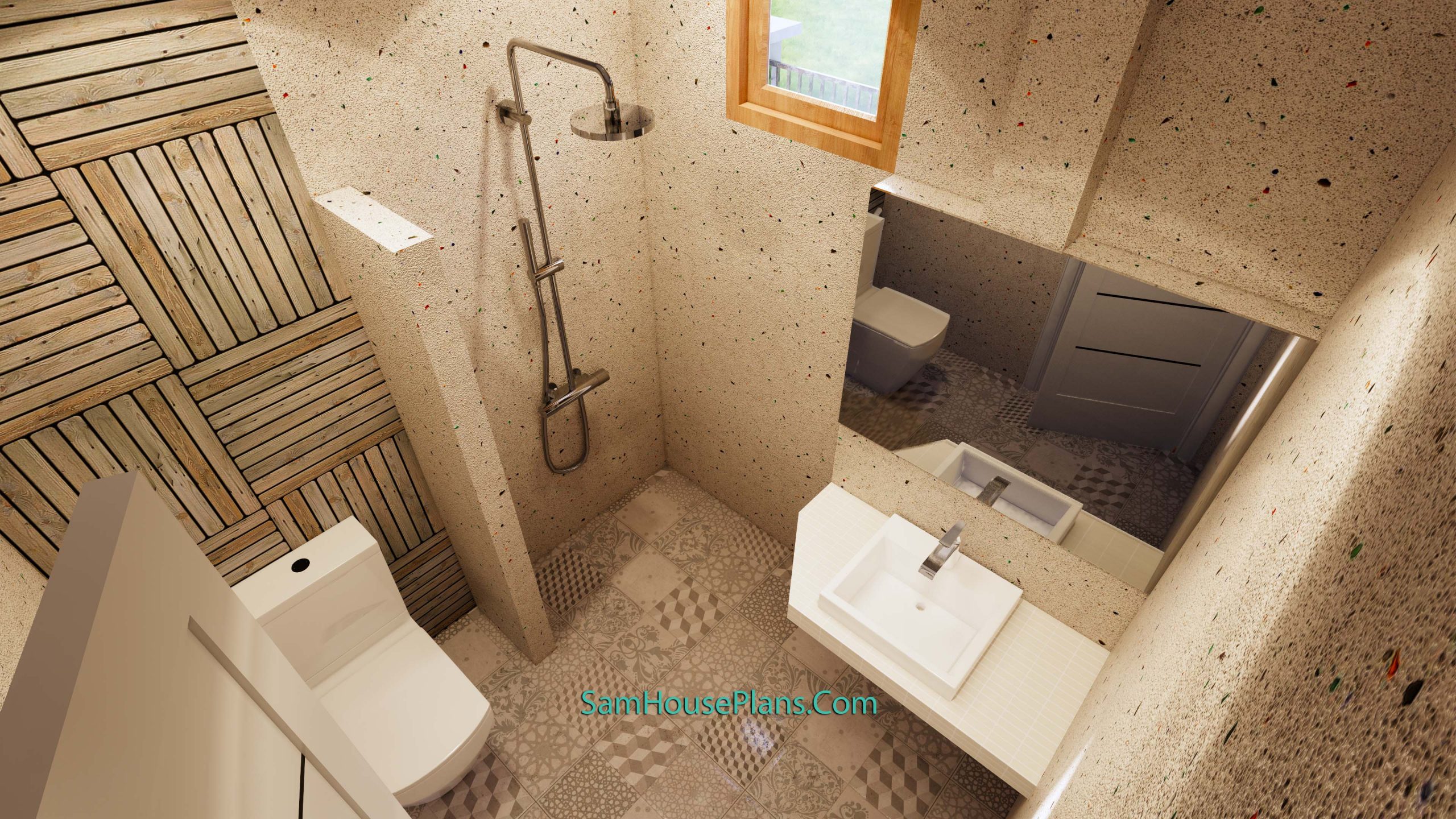

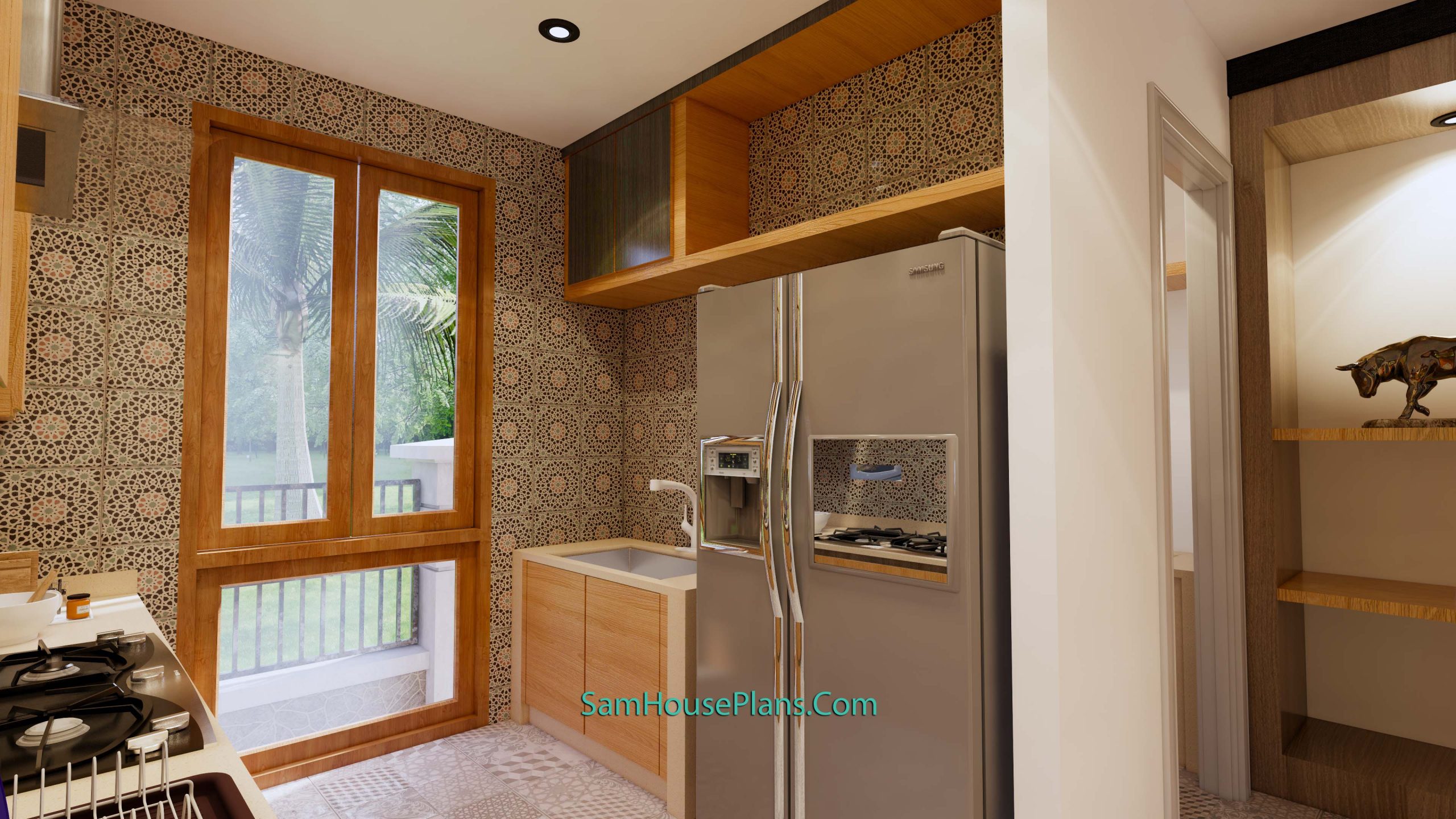

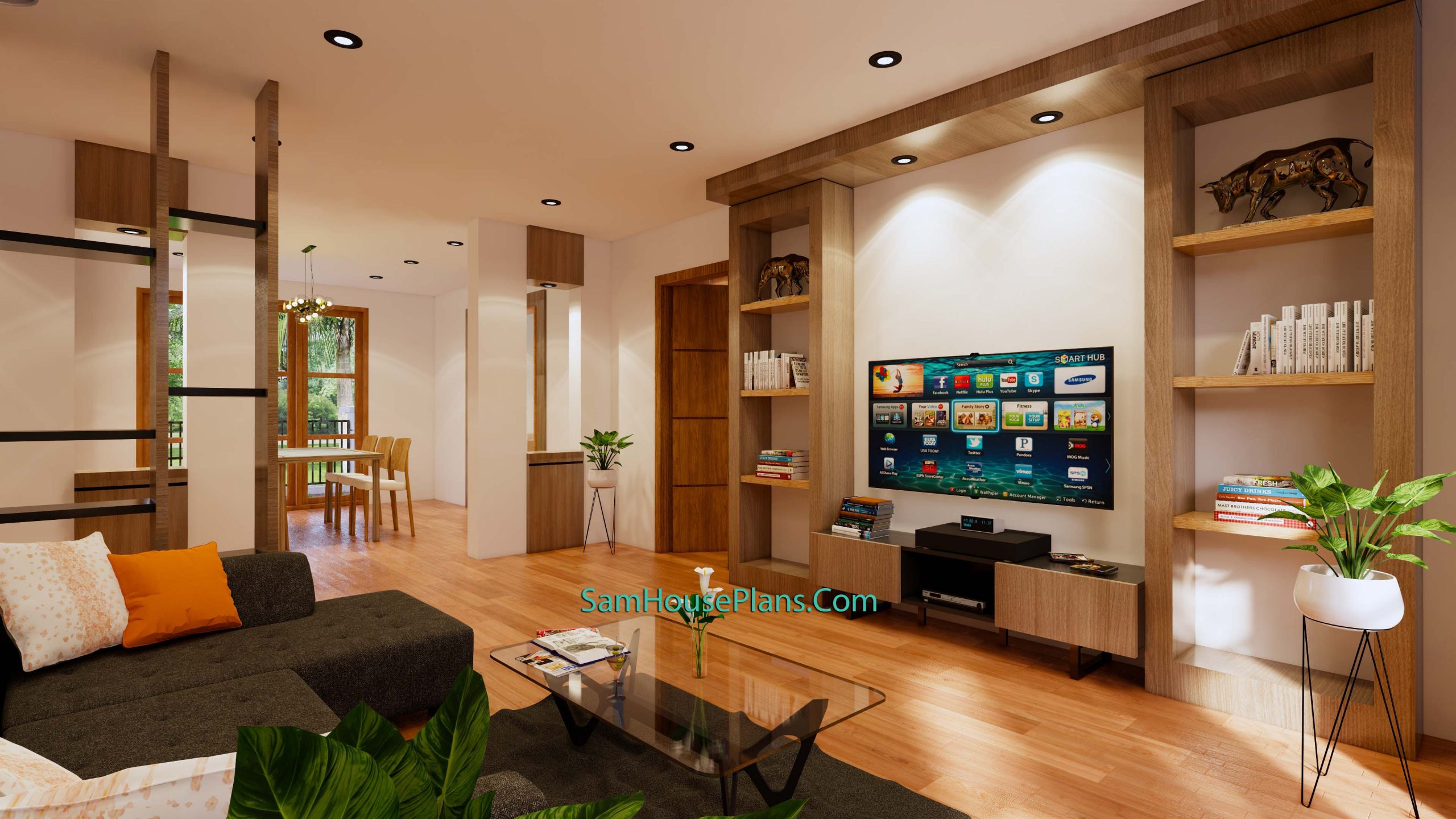

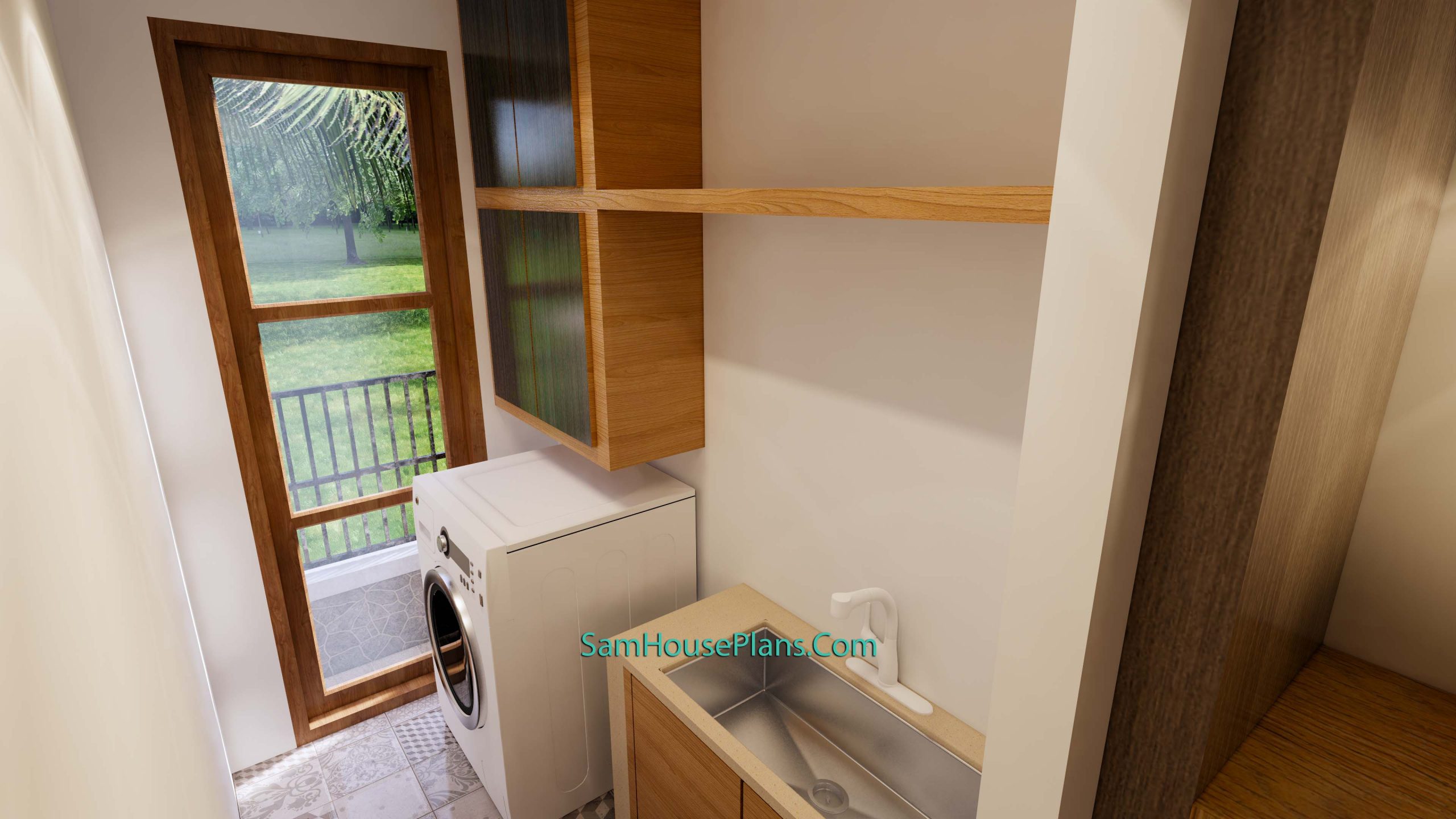

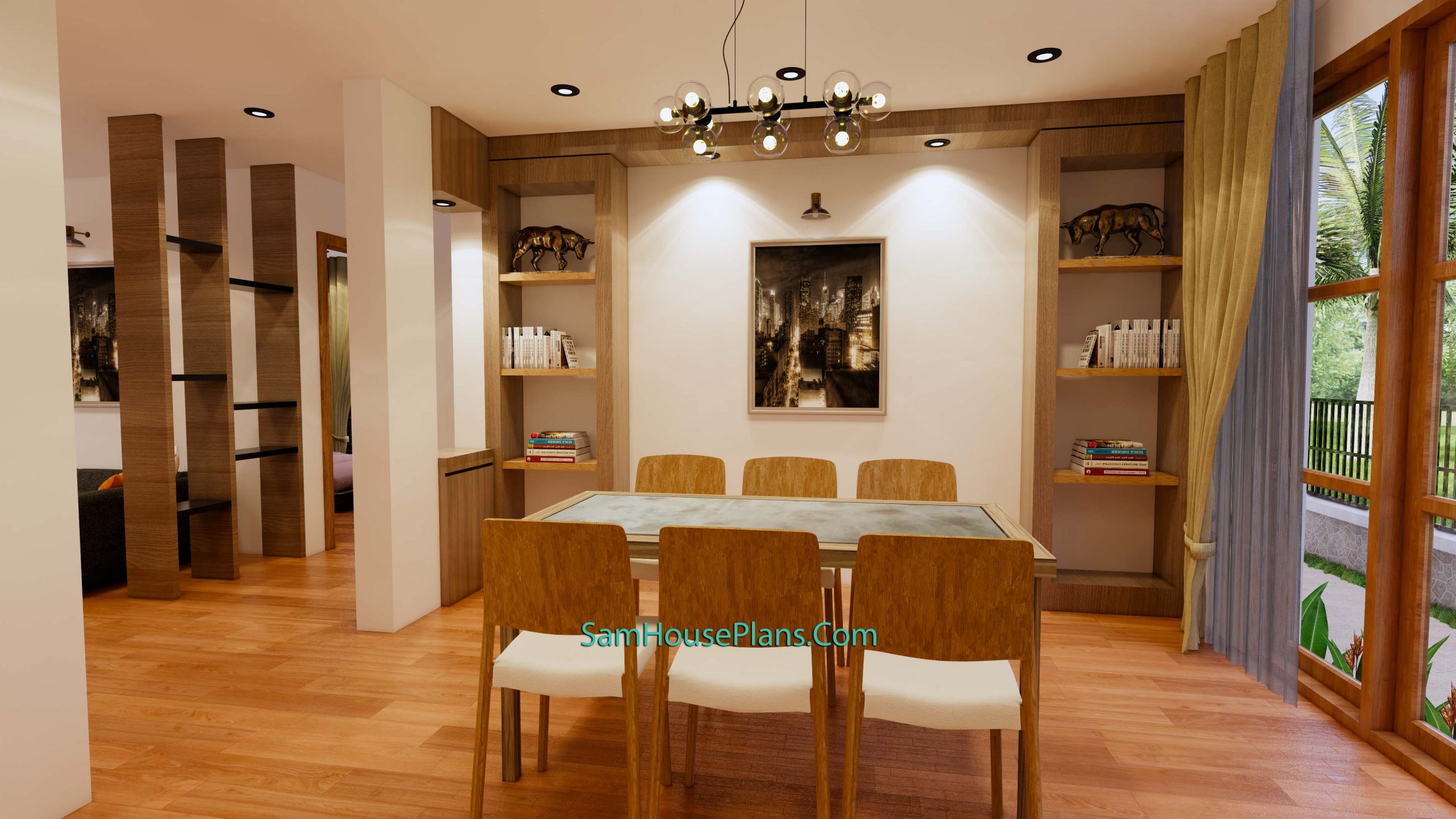

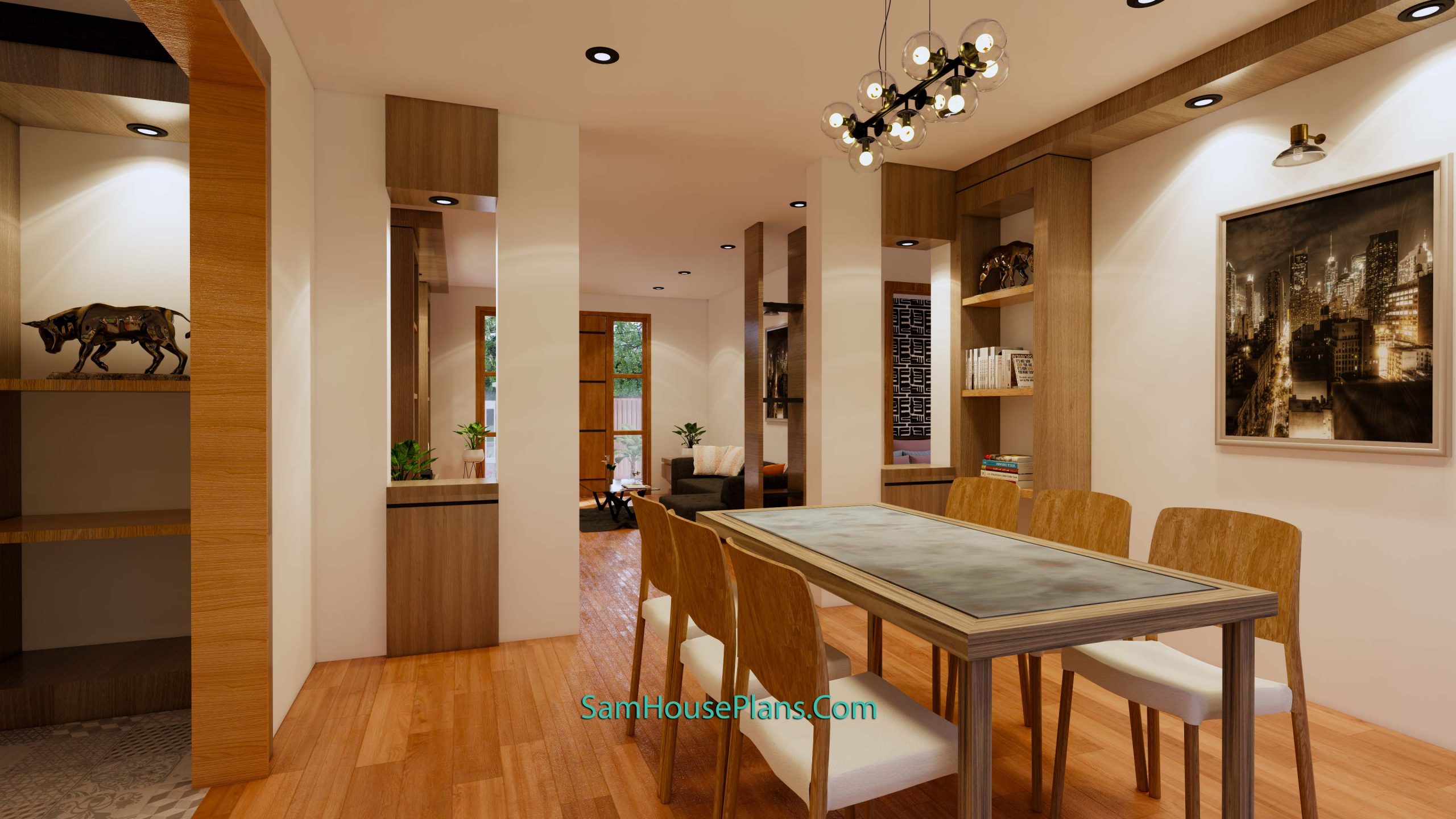

Car Parking is at the right side of the house 3.5×5 meter. A nice Terrace entrance in front of the house 1.5×4 meters. When we are going from front door,  a Living 5.4×4 meter is very perfect for this house it is nice and modern. Brightly dining area 4×4 meter open space to the living room, it is beautiful. Kitchen 2.6×3.5 meter. A multi Bathroom size 2×2 meters. The washing machine 2.3×1.4 meters.

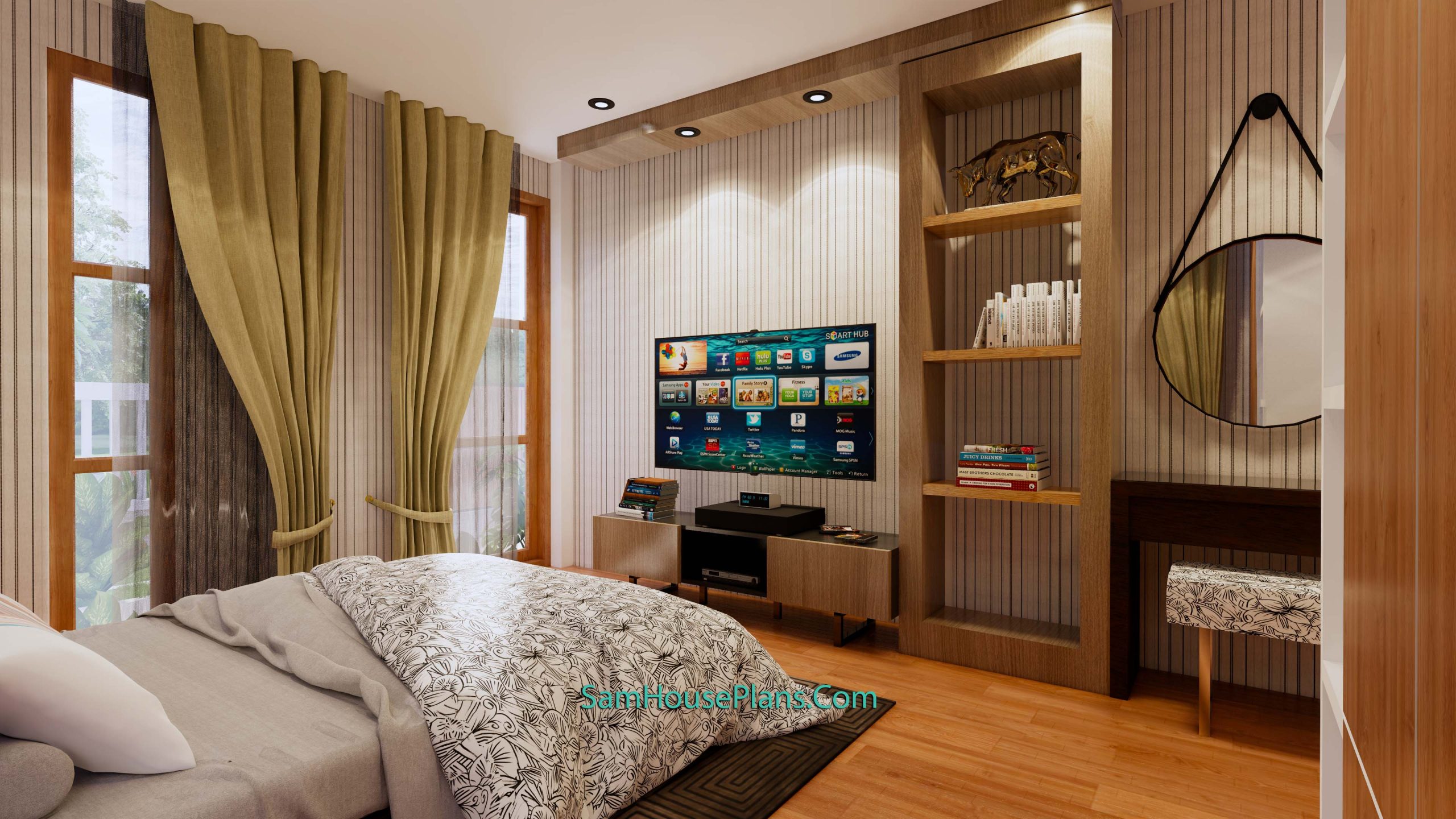

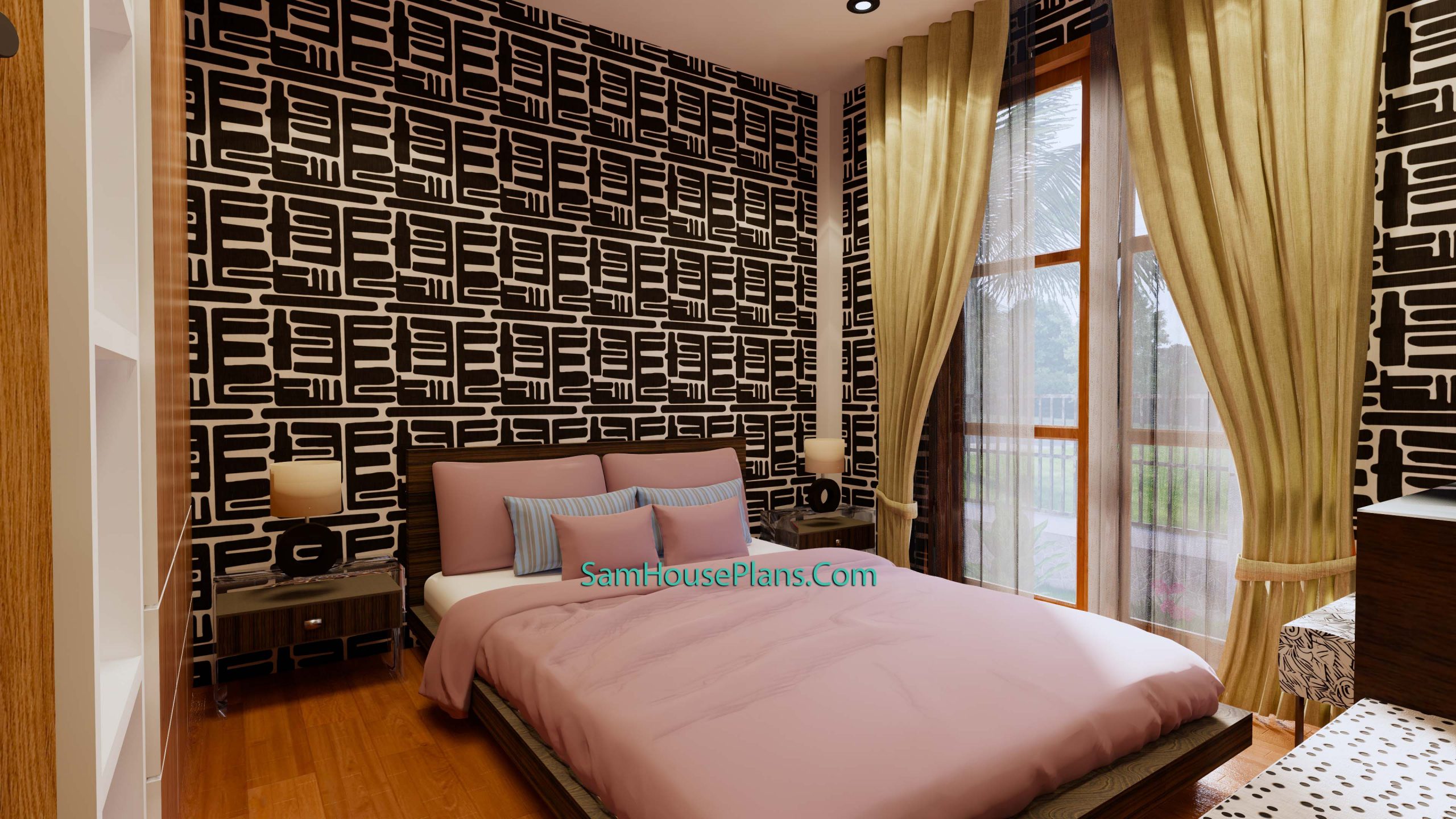

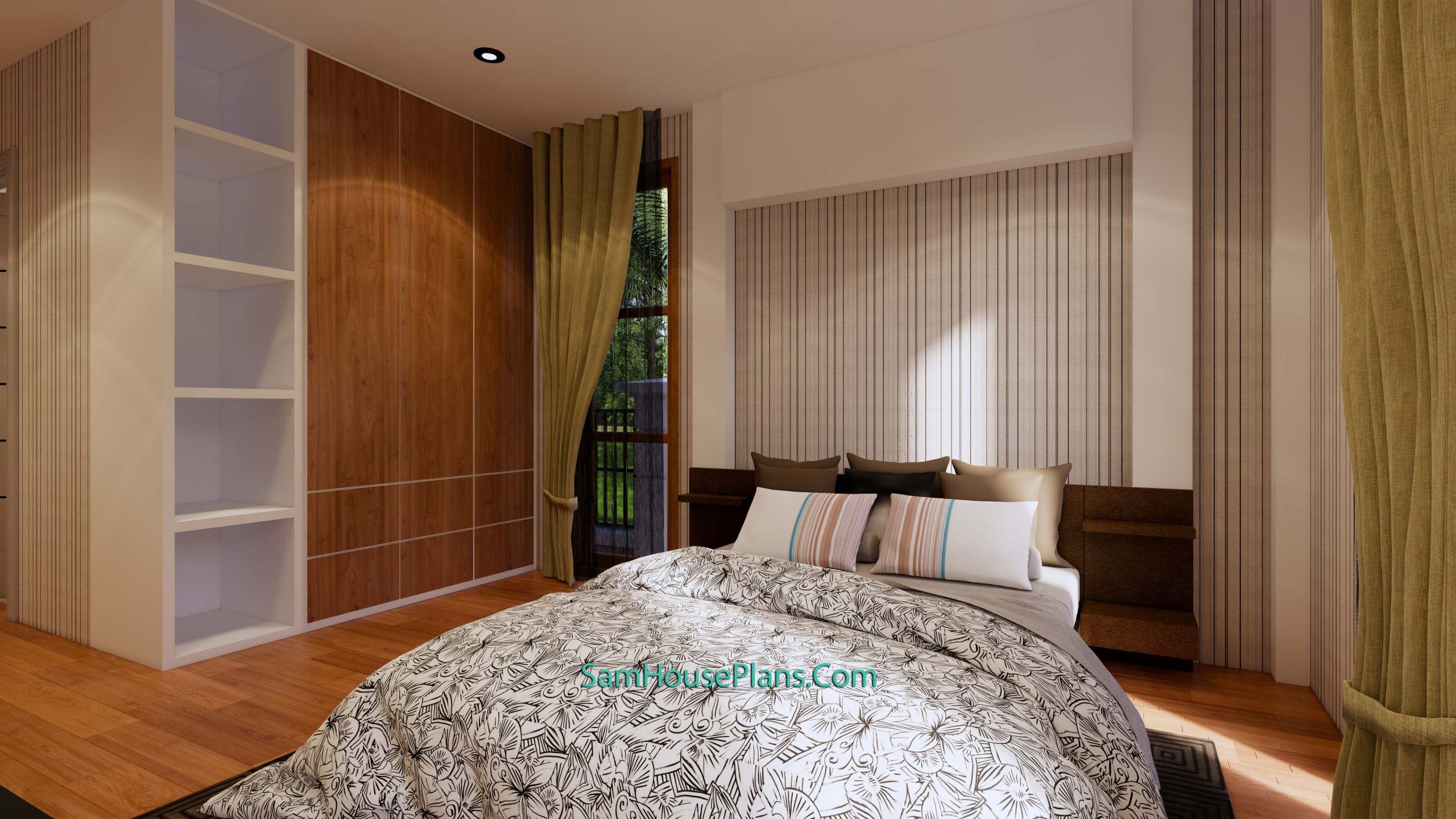

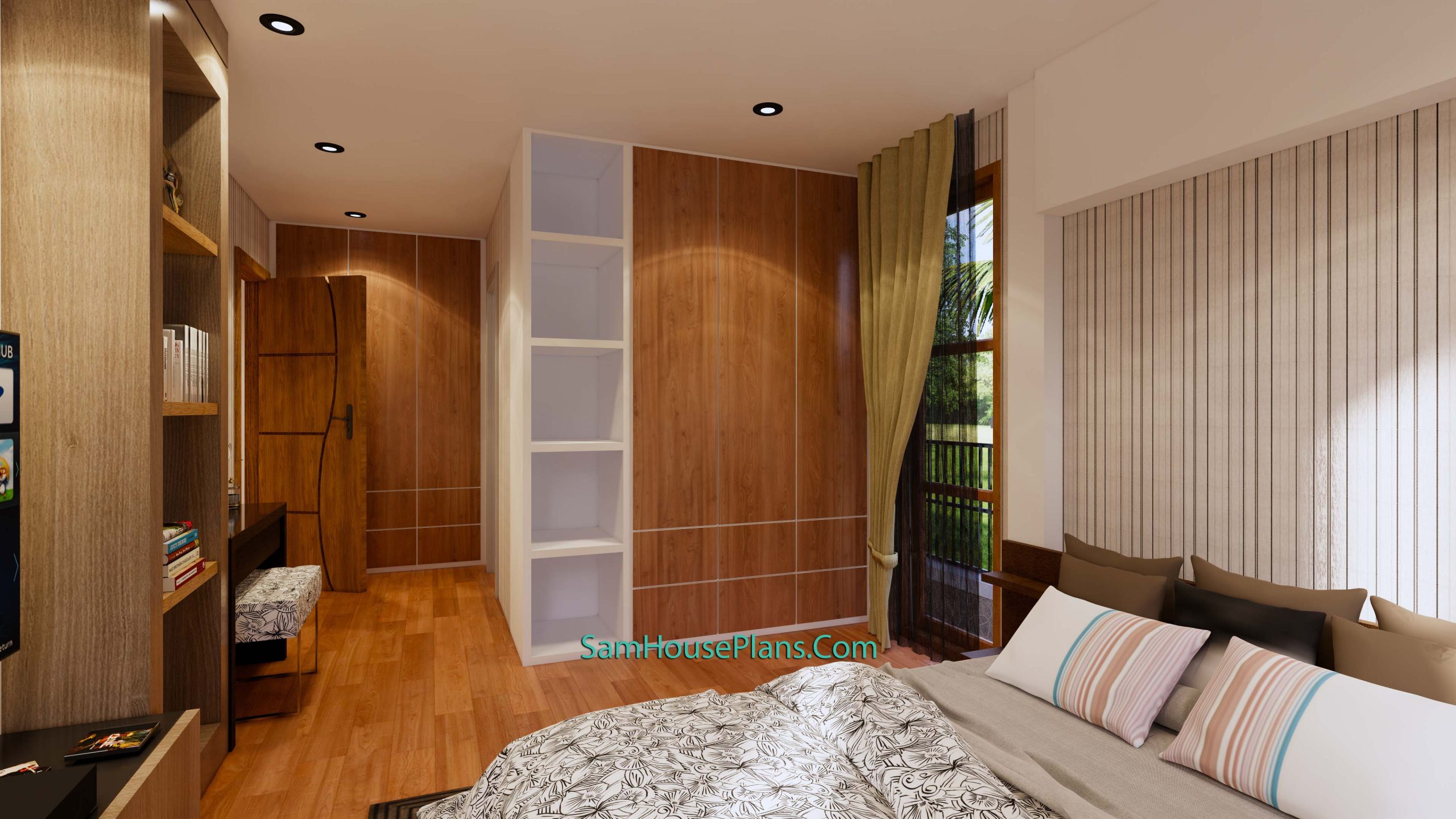

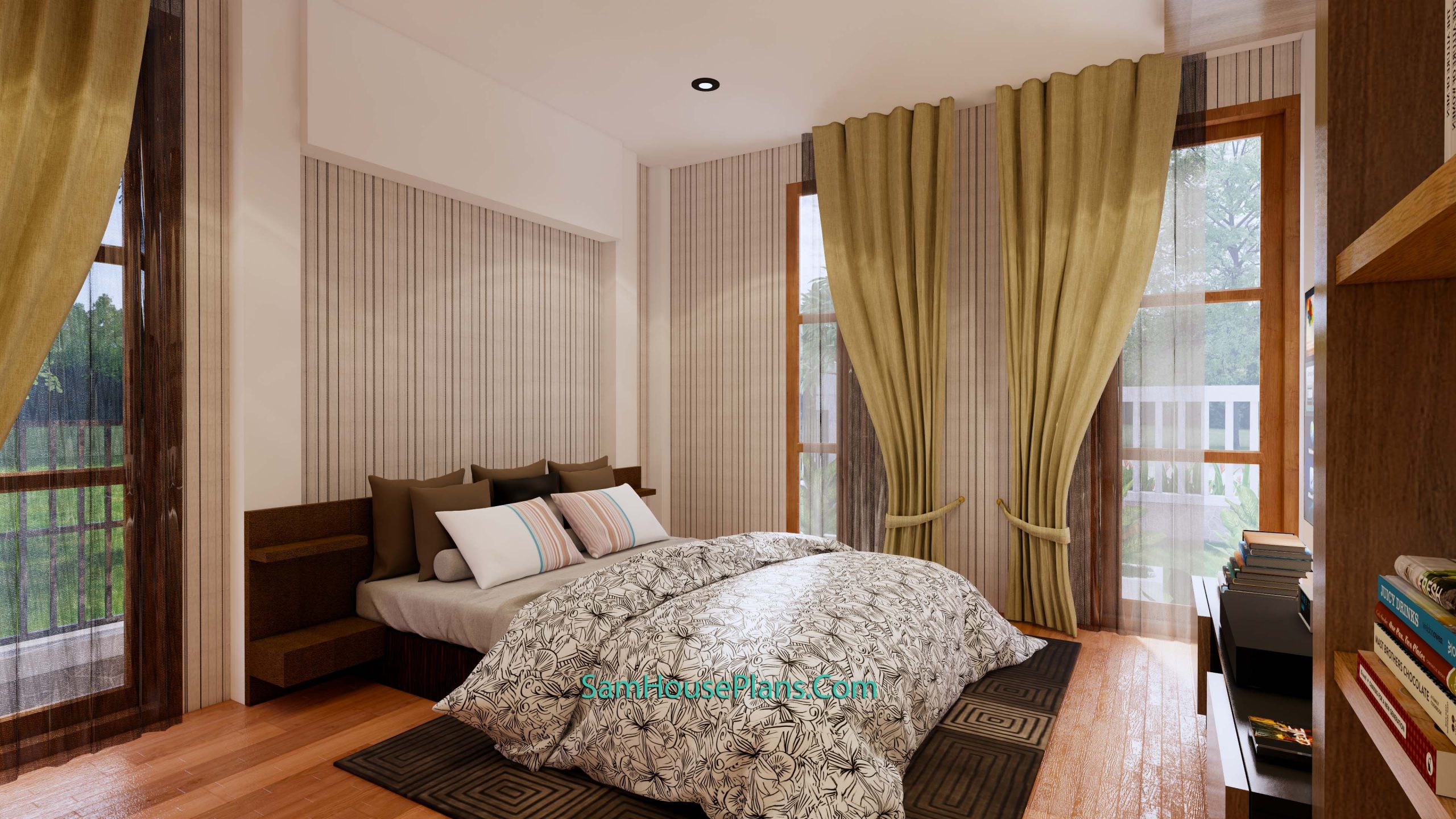

The Master Bedroom size is 7×3.5 meters, it have a big glass sliding door with a queen size bed, Makeup desk and 2 closets , attached with bathroom 2×2.5 meter. Bedroom 2 size 3.3×3.5 meter and Bedroom 3 size 3×3.5 meters. The back balcony 3.5×1 meter.

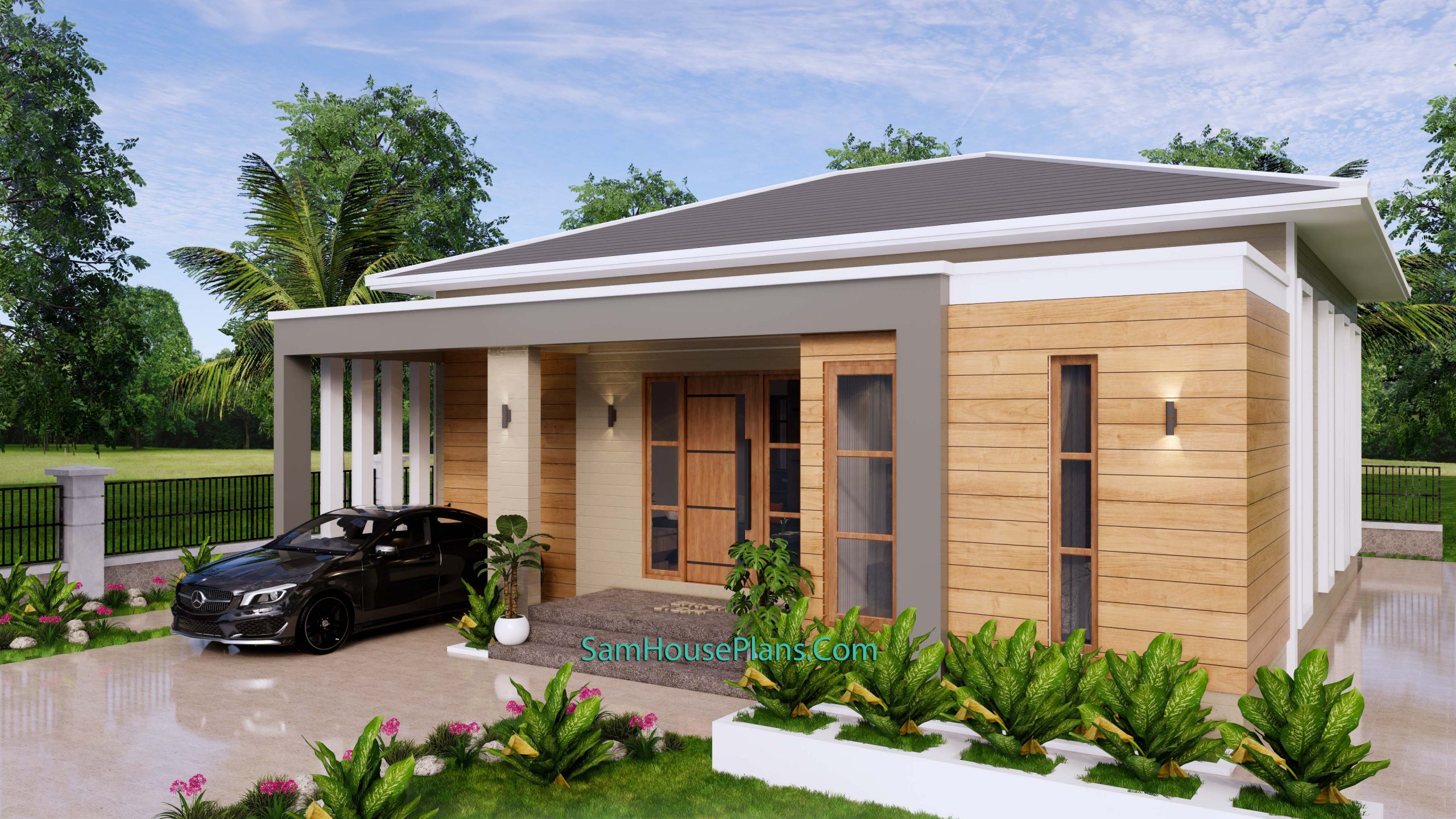

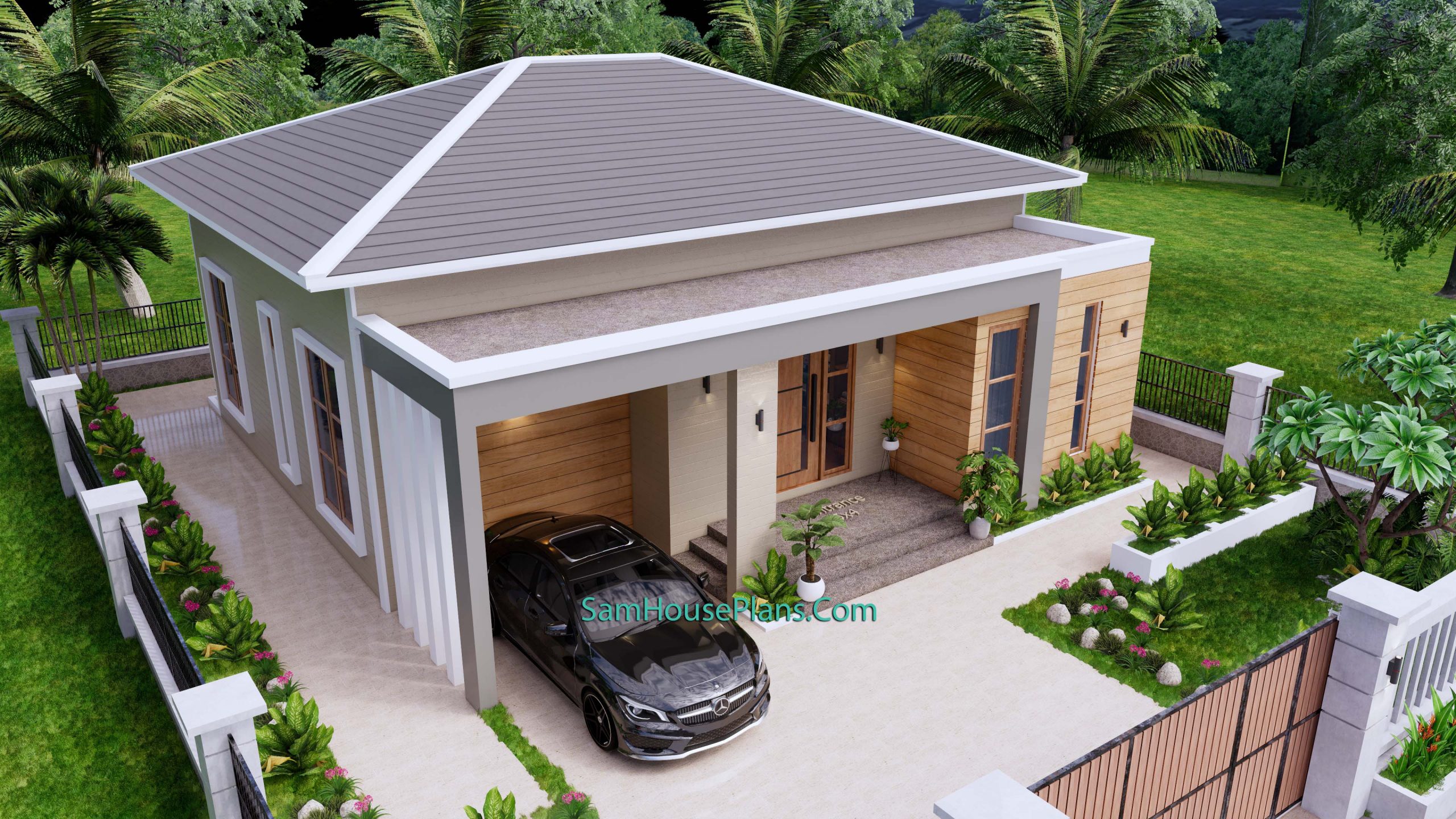

Exterior Modern House Plan 11×11:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

Modern House Plan 11x11 Meter 36x36 Feet 3 Beds PDF Plan

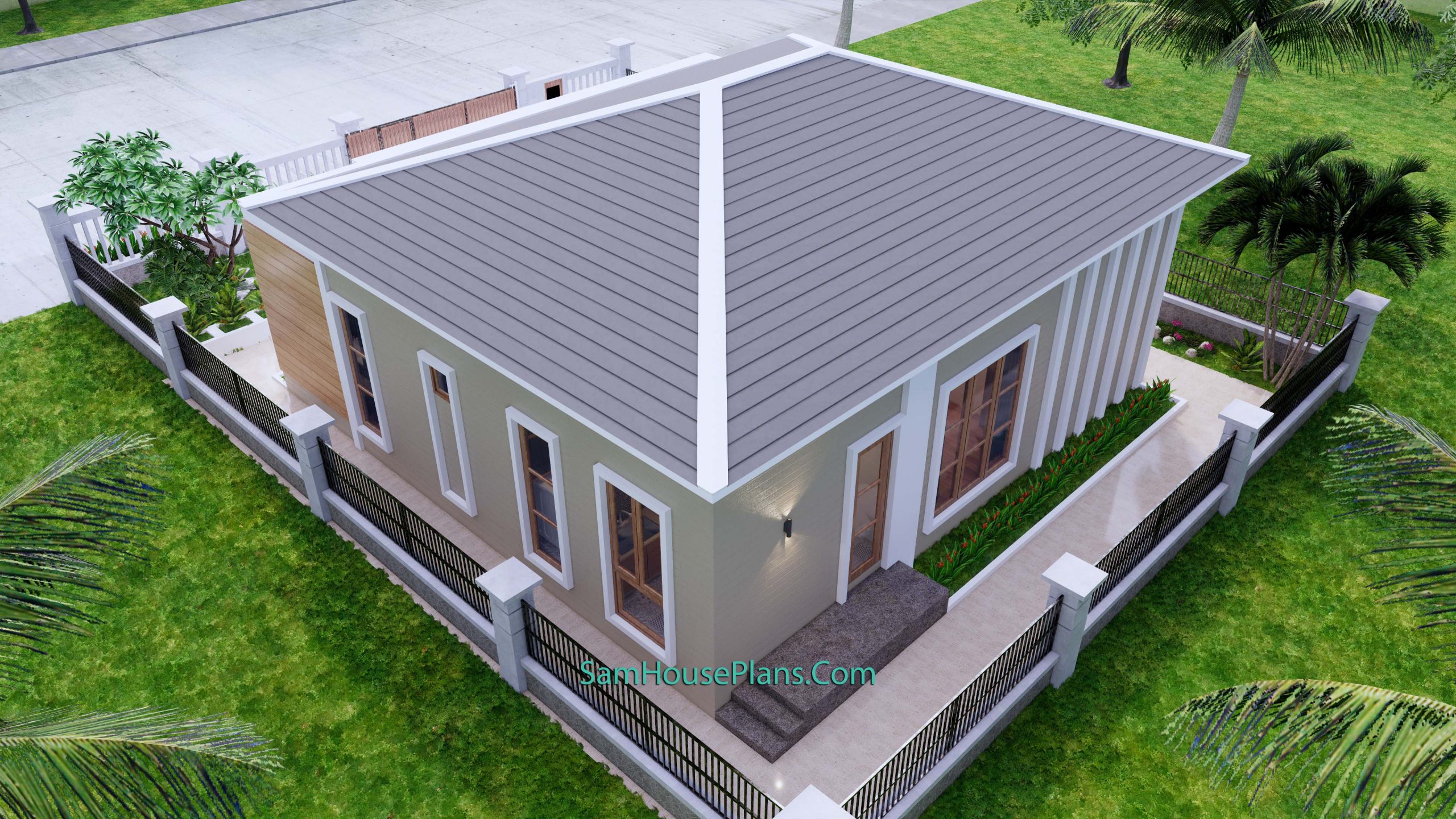

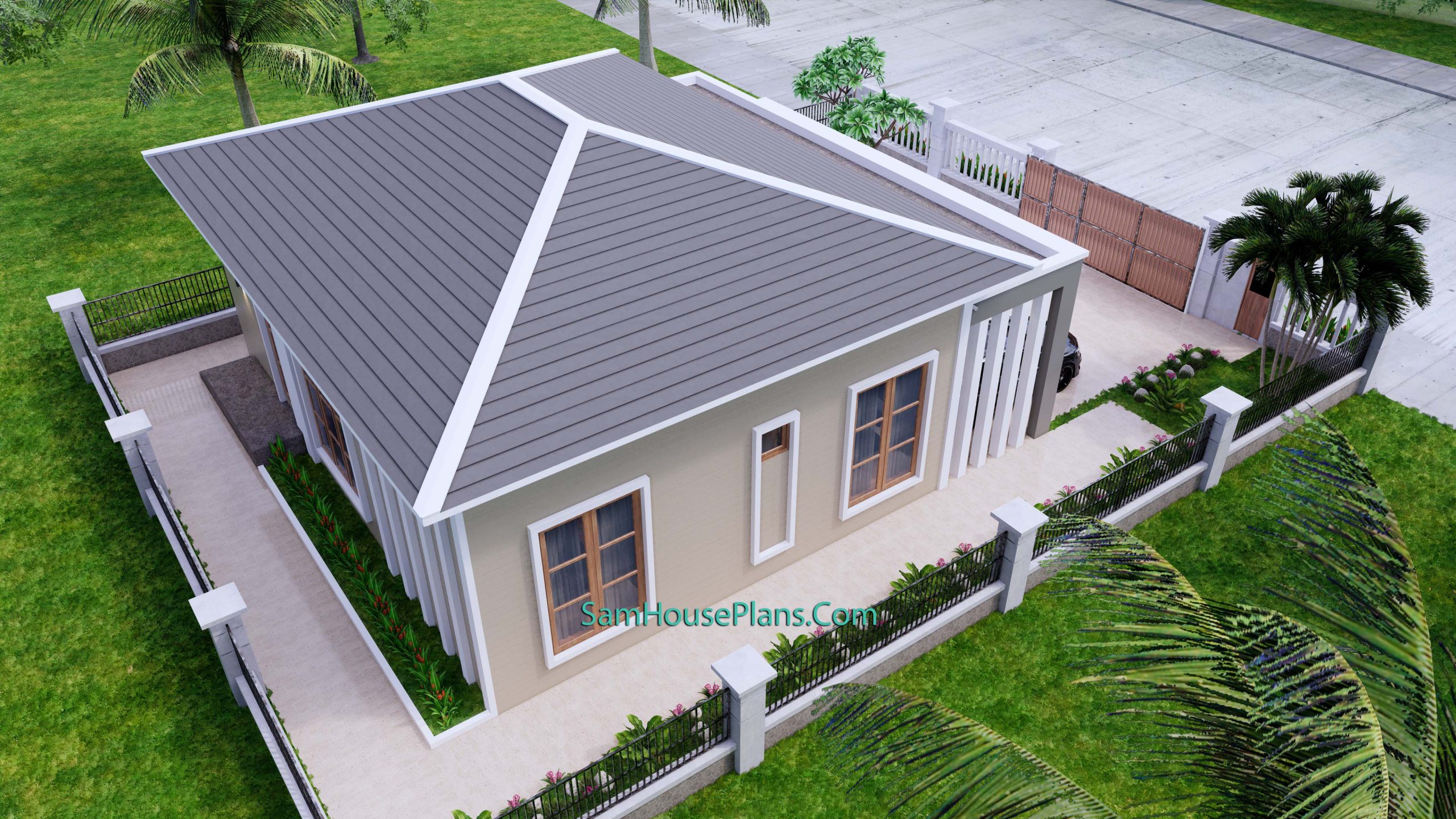

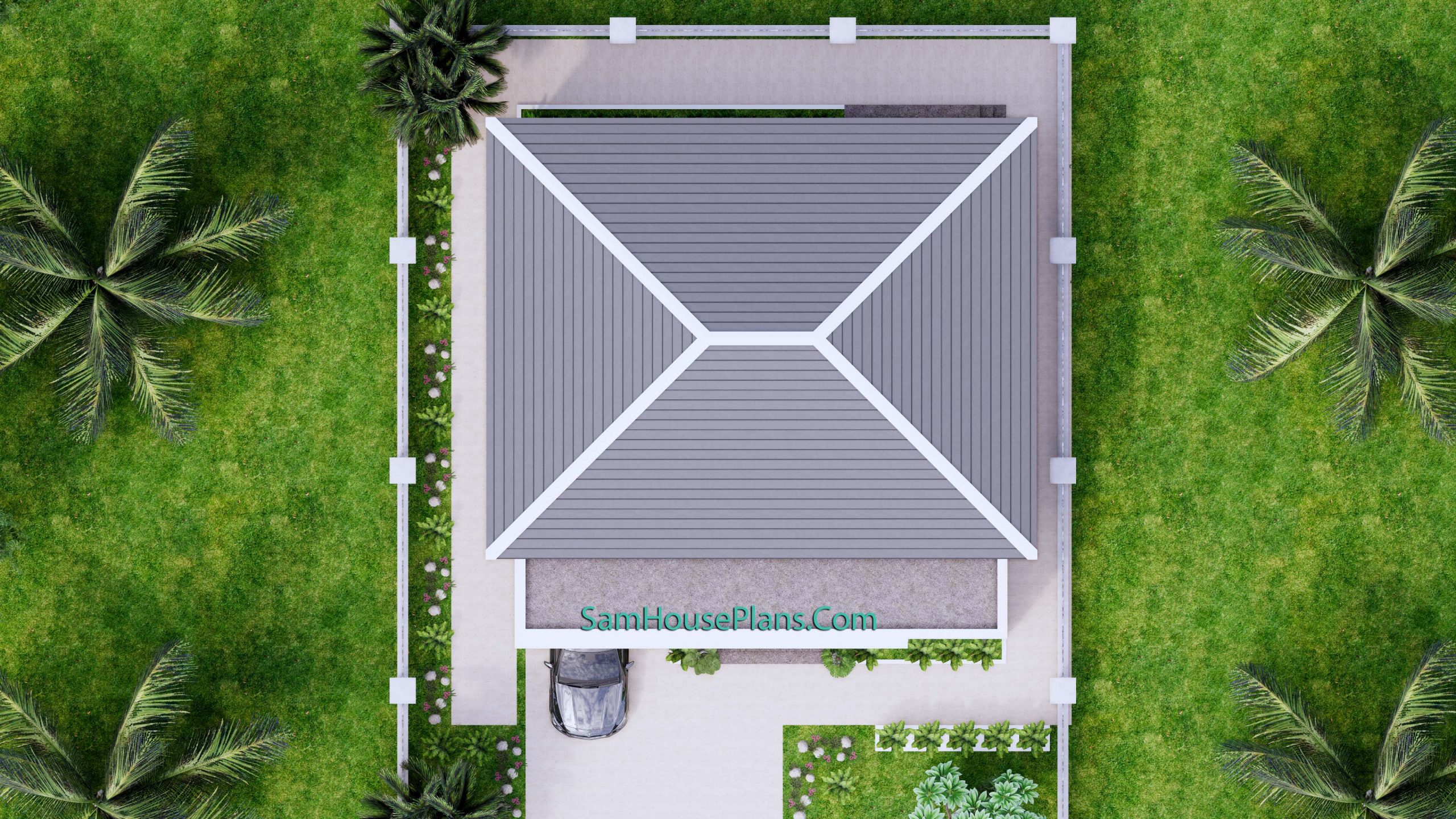

The Hip Roof Tile:

Finally, The Hip roof type is made from Cement tile that cover above Gypsum board ceiling . It is make the house look simple and modern.

House Short Description:

-One Car Parking and garden
-Living room,
-Dining room
-Kitchen
-3 Bedrooms, 2 bathrooms
-Small Storage
-washing room

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

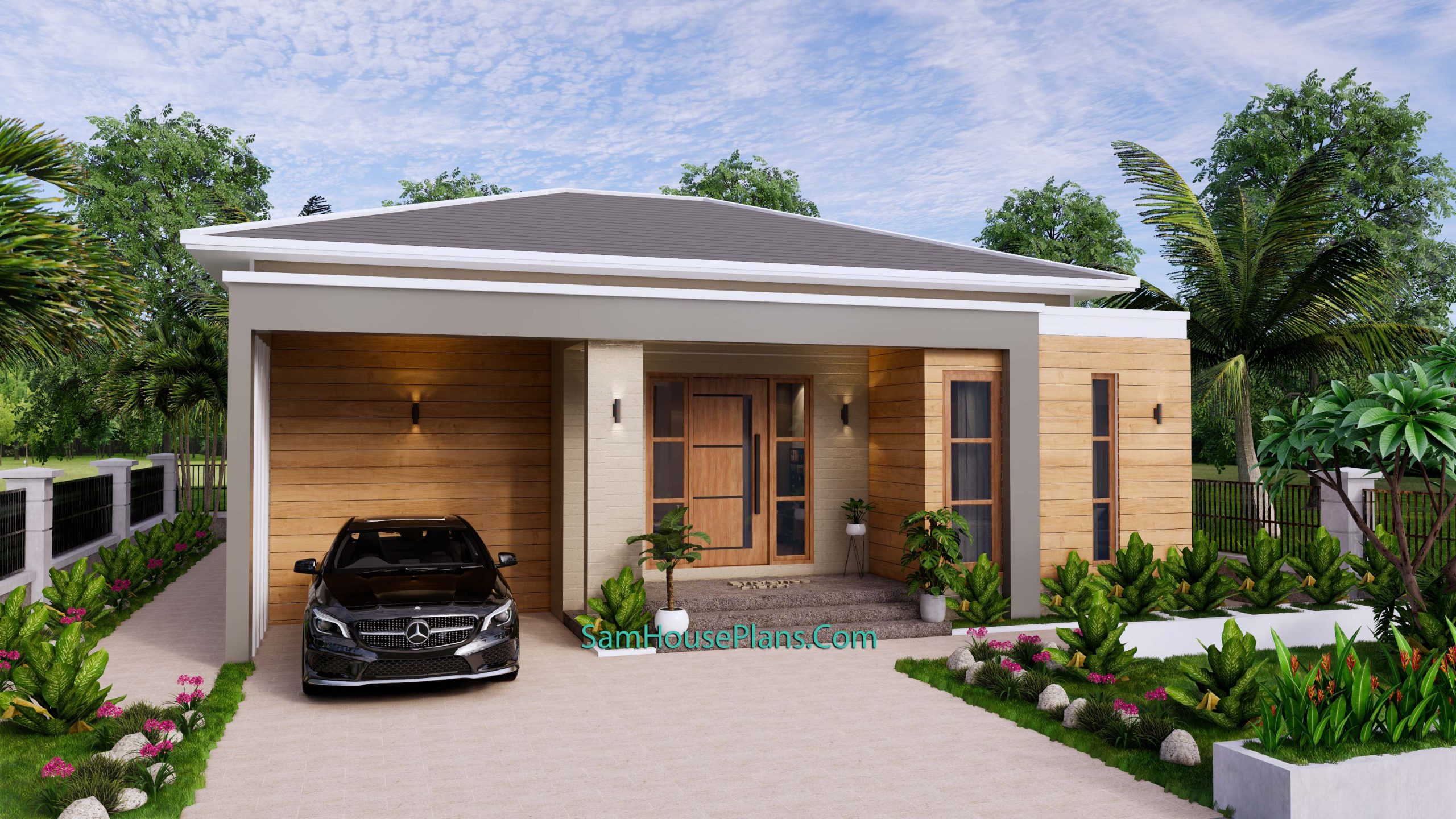

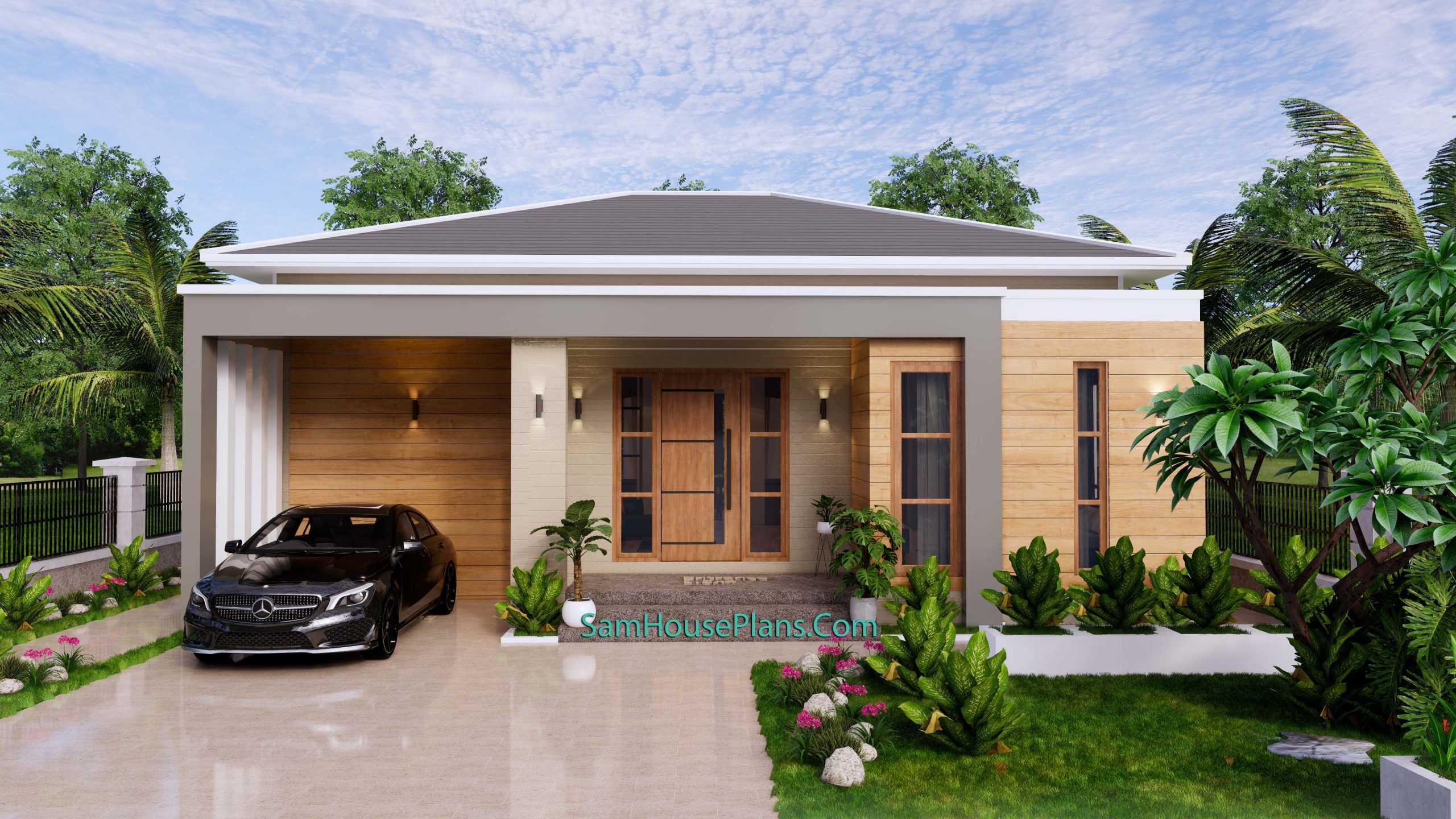

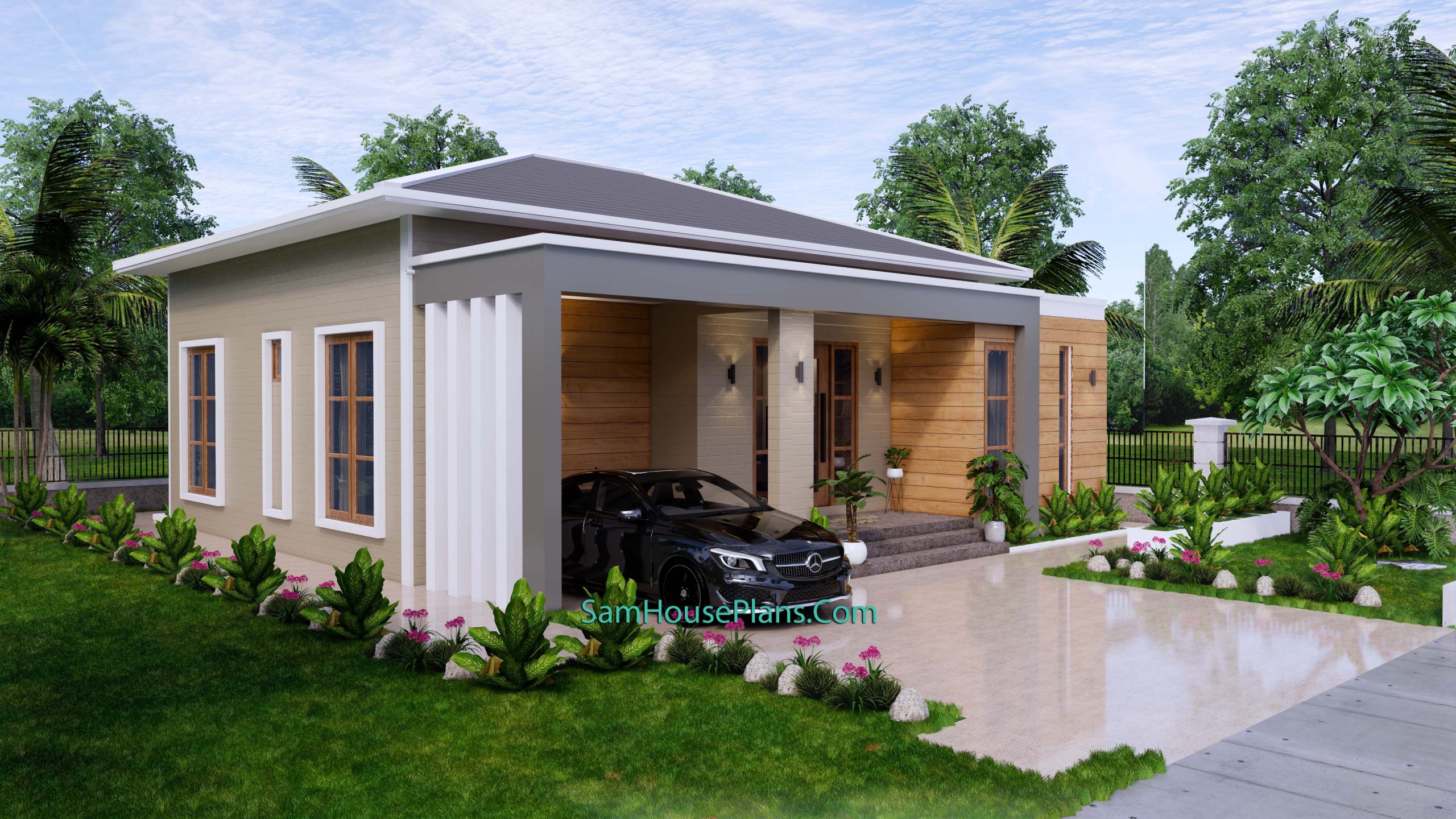

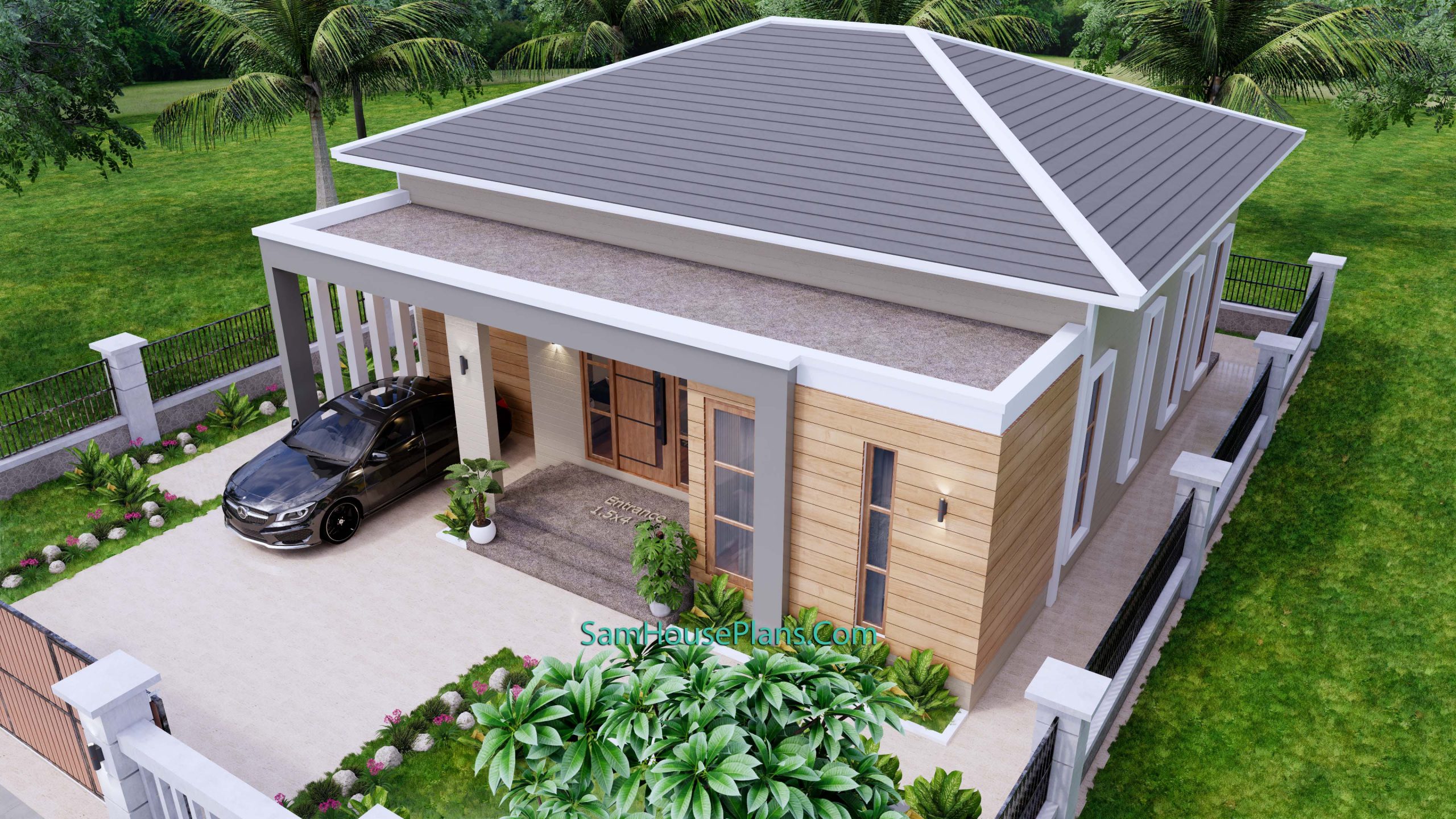

Exterior Design 3d:

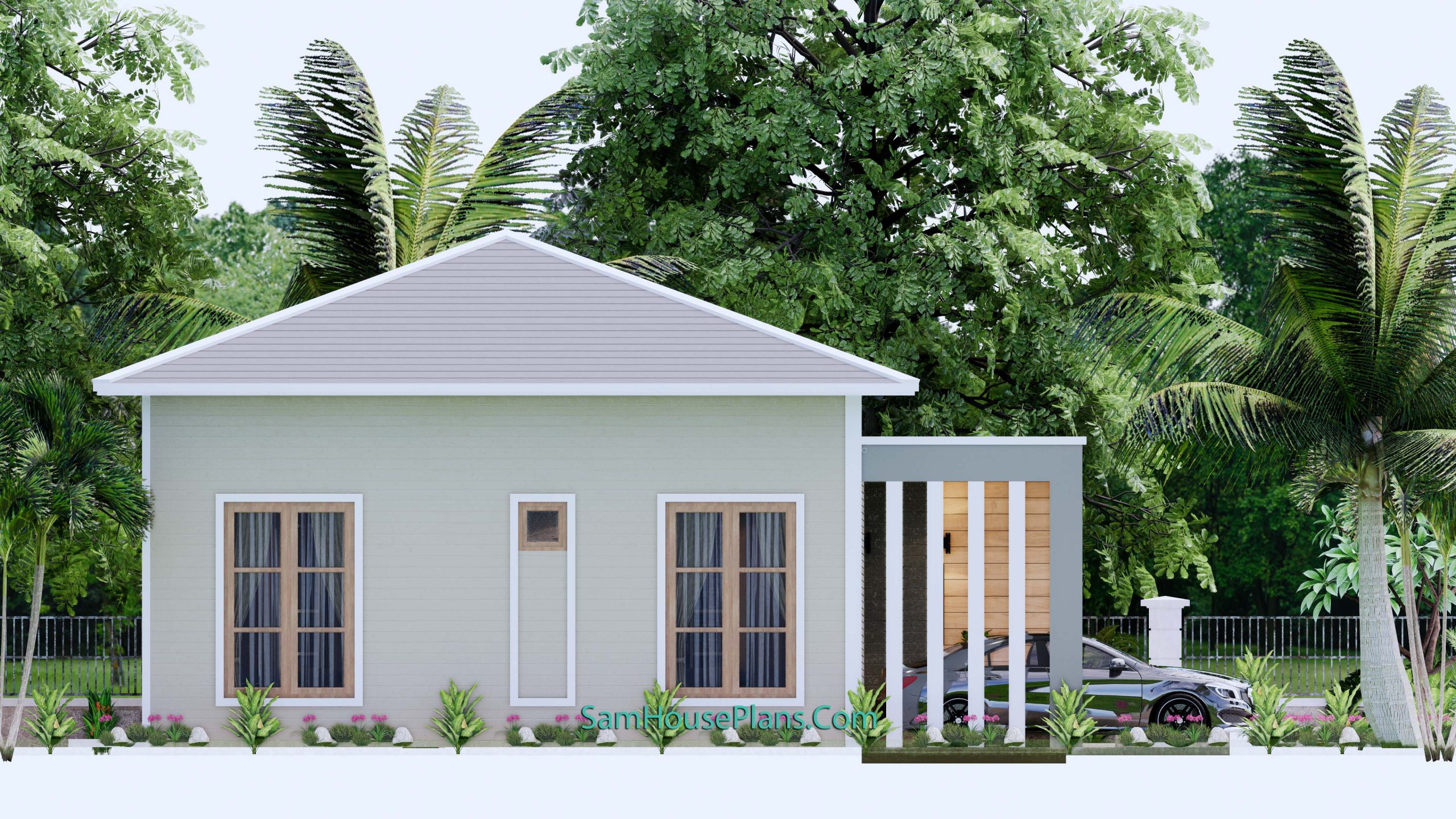

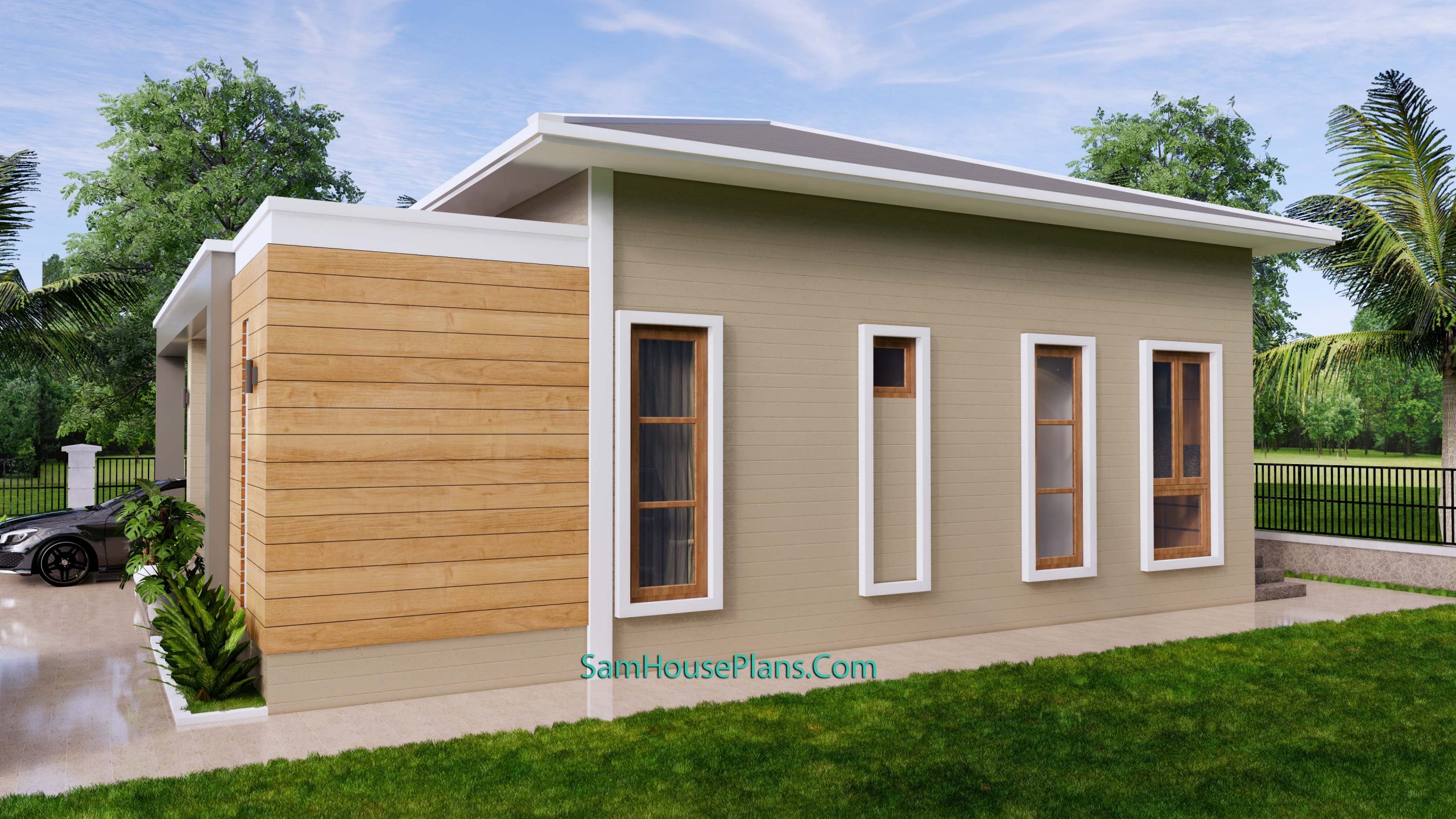

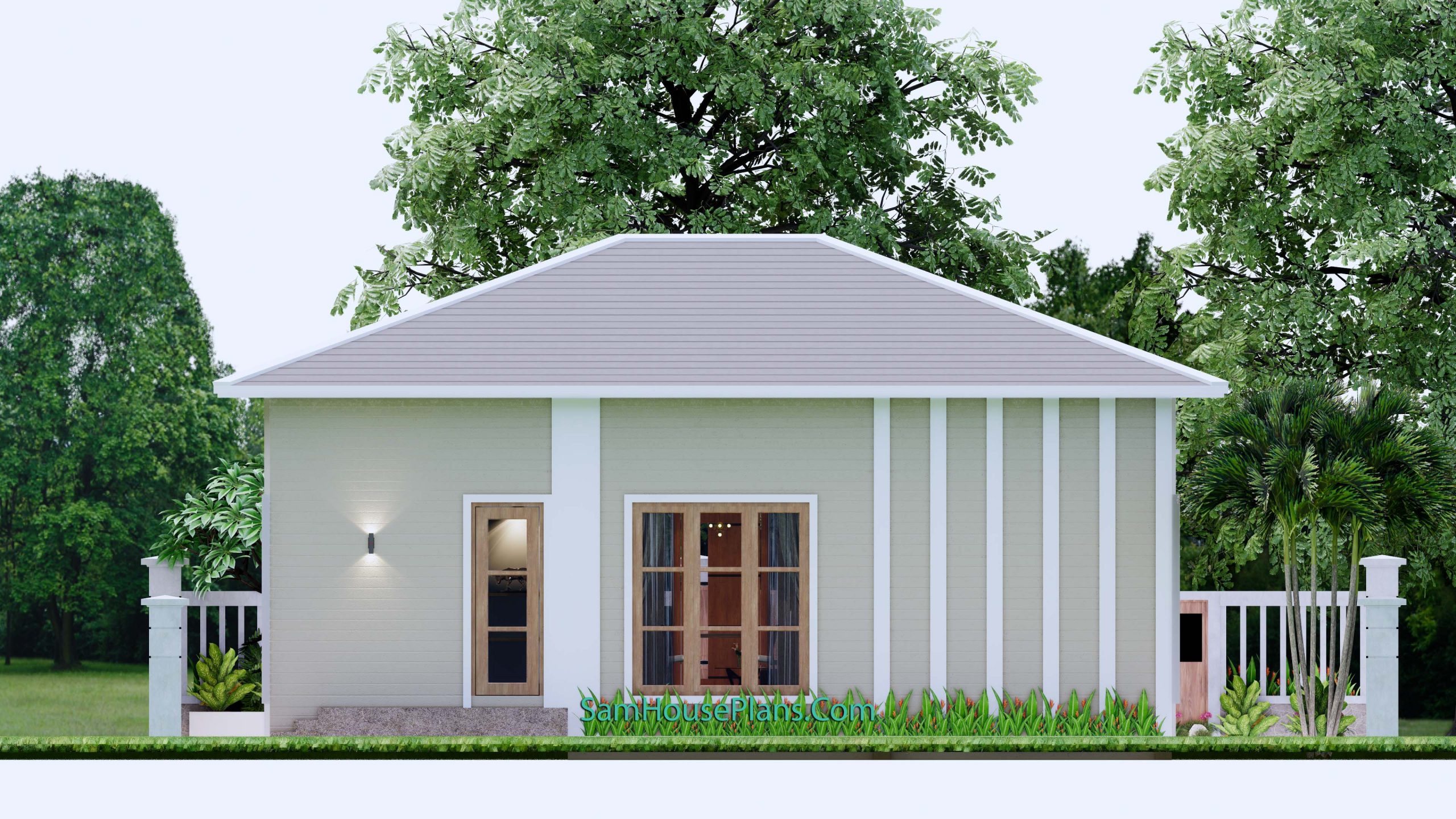

Elevation Design 3d:

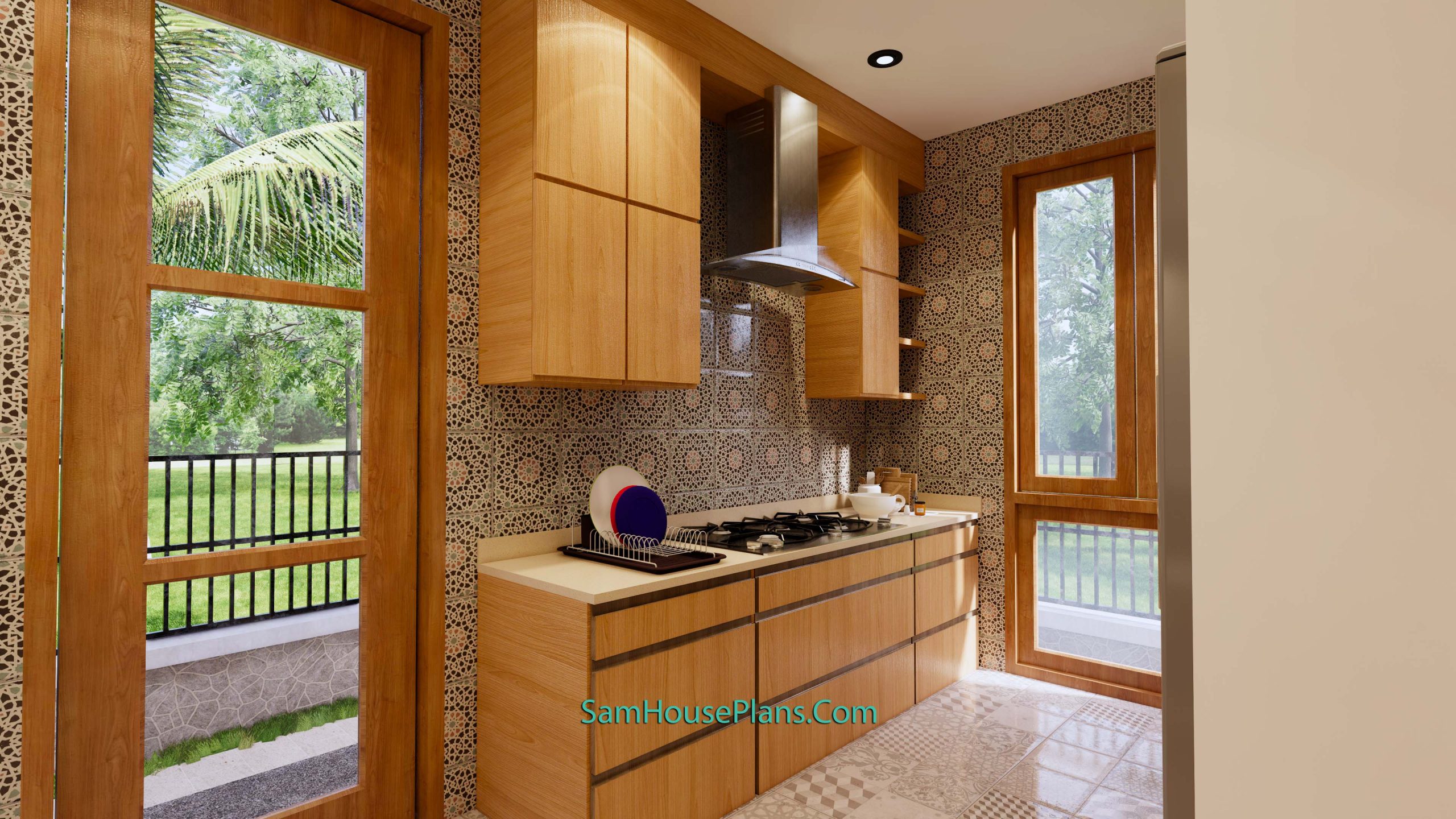

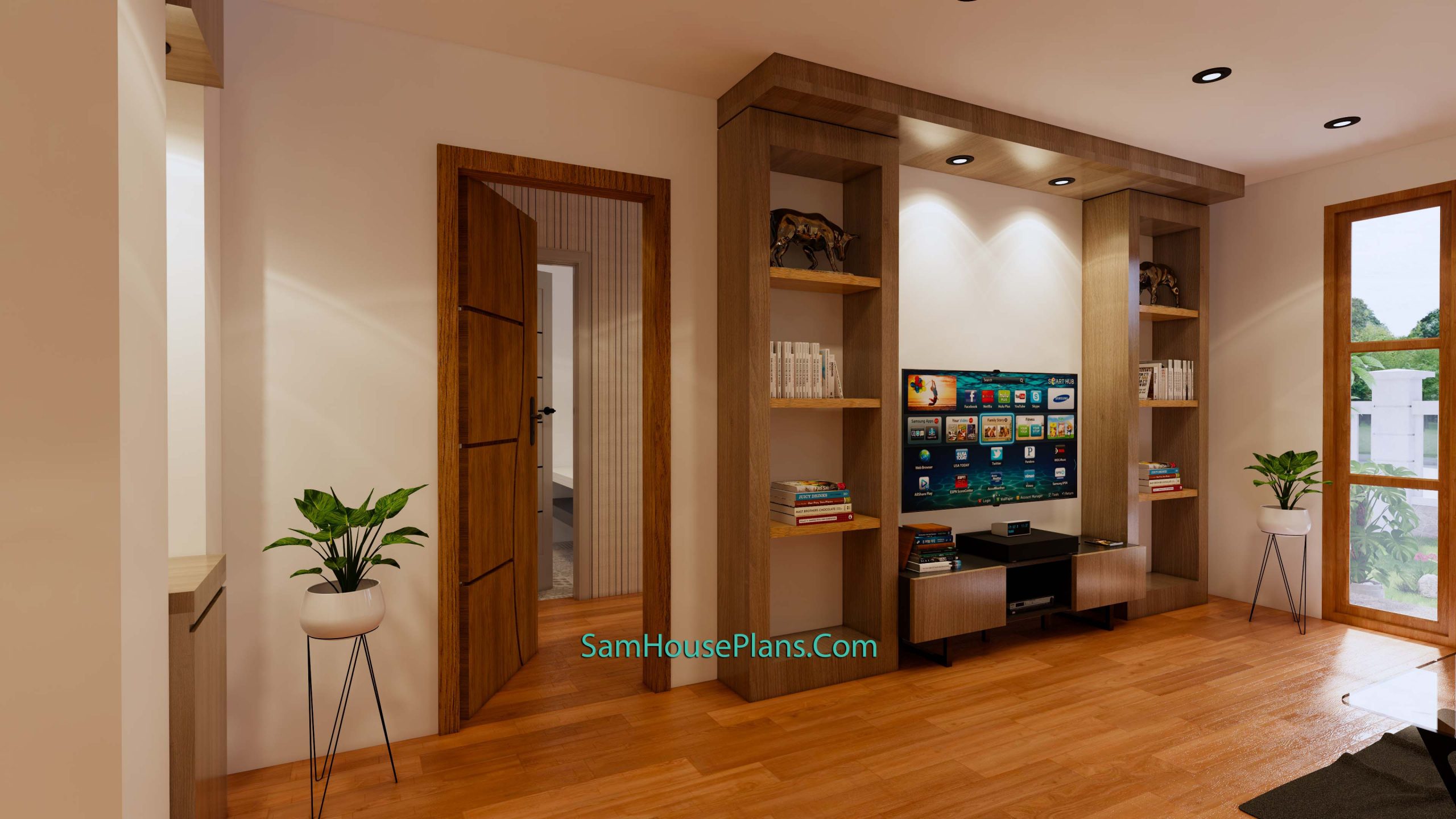

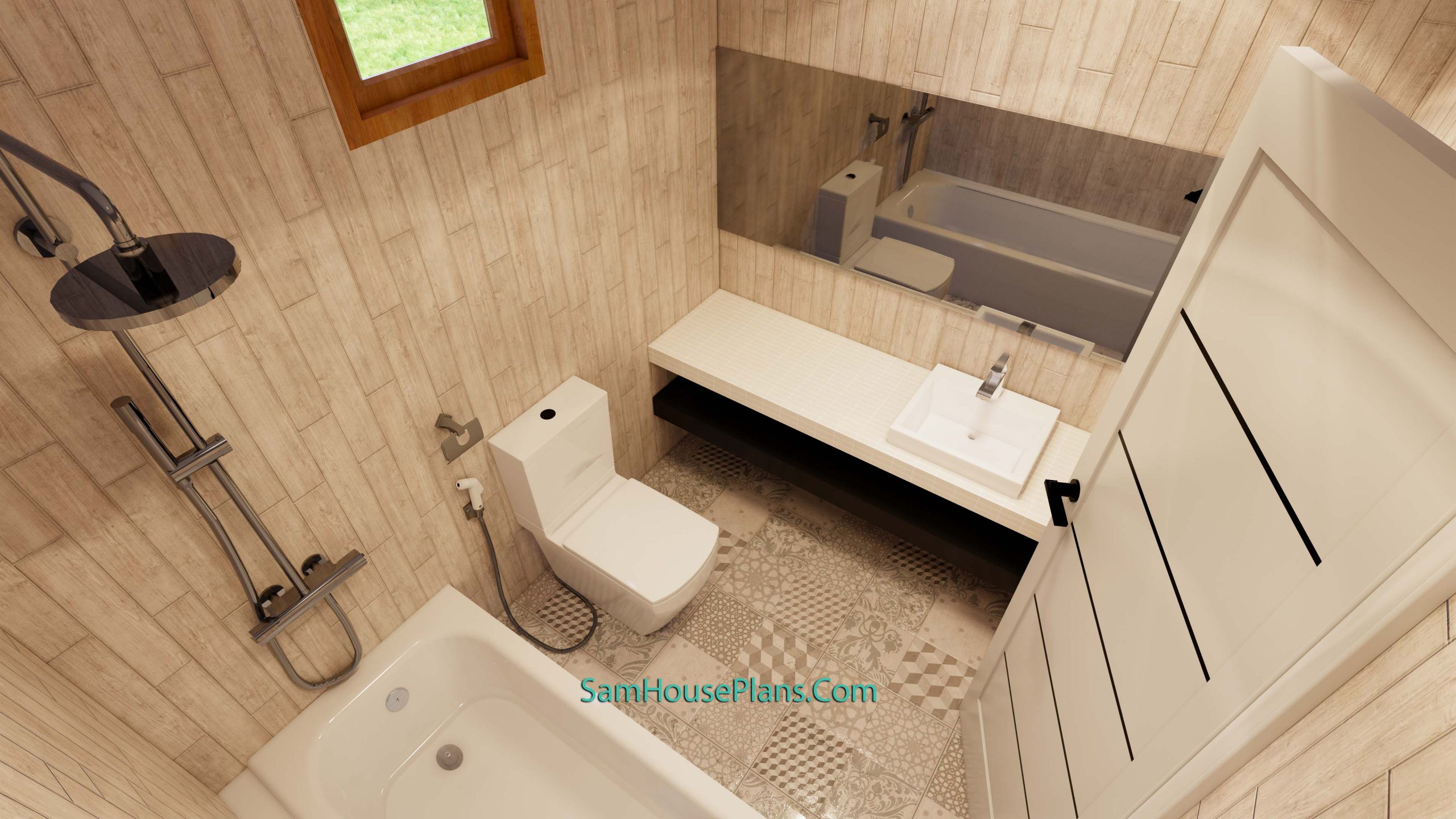

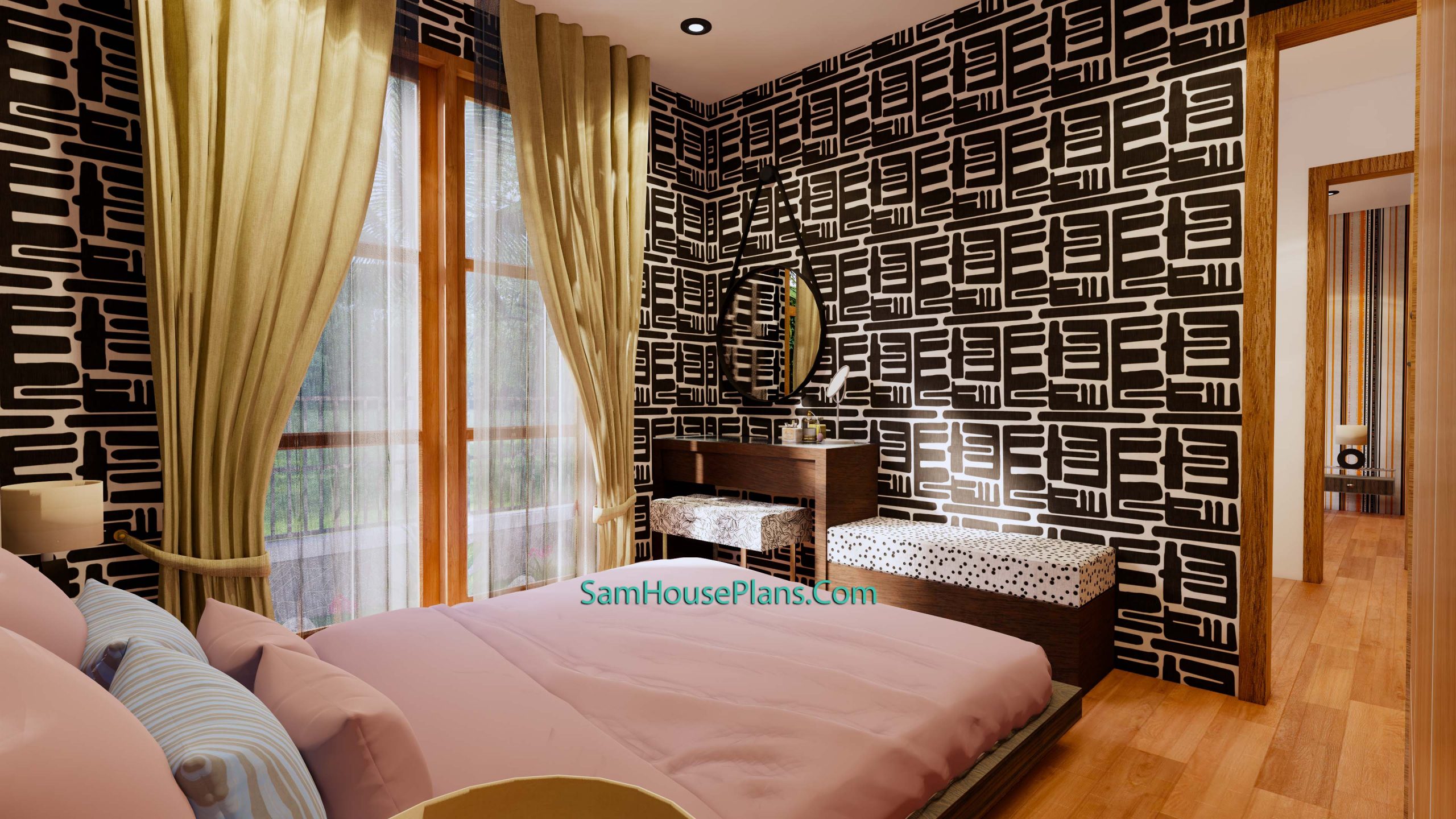

Interior Design 3d:

The PDF Layout Plans:





YOU WILL RECIEVED THE DETAILING AS BELOW AFTER BUYING THIS PLAN

Buy this house plan:

This is a PDF Plan available for Instant Download.

3-Bedrooms 2-Baths home with mini washer/dryer room.

Building size: 36 feet wide, 36 feet deep 11×11 Meters
Roof Type: Hip roof (Concrete cement, zine, cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
6 Cross Section plans
Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

CUSTOM PLANS:
Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own direction.

Delivery Instant Download

Your files will be available to download once payment is confirmed. Here’s how.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
