Granny Flat 7×5.2 Meter 1 Bedroom Gable Roof

$29.99

Buy this house plan: Granny Flat 7×5.2

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
2 Cross Section plans
Ceiling Lighting location Plan

-Google Sketchup 2019 file -AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

Description

Granny Flat 7×5.2 Meter 1 Bedroom Gable Roof 23×17 Feet Full Plans PDF Floor Plans.

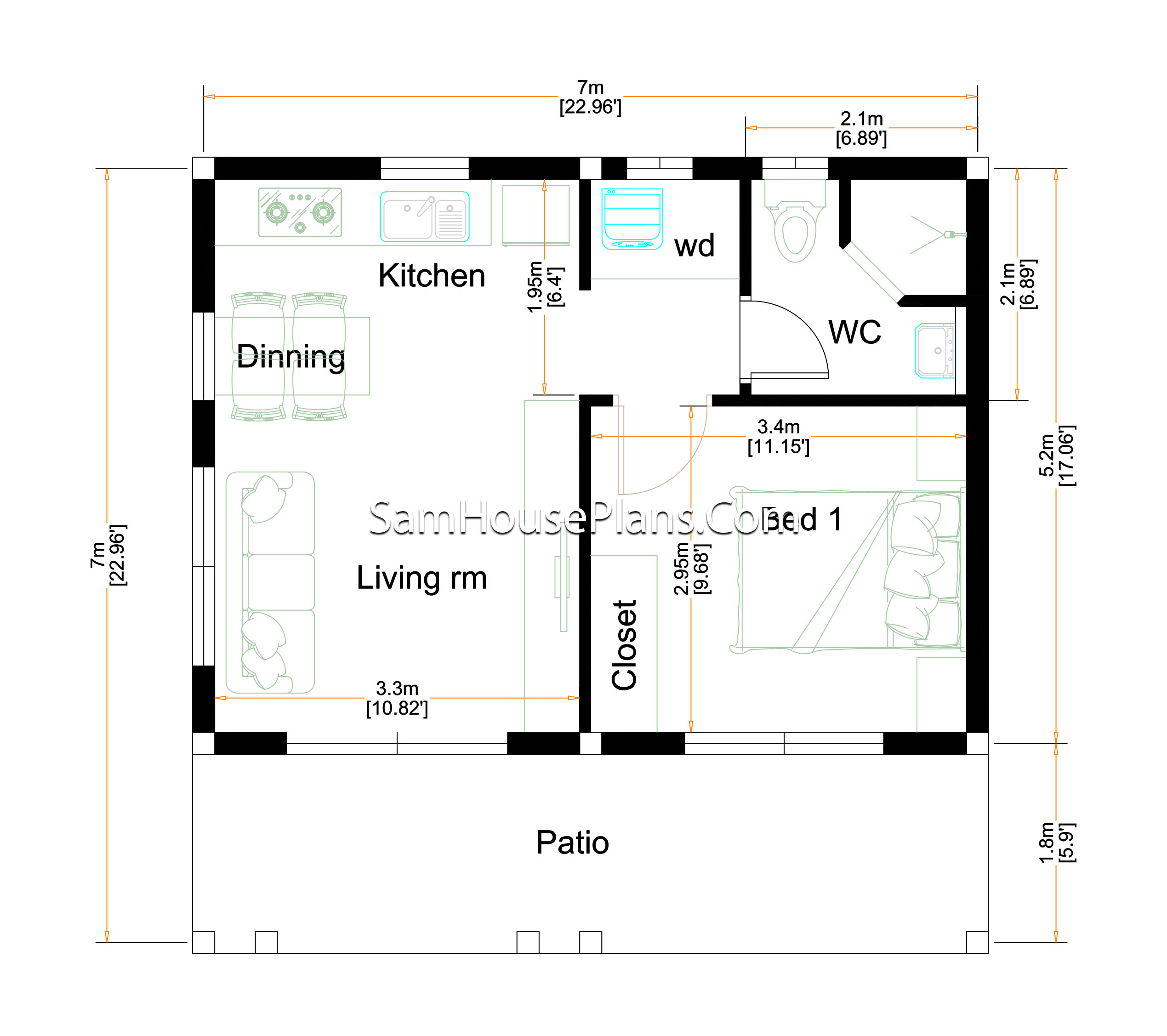

Granny Flat 7×5.2 Ground Floor Plans Has:

Firstly,  cars Parking is out side of the house. A nice Terrace entrance in front of the house 7×1.8 meters. When we are going from front door, a small Living 3.3×3 meter is very perfect for this house it is nice and modern. Brightly Kitchen with dining table 3.3×2 meter, it is clean and beautiful. A multi Bathroom size 2.1×2.1 meters. The washing machine is in front of the Bathroom 1.5×1 meter, storage is next to the tv stand.

The Master Bedroom size is 3.4×3 meters, it have a big glass window with a queen size bed, Makeup desk and closet.

The Roof Tile:

Finally, The Gable roof type is made from Cement roof tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

Granny Flat 7x5.2 Meter 1 Bedroom Gable Roof 1

Exterior Granny Flat 7×5.2:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

Granny Flat 7x5.2 Meter 1 Bedroom Gable Roof 3

House Short Description:

-Car Parking and garden
-Living room,
-Dining room
-Kitchen
-1 Bedroom, 1 bathroom
-Storage
-washing room

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

Buy this house plan:

This is a PDF Plan available for Instant Download.

1-Bedroom 1-Bath home with mini washer/dryer room.

Building size: 23  feet wide, 17 feet deep +6 feet Deck. In Meters 7×5.2.
Roof Type: Terrace roof (Concrete cement or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
2 Cross Section plans
Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

CUSTOM PLANS:
Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.

Delivery Instant Download

Your files will be available to download once payment is confirmed. Here’s how.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: House Plans Channel
If you think this Plan is useful for you. Please like and share.

Granny Flat 7x5.2 Meter 1 Bedroom Gable Roof 2

Granny Flat 7x5.2 Meter 1 Bedroom Gable Roof dining

Granny Flat 7x5.2 Meter 1 Bedroom Gable Roof Kitchen

Granny Flat 7x5.2 Meter 1 Bedroom Gable Roof bedroom
