Modern House Design 15×9 M 49×30 Feet PDF Plan

Original price was: $99.00.Current price is: $19.99.

Buy this: Modern House Design 15×9

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan

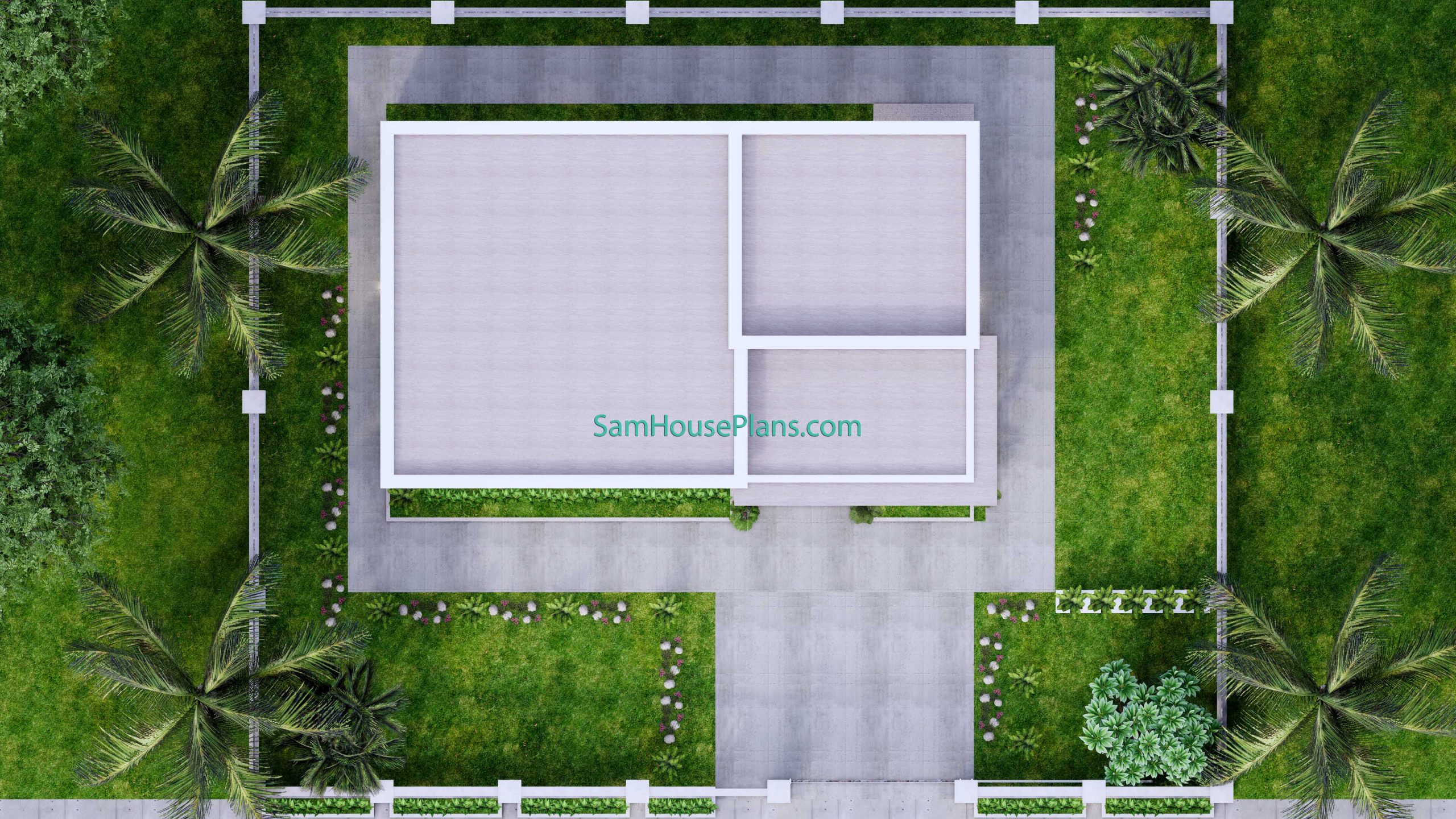

Roof Plan
Elevations plans
6 Cross Section plans
Lighting location Plan

-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

Click Here to Download the Sample Plan


Modern House Design 15×9 M 49×30 Feet 3 Beds PDF Plan Terrace Roof full plan. This villa is modeling by SAM-ARCHITECT With One story level. It’s has 3 bedrooms 3 Bathrooms.

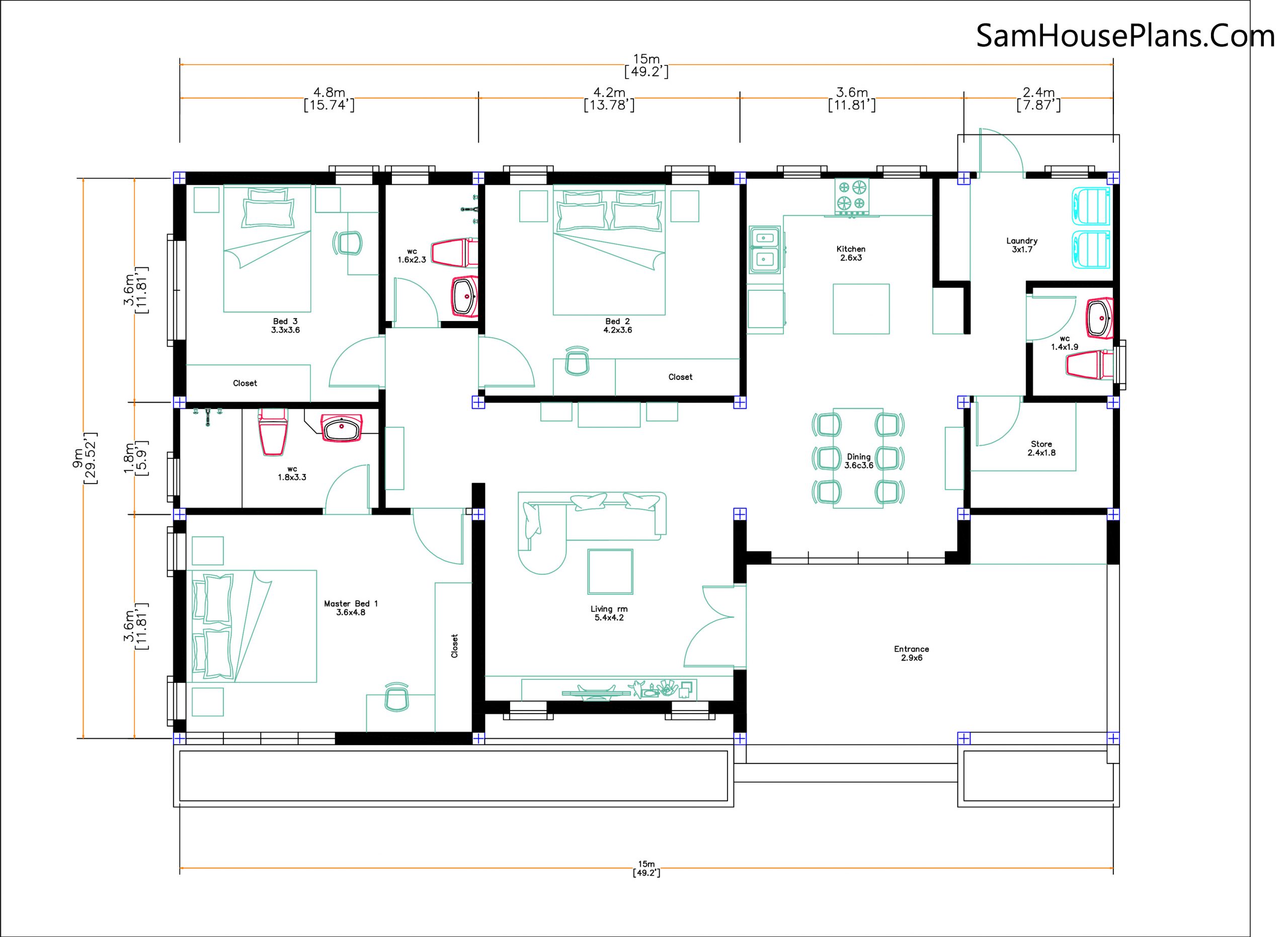

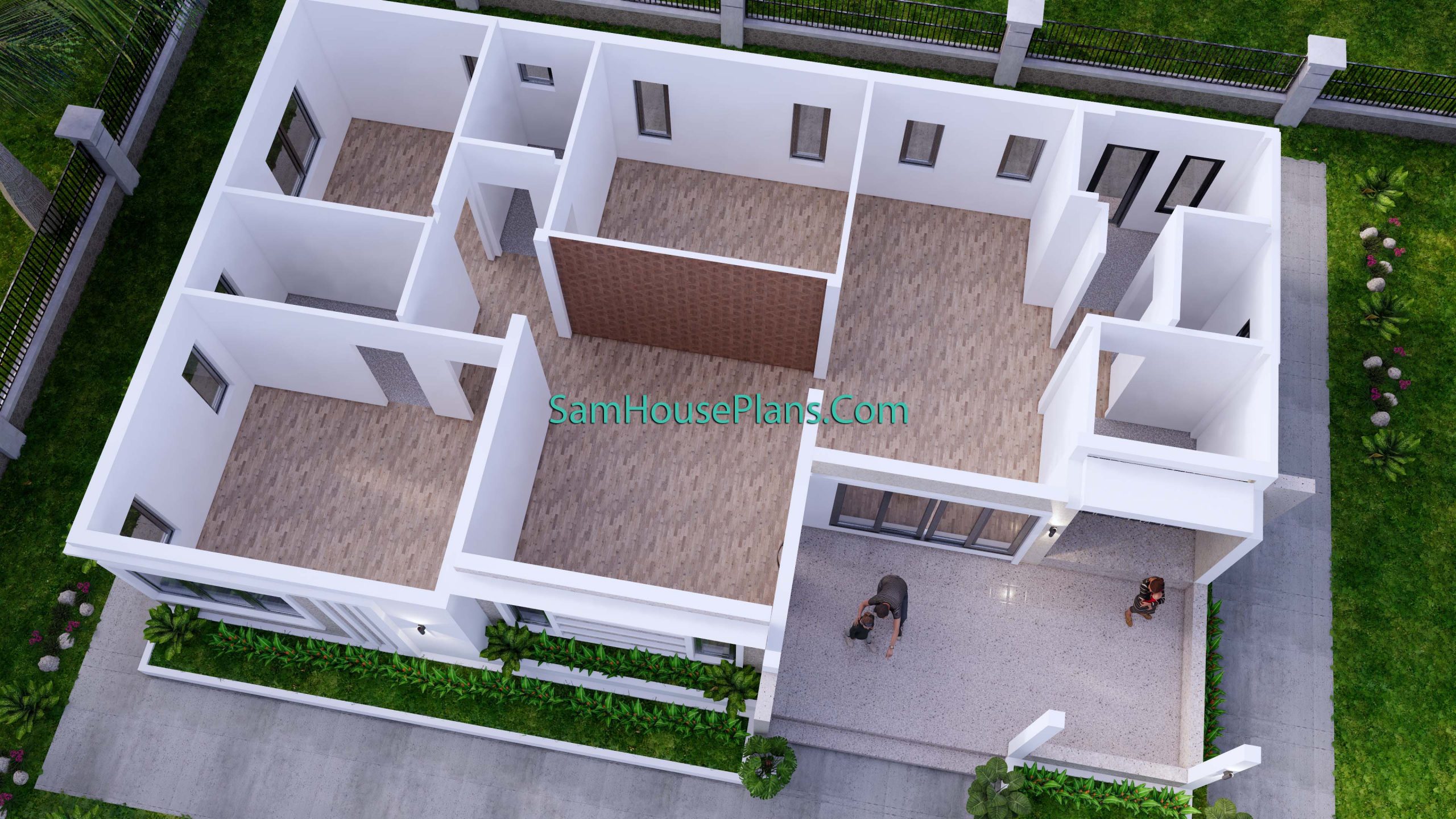

Modern House Design 15×9 Ground Floor Plans Has:

Modern House Design 15×9 has: car Parking is out side of the house. A nice entrance in front of the house 2.9×6 meter. When we are going from front door, a small Living 5.4×4.2 meter is very perfect for this house it is nice and modern. Brightly Kitchen 2.6×3 meter with dining table 3.6×3.6 meter, it is clean and beautiful. A multi Bathroom size 1.4×1.9 meters. The laundry is near the kitchen 3×1.7 meter.

The Master Bedroom size is 3.6×4.8 meters, it has big glasses window near the bed head, Makeup desk and walk in closet, attached with bathroom 1.8×3.3 meter. Bedroom 2 size 4.2×3.6 meters, bedroom 3 size 3.3×3.6 meters. Multiple bathroom size is 1.6×2.3 Meter.

Exterior Modern House Design 15×9:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

The Roof Tile:

Finally, The Hip roof type is made from Concrete tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

House Short Description:

-Out door Cars Parking and garden
-Living room,
-Dining room
-3 Bedrooms, 3 bathrooms

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

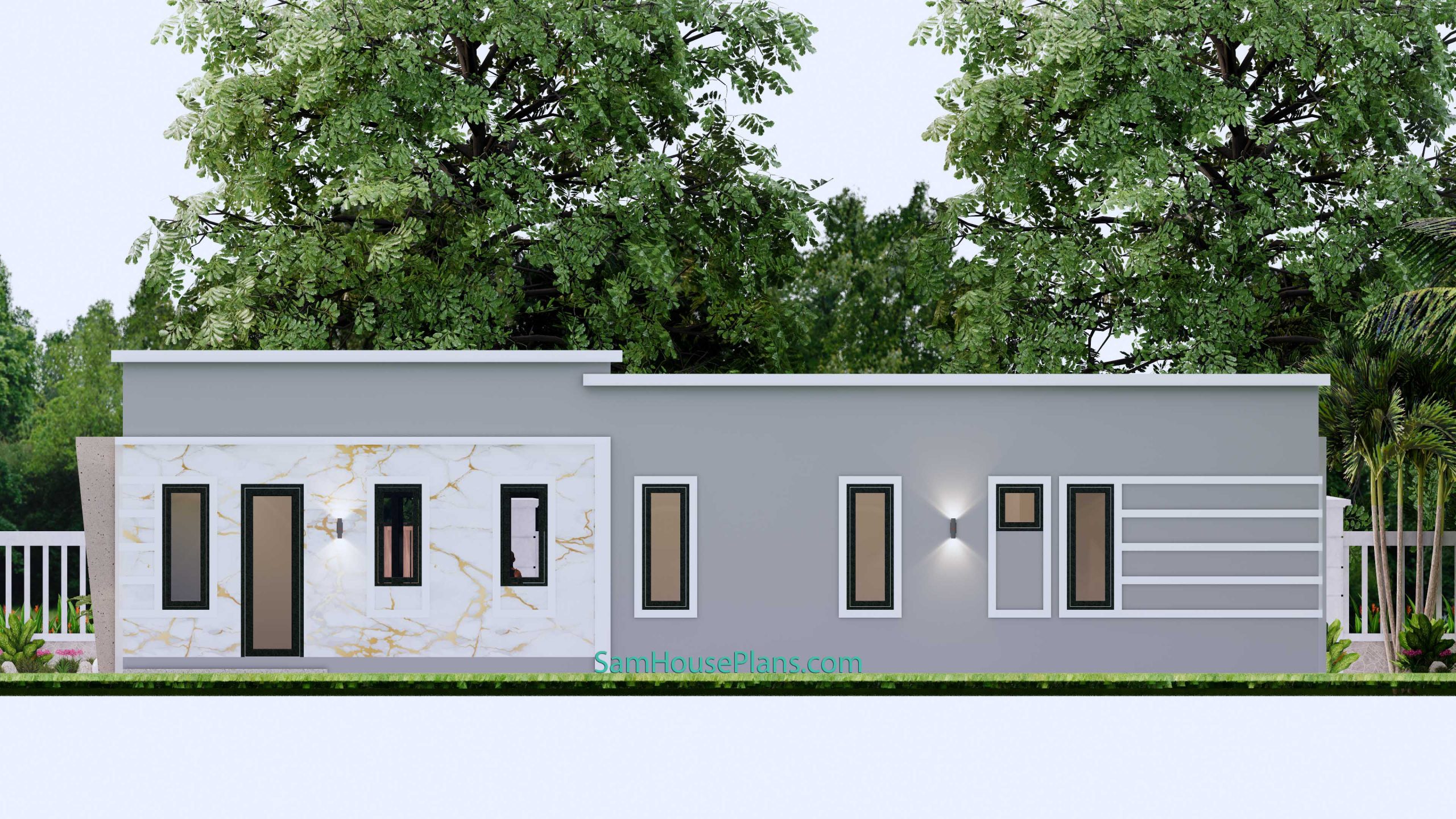

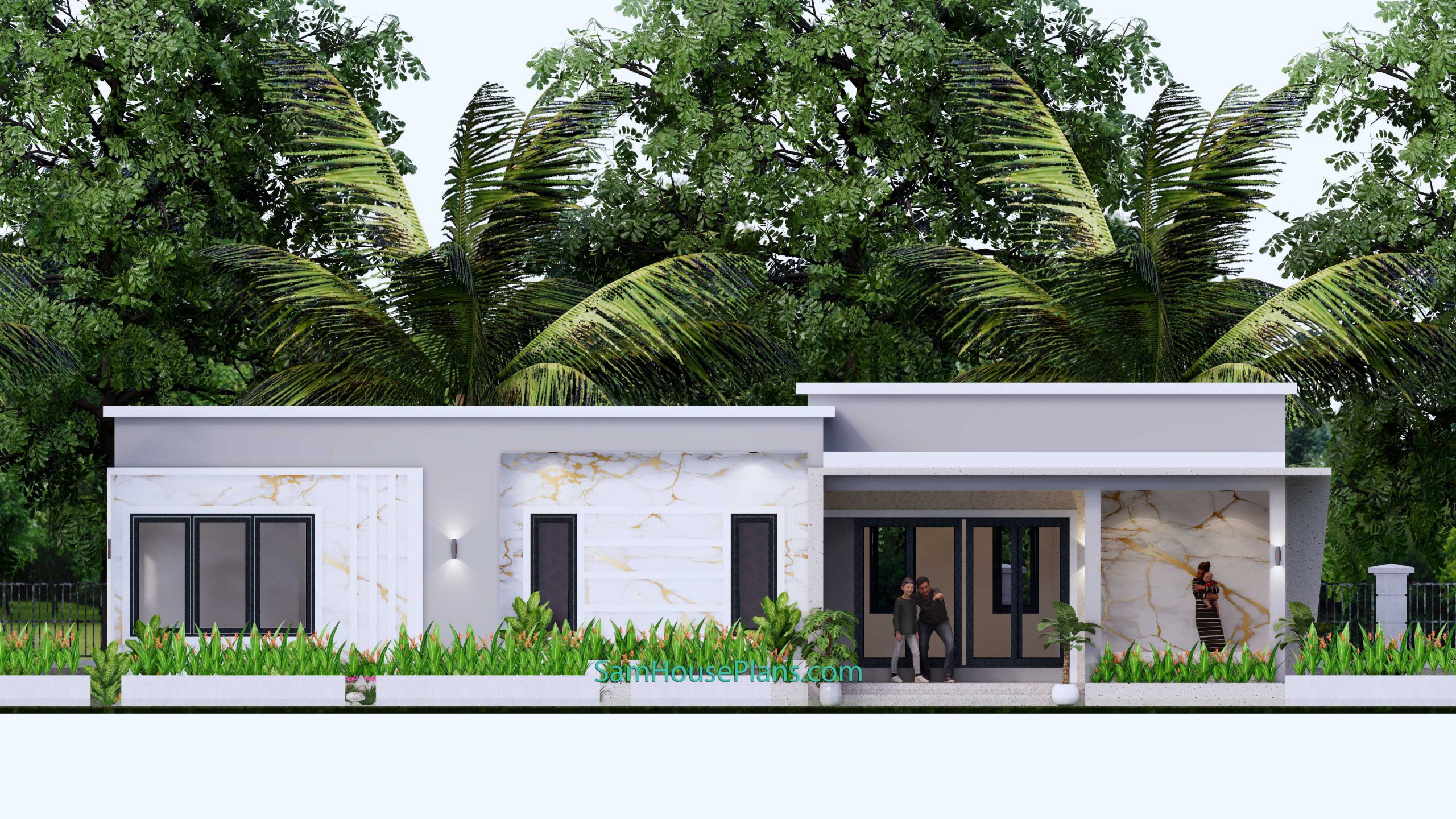

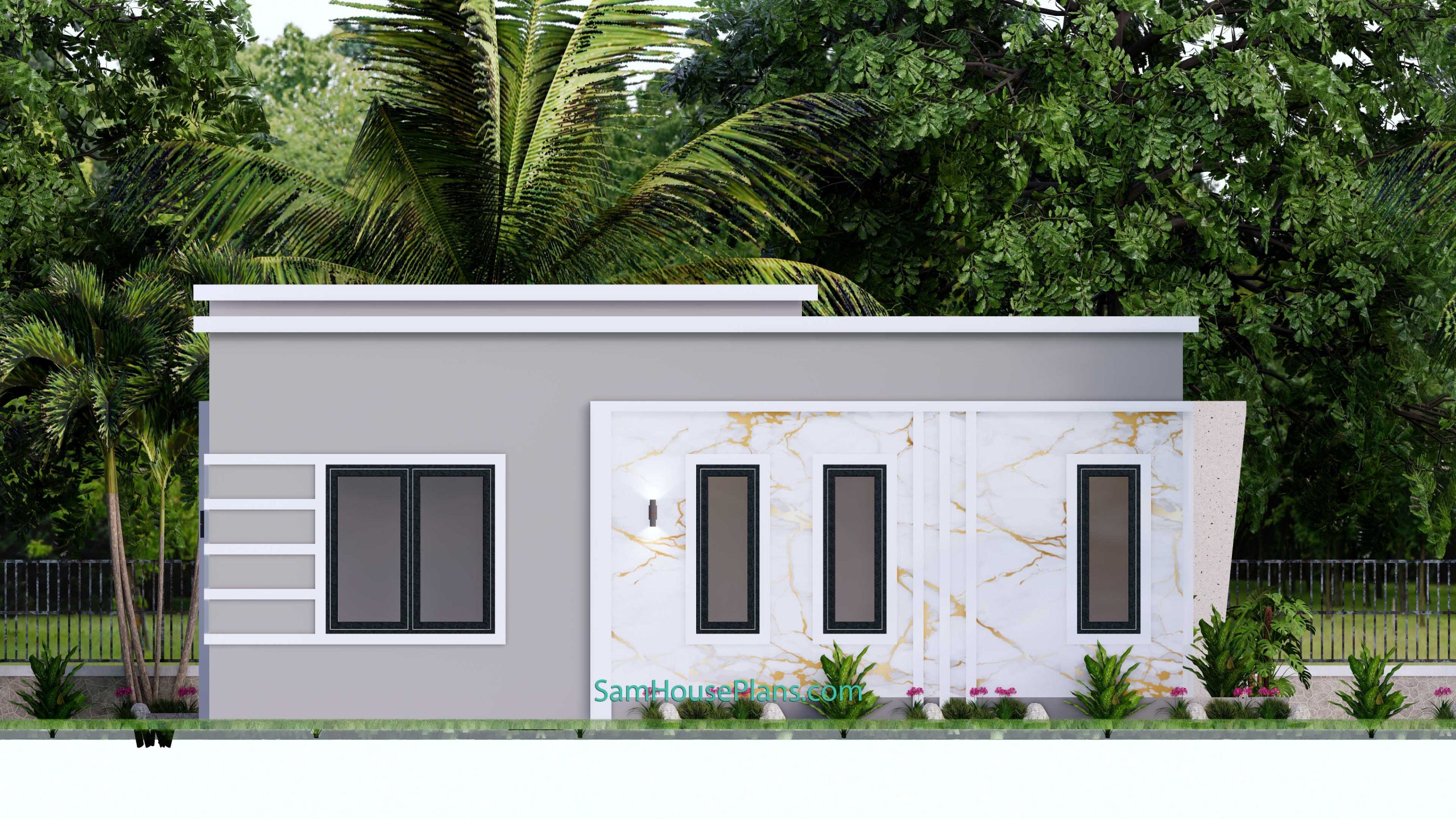

Elevation Modern House Design 15×9

3D Exterior Modern House Design 15×9

Buy this house plan:

This is a PDF Plan available for Instant Download.

3-Bedrooms 3-Baths home with mini washer/dryer room.

Building size: 49 feet wide, 30 feet deep 15×9 Meters
Roof Type: Terrace roof (Concrete cement, zine, cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.


Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
4 Cross Section plans
Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

Unfortunately I’m unable to do custom plans at this time.


These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.

Delivery Instant Download

Your files will be available to download once payment is confirmed. Here’s how.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: House Plans Channel
If you think this Plan is useful for you. Please like and share.

In link download -Ground floor, First floor, 3d photo -Sketchup file -Autocad file (Layout plan)

We give you all the files, so you can edited by your self  or your Architect, Contractor.
