House Plans Plot 10x20m With 3 Bedrooms

Original price was: $99.00.Current price is: $9.99.

PLANS INCLUDE Small House Design 5.5×8:

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
Cross Section plans
Ceiling Lighting location Plan

Architectural Files included:

-Google Sketchup 2019 file
-AutoCad 2018 files
We give you all the files, so you can edited by your self  or your Architect, Contractor.

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

Click Here to Download the Sample Plan

SKU: 452389126862 Categories: , Tag:

Description

House Plans Plot 10x20m With 3 Bedrooms PDF Full Plan. This house is perfect for family that need 3 bedrooms.

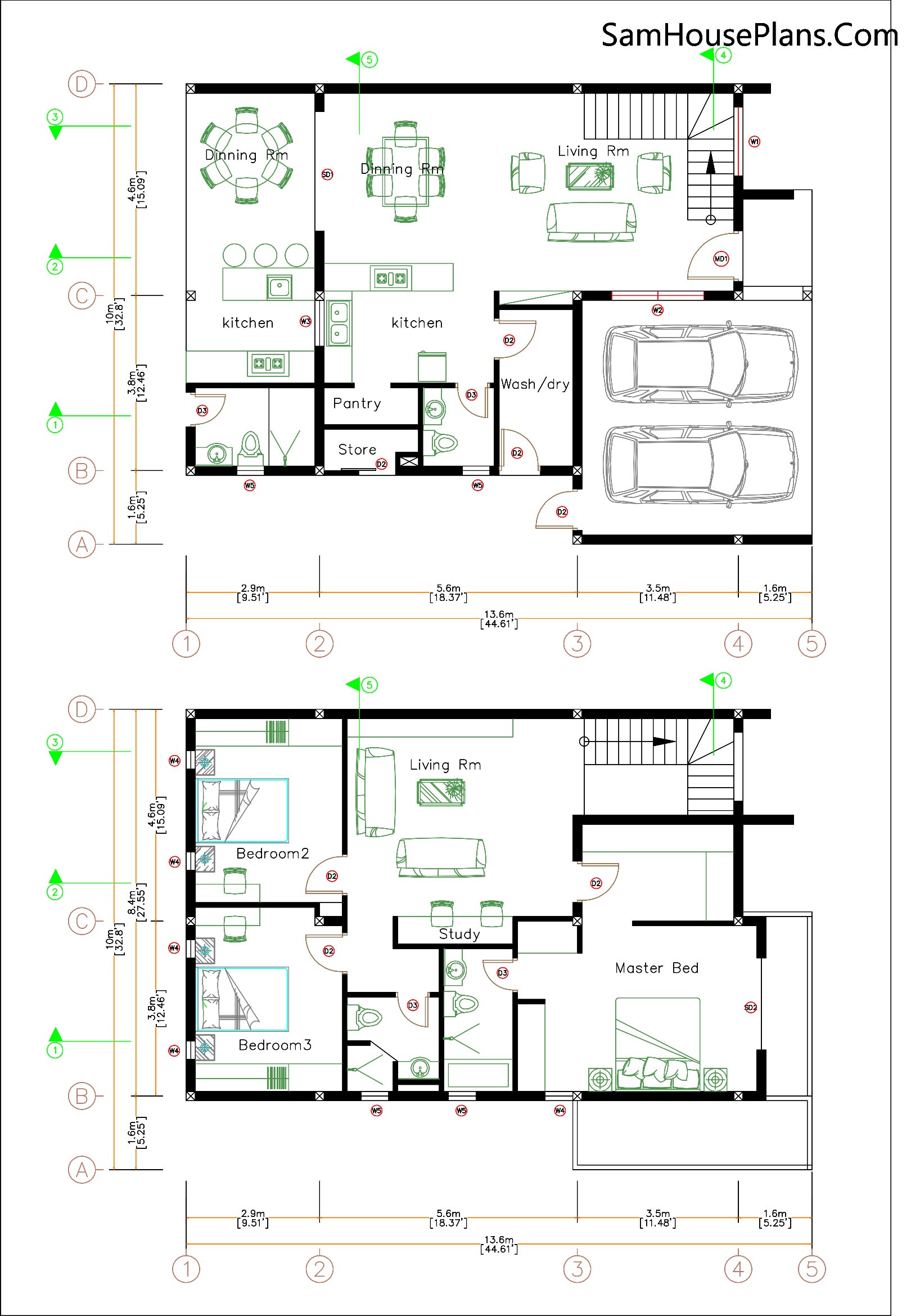

House Plans Plot 10x20m Floor Plans Has:

With this House Plans Plot 10x20m, 2 Cars Parking is at the left side of the house. A nice 2 steps entrance to go through the front door,  a Living area of 4.6×5.2 meter is very perfect for this house it is nice and modern, along with dining area 3.7×3.5 meter. Brightly Kitchen area 2.6×3.7 meter, it is clean and beautiful. A multi Bathroom size 1.6×1.7 meters. The washing machine 3.4×1.6 Meter. Back door kitchen with bar counter and round dining table. Back house bathroom 1.7×2.6 Meter. Small storage and kitchen pantry.

At first floor big family room with study area, 2 bathrooms and 3 bedrooms.

Exterior House Plans Plot 10x20m:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

The Terrace Roof Tile:

Finally, The Terrace roof type is made from cement concrete that cover above Gypsum board ceiling . It is make the house look simple and modern.

House Plans 10x20m with 3 bedrooms front 3d 12

House Short Description:

-Car Parking and garden
-Living room,
-Dining room
-Kitchen
-3 Bedrooms, 4 bathrooms
-Small Storage under the stair
-washing
-Stair case can access to the first floor unit

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

Exterior Design 3d:

Elevation Design 3d:

Interior Design 3d:

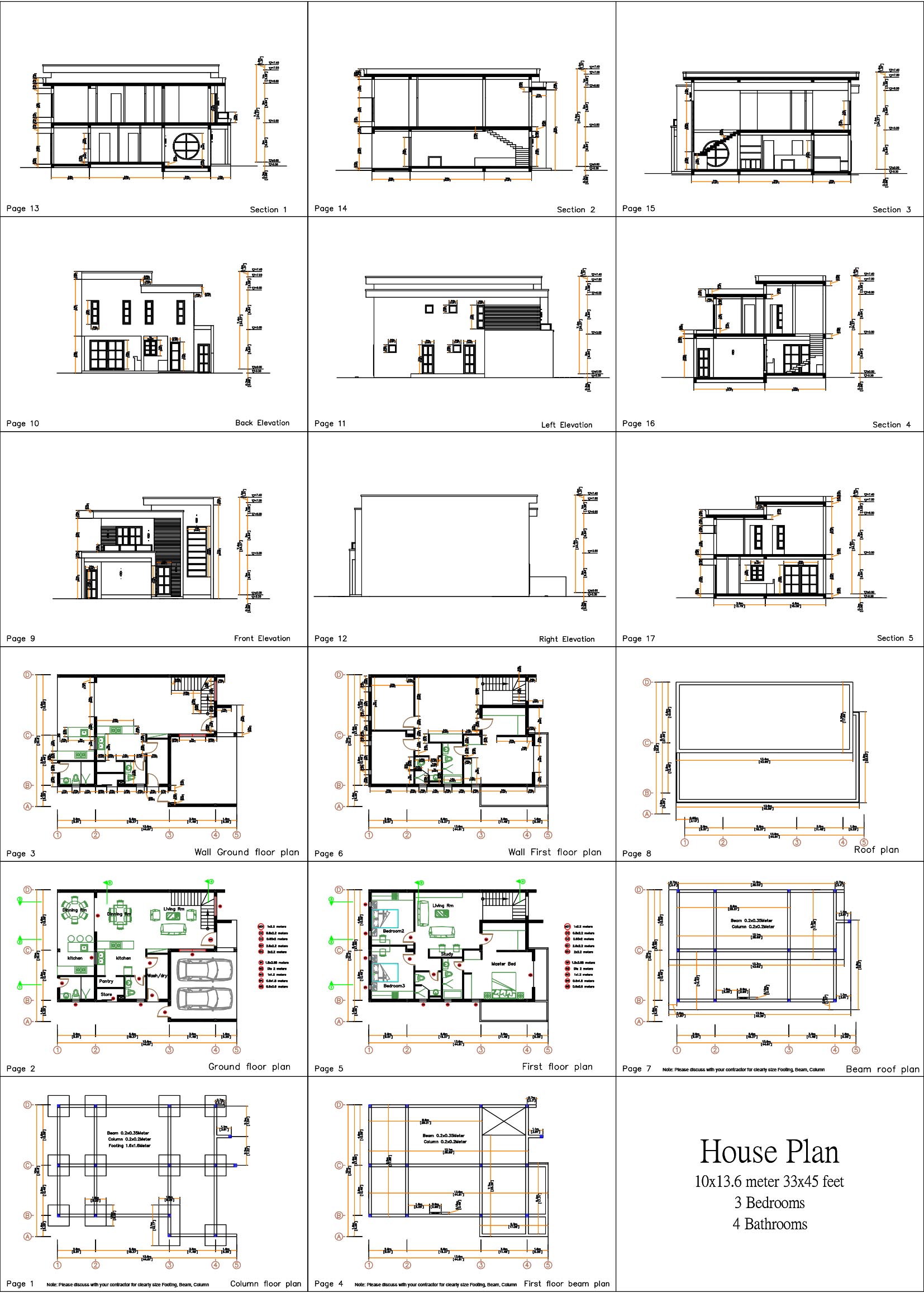

The PDF Layout Plans:

YOU WILL RECIEVED THE DETAILING AS BELOW AFTER BUYING THIS PLAN

Buy this House Plans Plot 10x20m :

This is a PDF Plan available for Instant Download.

3-Bedrooms 4-Baths home with stair case access to the future first floor unit family.

Building size: 33 feet wide, 45 feet deep 10×13.6 Meters
Roof Type: Terrace roof (Concrete cement, zine, cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE House Plans Plot 10x20m :

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
5 Cross Section plans

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

CUSTOM PLANS:
Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own direction.

Delivery Instant Download

Your files will be available to download once payment is confirmed. Here’s how.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
