Free House Plans 8×17 Meter 27×56 Feet 3 Beds Full Plans

$3.99

To Get Free Free House Plans 8×17

Coupon: Send Me 3.99

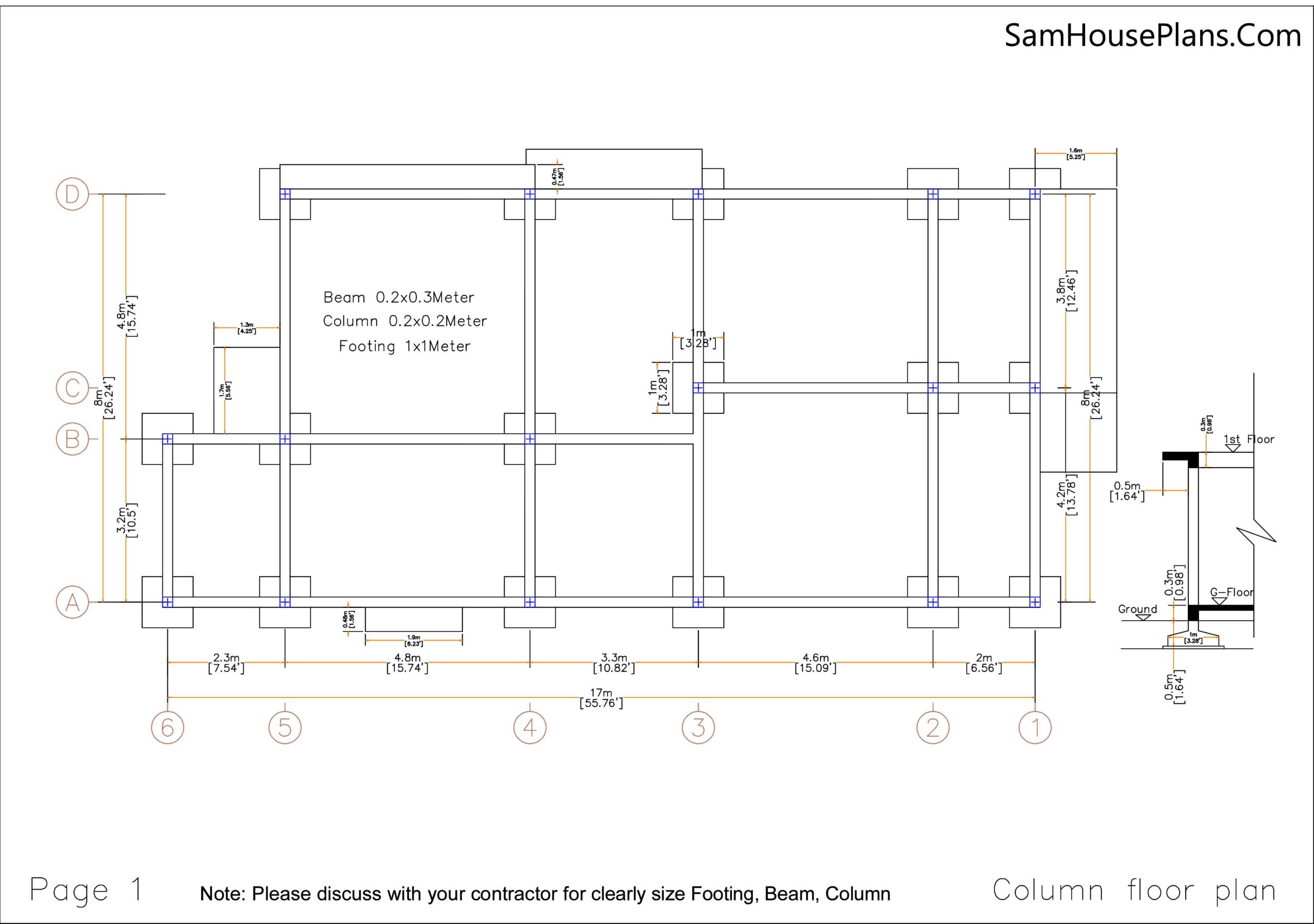

Footing, Beam, Column Location plan

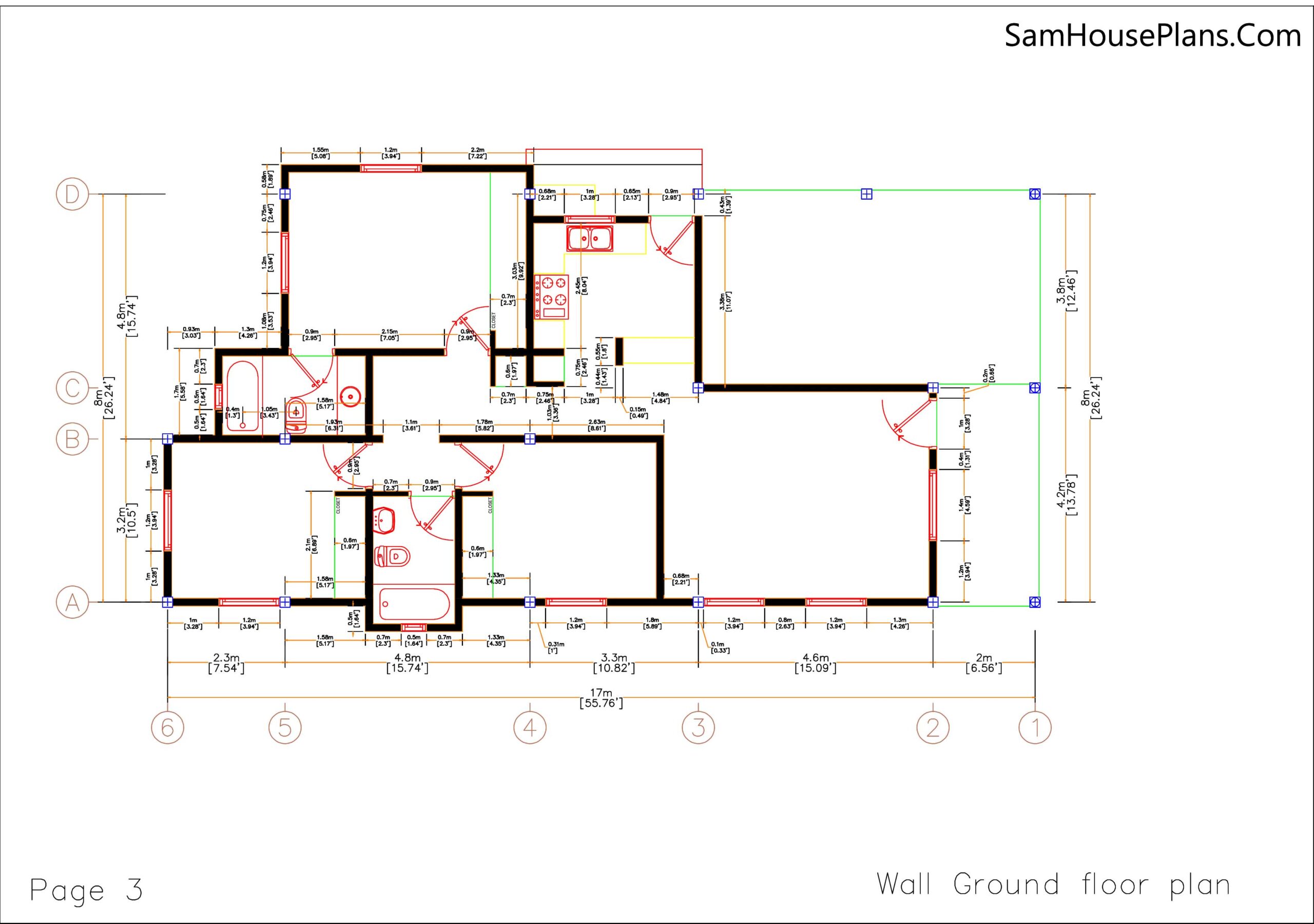

Exterior / Interior wall Dimension Plan
Roof Beam Plan

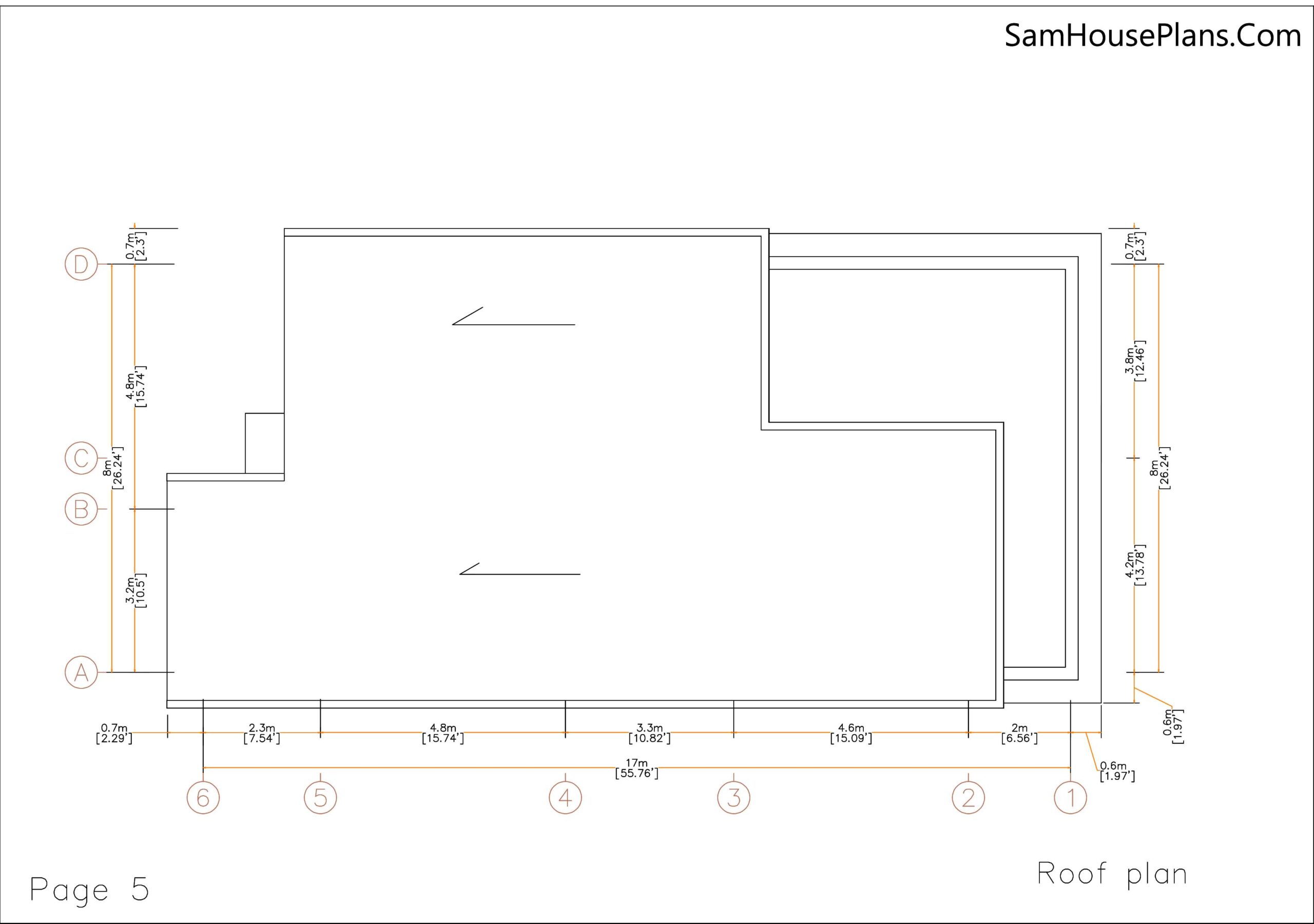

Roof Plan

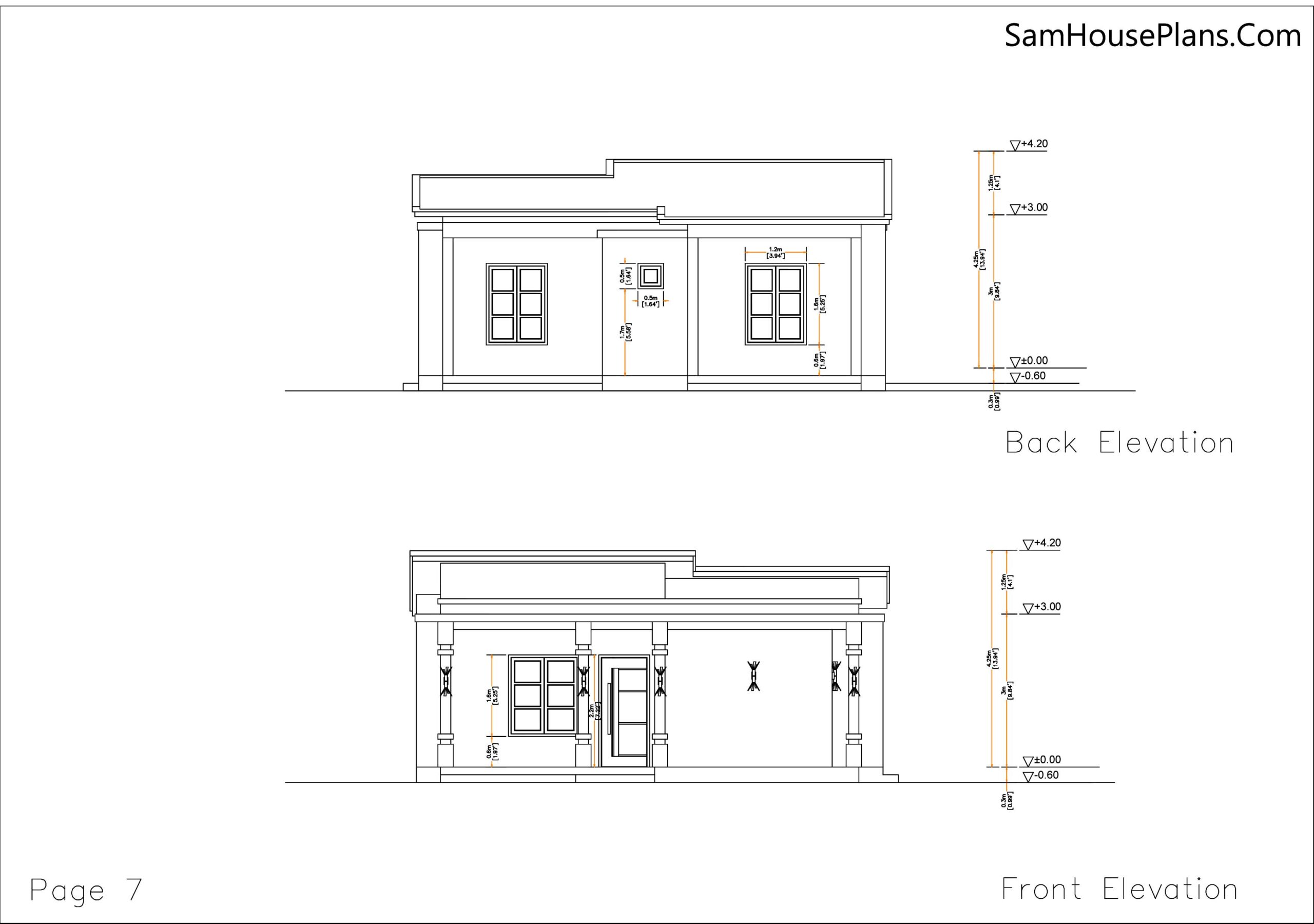

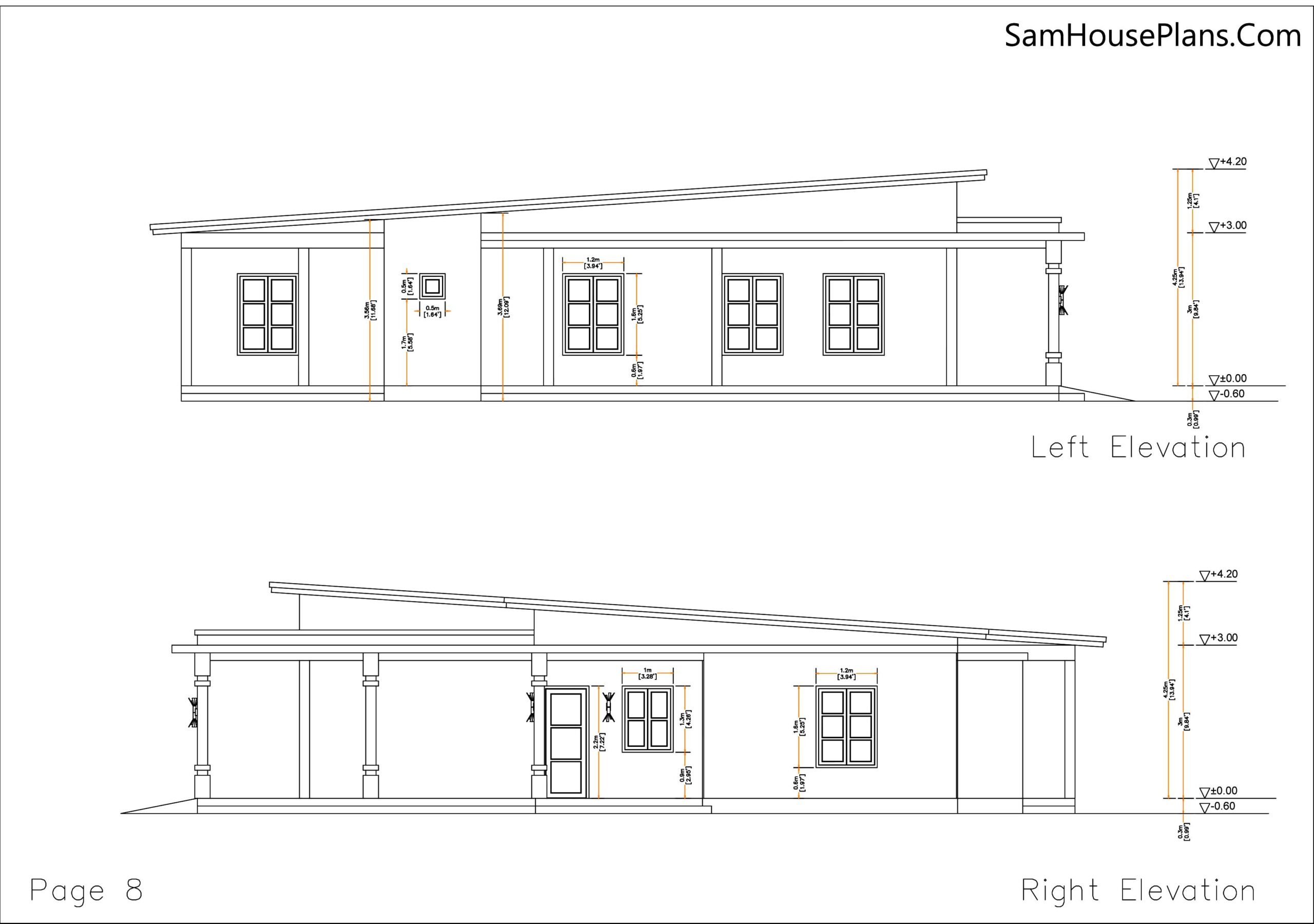

Elevations plans

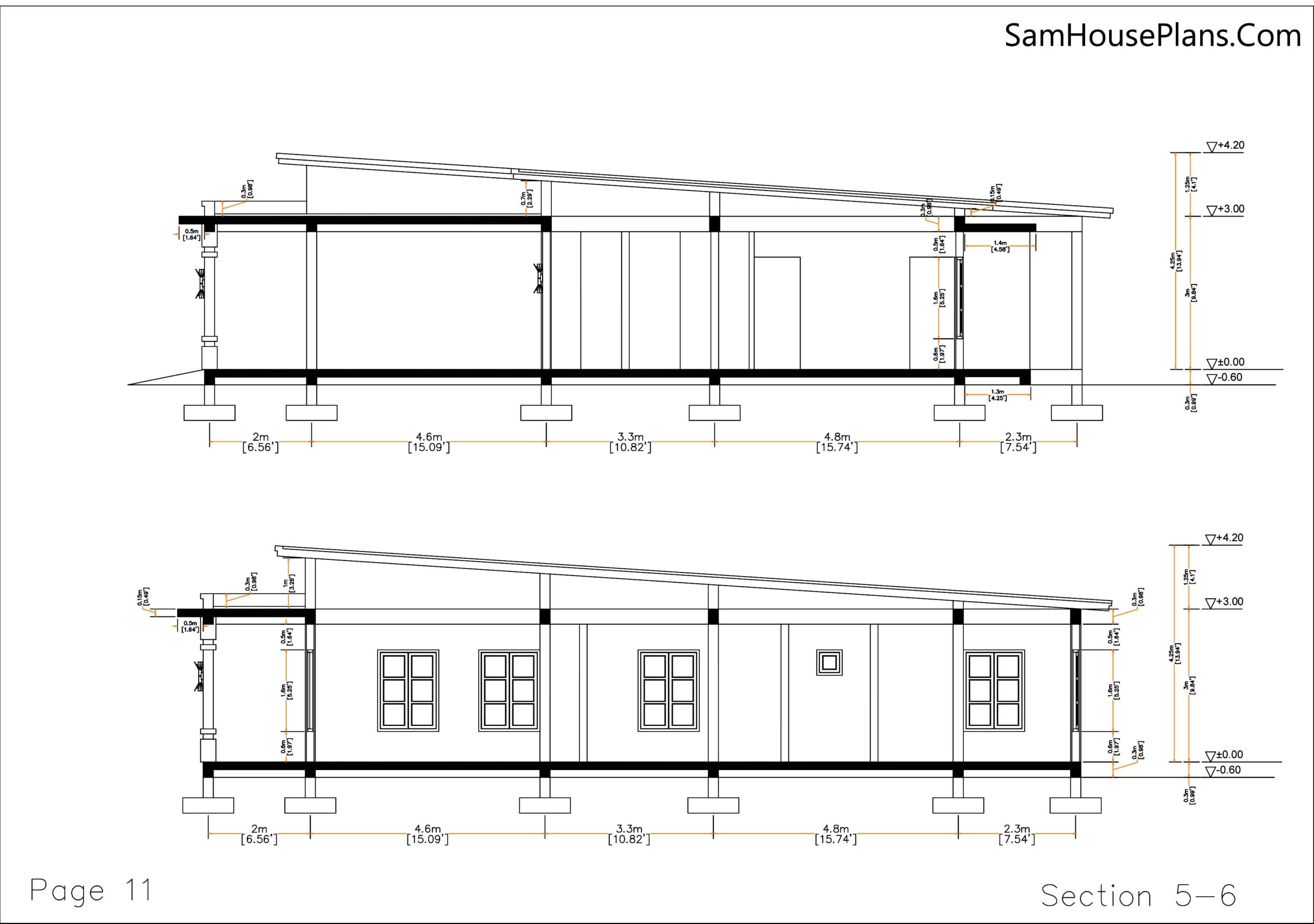

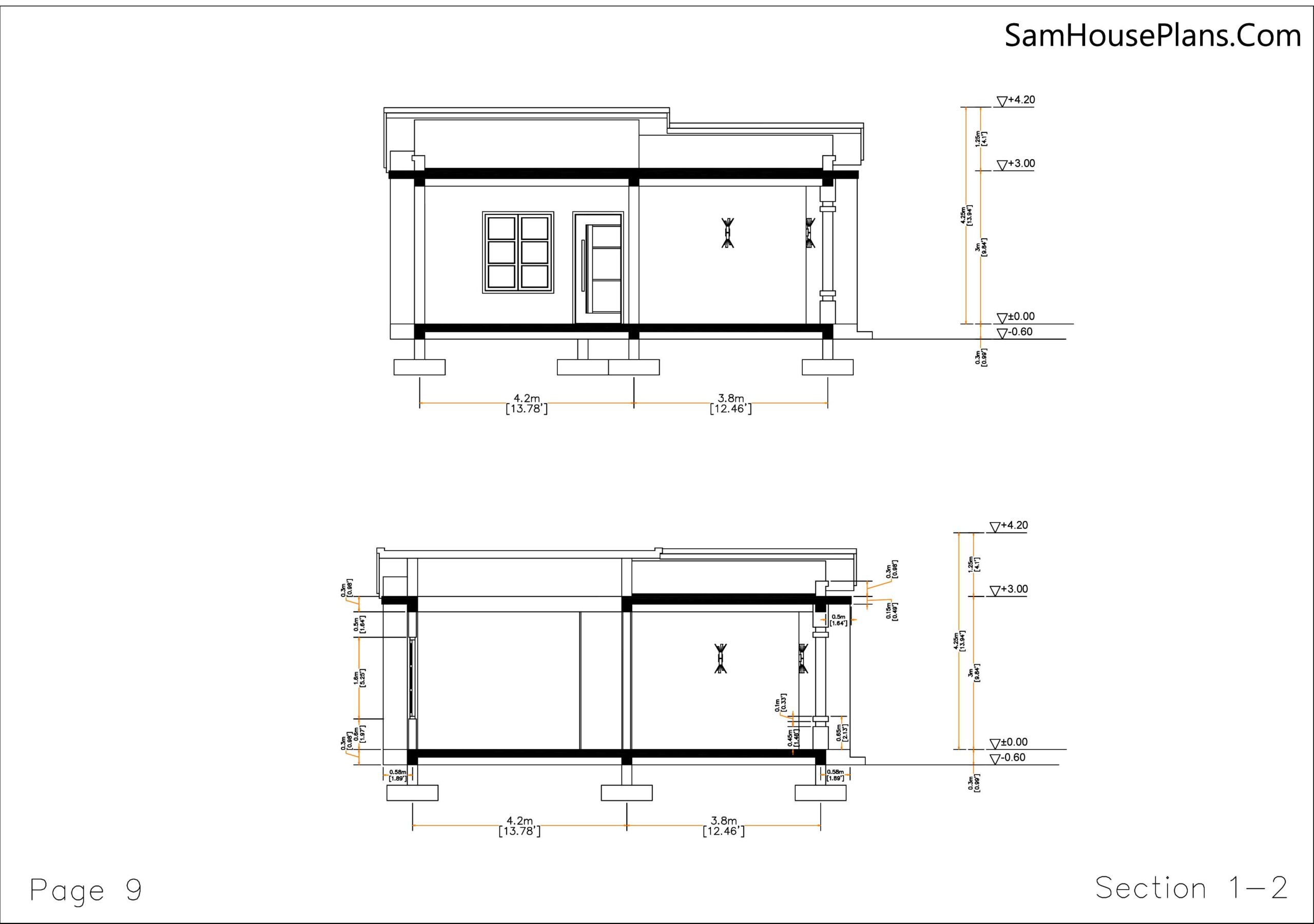

6 Cross Section plans

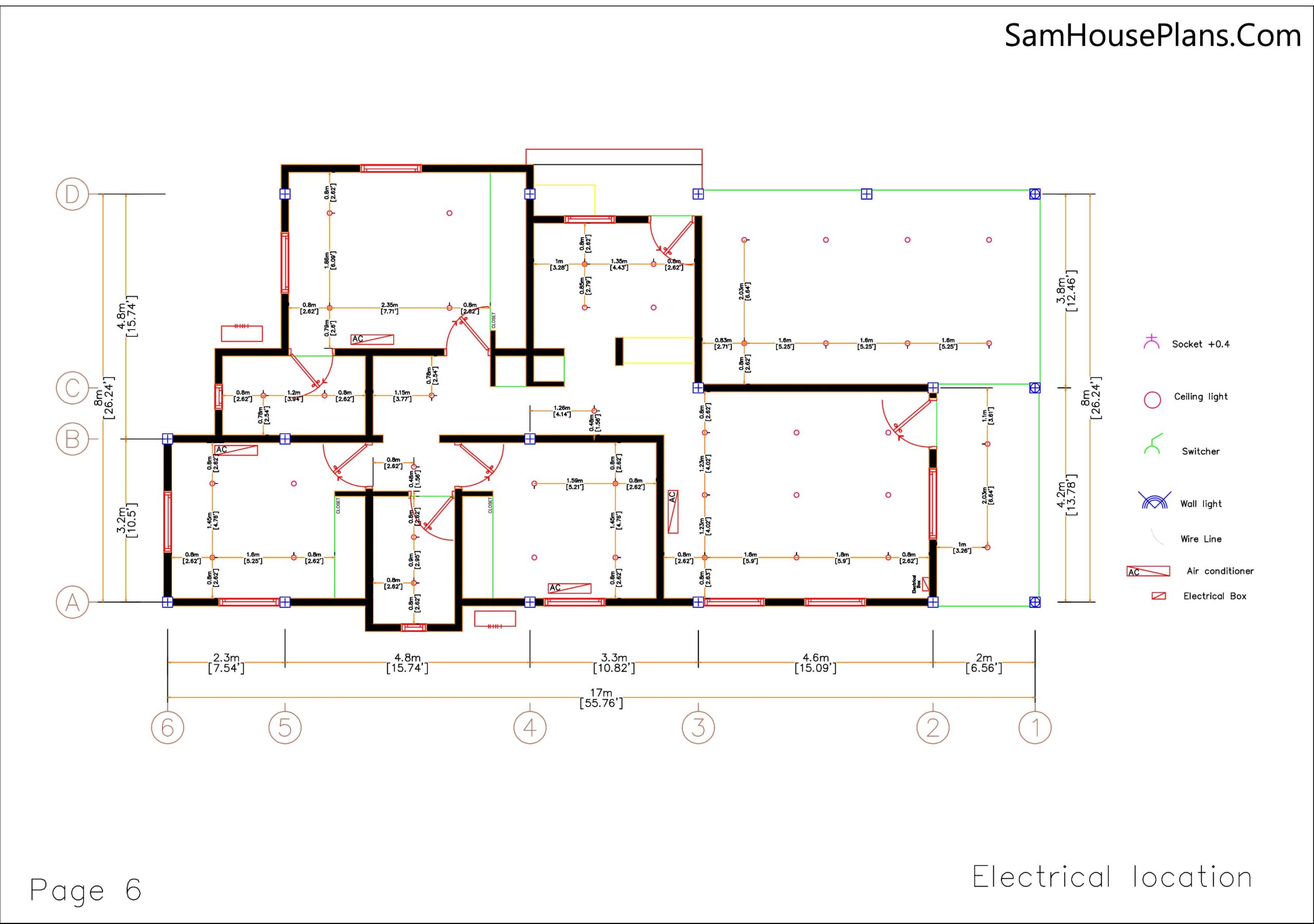

Ceiling Lighting location Plan

Architectural Files included:

-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

Description

Free House Plans 8×17 Meter 27×56 Feet 3 Beds Full Plans Free Download Full Plan 2 Bathrooms PDF Plan. This villa is perfect for family that have three bedrooms. Est. Price around 40k-60k usd construction only.

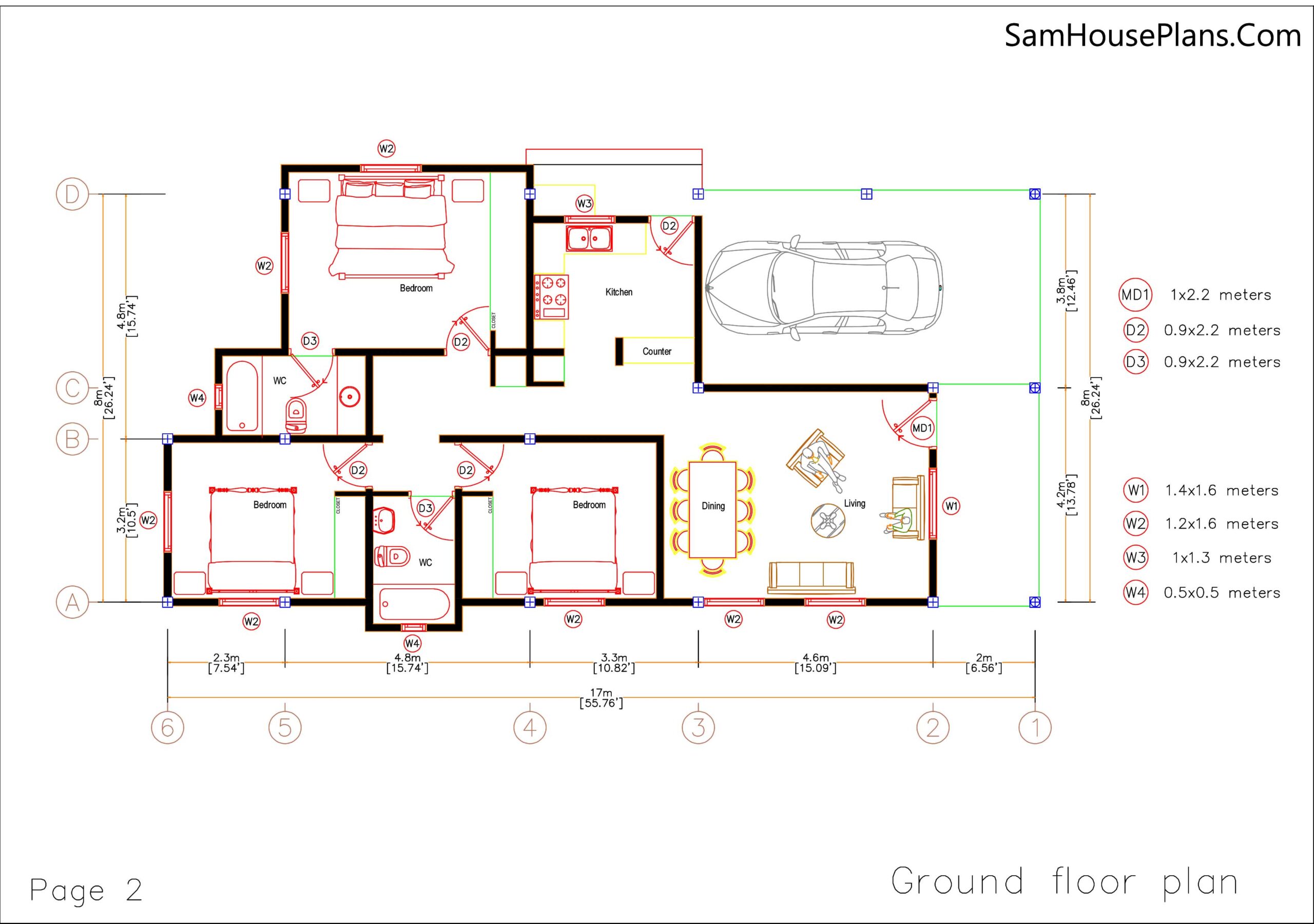

Free House Plans 8×17 Floor Plans Has:

Car Parking is at the right side of the house 3.8×6.6 meter. A nice Terrace entrance in front of the house 2×4.2 meters. When we are going from front door,  a Living 5.2×4.2 meter is very perfect for this house it is nice and modern. Brightly Kitchen area 3.8×3.3 meter with counter bar, it is beautiful. A multi Bathroom size 1.6×2.6 meters. The washing area 1×3.3 meters.

The Master Bedroom size is 3.6×4.8 meters, it have 2 big glass sliding window with a king size bed, Makeup desk and closet , attached with bathroom 1.6×3 meter. Bedroom 2 size 4×3.2 meter and Bedroom 3 size 4×3.2 meters.

Watch the VDO How to build Free House Plans 8×17

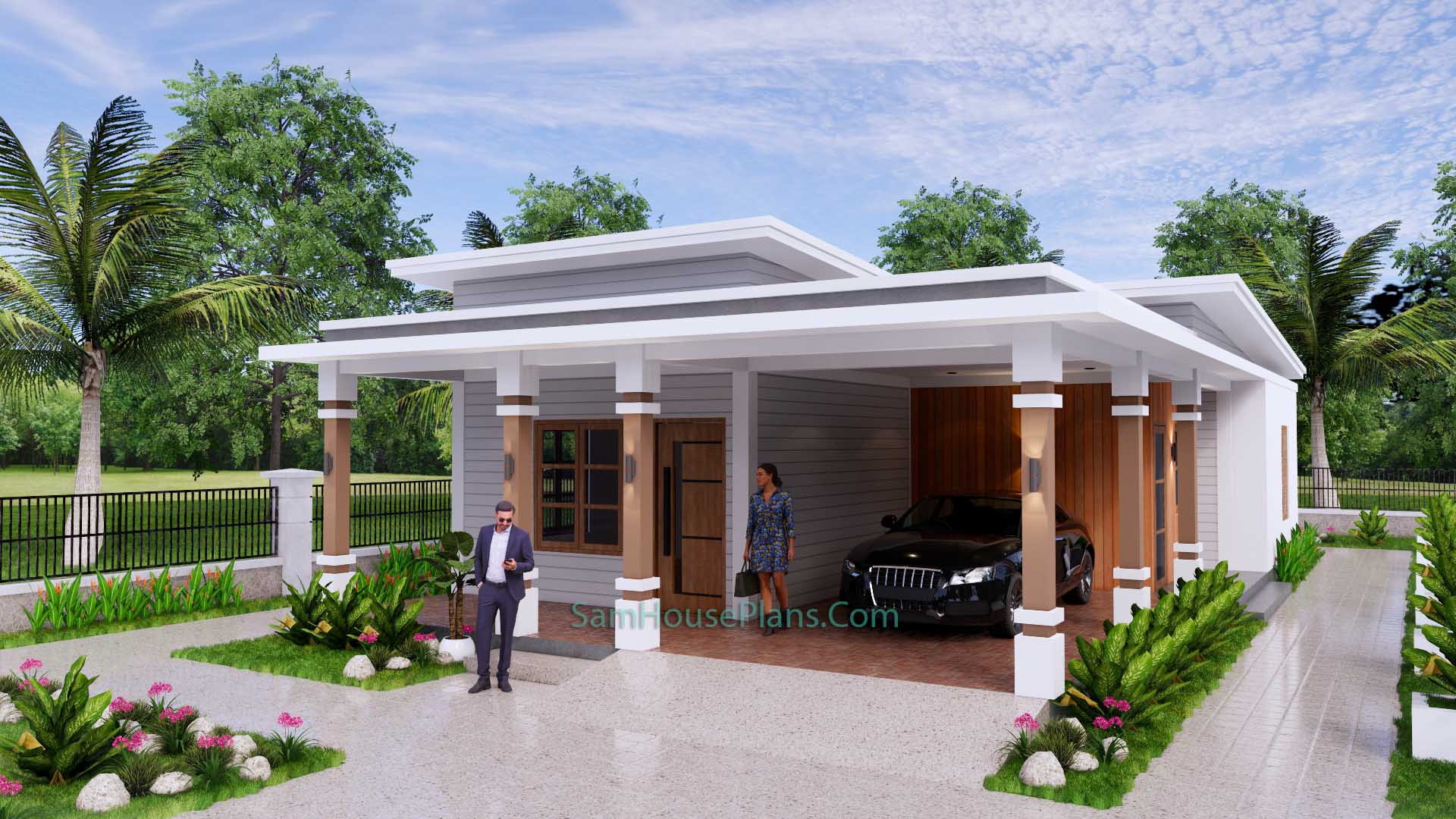

Exterior Free House Plans 8×17:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

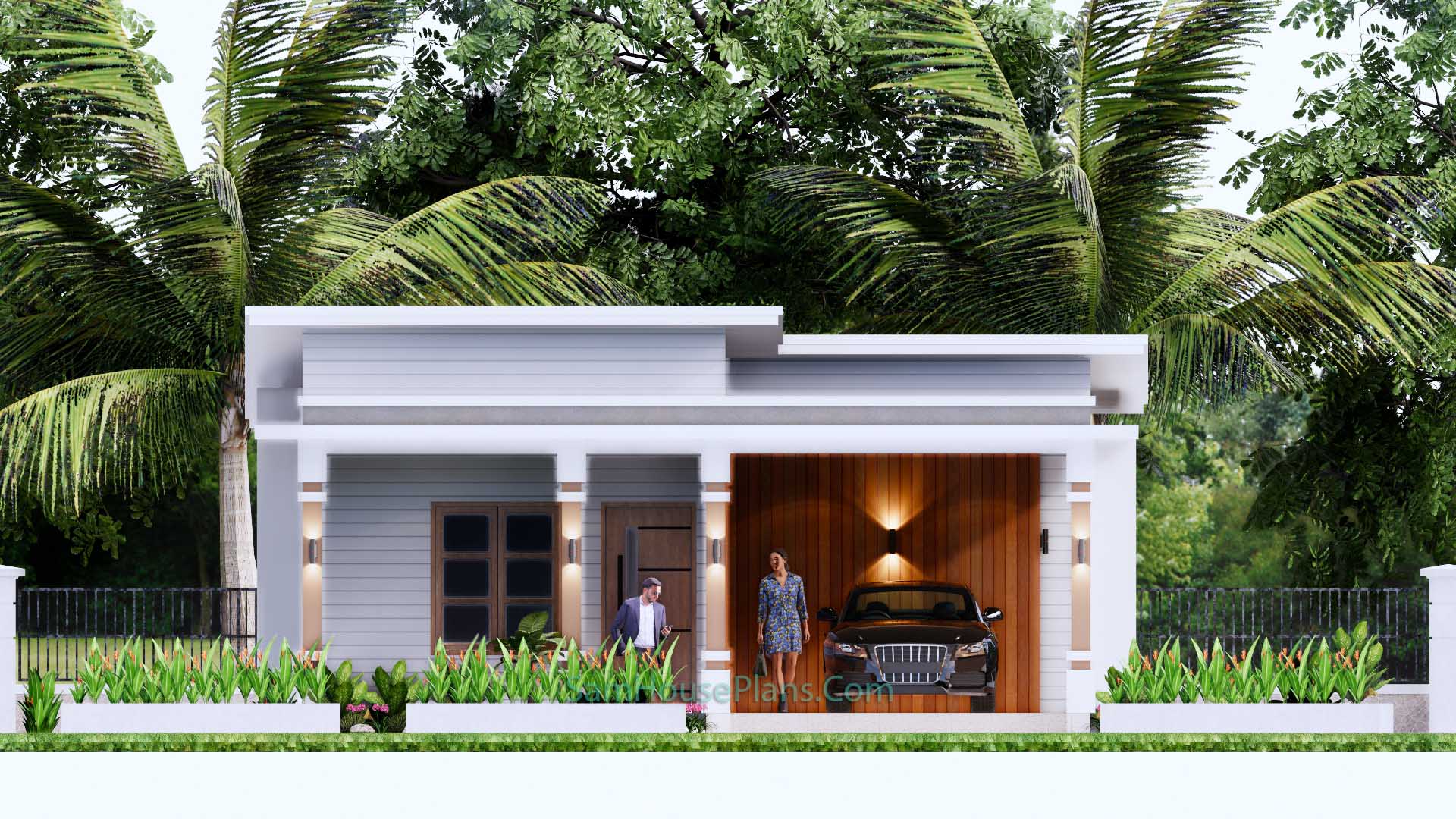

Free House Plans 8x17 Meter 27x56 Feet 3 Beds Full Plans 3d 1

The Shed Roof Tile:

Finally, The Shed roof type is made from Cement tile and some part make from concreate cement that cover above Gypsum board ceiling . It is make the house look simple and modern.

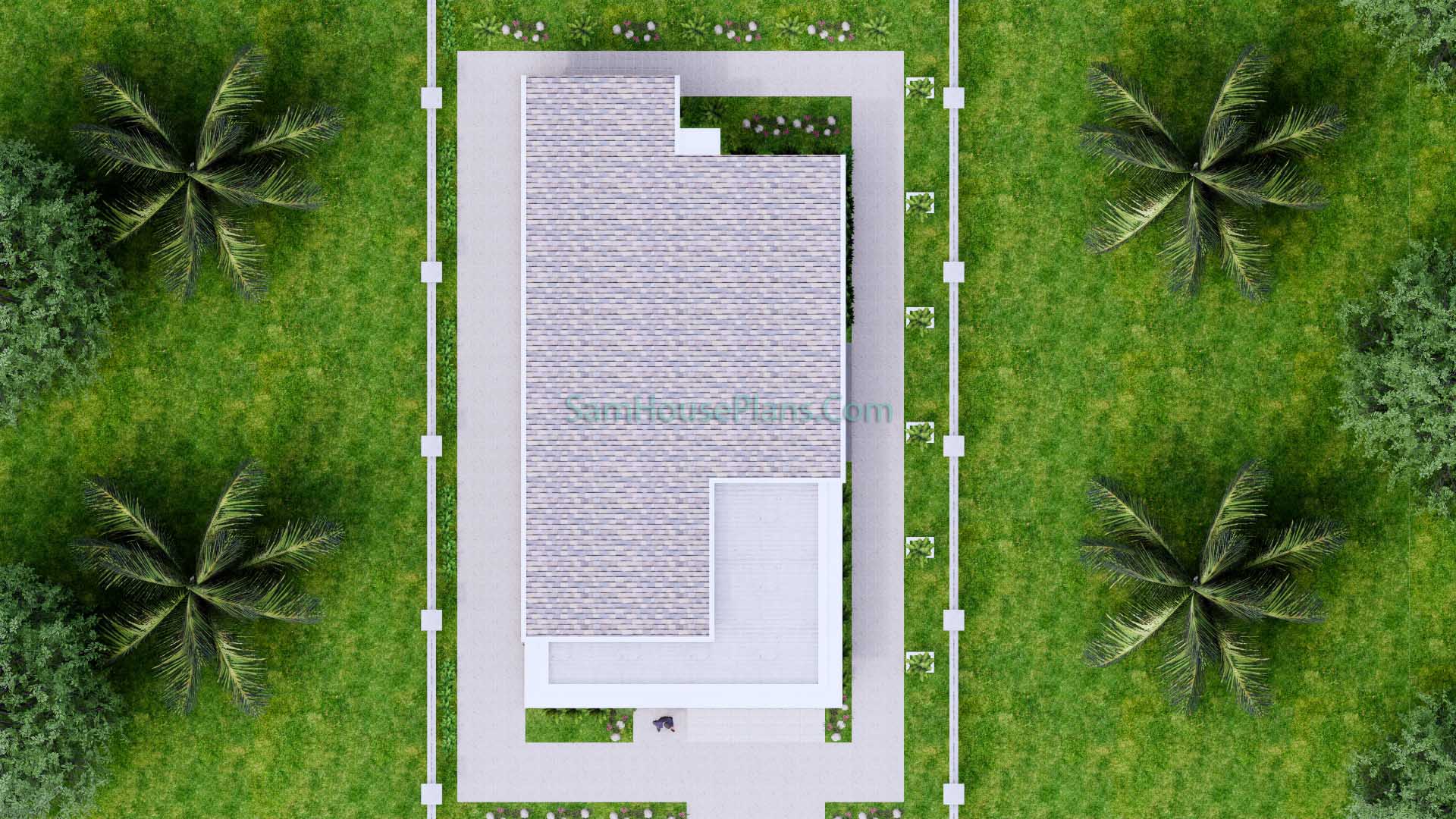

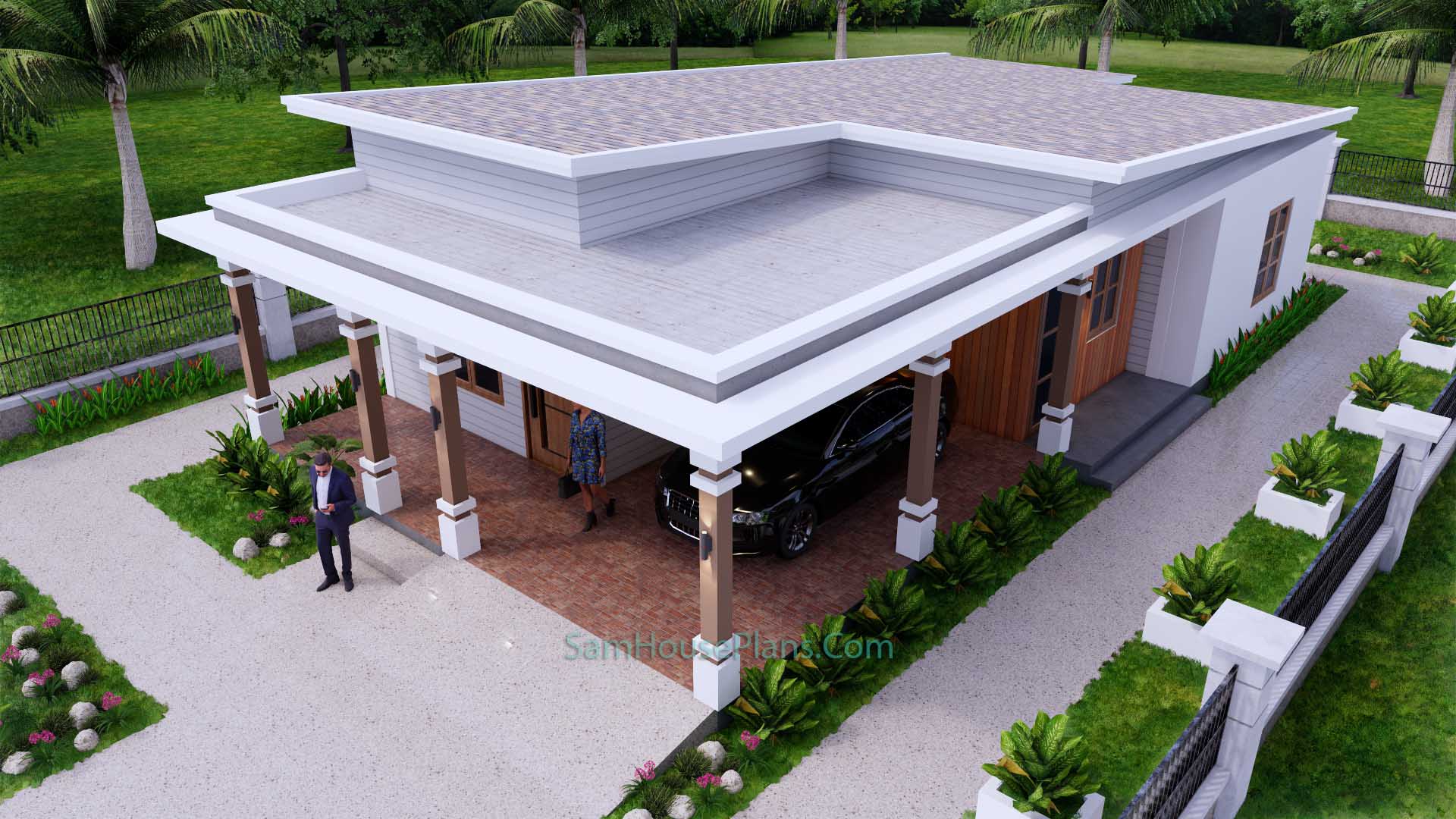

Free House Plans 8x17 Meter 27x56 Feet 3 Beds Full Plans Roof 3D view 2

House Short Description:

-One Car Parking and garden
-Living room,
-Dining room
-Kitchen
-3 Bedrooms, 2 bathrooms
-Small Storage
-washing room

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

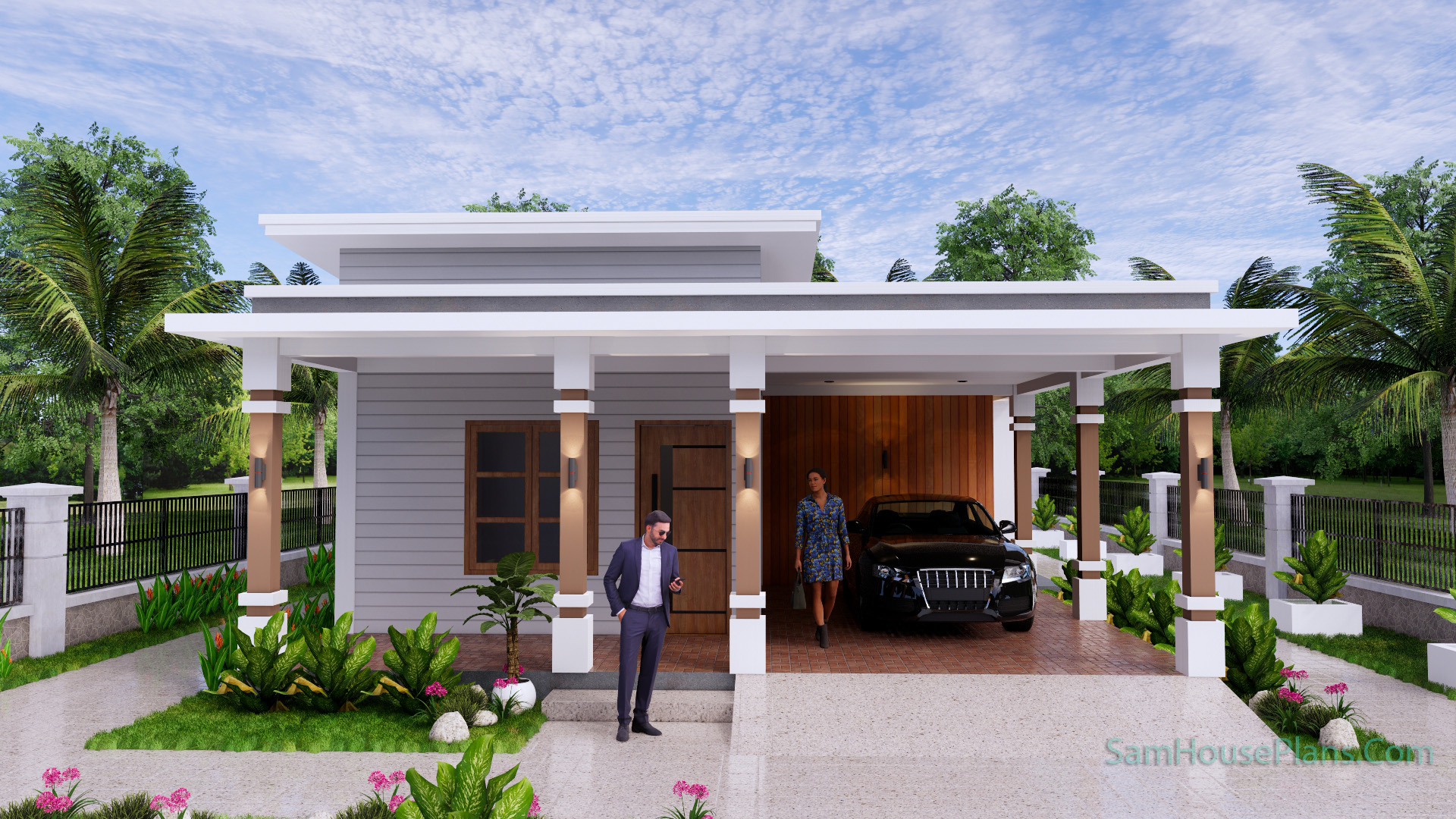

Exterior Design 3d:

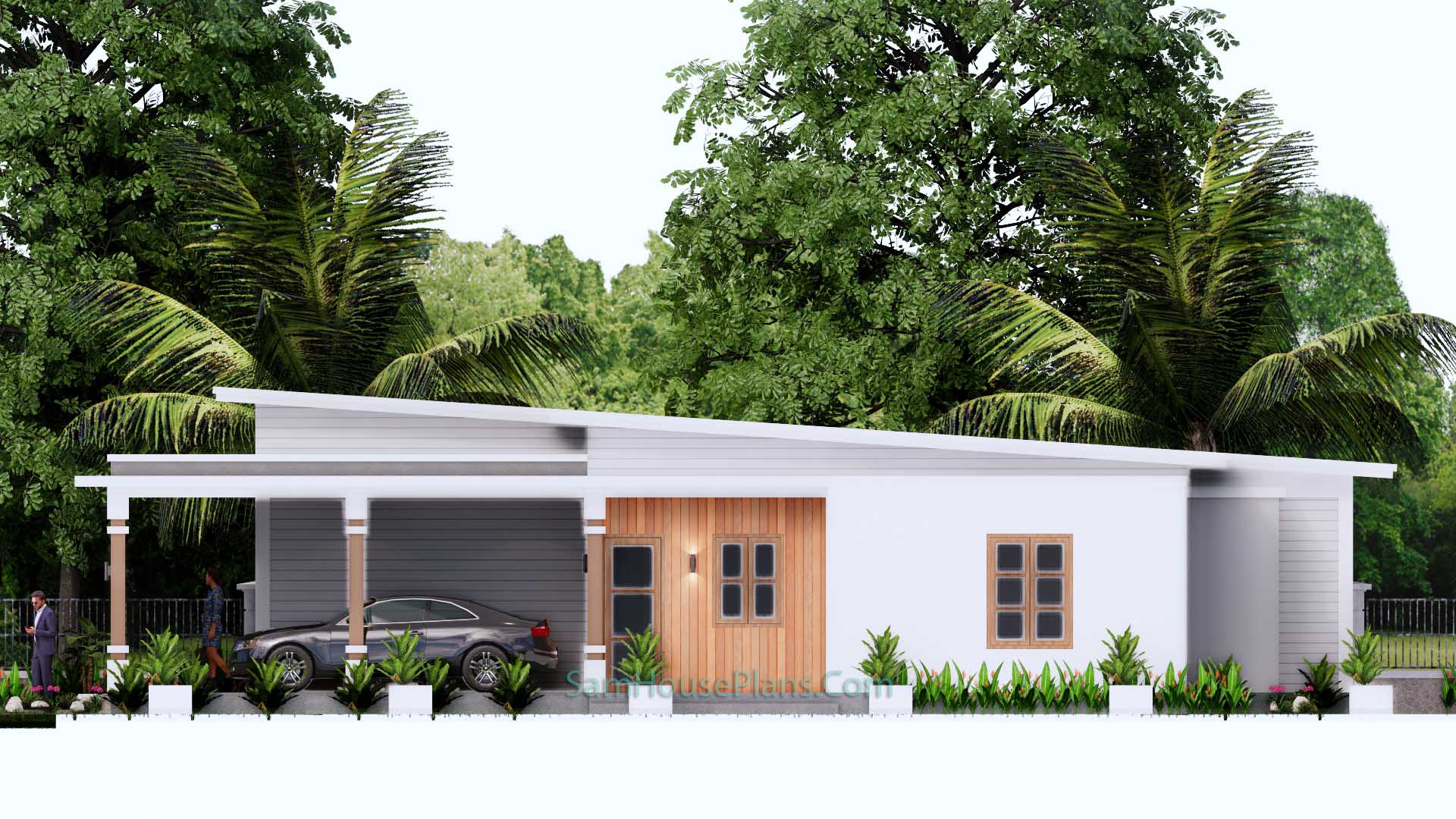

Elevation Design 3d:

Interior Design 3d:

The PDF Layout Plans:

YOU WILL RECIEVED THE DETAILING AS BELOW AFTER BUYING THIS PLAN

Buy this Simple House Plan 8×17 :

This is a PDF Plan available for Instant Download.

3-Bedrooms 2-Baths home with mini washer/dryer room.

Building size: 27 feet wide, 56 feet deep 8×17 Meters
Roof Type: Hip roof (Concrete cement, zine, cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
6 Cross Section plans
Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

CUSTOM PLANS:
Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own direction.

Delivery Instant Download

Your files will be available to download once payment is confirmed. Here’s how.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch
