Custom House Plans 30×36 Feet 9×11 Meter 4 Beds 3 Baths Hip Roof


Buy this house plan: Custom House Plans 30×36 feet 4 Beds

-Layout Detailing floor plan, Elevation Plan with dimension.

-Sketchup file can used in Meter and Feet -Autocad file (All Layout plan)

You will received a Document Name (HouseLink.PDF) Open it you see the Blue link, Click on it.

Please Enjoy my Google Drive Plans.

Categories: , Tag:


Custom House Plans 30×36 Feet 9×11 Meter 4 Beds 3 Baths Hip Roof PDF Full Plan

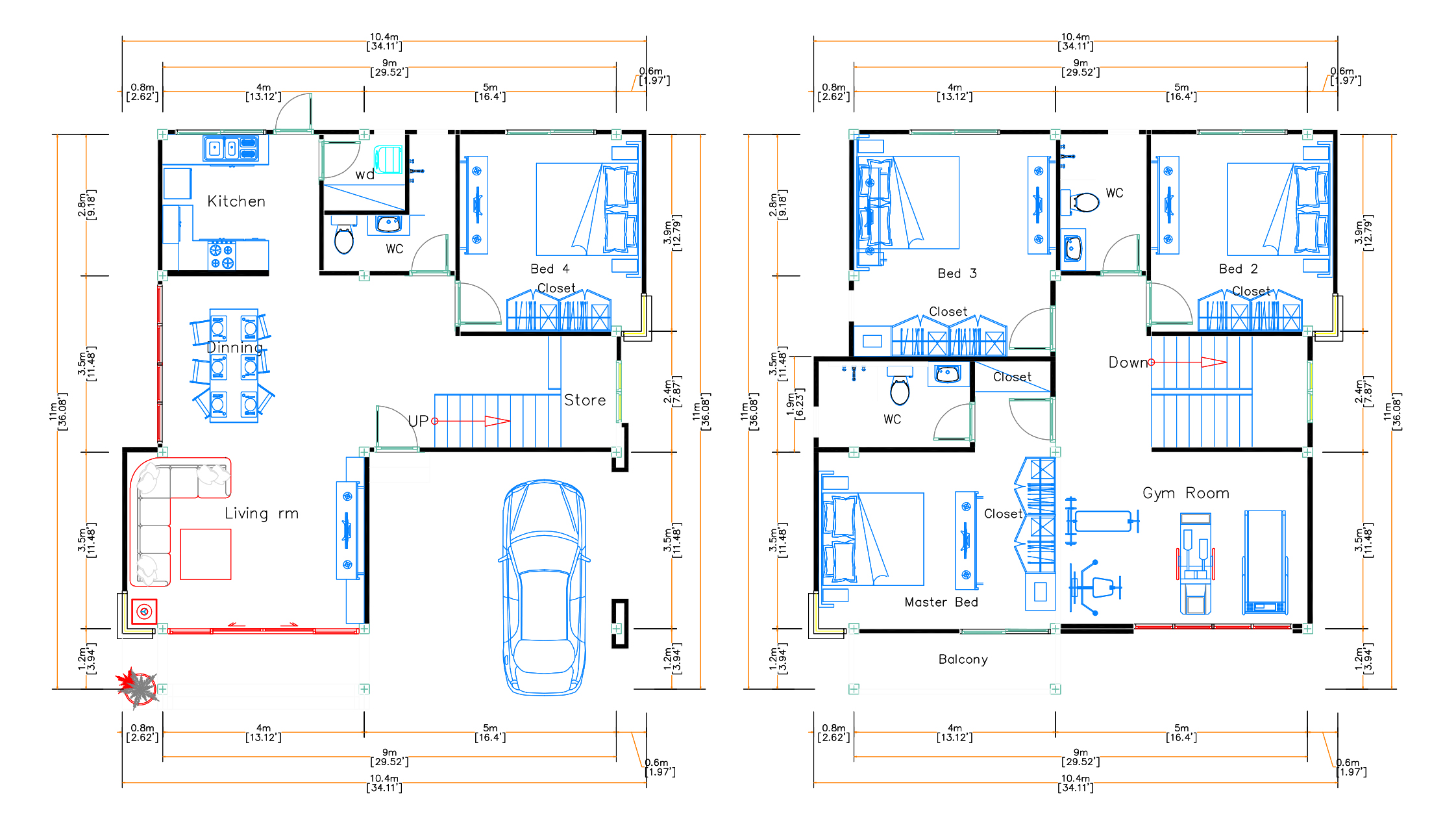

Custom House Plans 30×36 Floor Plans Has:

2 cars Parking is at the Right side of the house. A nice Terrace entrance in front of the house. When we are going from front door is Living room  3.5×4.8 meter. Dining room 4.0×3.5 meter supported 8 People in the family. Brightly Kitchen 2.8×3.0 meter, it is clean and beautiful. Washing room 1.8×1.8 meter.  A multi Bathroom size 1.2×3.0 meters. The storage is under the stair. Bedroom 4 size 3.9×3.5 meter.

At the first floor, Hall 2.0×3.5 meter. Gym room 5.0×3.5 meter. The Master Bedroom 4.8×3.5 meter attached bathroom 1.9×3 meter, closet, office and Balcony 1.2×4.0 meter. Bedroom 2 side 3.9×3.5 meter with closet. Bedroom 3 side 4.4×4.0 meter. Multiple bathroom 2.0×2.8 meter.

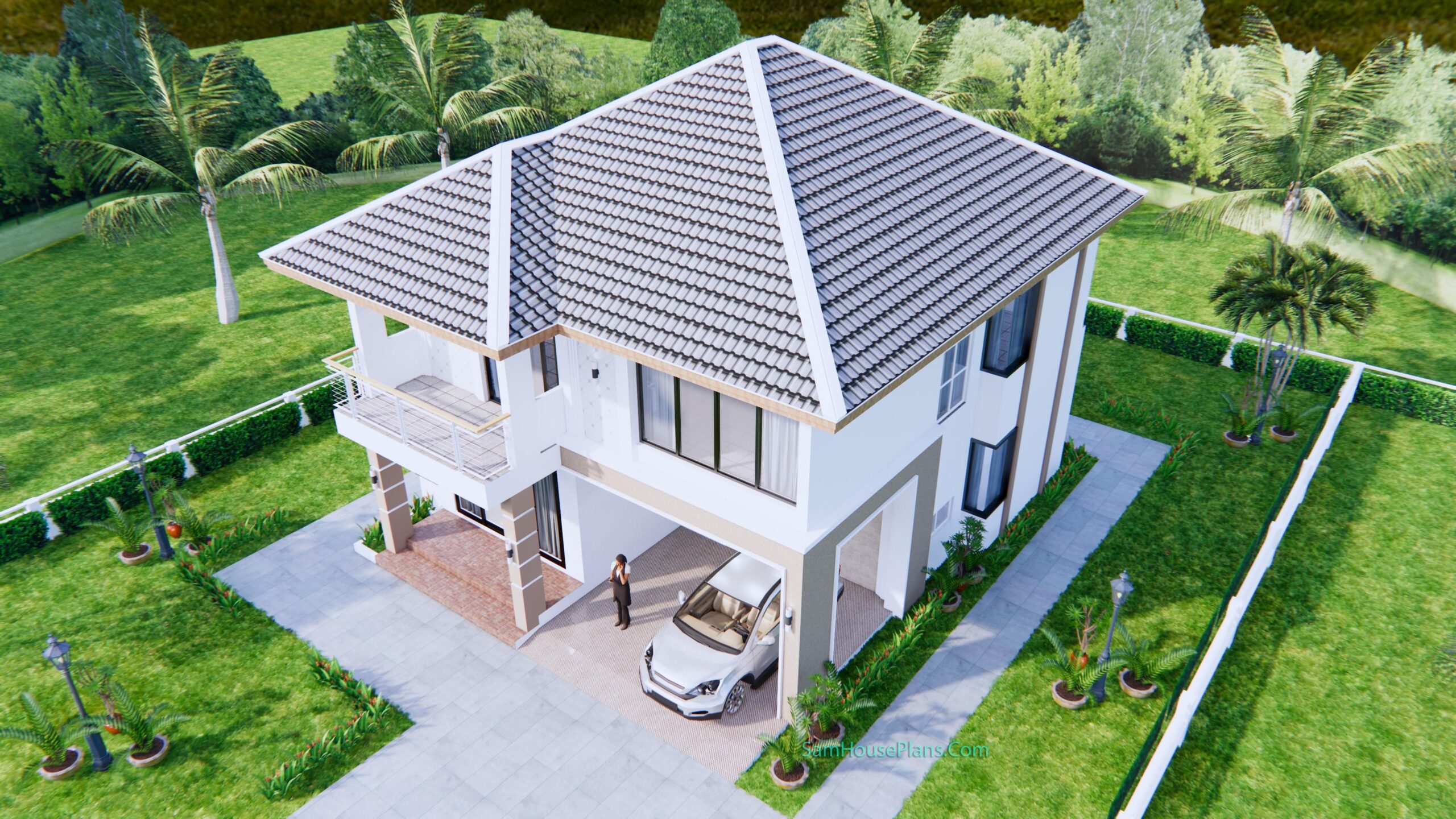

The Roof Tile:

Finally, The Hip roof type is made from Zine tile that cover above Gypsum board ceiling . It is make the house look simple and modern.

Exterior Custom House Plans 30×36:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

House Short Description:

-Car Parking and garden
-Living room,
-Dining room
-4 Bedrooms, 3 bathrooms
-Storage under the stair
-washing room

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

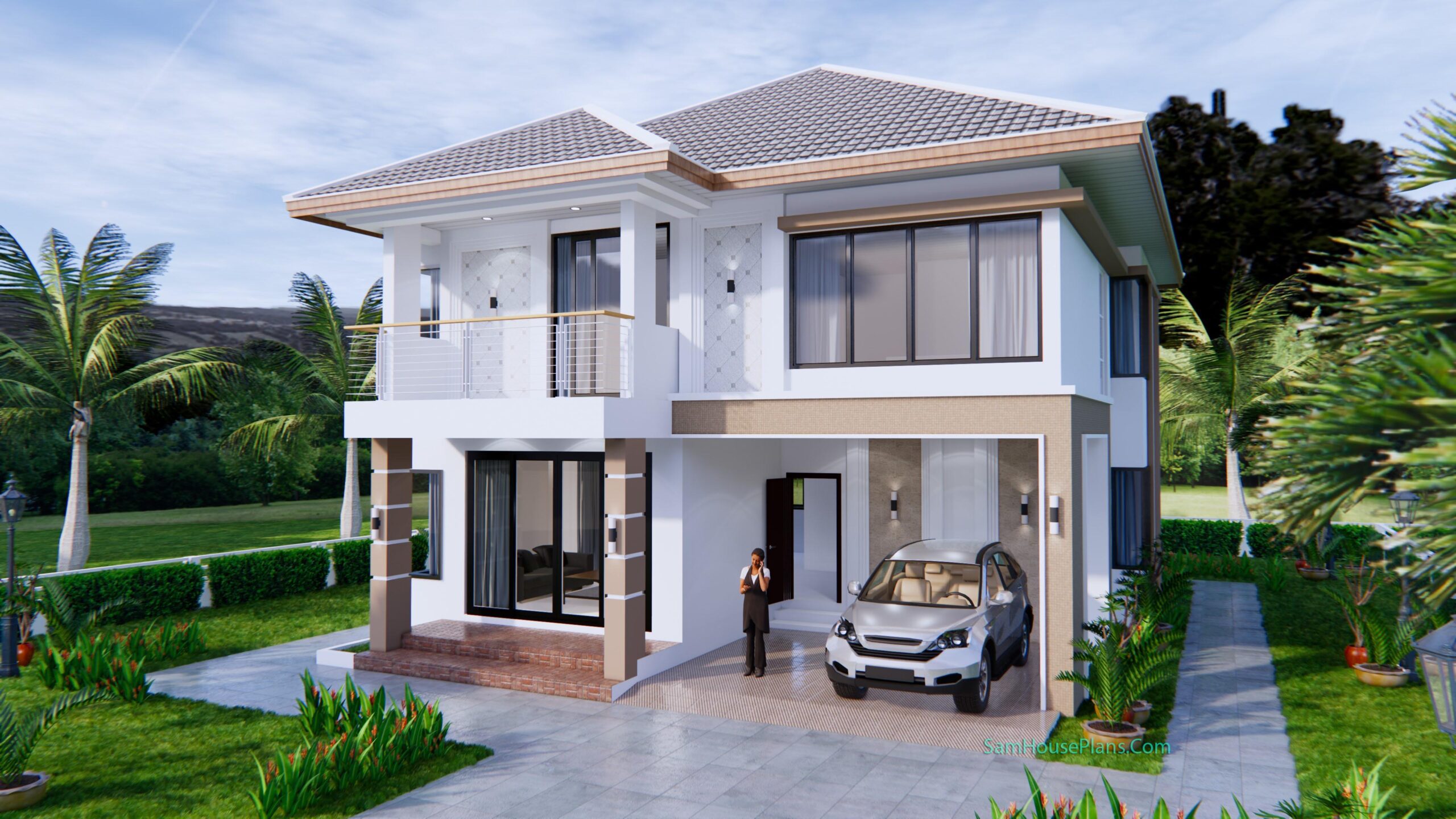

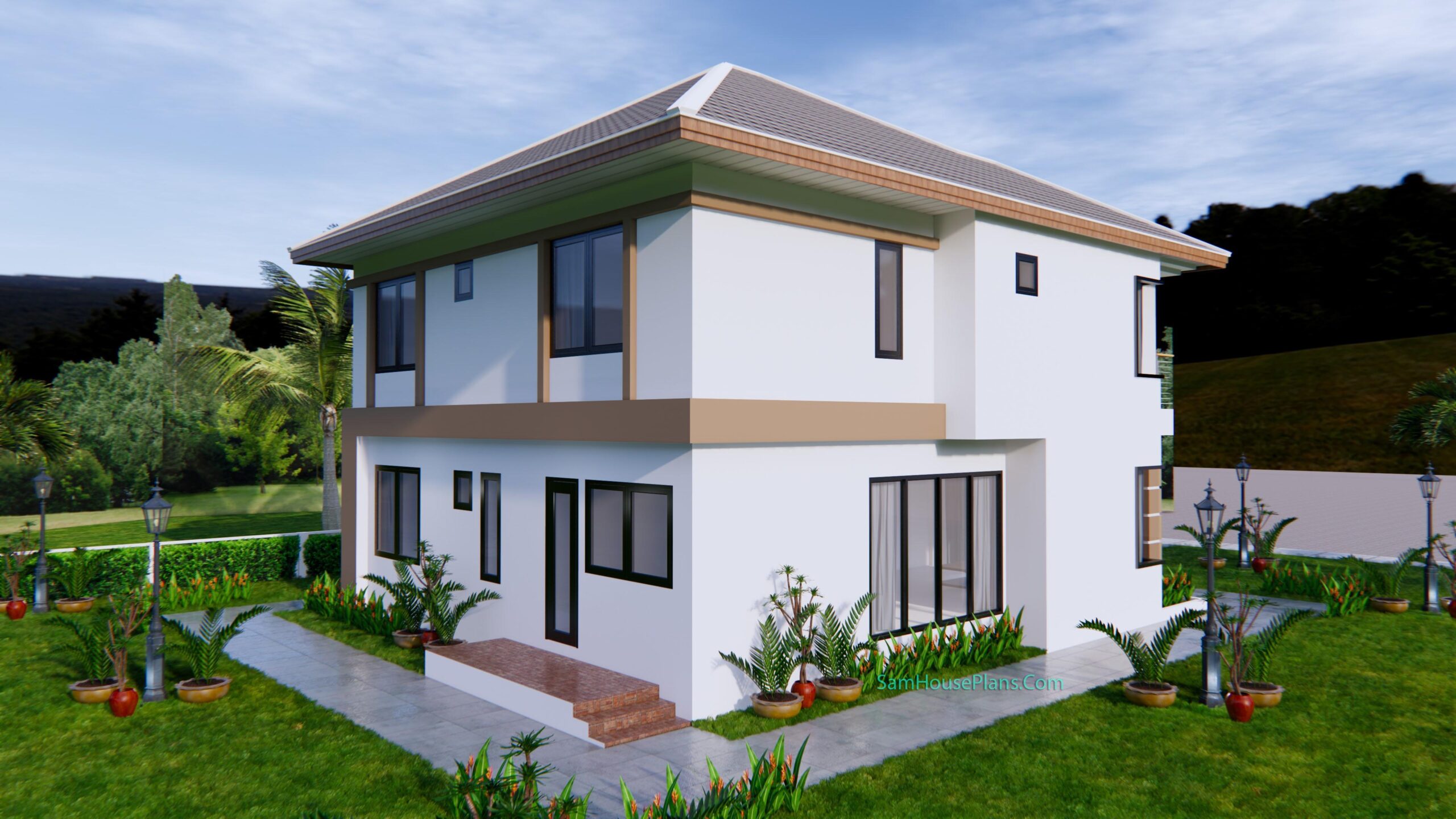

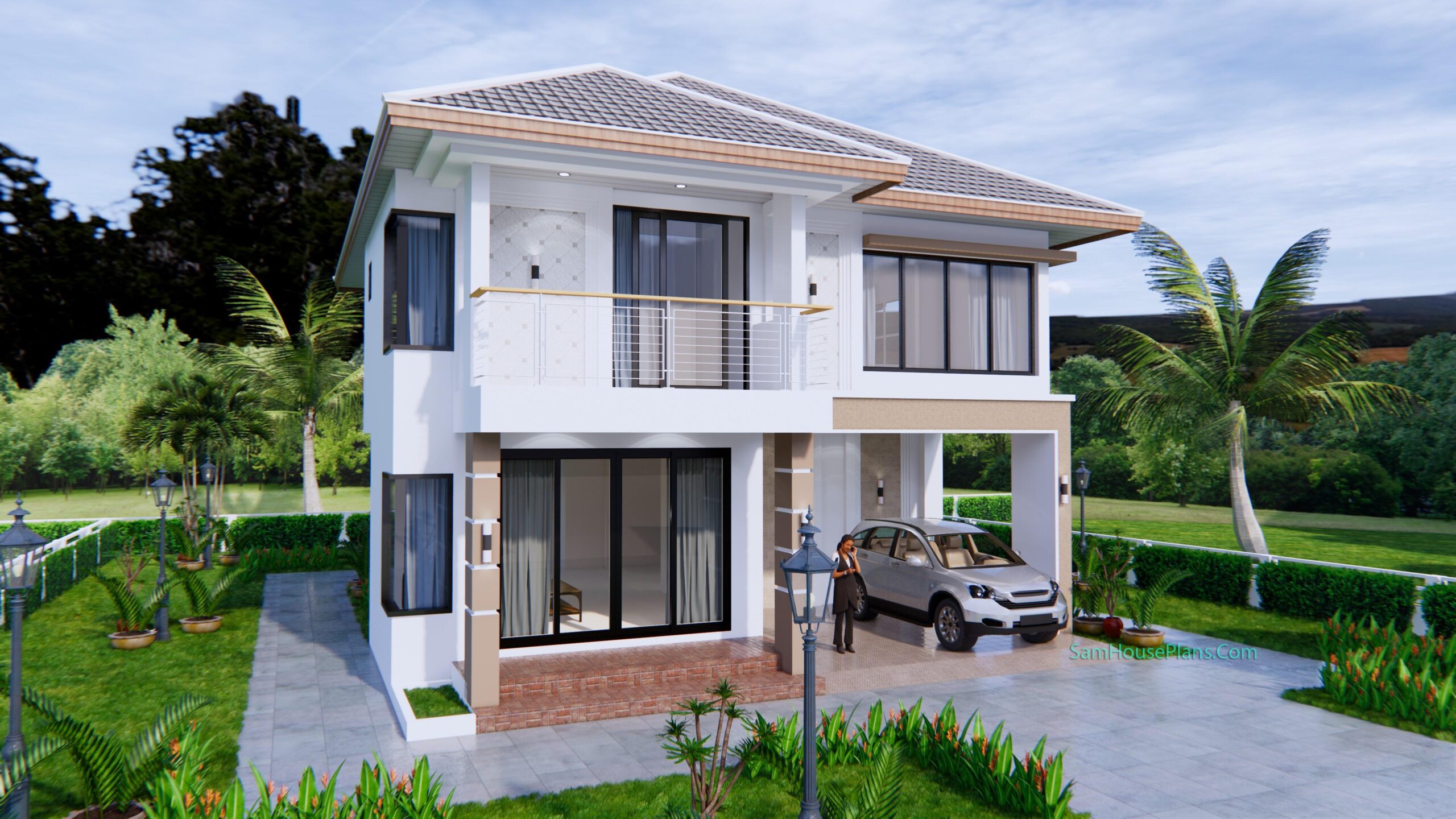

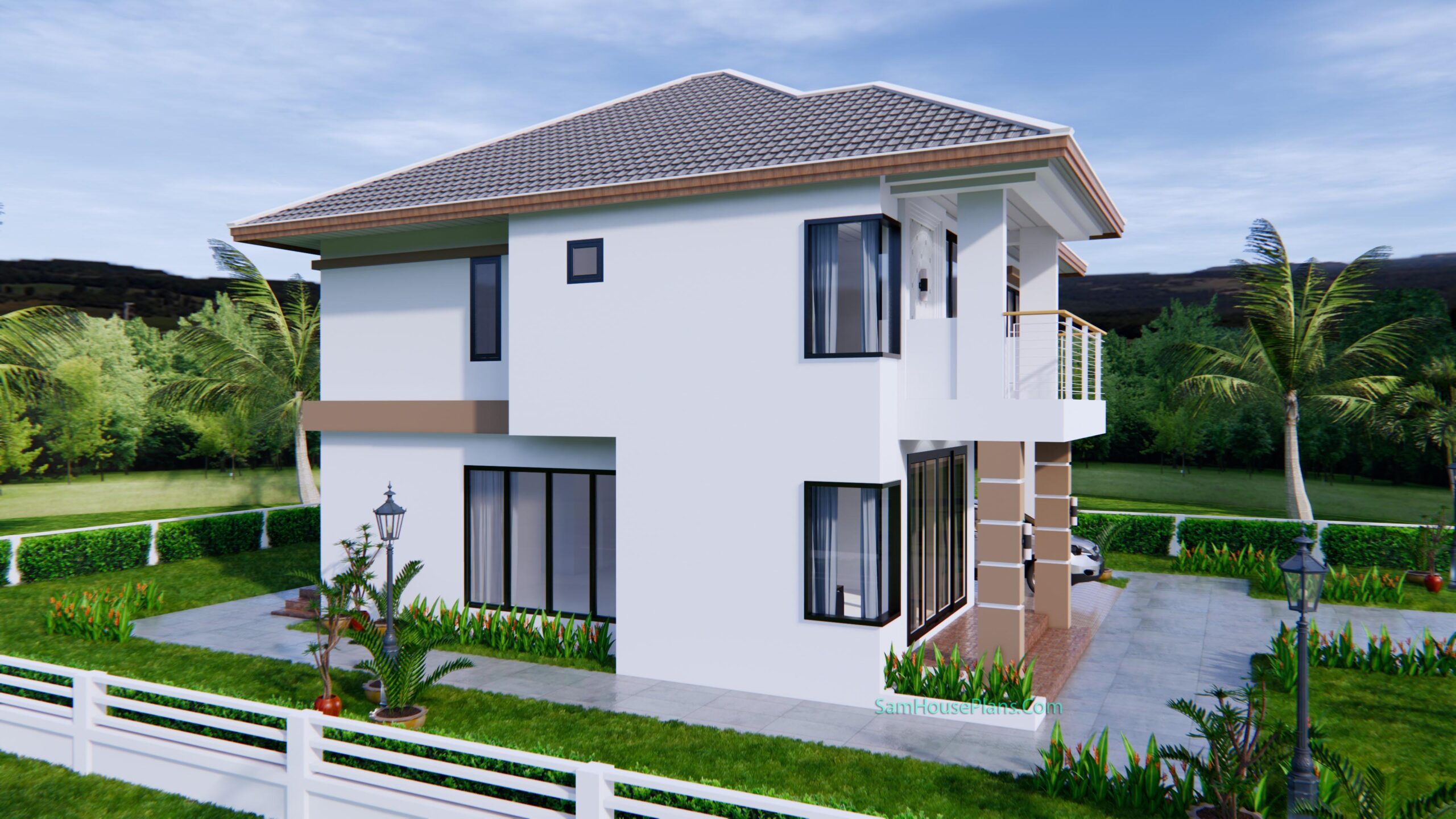

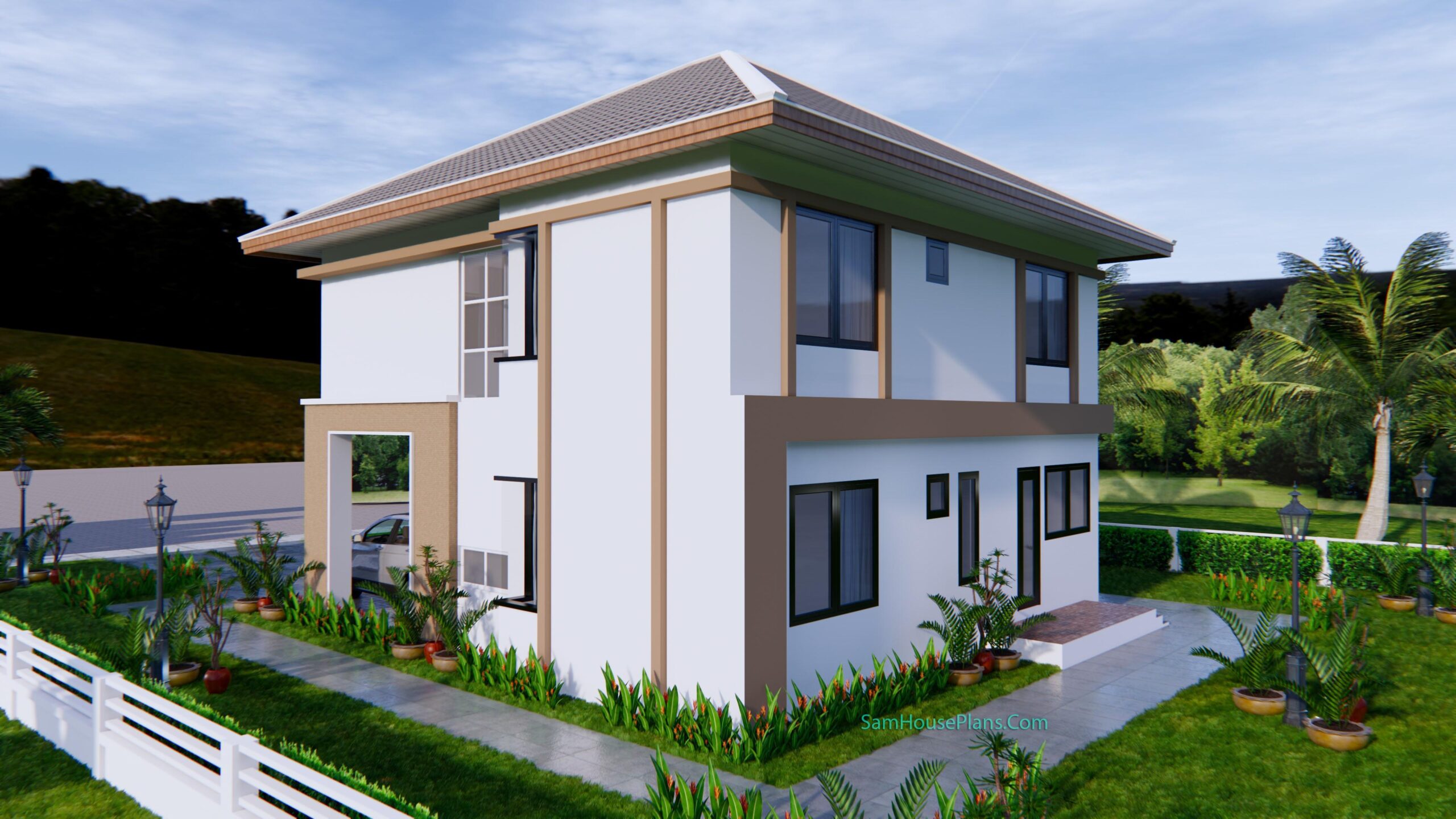

Exterior Design 3d:

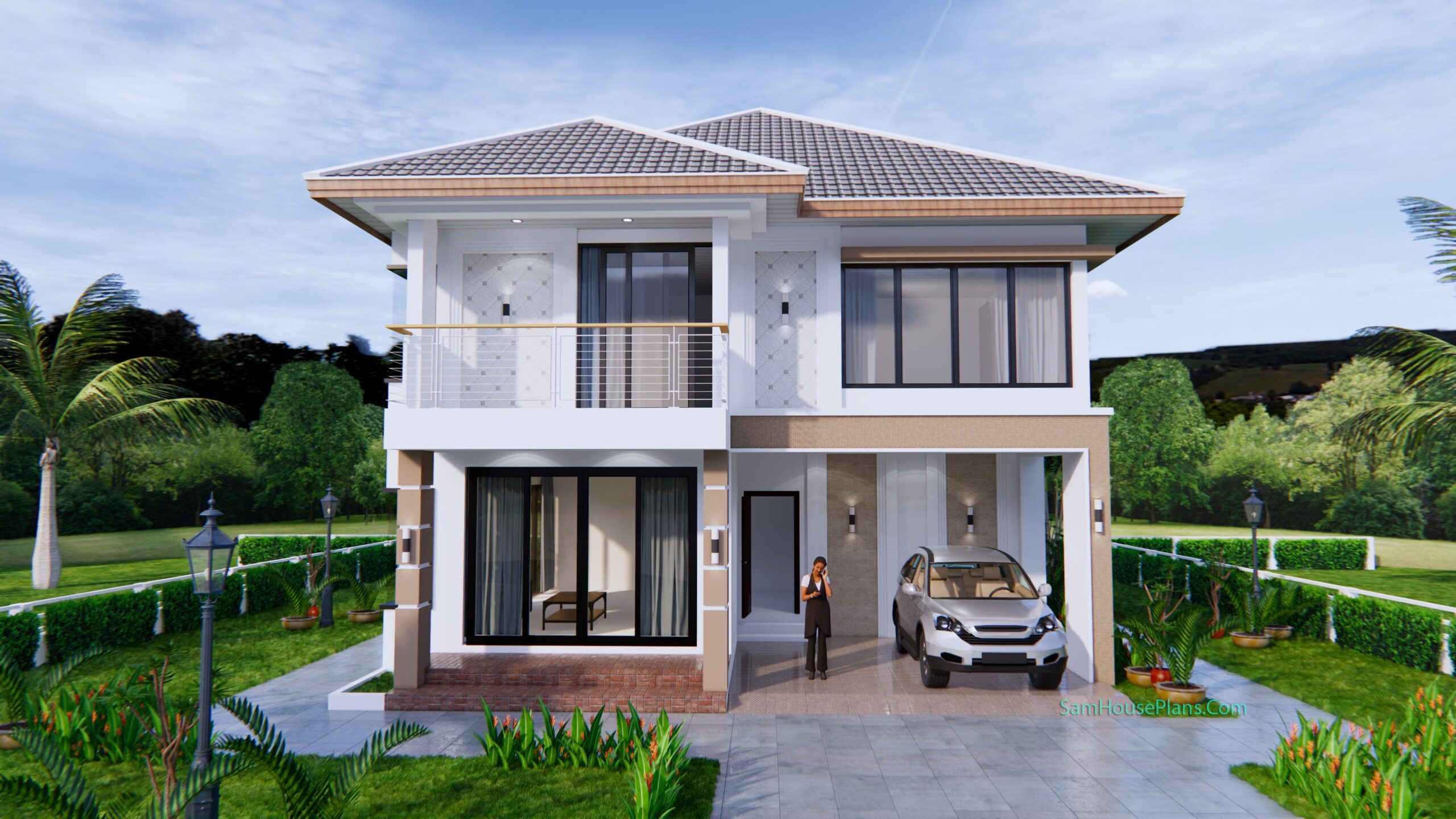

Elevation Design 3d:

Interior Design 3d:

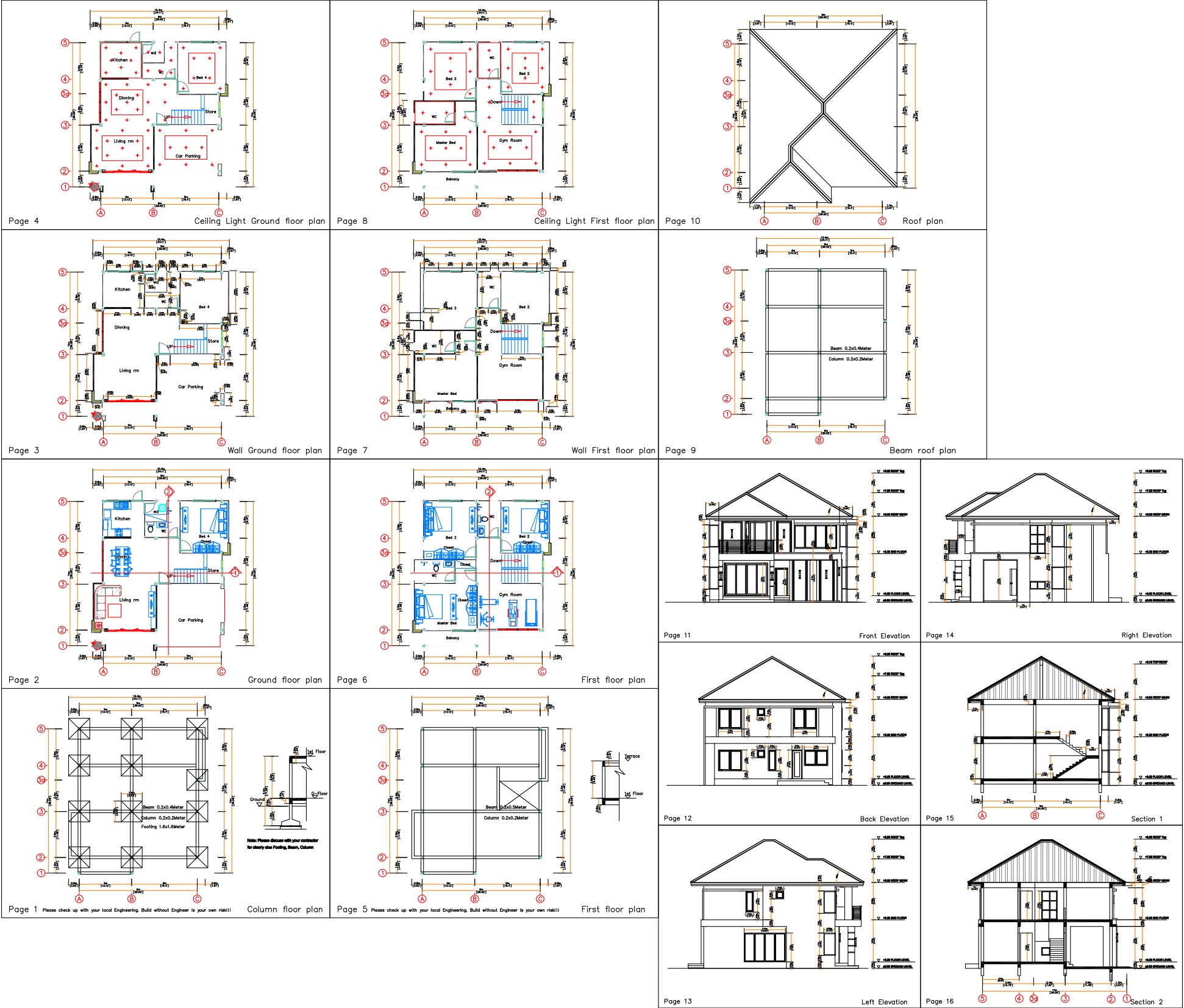

The PDF Layout Plans:


Buy this Custom House Plans 30×36:

This is a PDF Plan available for Instant Download.

5-Bedrooms 3-Baths home with stair case access to the future first floor unit family.

Building size: 30 feet wide, 36 feet deep 9×11 Meters
Roof Type: Hip roof (Concrete cement, zine, cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE House Plan 30×36 :

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
2 Cross Section plans

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

Unfortunately I’m unable to do custom plans at this time.

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own direction.

Delivery Instant Download

Your files will be available to download once payment is confirmed. Here’s how.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: House Plans Channel
If you think this Plan is useful for you. Please like and share.
