Custom House Plan 9×10 Meter 30×33 Feet 5 Beds 3 Baths PDF Plan

Original price was: $99.00.Current price is: $19.99.

Buy This Custom House Plan 9×10:

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
Cross Section plans

Architectural Files included:

-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

Click Here to Download the Sample Plan

SKU: 416628424850 Categories: , Tag:

Description

Custom House Plan 9×10 Meter 30×33 Feet 5 Beds 3 Baths Hip Roof PDF Plan

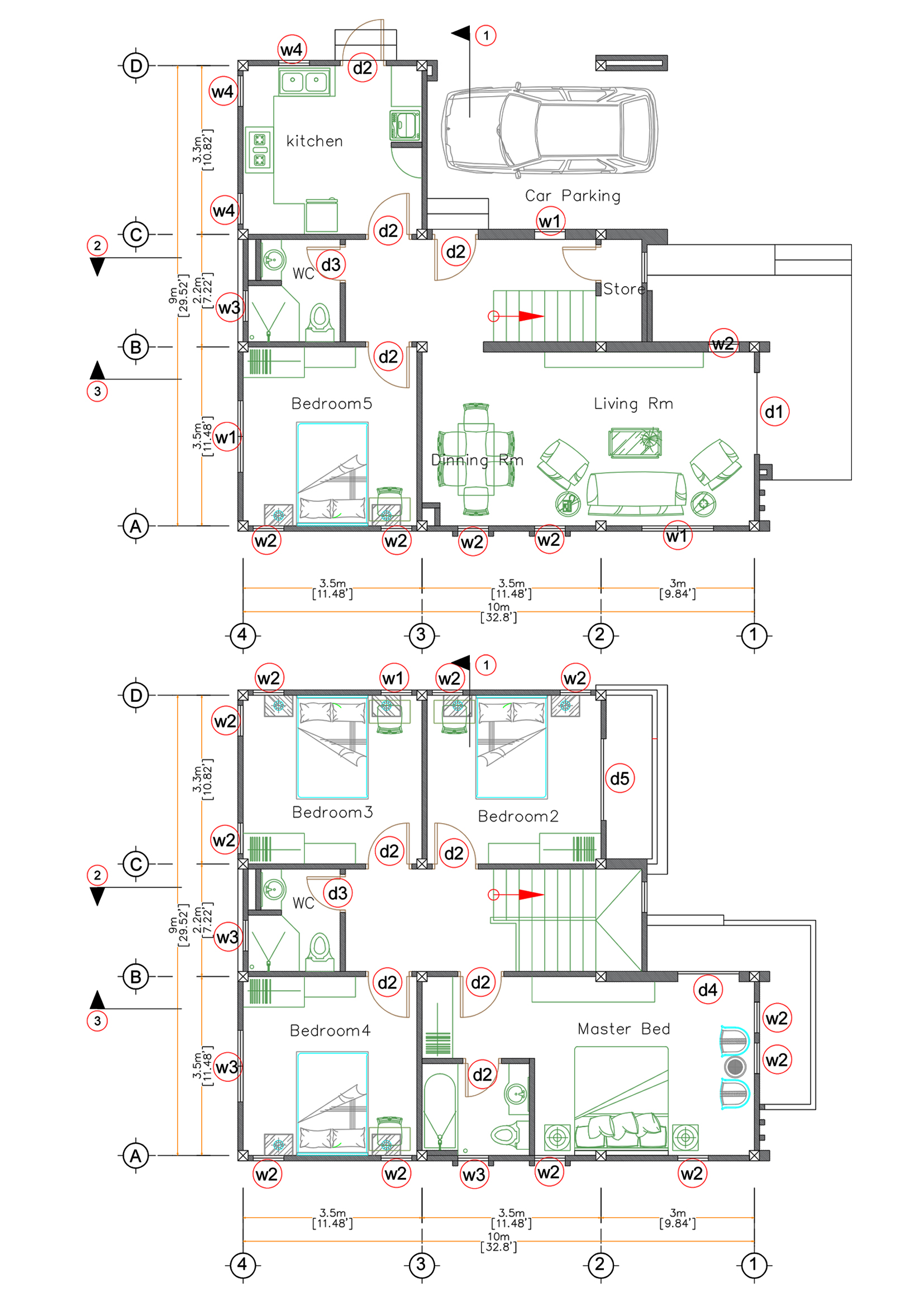

Custom House Plan 9×10 Floor Plans Has:

Car Parking is at the right side of the house 3.3×5 meter. A nice Terrace entrance in front of the house. When we are going from front door,  a Living with dining room 3.5×4 meter is very perfect for this house it is nice and modern. Brightly Kitchen area 3.3×3.5 meter with washing machine, it is beautiful. A multi Bathroom size 1.8×2.2 meters. Bedroom 5 size is  3.5×3.5 meters.

The Master Bedroom size is 3.5×4.5 meters, it have a glass sliding door to the balcony, Makeup desk and closet, attached with bathroom 2.5×2 meter. Bedroom 2 size 3.3×3.5 meter and Bedroom 3 size 3.3×3.5 meters. A multi Bathroom size 1.8×2.2 meters

Exterior Custom House Plan 9×10:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

The Hip Roof Tile:

Finally, The Hip roof type is made from Cement tile and some part make from concreate cement that cover above Gypsum board ceiling . It is make the house look simple and modern.

House Short Description:

-Car Parking small garden
-Living room,
-Dining room,
-Kitchen,
-5 Bedrooms with 2 bathrooms
-1 Guest Restroom
-Store under the stair

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

Exterior Design 3d:

Elevation Design 3d:

Interior Design 3d:

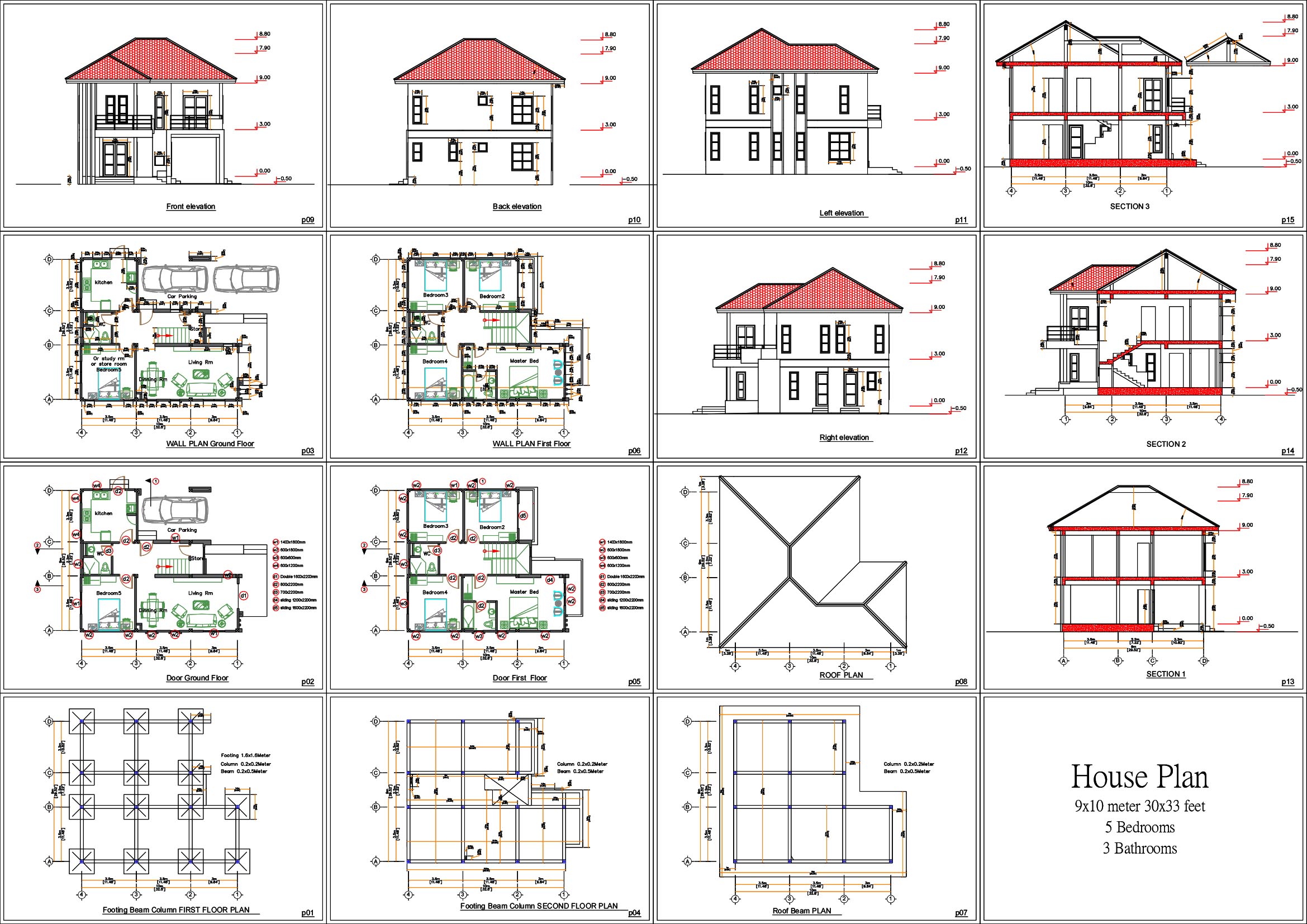

The PDF Layout Plans:

YOU WILL RECIEVED THE DETAILING AS BELOW AFTER BUYING THIS PLAN

Buy this Custom House Plan 9×10:

This is a PDF Plan available for Instant Download.

5-Bedrooms 3-Baths home with mini washer/dryer room.

Building size: 30 feet wide, 33 feet deep 9×10 Meters
Roof Type: Hip roof (Concrete cement, zine, cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
3 Cross Section plans

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

CUSTOM PLANS:
Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own direction.

Delivery Instant Download

Your files will be available to download once payment is confirmed. Here’s how.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
