20×30 Duplex House Plan 6×9 Meter 2 Beds Each Floor

$29.99

PLANS INCLUDE 20×30 Duplex House Plan:

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
4 Cross Section plans
Ceiling Lighting location Plan

Architectural Files included:

-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

Description

20×30 Duplex House Plan 6×9 Meter 2 Beds Each Floor Full PDF Plans. This house is perfect for Two family that need 2 bedrooms.

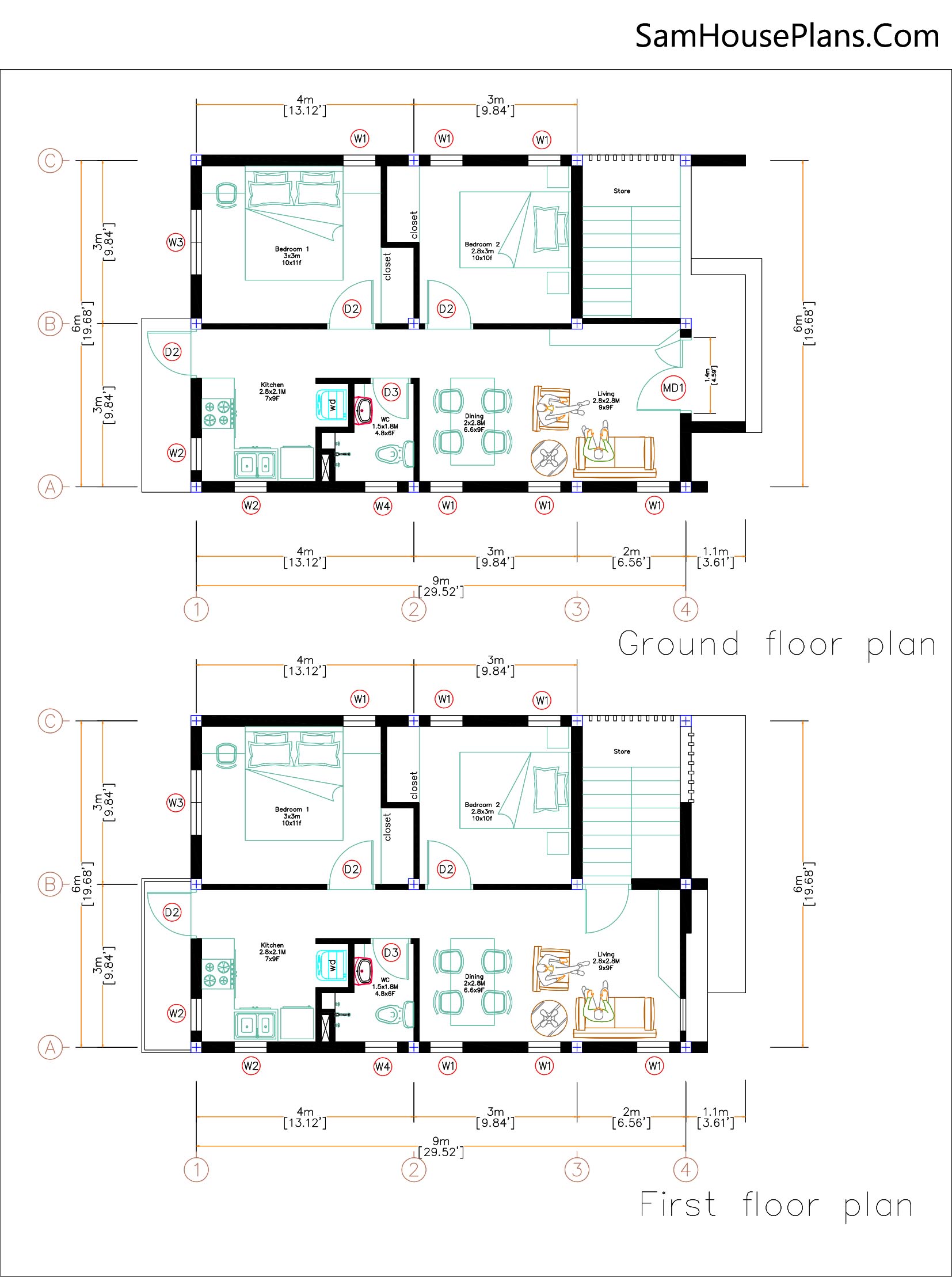

20×30 Duplex House Plan Floor Plans Has:

With this lovely house plan, Car Parking is out side of the house. A nice 2 steps entrance to go through the front door,  a Living area of 2.8×2.8 meter is very perfect for this house it is nice and modern, along with dining area 2×2.8 meter. Brightly Kitchen area 2.8×2.1 meter, it is clean and beautiful. A multi Bathroom size 1.5×1.8 meters. The washing machine is in the kitchen. Store is under the stair.

The Master Bedroom size is 3×3 meters, it has a big window at the back, with a King size bed, Makeup desk and closet at the left. Bedroom 2 size is 2.8×3 meter.

The first floor is the same size as ground layout plan.

Exterior 20×30 Duplex House Plan:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

The Terrace Roof Tile:

Finally, The Terrace roof type is made from cement concrete that cover above Gypsum board ceiling . It is make the house look simple and modern.

House Short Description:

-One Car Parking and garden
-Living room,
-Dining room
-Kitchen
-2 Bedrooms, 1 bathroom (Each floor plan)
-Small Storage under the stair
-washing
-Stair case can access to the first floor unit

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

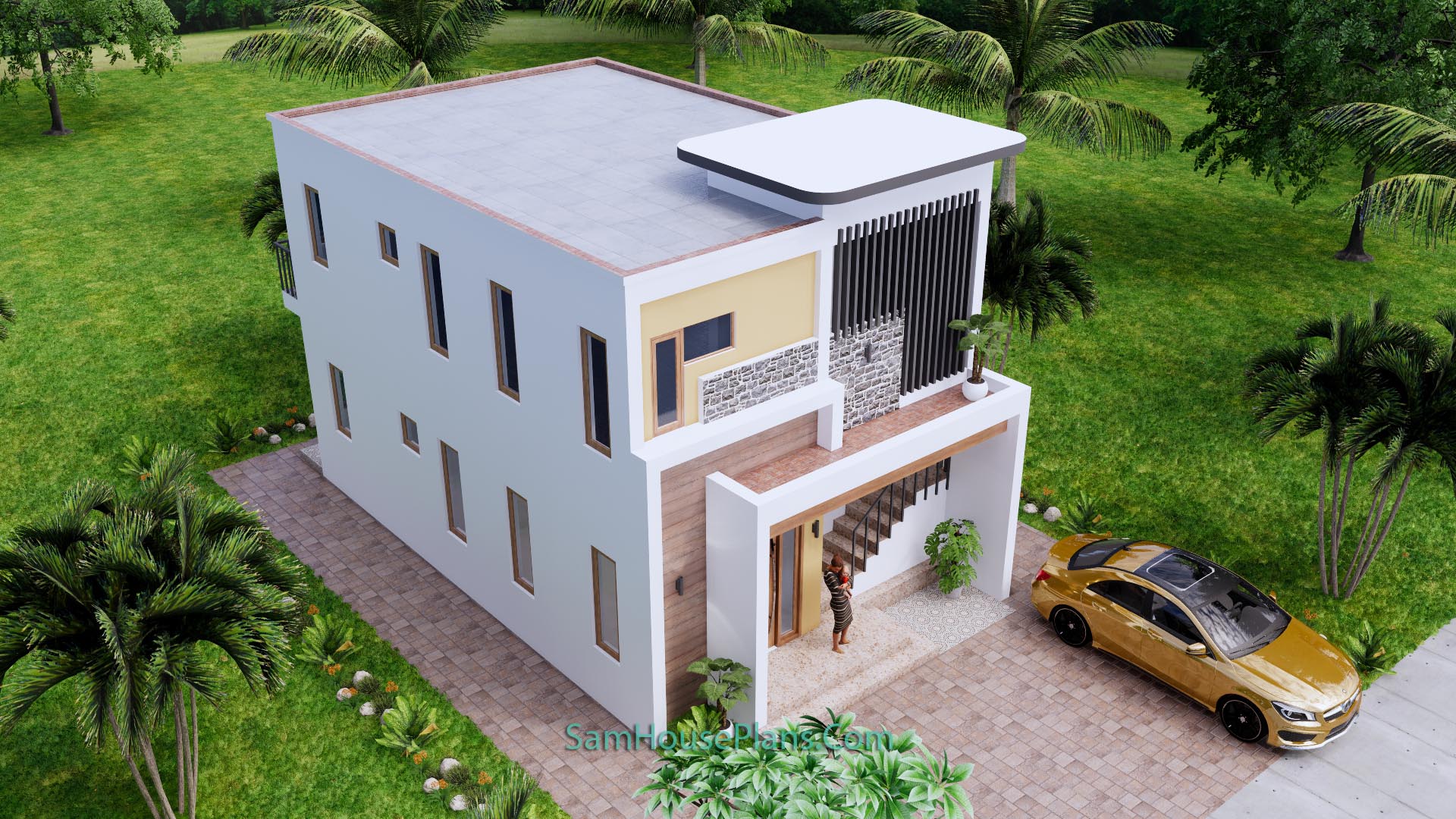

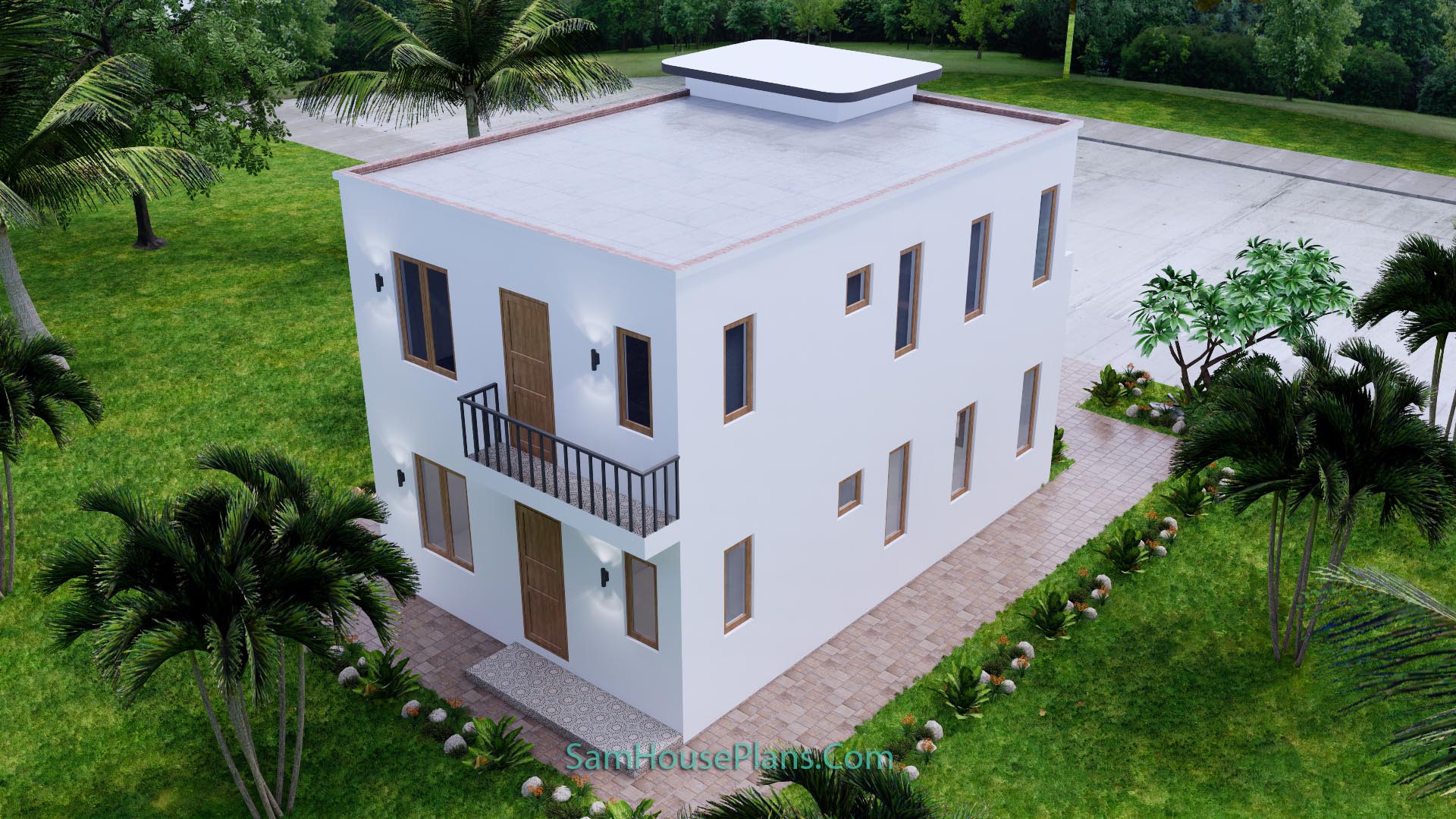

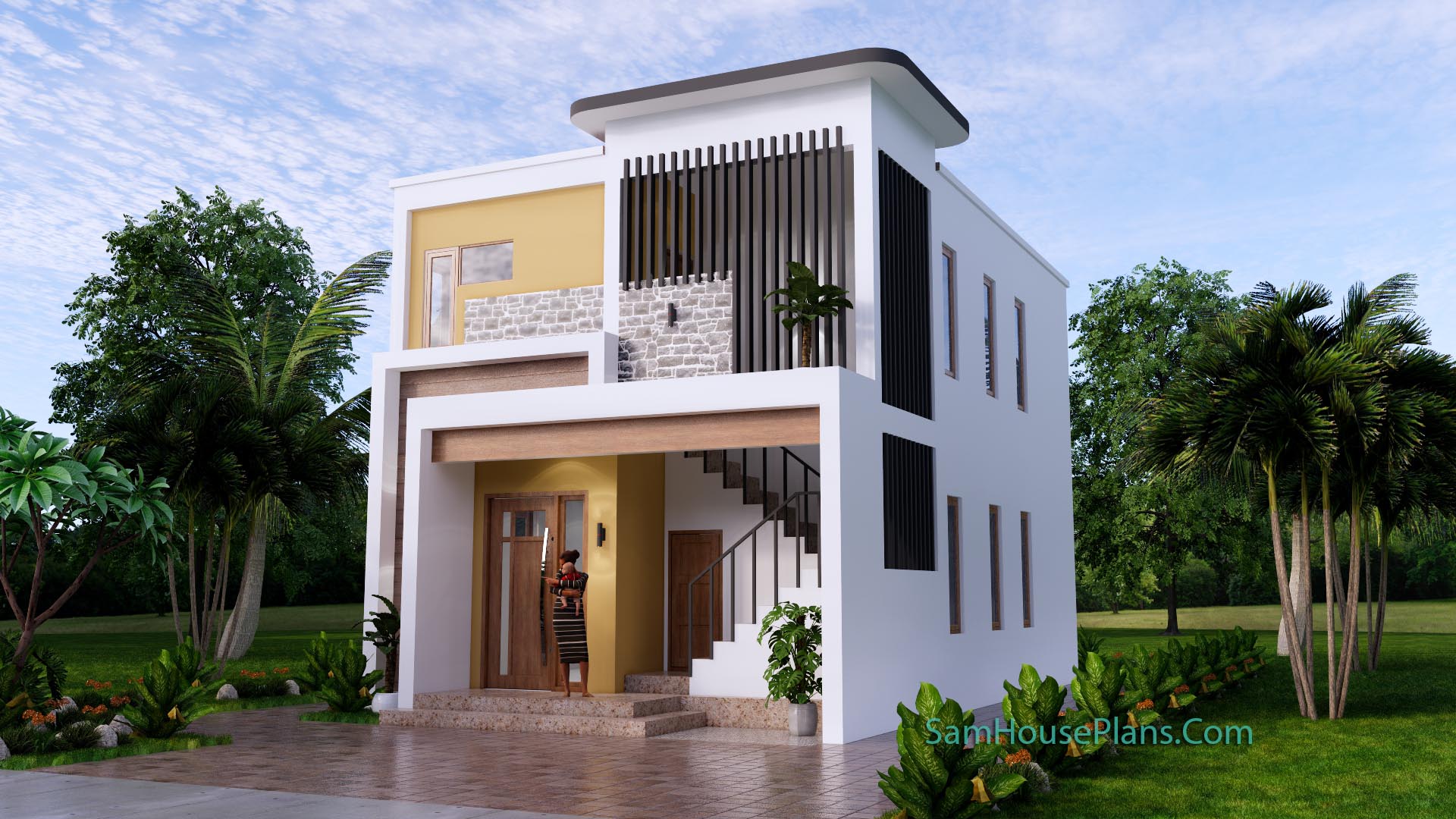

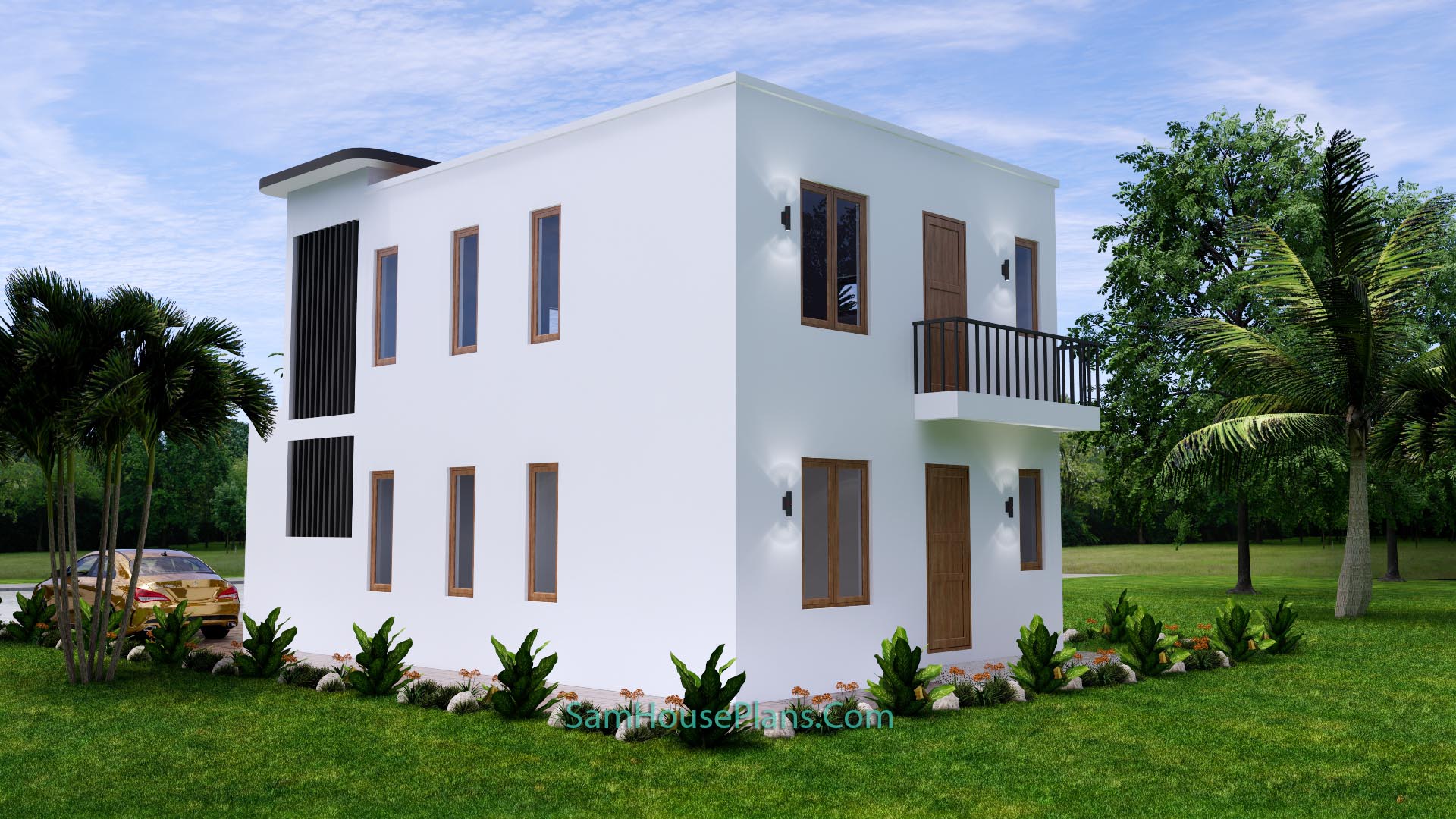

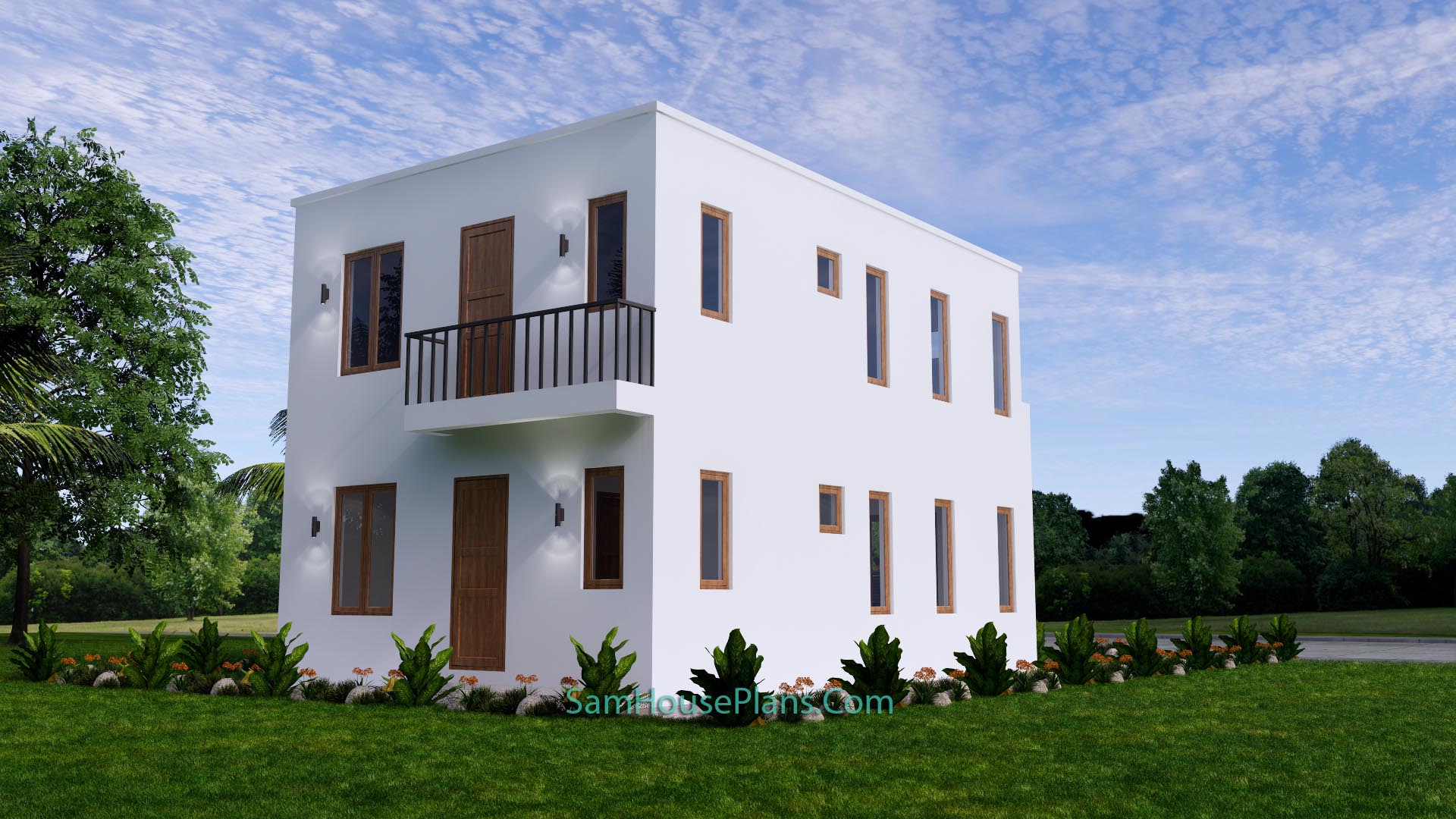

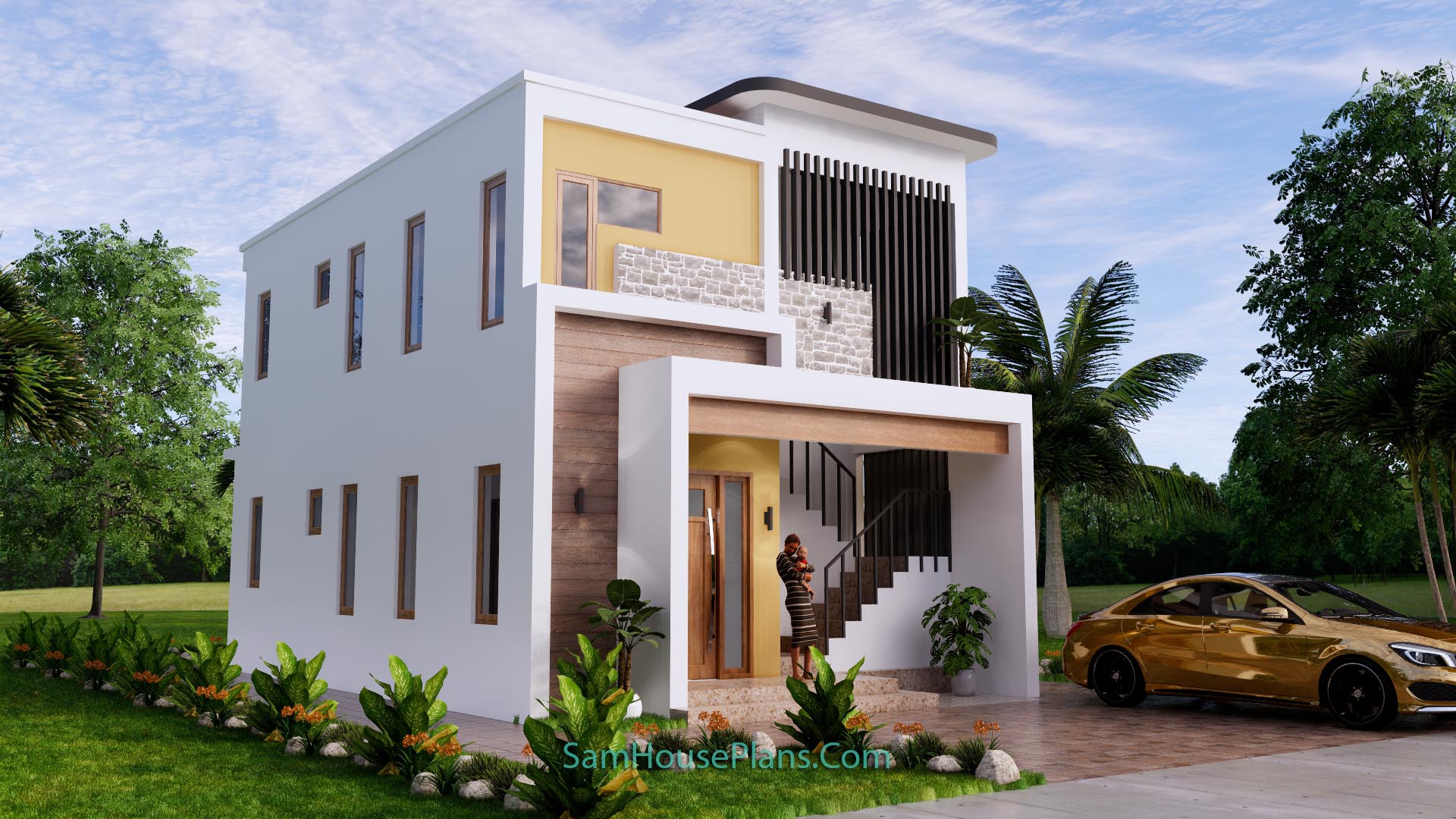

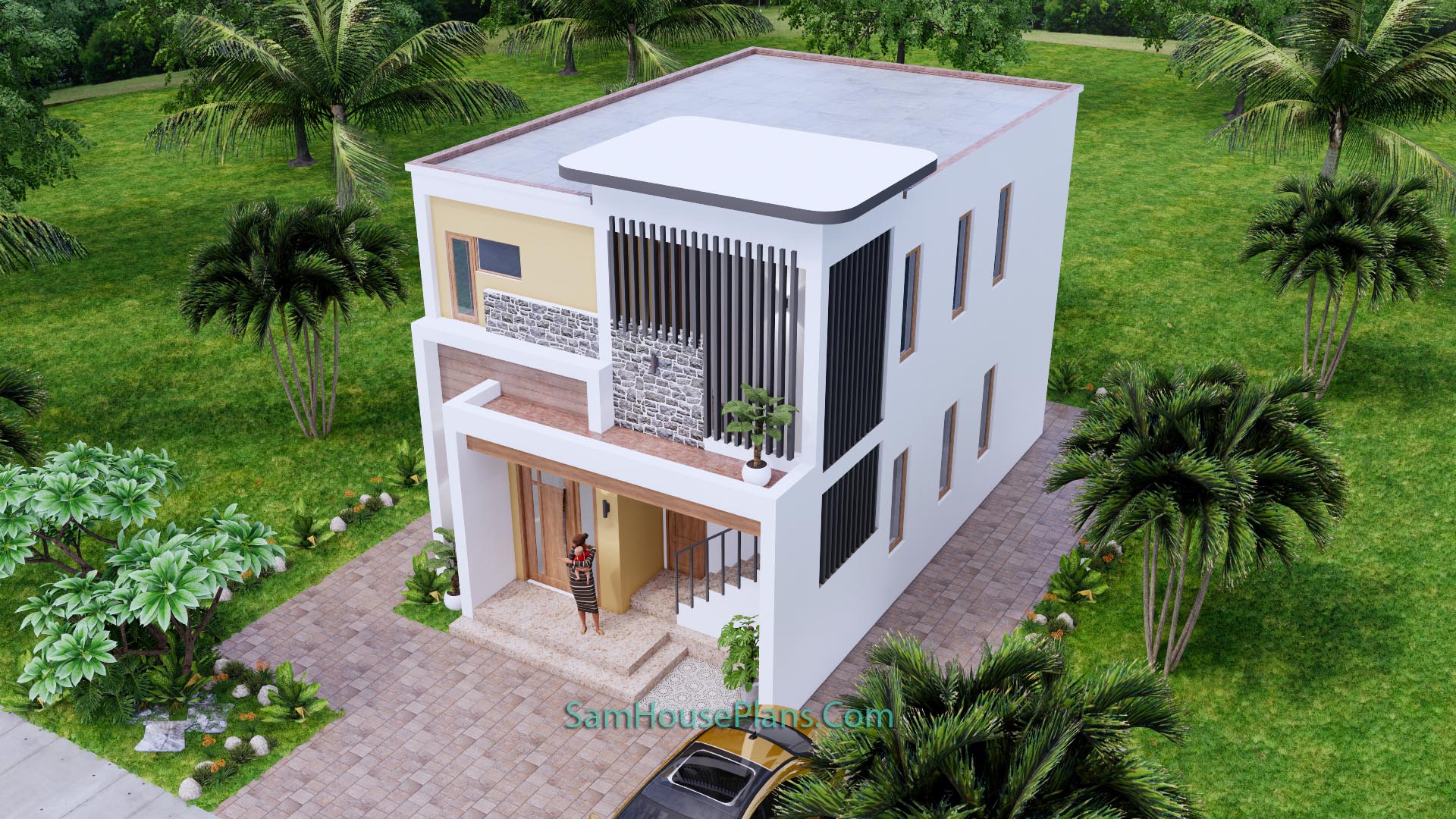

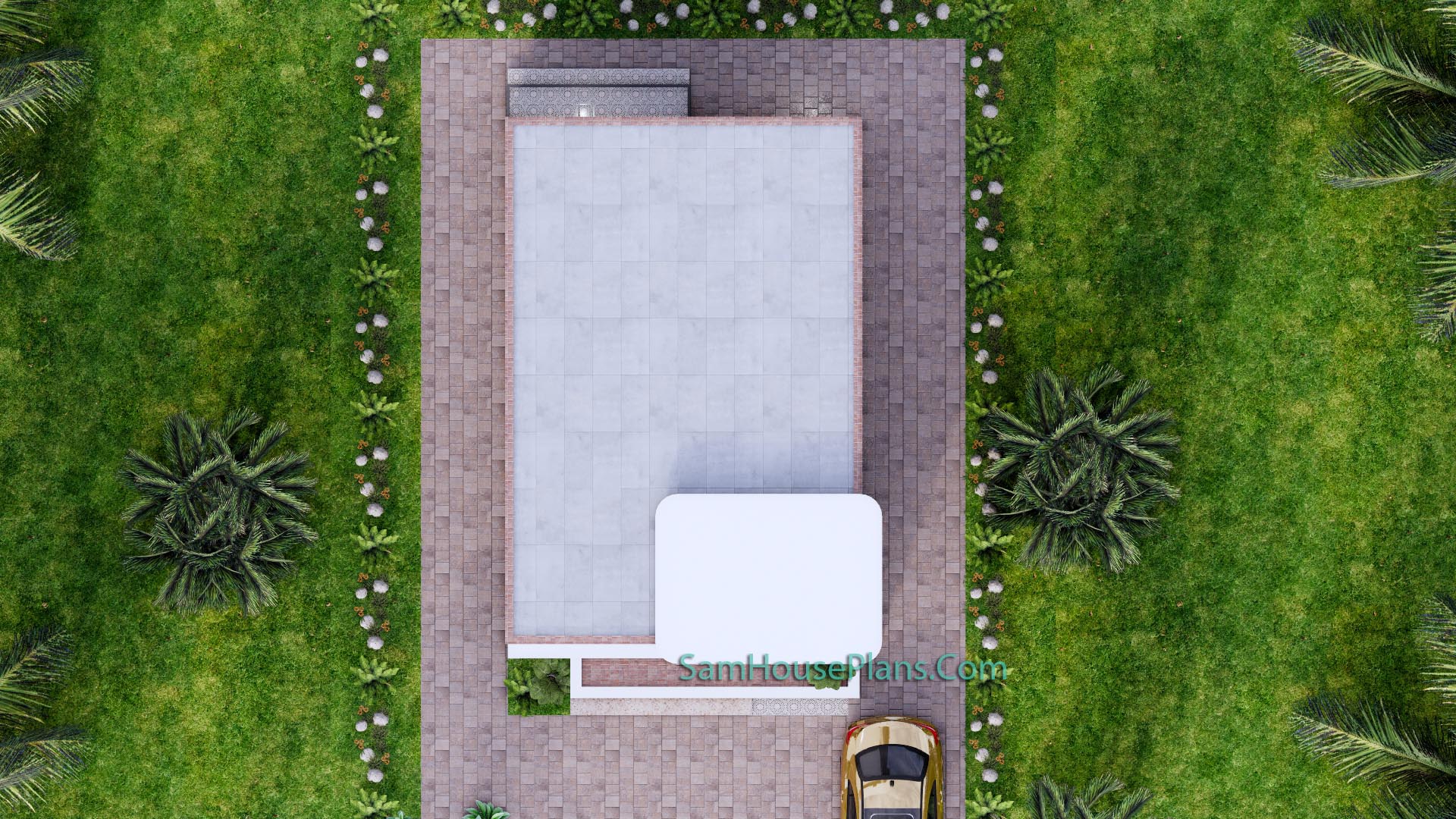

Exterior Design 3d:

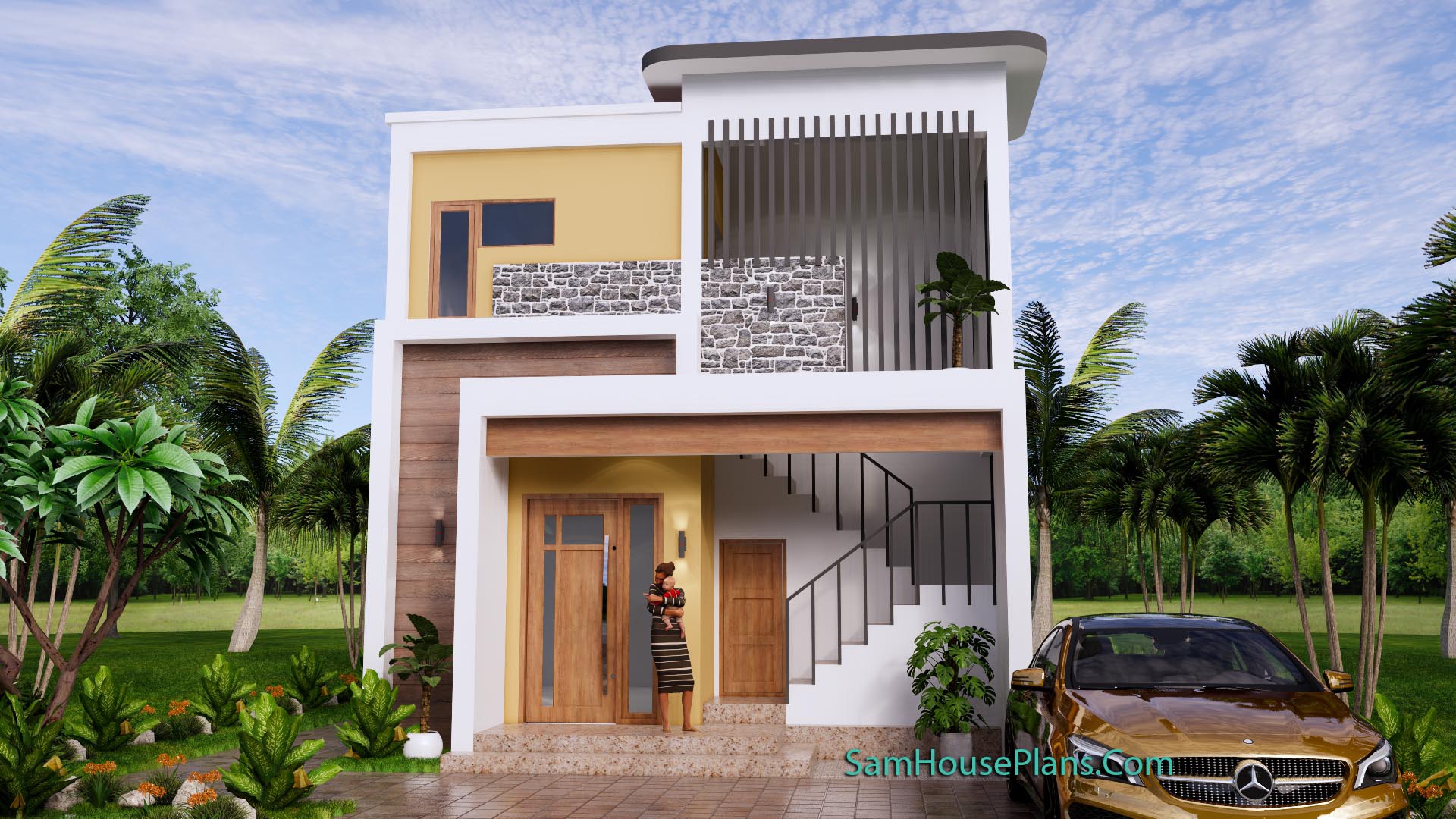

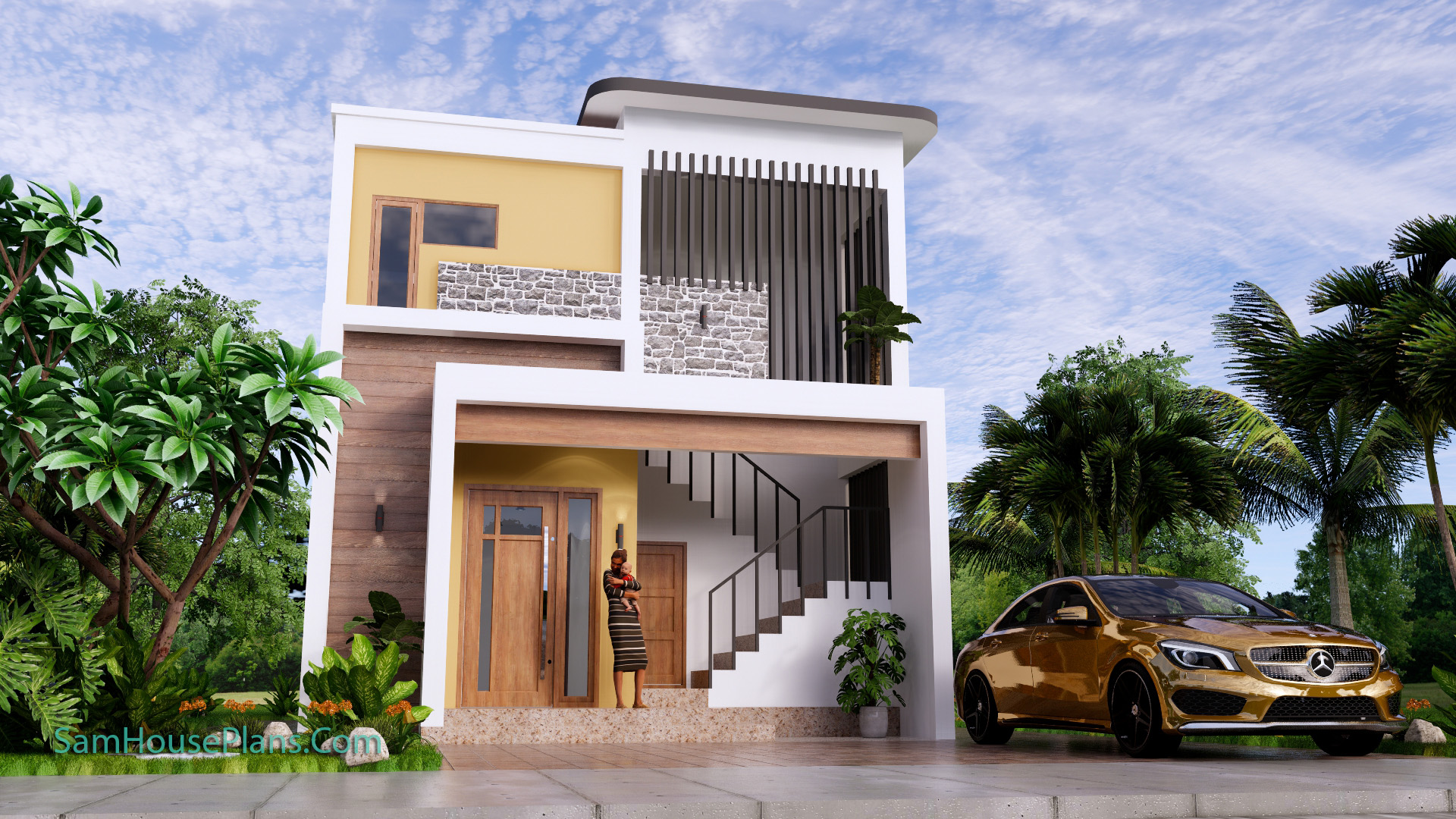

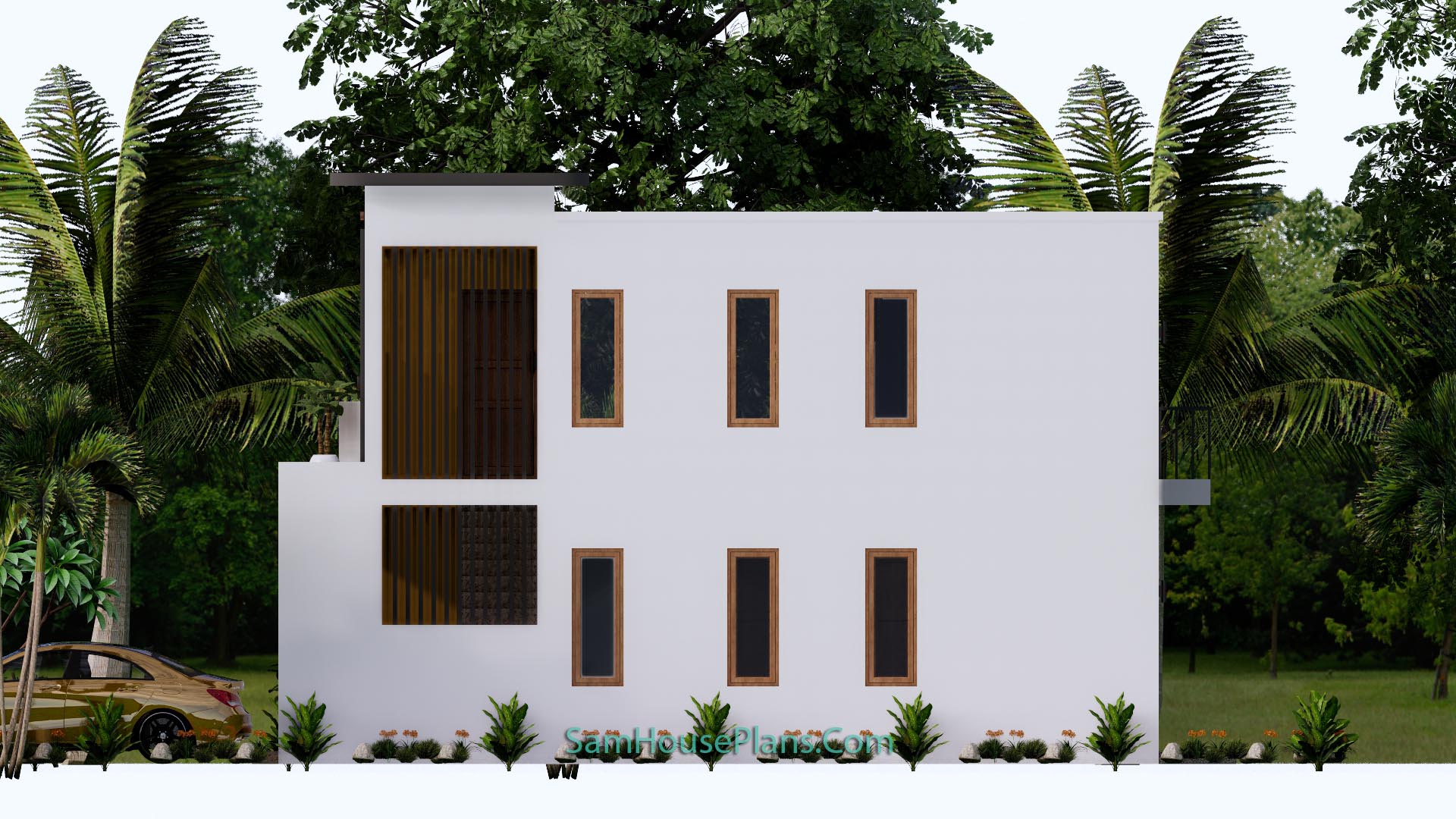

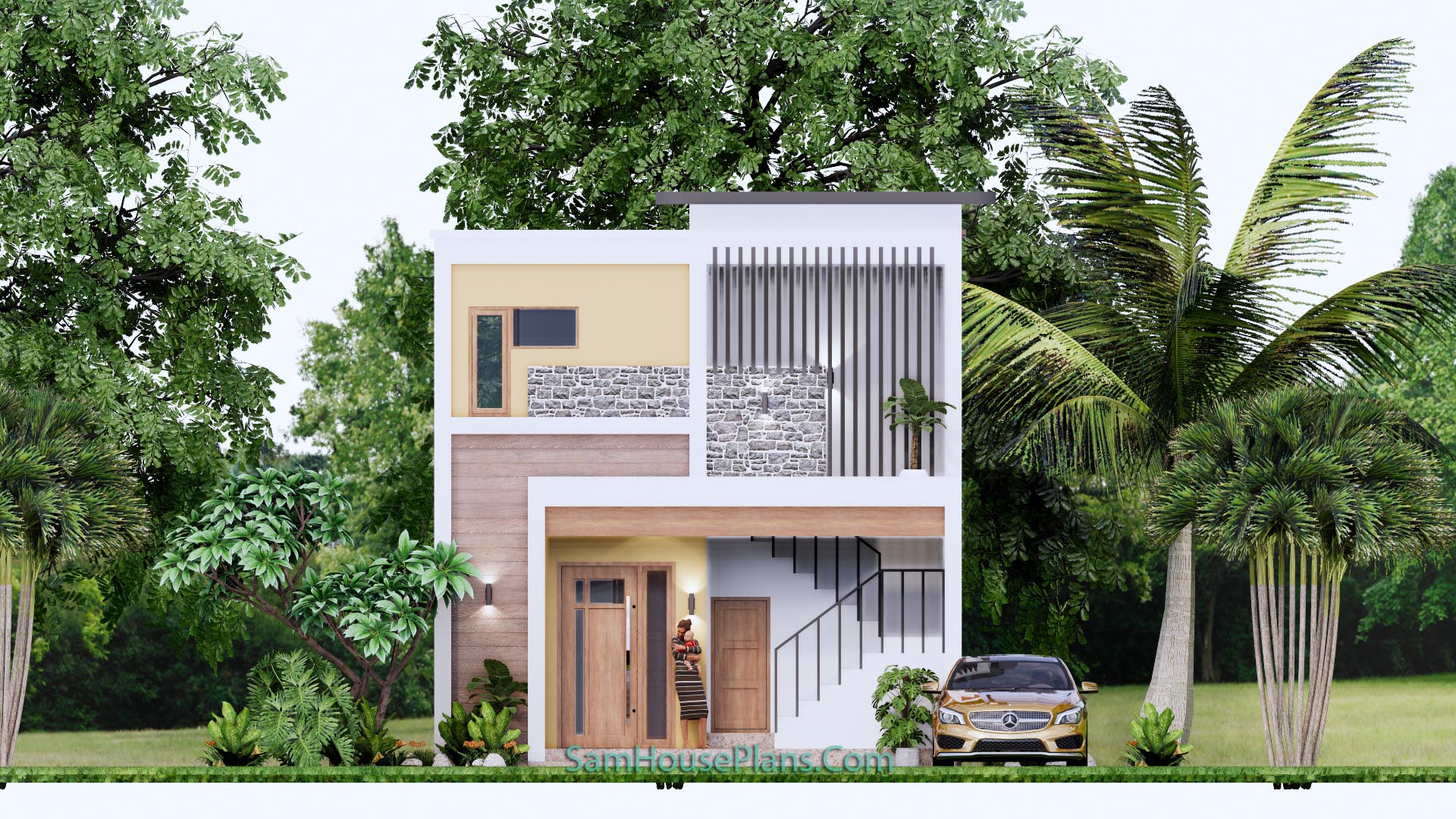

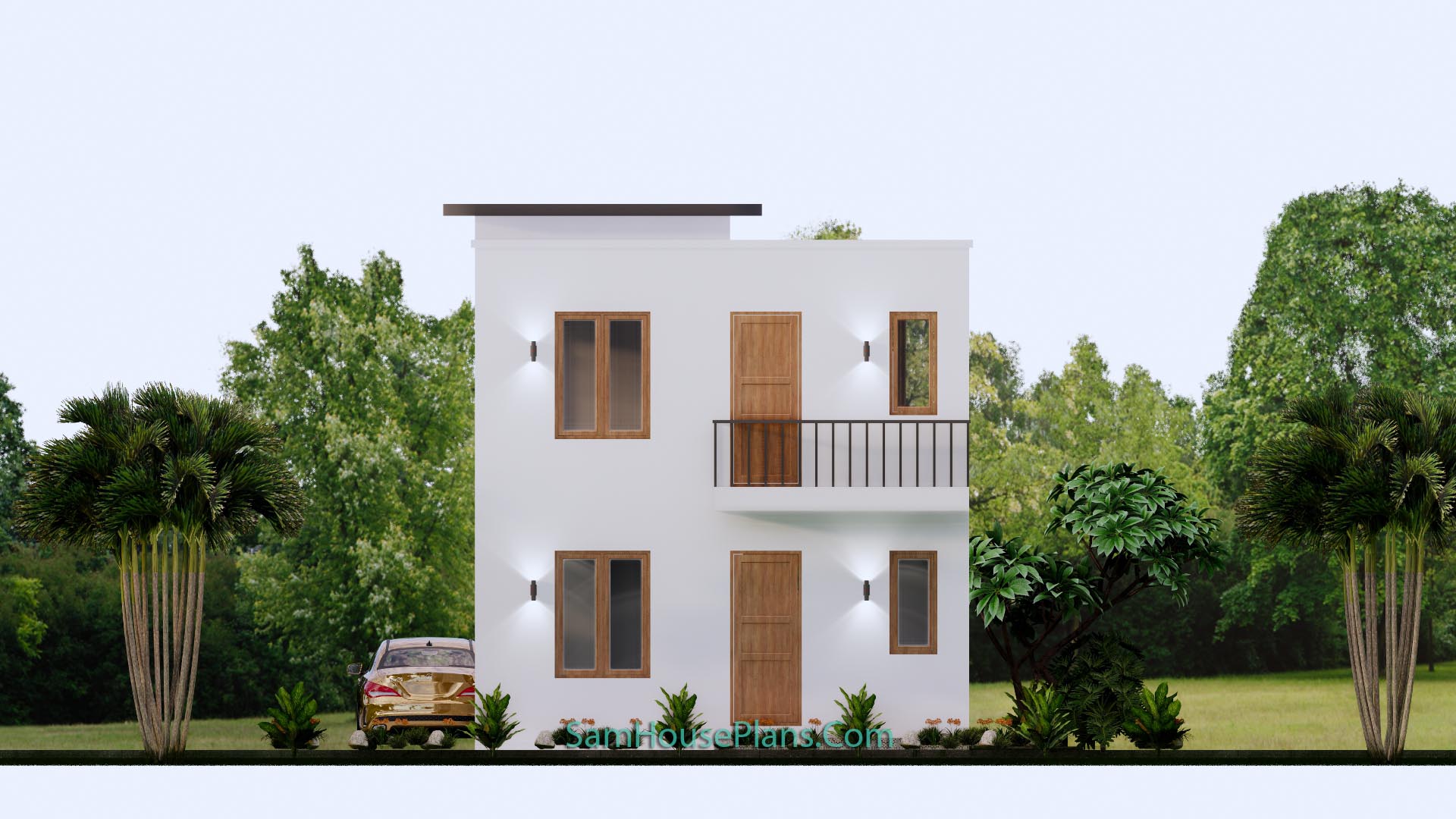

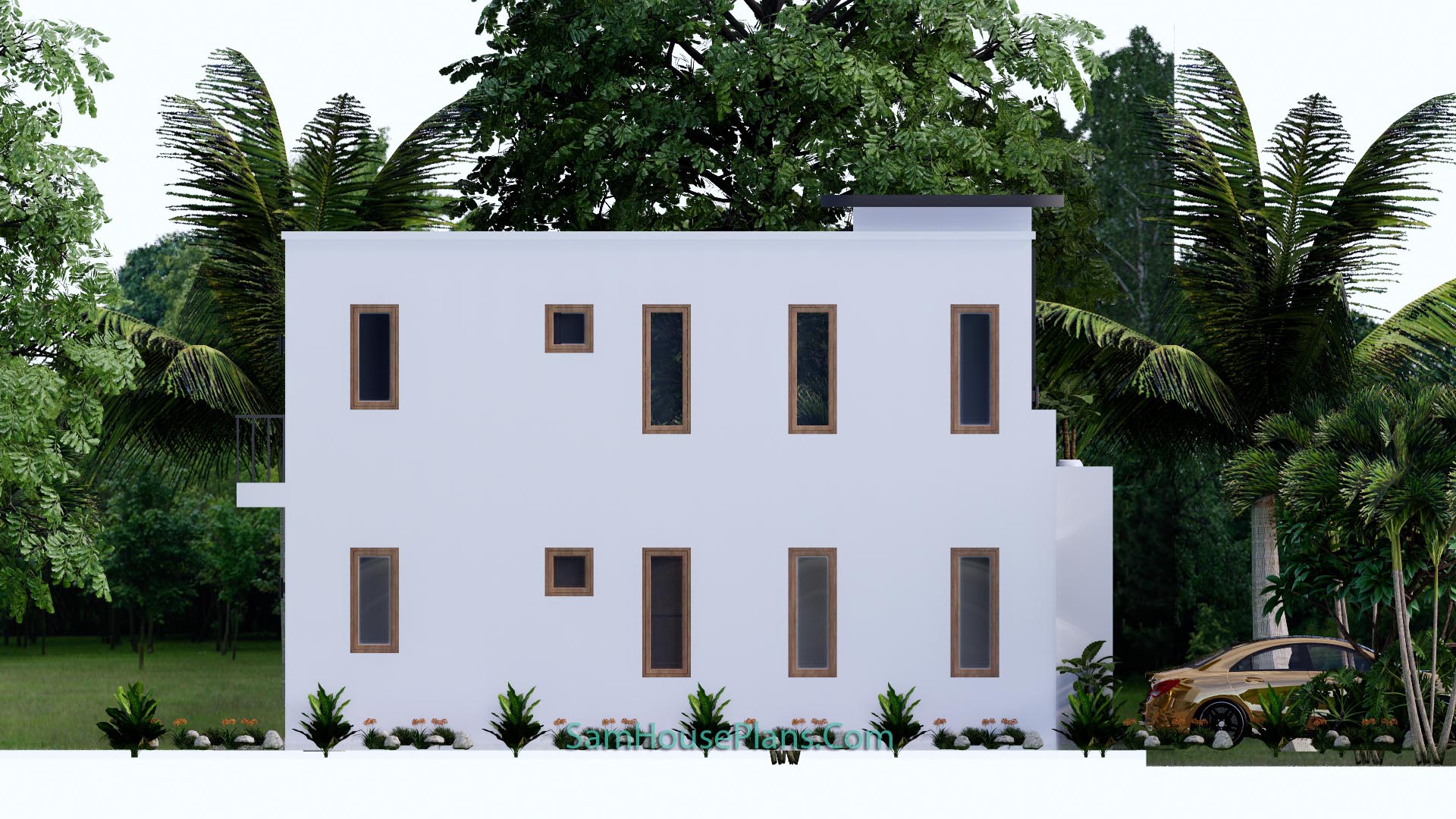

Elevation Design 3d:

Interior Design 3d:

The PDF Layout Plans:

YOU WILL RECIEVED THE DETAILING AS BELOW AFTER BUYING THIS PLAN

Buy this 20×30 Duplex House Plan :

This is a PDF Plan available for Instant Download.

2-Bedrooms 1-Bath home with stair case access to the future first floor unit family.

Building size: 20 feet wide, 30 feet deep 6×9 Meters
Roof Type: Terrace roof (Concrete cement, zine, cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE 20×30 Duplex House Plan :

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
4 Cross Section plans
Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

CUSTOM PLANS:
Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own direction.

Delivery Instant Download

Your files will be available to download once payment is confirmed. Here’s how.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
