Tiny House Plans 5×6 Build From Steel Frame Siding Panel 16×20 Feet

Original price was: $99.00.Current price is: $19.99.

Buy this house plan: 16×20 Tiny House Plans 5×6 m

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
Wall Cross Section plans
Ceiling Lighting location Plan

-Google Sketchup 2019 file -AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

Click Here to Download the Sample Plan

SKU: 438004367315 Categories: , Tag:

Description

Tiny House Plans 5×6 Build From Steel Frame Siding Panel 16×20 Feet, 1 Bedroom full plans.

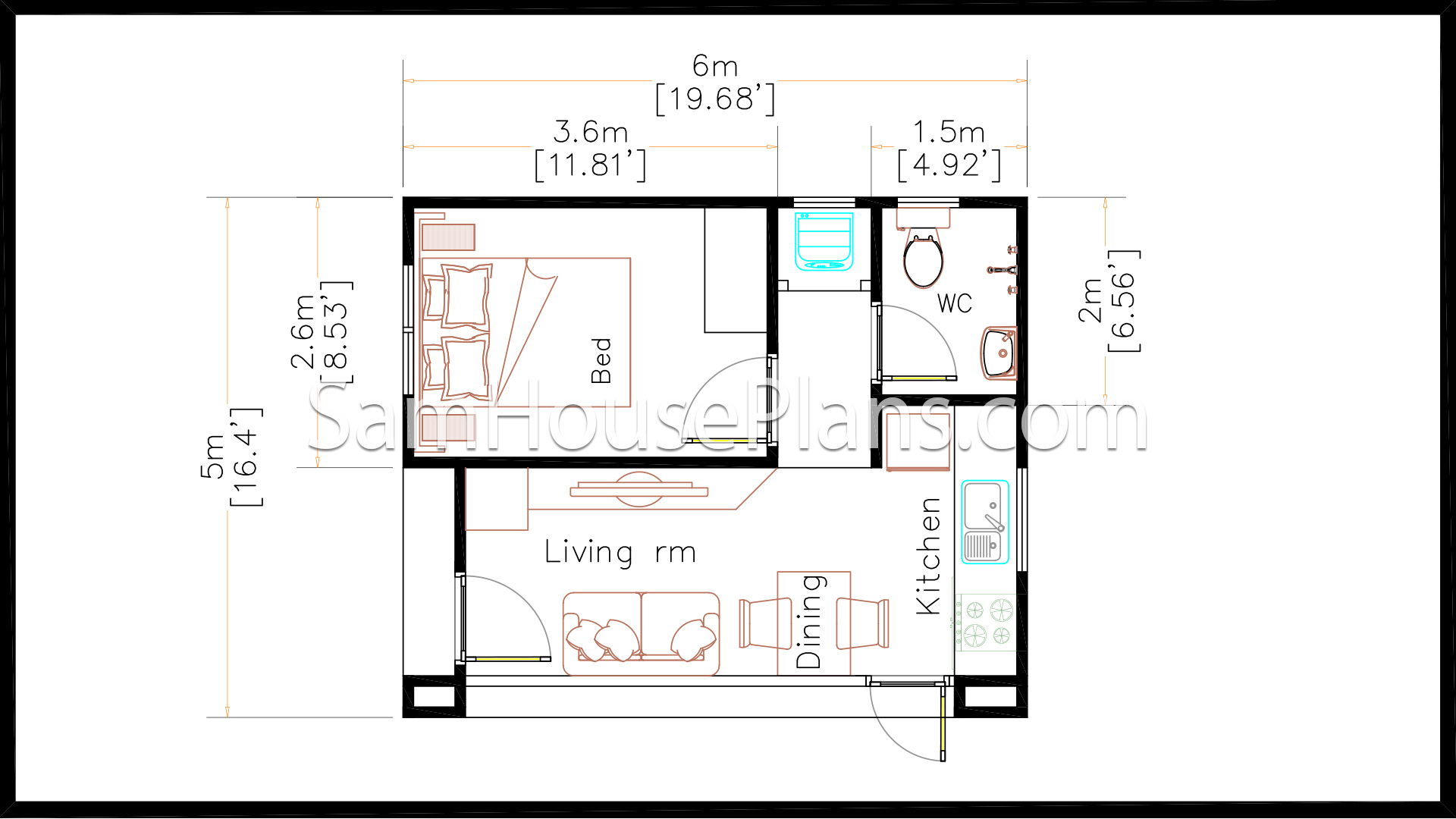

Tiny House Plans 5×6 Ground Floor Plans Has:

Firstly,  car Parking is out side of the house. A nice Terrace entrance in front of the house 0.5×1.8 meter. When we are going from front door, a small Living 3×2 meter is very perfect for this house it is nice and modern. Brightly Kitchen with dining table 3×2.5 meter, it is clean and beautiful. A multi Bathroom size 1.5×2 meters. The washing machine is near the bathroom, storage is going up the washing machine.

The Master Bedroom size is 3.6×2.6 meters, it have a big glass window with a queen size bed, Makeup desk and closet, attached with the bathroom by sliding door.

The Roof Tile:

Finally, The Shed roof type is made from zine roof tiles (or other supported roof tiles) that cover above Gypsum board ceiling . It is make the house look simple and modern.

Tiny House Plans 5x6 Build From Steel Frame 1

Exterior Tiny House Plans 5×6:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

Tiny House Plans 5x6 Build From Steel Frame Front 3d view

Tiny House Plans 5x6 Build From Steel Frame Back 3d view

House Short Description:

-Car Parking and garden
-Living room,
-Dining room
-Kitchen
-1 Bedroom, 1 bathroom
-Storage
-washing room

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

Buy this house plan:

This is a PDF Plan available for Instant Download.

1-Bedroom 1-Bath home with mini washer/dryer room.

Building size: 16 feet wide, 20 feet deep 5×6 Meters
Roof Type: Shed roof (zine, cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
Wall Cross Section plans
Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

CUSTOM PLANS:
Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.

Delivery Instant Download

Your files will be available to download once payment is confirmed. Here’s how.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: House Plans Channel
If you think this Plan is useful for you. Please like and share.

Tiny House Plans 5x6 Build From Steel Frame 1

Tiny House Plans 5x6 Build From Steel Frame Living room

Tiny House Plans 5x6 Build From Steel Frame Living room 1

Tiny House Plans 5x6 Build From Steel Frame Dining table

Tiny House Plans 5x6 Build From Steel Frame Kitchen

Tiny House Plans 5x6 Build From Steel Frame top 3d

YOU WILL RECIEVED THE DETAILING AS BELOW AFTER BUYING THIS PLAN
