Small House Design 9×9.5 Meter 3 Beds Full PDF Plan

Original price was: $99.00.Current price is: $19.99.

Buy this Small House Design 9×9.5

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan, Roof Plan
Elevations plans
2 Cross Section plans
Lighting location Plan

-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

Click Here to Download the Sample Plan

SKU: 417343705255 Categories: , Tag:

Description

Small House Design 9×9.5 Meter 3 Bedrooms Full PDF Plan 30X31 Feet. If you are looking for 3 bedrooms house for your small family this house is perfect House plan for you.

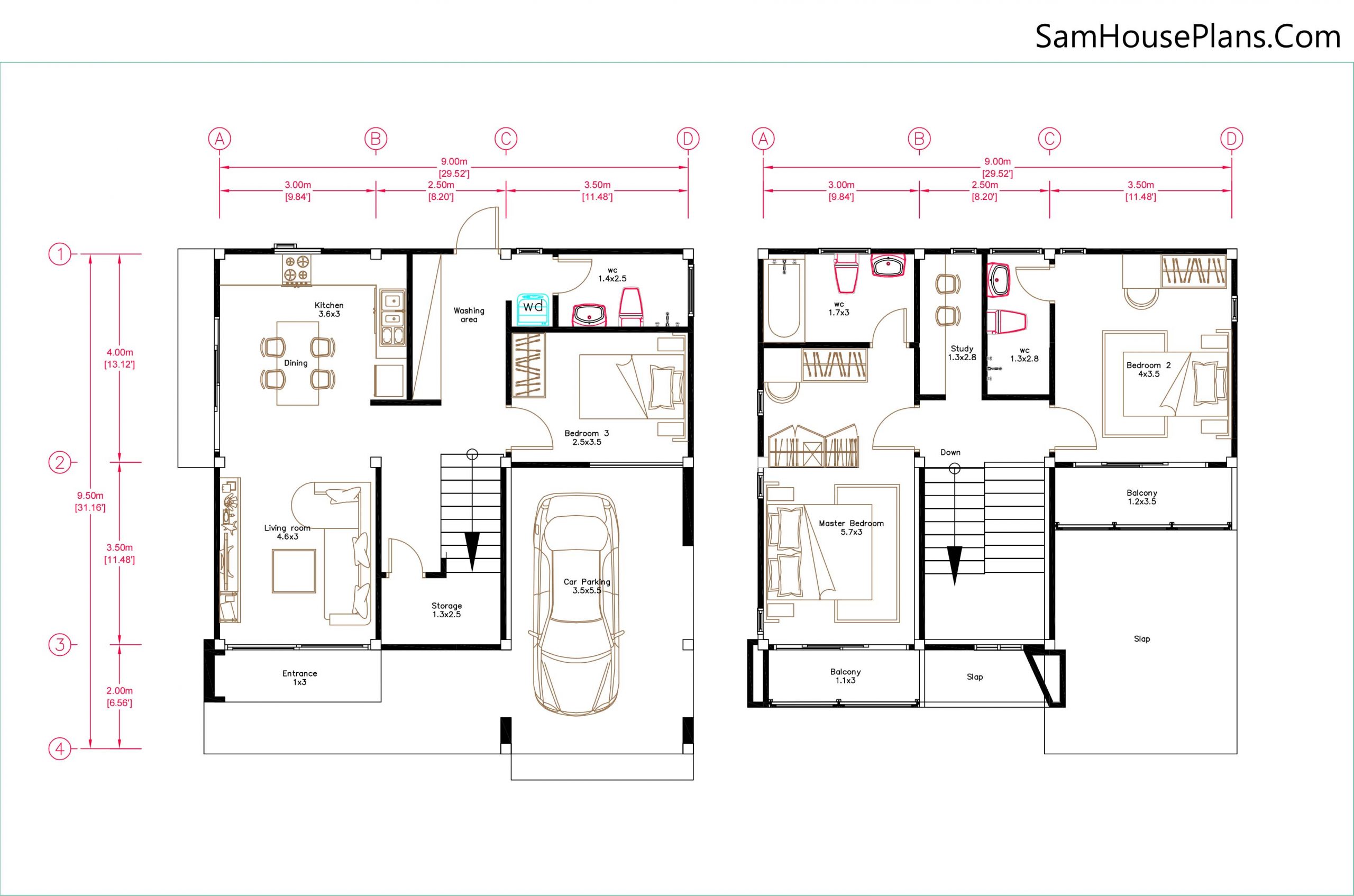

Small House Design 9×9.5 Floor Plans Has:

Firstly, Ground floor, 1 car Parking is at the right side of the house 3.5×5.5 meter. A nice Terrace entrance in front of the house size 1×3 meters. When we are going from front door, a Living 3.6×3 meters is very perfect for this house it is nice and modern. Brightly Kitchen 3.6×3 meters with Dining table, it is clean and beautiful. Storage is under the stair 1.3×2.5 meter. Bathroom 1.4×2.5 meter and Washing Area. Bedroom 3 size is 2.3×3.5 meter

Finally, at first floor: the Master Bedroom size is 5.7×3 meters attached with bathroom 1.7×3 meters, it also has a big glass door to balcony 1.1×3 meter with a queen size bed, Makeup desk and walk in closet. Bedroom 2 size 4×3.5 meter with bathroom 1.3×2.8 meter and balcony 1.2×3.5. Study area 1.3×2.8 meter.

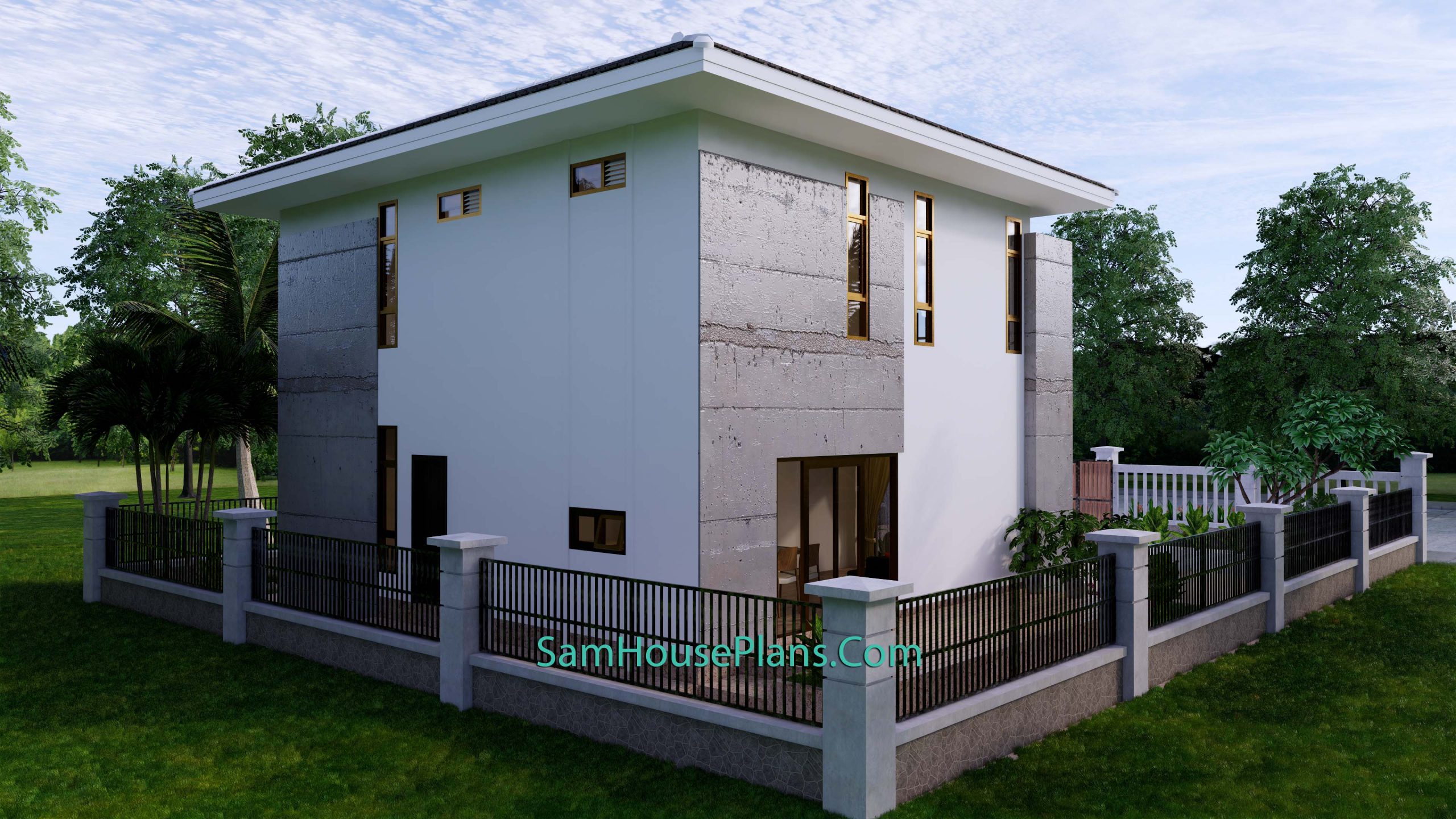

Exterior Small House Design 9×9.5:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

Small House Design 9x9.5 Meter 3 Bedrooms Full PDF Plan

The Hip Roof Tile:

Finally, The Hip roof type is made from Cement roof tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

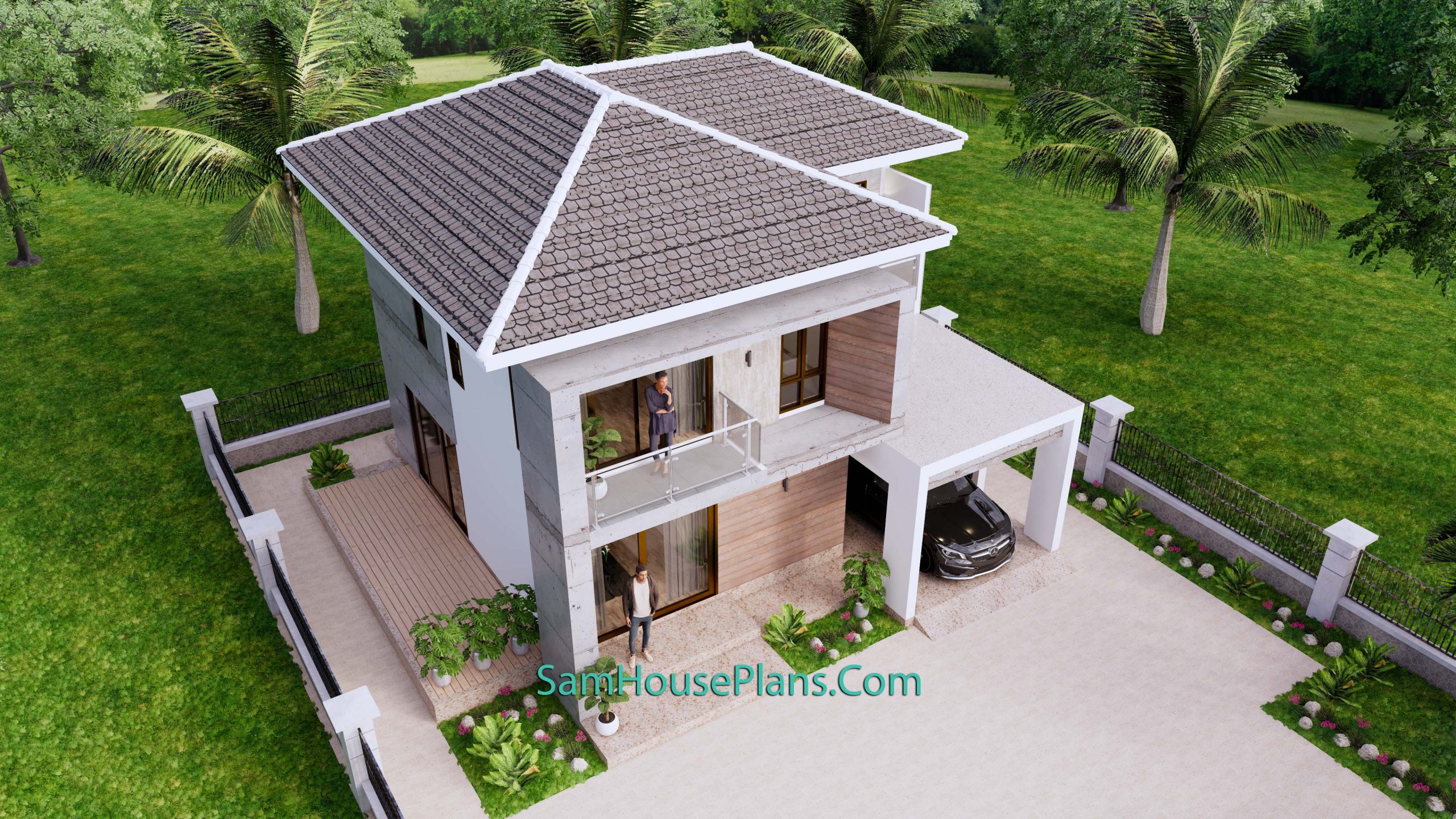

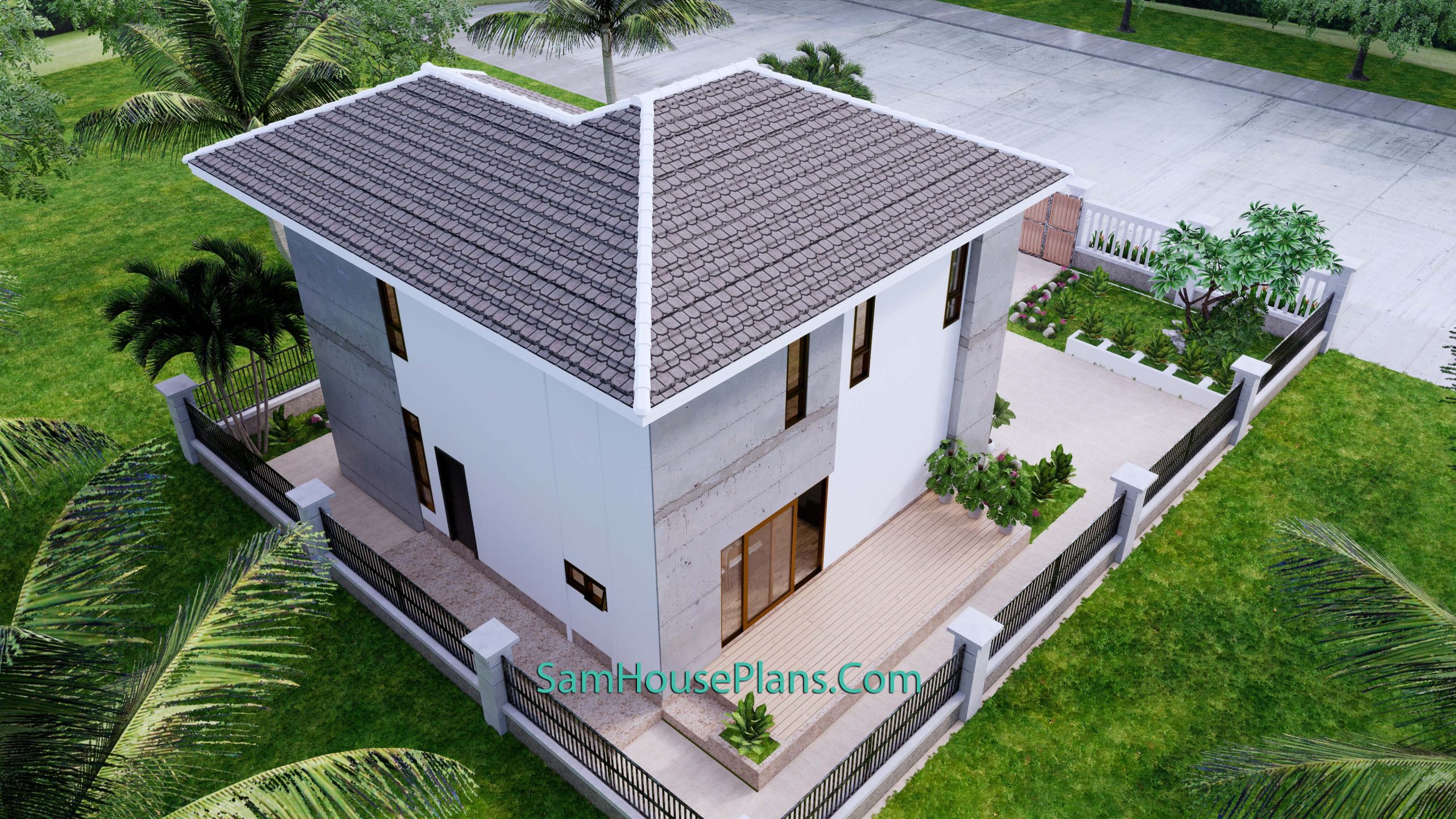

Small House Design 9x9.5 Meter 3 Bedrooms Full PDF Plan Top 3d view 1

House Short Description:

-Car Parking and garden
-Living room
-Dining room
-Kitchen, storage, build in cabinets
-3 Bedrooms, 3 bathrooms,  balcony
-Storage
-washing room

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

Exterior House design 3d:

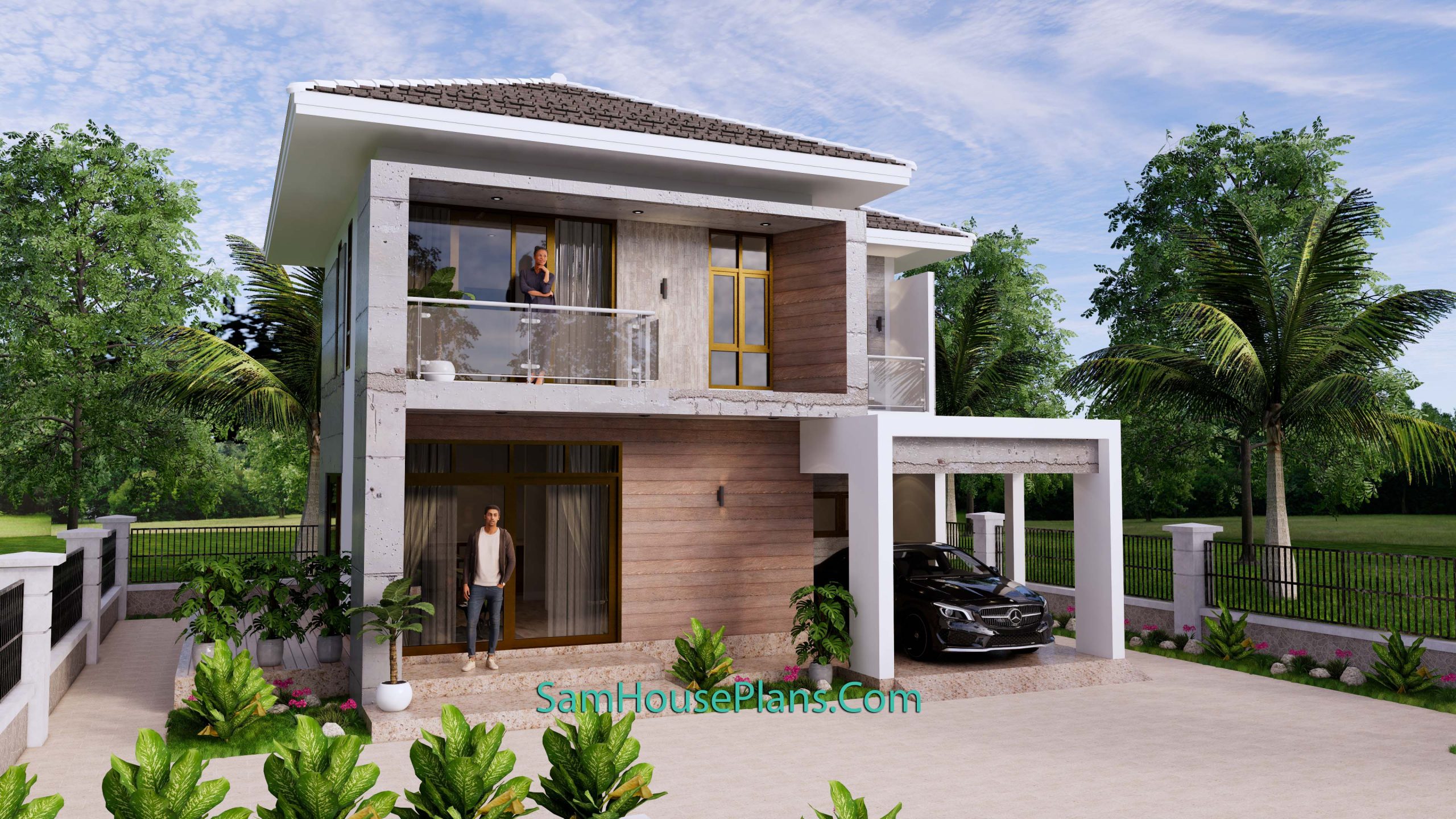

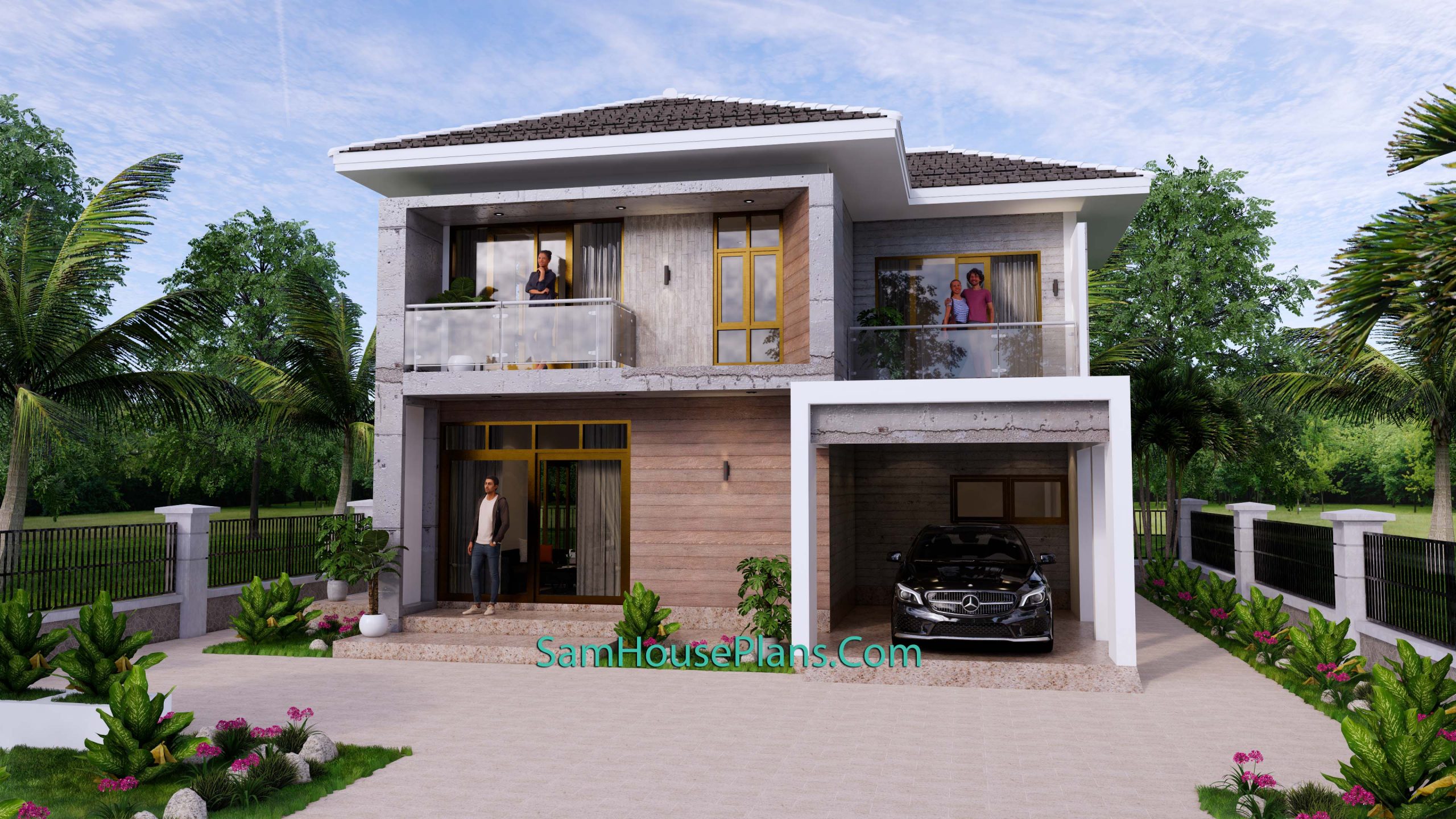

Small House Design 9x9.5 Meter 3 Bedrooms Full PDF Plan Front 3d view 2

Small House Design 9x9.5 Meter 3 Bedrooms Full PDF Plan Front 3d view 1

Small House Design 9x9.5 Meter 3 Bedrooms Full PDF Plan Front 3d view 3

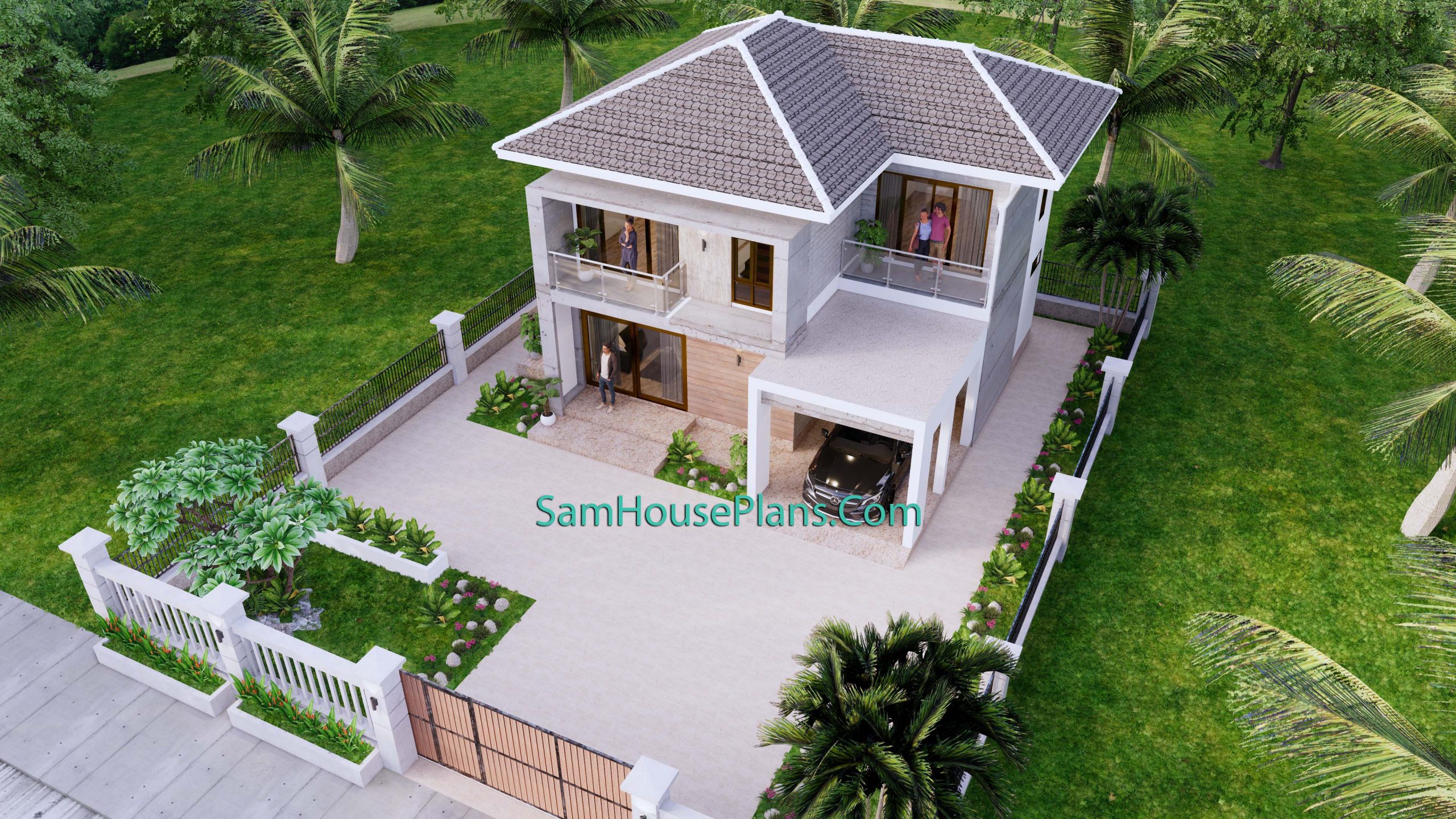

Small House Design 9x9.5 Meter 3 Bedrooms Full PDF Plan Top 3d view 1

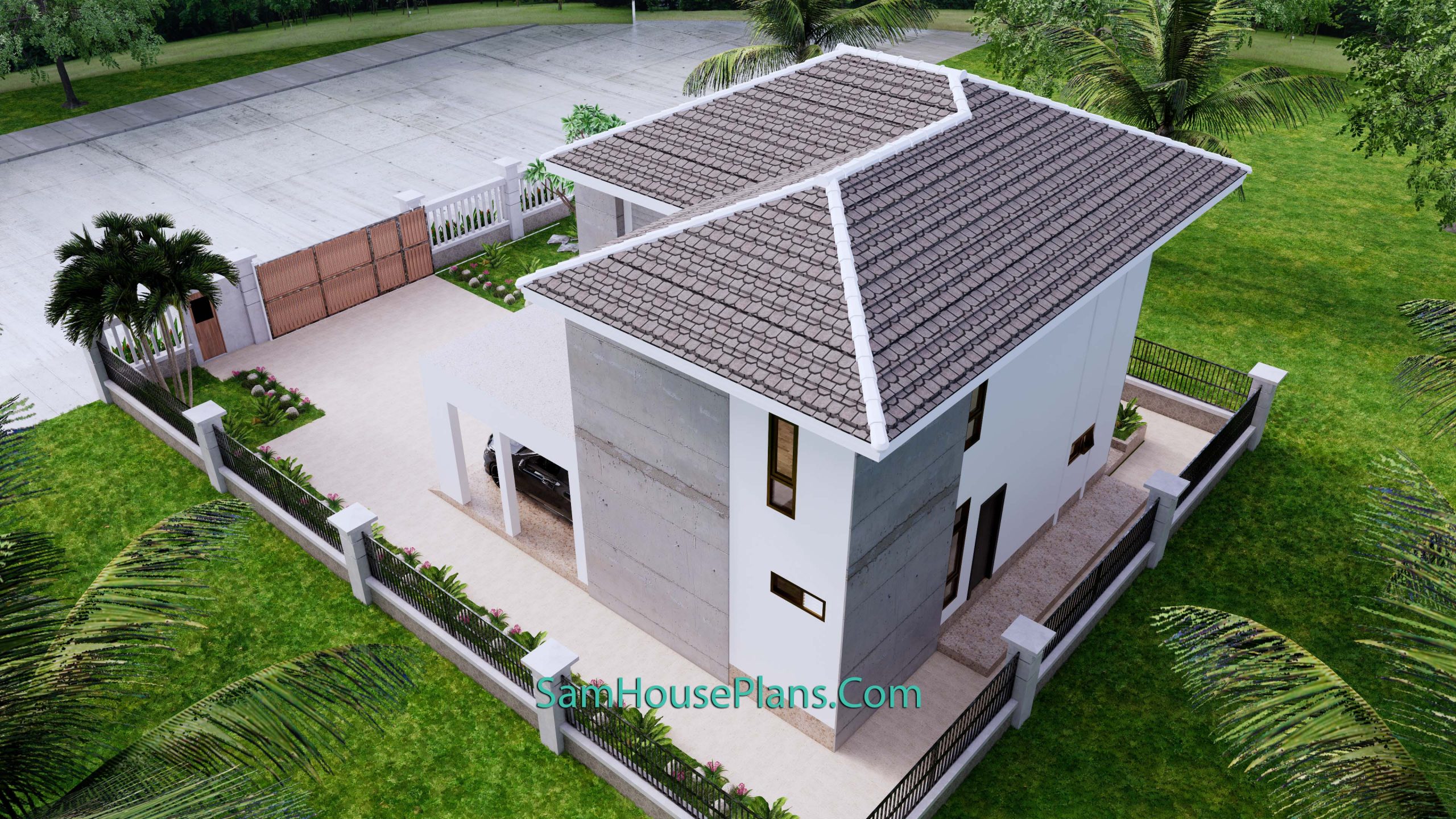

Small House Design 9x9.5 Meter 3 Bedrooms Full PDF Plan Top 3d view 2

Elevation 3d:

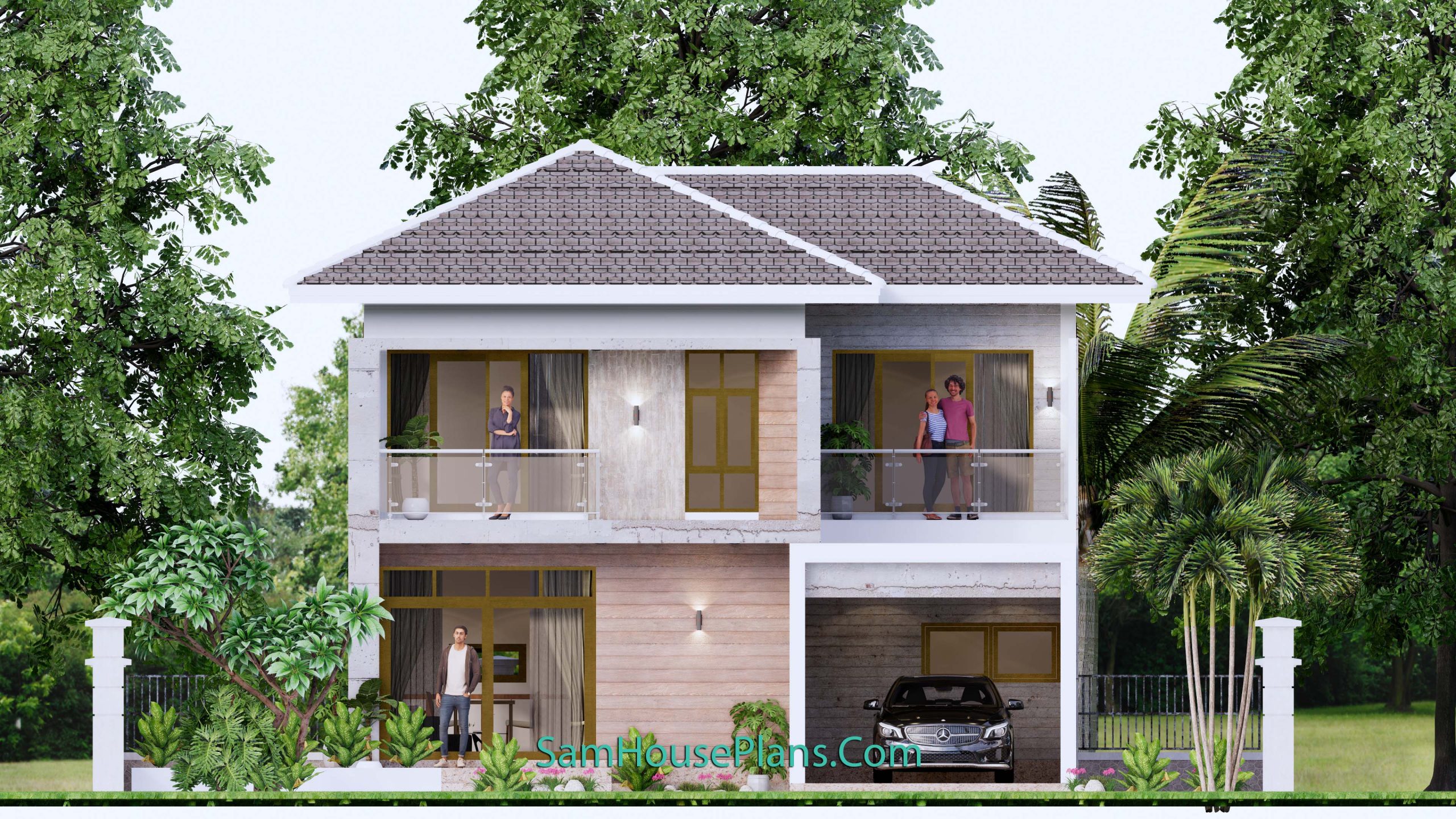

Small House Design 9x9.5 Meter 3 Bedrooms Full PDF Plan Elevation Front

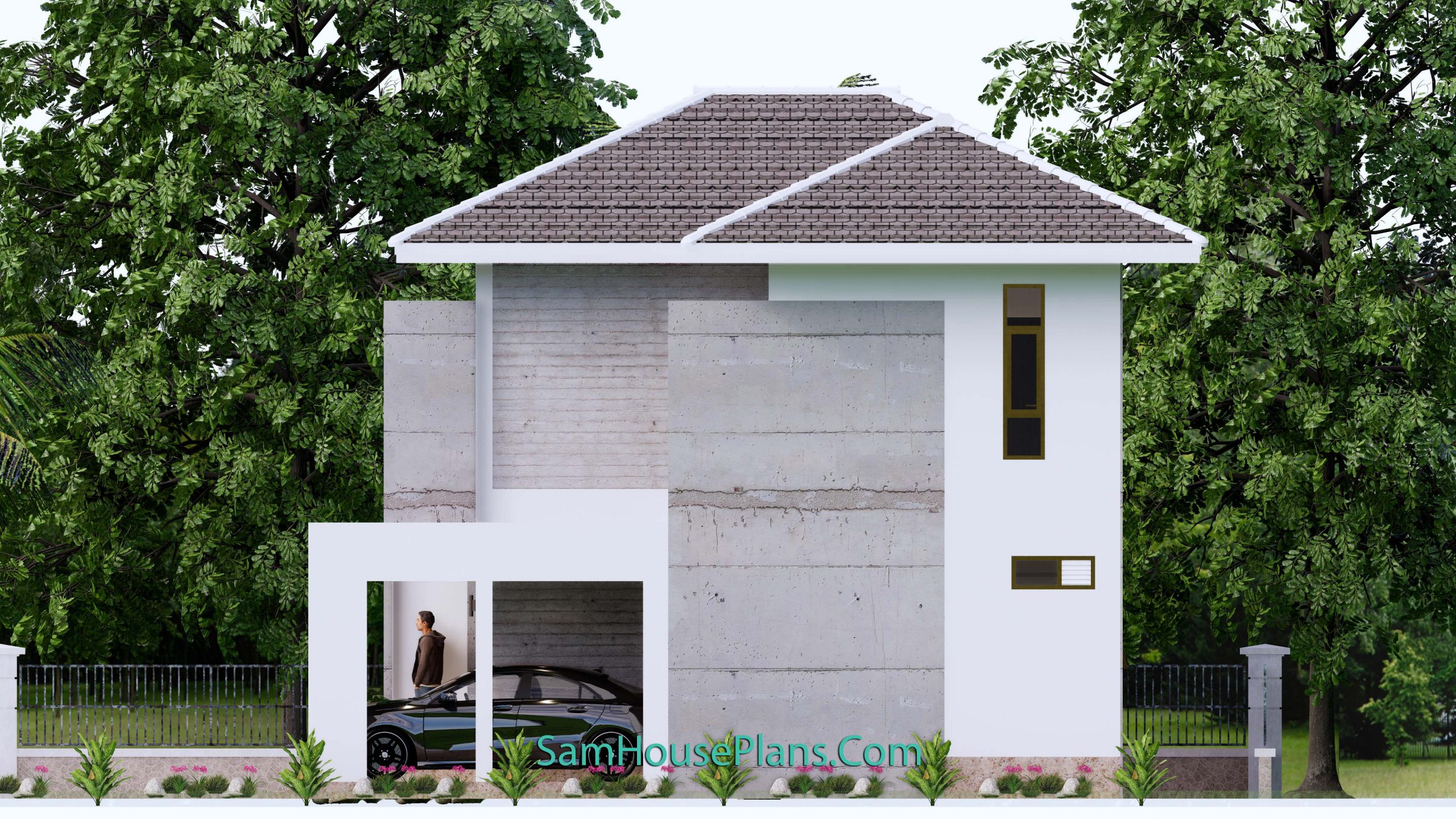

Small House Design 9x9.5 Meter 3 Bedrooms Full PDF Plan Elevation Right

Interior 3d:

PDF Layout Detailing Plans:

Buy this Small House Design 9×9.5:

This is a PDF Plan available for Instant Download.

3-Bedrooms 3-Baths home with mini washer/dryer room.

Building size: 30 feet wide, 31 feet deep. In Meters 9×9.5
Roof Type: Hip roof (Cement tile, Concrete cement or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
2 Cross Section plans
Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

CUSTOM PLANS:
Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.

Delivery Instant Download

Your files will be available to download once payment is confirmed. Here’s how.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch
