Small House Design 6×9 M with 3 Bedrooms 3d PDF Full Plans 20×30 Feet. This house is perfect for small land size.

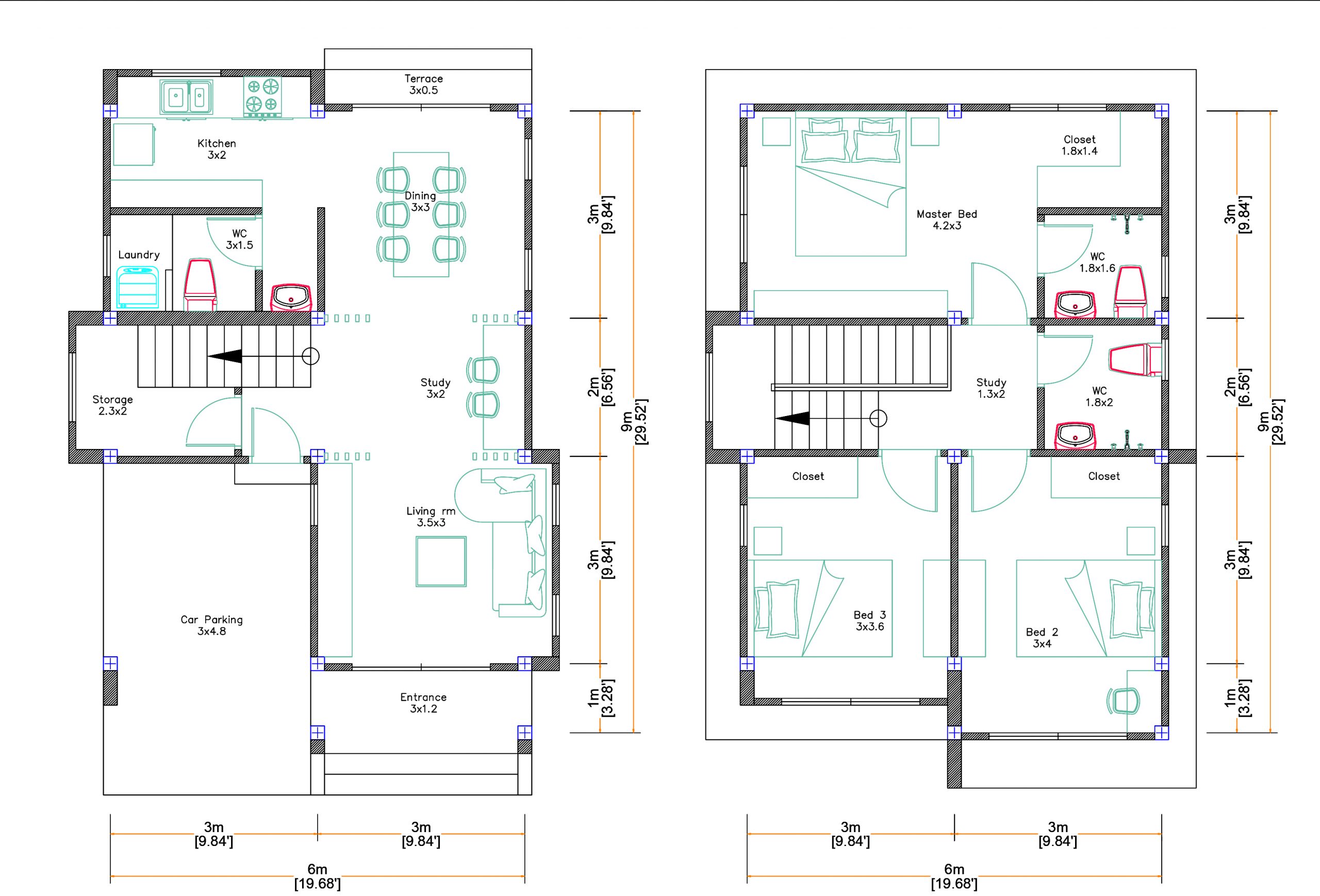

Small House Design 6×9 Ground Floor Plans Has:
Firstly, 1 car Parking is at the left side of the house 3×4.8 meters. A nice Terrace entrance in front of the house 3×1.2 meter. When we are going from front door, a small Living 3×3.5 meter is very perfect for this house it is nice and modern. Brightly Kitchen 3×2 meter, dining area 3×3 meter, it is clean and beautiful. A multi Bathroom size 3×1.5 meters with washing machine. Storage is under the stair 2.3×2 meter. Study area 3×2 meter.
At first floor, hall 1.23×2 meter, Master Bedroom size is 4.2×3 meters, it have a big glass sliding window with a queen size bed, Makeup desk and walk in closet 1.8×1.4 meter, attached with bathroom 1.8×1.6 meter no balcony. Bedroom 2 size 3×4 meter, bedroom 3 size 3×3.6 meters. Bathroom 1.8×2 meters.
Exterior Small House Design 6×9:
Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.
The Shed Roof Tile:
Finally, The shed roof type is made from zine roof tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.
House Short Description:
-Car Parking and garden
-3 Bedrooms, 2 bathrooms
PLEASE MAKE SURE YOU HAVE CHECK the free sample plans
3d Exterior House:
You can check our exterior 3d every position of this house below:
Interior House design 3d
Let’s check our sample interior design below:
Elevation Small House Design 6×9:
Here we have an other house floor plans in 3d and elevation in 3d below
Buy this house plan:
This is a PDF Plan available for Instant Download.
3-Bedrooms 2-Baths home with mini washer/dryer room.
Building size: 20 feet wide, 30 feet deep 6×9 Meters
Roof Type: Shed roof (Concrete cement, zine, cement tile or other supported type)
Foundation: Concrete or other supported material
For the reverse plan, please see other Model.
Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
2 Cross Section plans
You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.
Unfortunately I’m unable to do custom plans at this time.
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.
Delivery Instant Download
Your files will be available to download once payment is confirmed. Here’s how.
I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
