House Plans 7x15m with 5 Bedrooms 3d PDF Full Plans 23×49 Feet. This house is perfect for small land size.

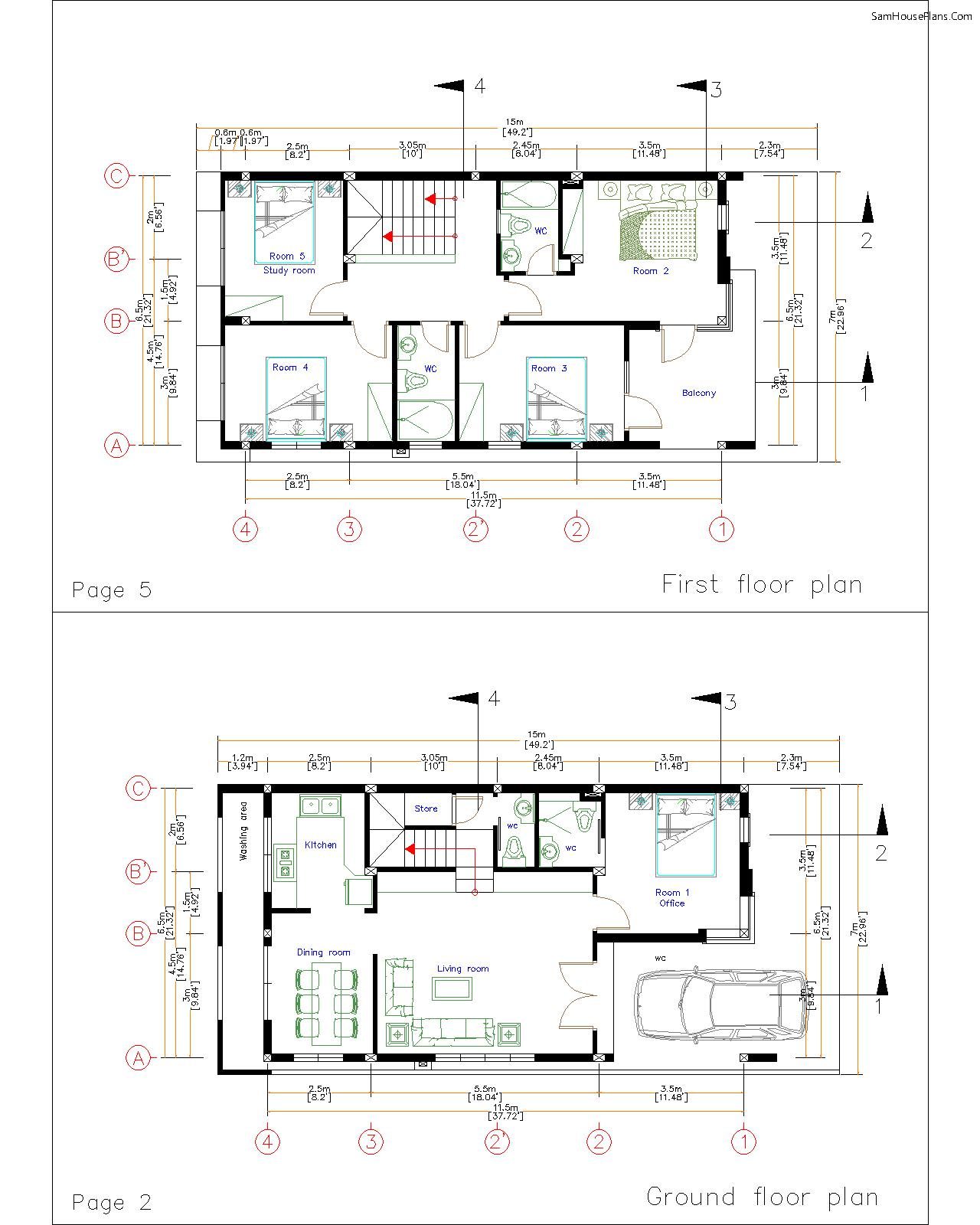

House Plans 7x15m Ground Floor Plans Has:
Firstly, 1 car Parking is at the left side of the house 3.1×5.45 meters. A nice Terrace entrance in front of the house 0.4×3.1 meter. When we are going from front door, a Living 4.4×5.2meter is very perfect for this house it is nice and modern. Brightly Kitchen 2.25×2.8 meter, dining area 3.4×2.45 meter, it is clean and beautiful. A multi Bathroom size 1.8×0.9 meters. Storage is under the stair. Washing area at the back of the house. Bedroom 1 size is 3.4×3.25 meter with bathroom1.8×1.5 meter.
At first floor, hall 1.5×3.6 meter, Master Bedroom 2 size is 3.3×3.4 meters, it have a big glass sliding window with a queen size bed, Makeup desk and closet , attached with bathroom 1.8×1.4 meter. Bedroom 3 size 3×4 meter, bedroom 3 size 2.8×4 meters, bedroom 4 size 2.8×4 meters, bedroom 5 size 3.4×2.9 meters. Bathroom 2.8×1.4 meters.
Big terrace at second floor
Exterior House Plans 7x15m:
Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.
The Terrace Roof:
Finally, The terrace roof type is made from concrete slap that cover above Gypsum board ceiling . It is make the house look simple and modern.
House Short Description:
-1 Car Parking and garden
-5 Bedrooms, 4 bathrooms
PLEASE MAKE SURE YOU HAVE CHECK the free sample plans
3d Exterior House:
You can check our exterior 3d every position of this house below:
Interior House design 3d
Let’s check our sample interior design below:
Elevation House Plans 7x15m:
Here we have an other house floor plans in 3d and elevation in 3d below
Buy this house plan:
This is a PDF Plan available for Instant Download.
5-Bedrooms 4-Baths home with mini washer/dryer room.
Building size: 23 feet wide, 49 feet deep 7×15 Meters
Roof Type: Shed roof (Concrete cement, zine, cement tile or other supported type)
Foundation: Concrete or other supported material
For the reverse plan, please see other Model.
Footing, Beam, Column Location plan PDF
Exterior / Interior wall Dimension Plan PDF
Roof Beam Plan PDF
Roof Plan PDF
Elevations plans PDF
4 Cross Section plans PDF
Basic Ceiling light location
You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.
Unfortunately I’m unable to do custom plans at this time.
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.
Delivery Instant Download
Your files will be available to download once payment is confirmed. Here’s how.
I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
Your could Reach Us: Personal FB: Sophoat Toch

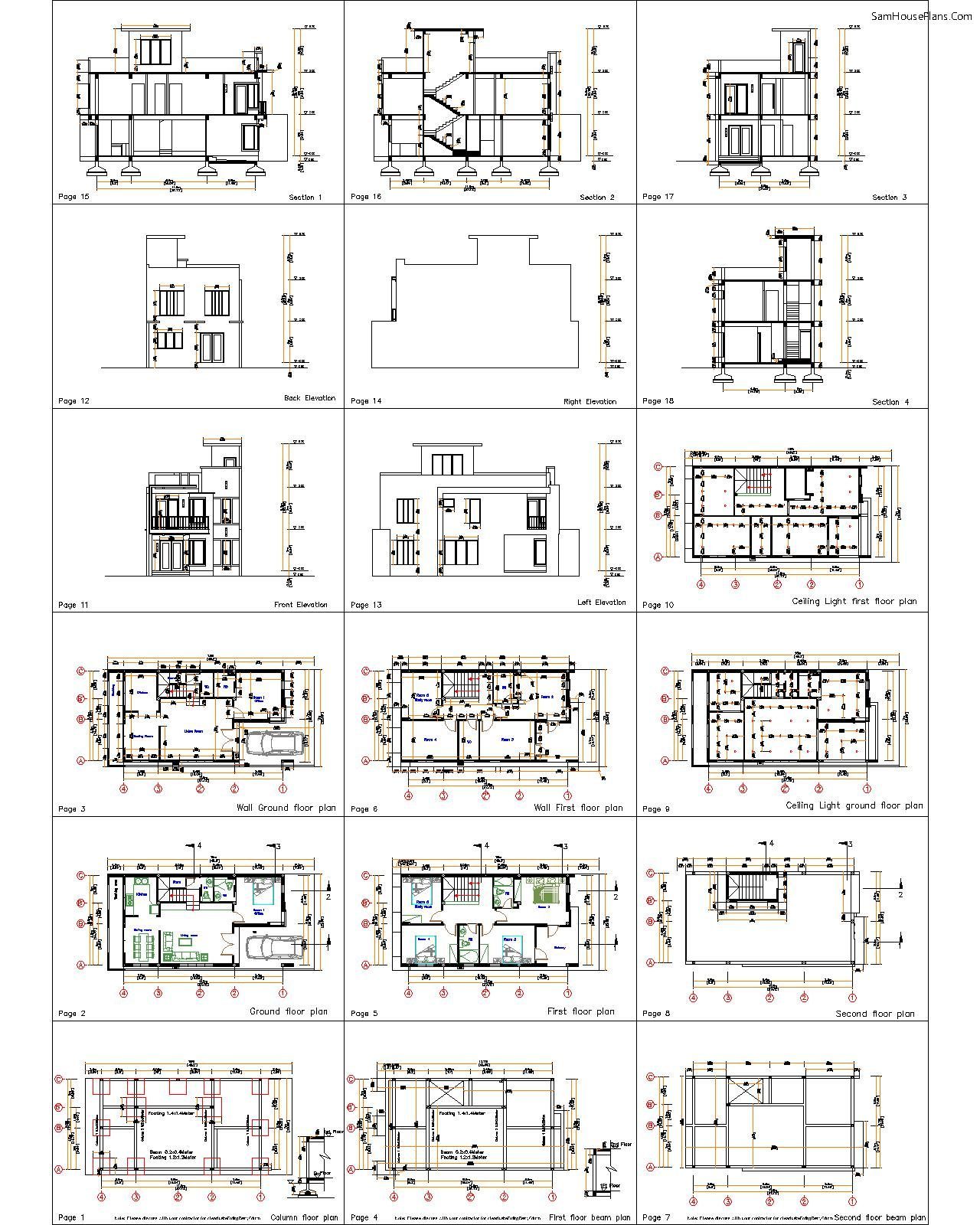

YOU WILL RECIEVED THE DETAILING AS BELOW AFTER BUYING THIS PLAN
