House Plans 12×8 with 3 Bedrooms Hip roof. This villa is modeling by SAM-ARCHITECT With One story level. It’s has 3 bedrooms 2 Bathrooms.

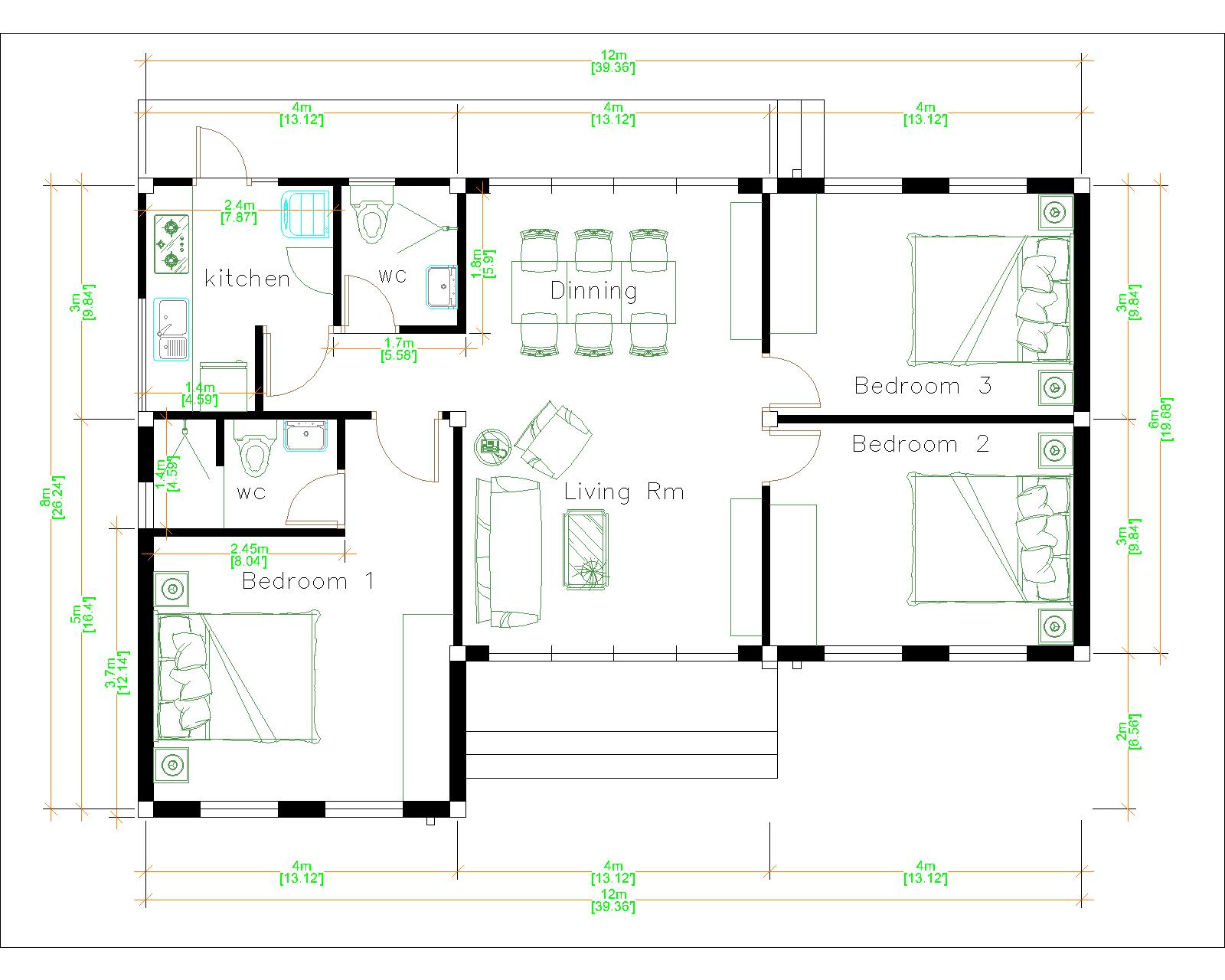

House Plans 12×8 Ground Floor Plans Has:
Firstly, car parking is out side of the house. A nice entrance in front of the house 1×4 meters. When we are going from front door, a small Living 3×4 meter is very perfect for this house it is nice and modern. Brightly Kitchen 2.4×3 meters, dining area 3×4 meter, it is clean and beautiful. A multi Bathroom size 1.7×1.8 meters. The washing machine is in the kitchen. This house also have two exit door from kitchen and dining room.
The Master Bedroom size is 4×3.7 meters, it has 2 glasses window, Makeup desk and closet, also attached with bathroom 1.4×2.5 meter. Bedroom 2 size 4×3 meters, bedroom 3 size 4×3 meters.
The Roof Tile:
Finally, The Hip roof type is made from concrete slap that cover above Gypsum board ceiling . It is make the house look simple and modern.
Exterior House Plans 12×8:
Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.
House Short Description:
-Cars Parking and garden
-3 Bedrooms, 2 bathrooms
PLEASE MAKE SURE YOU HAVE CHECK the free sample plans
Buy this House Plans 12×8:
This is a PDF Plan available for Instant Download.
3-Bedrooms 2-Baths home with mini washer/dryer room.
Building size: 40 feet wide, 27 feet deep 12×8 Meters
Roof Type: Hip roof (Concrete cement, zine, cement tile or other supported type)
Foundation: Concrete or other supported material
For the reverse plan, please see other Model.
Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
2 Cross Section plans
Ceiling Lighting location Plan
You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.
Unfortunately I’m unable to do custom plans at this time.
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.
Delivery Instant Download
Your files will be available to download once payment is confirmed. Here’s how.
I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
Your could Reach Us: Personal FB: Sophoat Toch
Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: House Plans Channel
If you think this Plan is useful for you. Please like and share.
In link download -Ground floor, First floor, 3d photo -Sketchup file -Autocad file (Layout plan)
We give you all the files, so you can edited by your self or your Architect, Contractor.
Check the floor plans for More Detail:
House Plans 12×8 More Detailing Below:
