House Design Plan 15×9 M with 3 Beds PDF Full Plan

$39.00

Buy this: House Design Plan 15×9

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
4 Cross Section plans
Lighting location Plan

-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

Categories: , Tag:

Description

House Design Plan 15×9 M with 3 Bedrooms 49×30 Feet hip Roof PDF full plan. This villa is modeling by SAM-ARCHITECT With One story level. It’s has 3 bedrooms 3 Bathrooms.

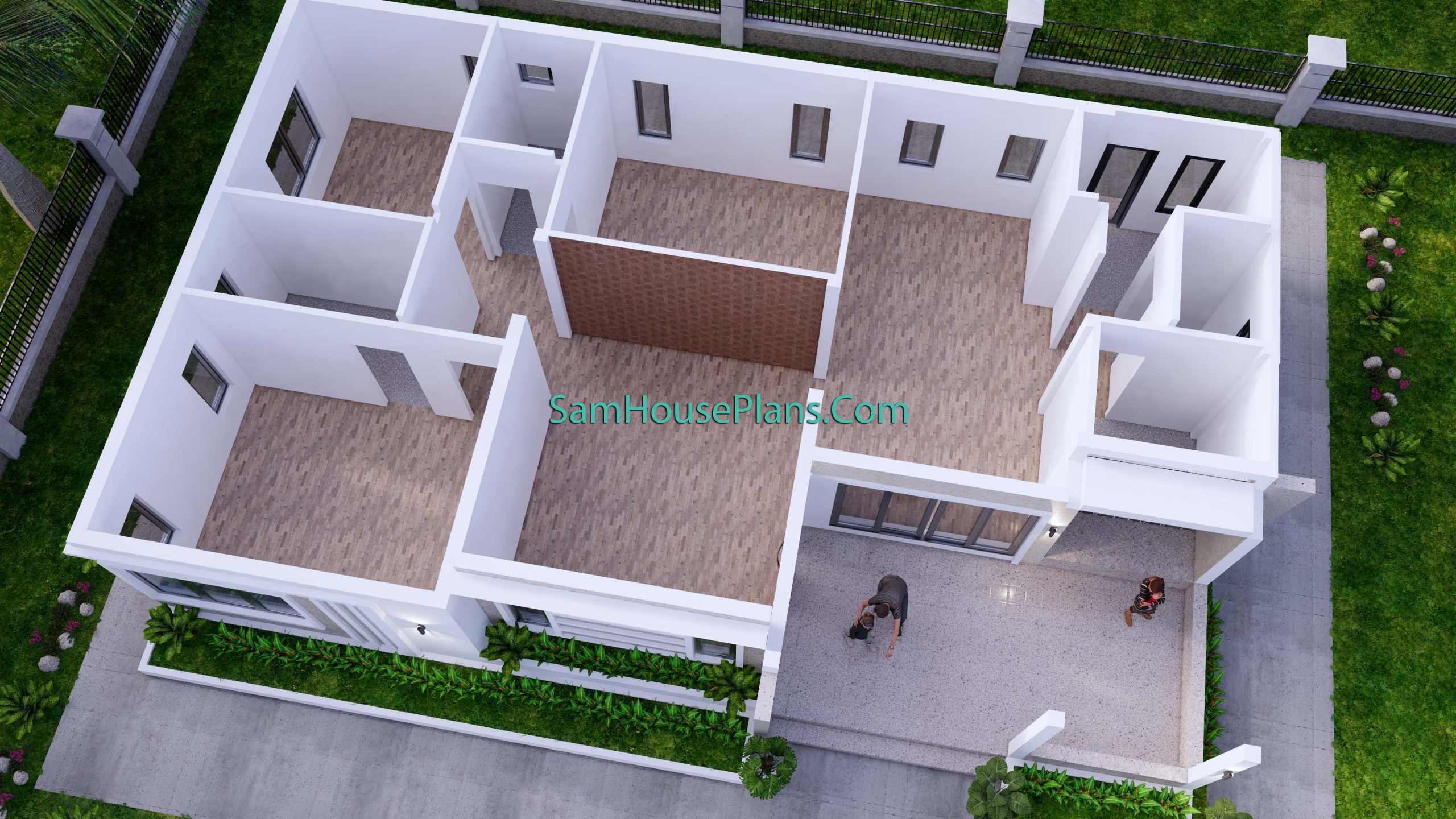

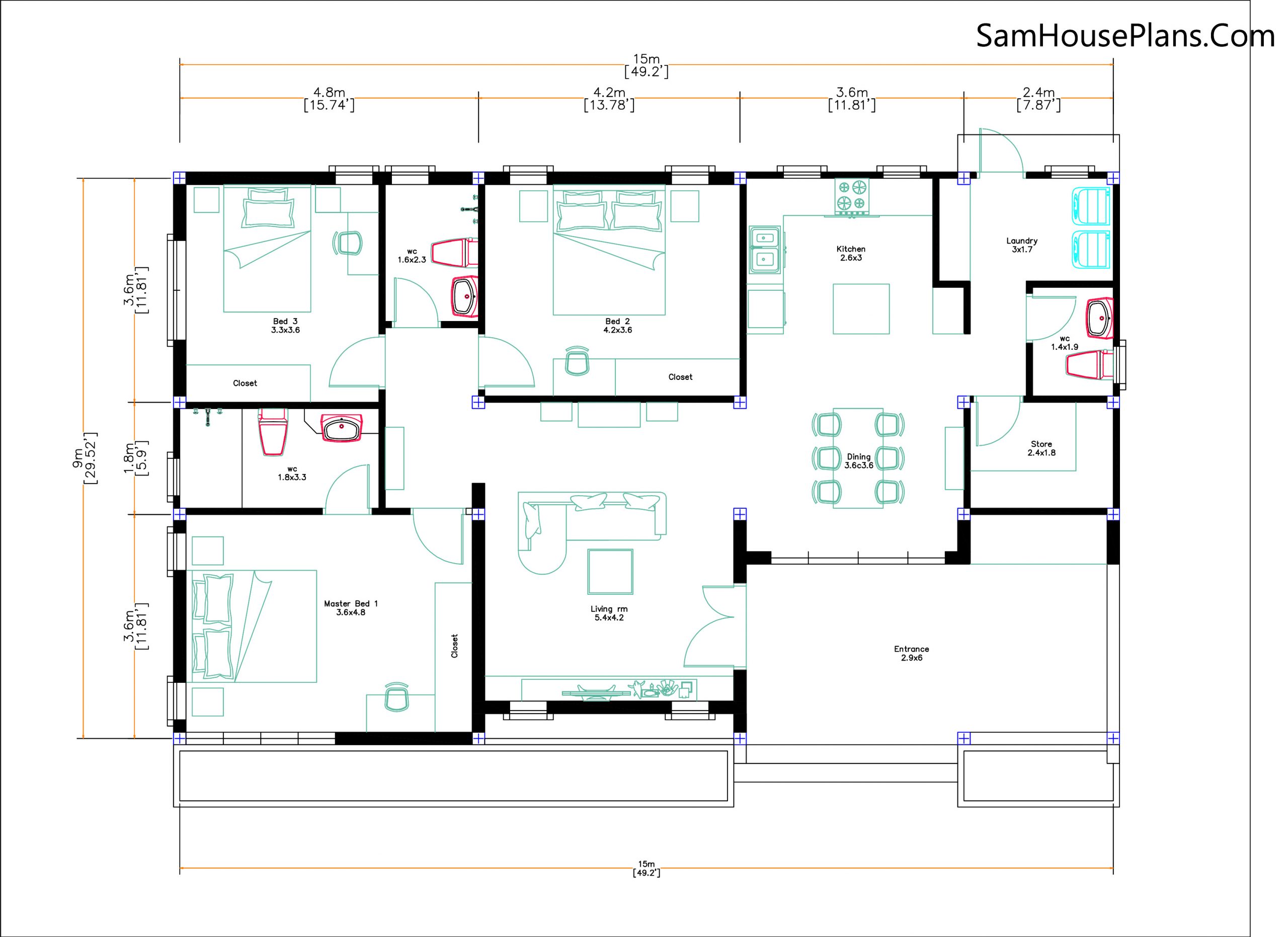

House Design Plan 15×9 Ground Floor Plans Has:

House design plan 15×9 has: car Parking is out side of the house. A nice entrance in front of the house 2.9×6 meter. When we are going from front door, a small Living 5.4×4.2 meter is very perfect for this house it is nice and modern. Brightly Kitchen 2.6×3 meter with dining table 3.6×3.6 meter, it is clean and beautiful. A multi Bathroom size 1.4×1.9 meters. The laundry is near the kitchen 3×1.7 meter.

The Master Bedroom size is 3.6×4.8 meters, it has big glasses window near the bed head, Makeup desk and walk in closet, attached with bathroom 1.8×3.3 meter. Bedroom 2 size 4.2×3.6 meters, bedroom 3 size 3.3×3.6 meters. Multiple bathroom size is 1.6×2.3 Meter.

Exterior House Design Plan 15×9:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

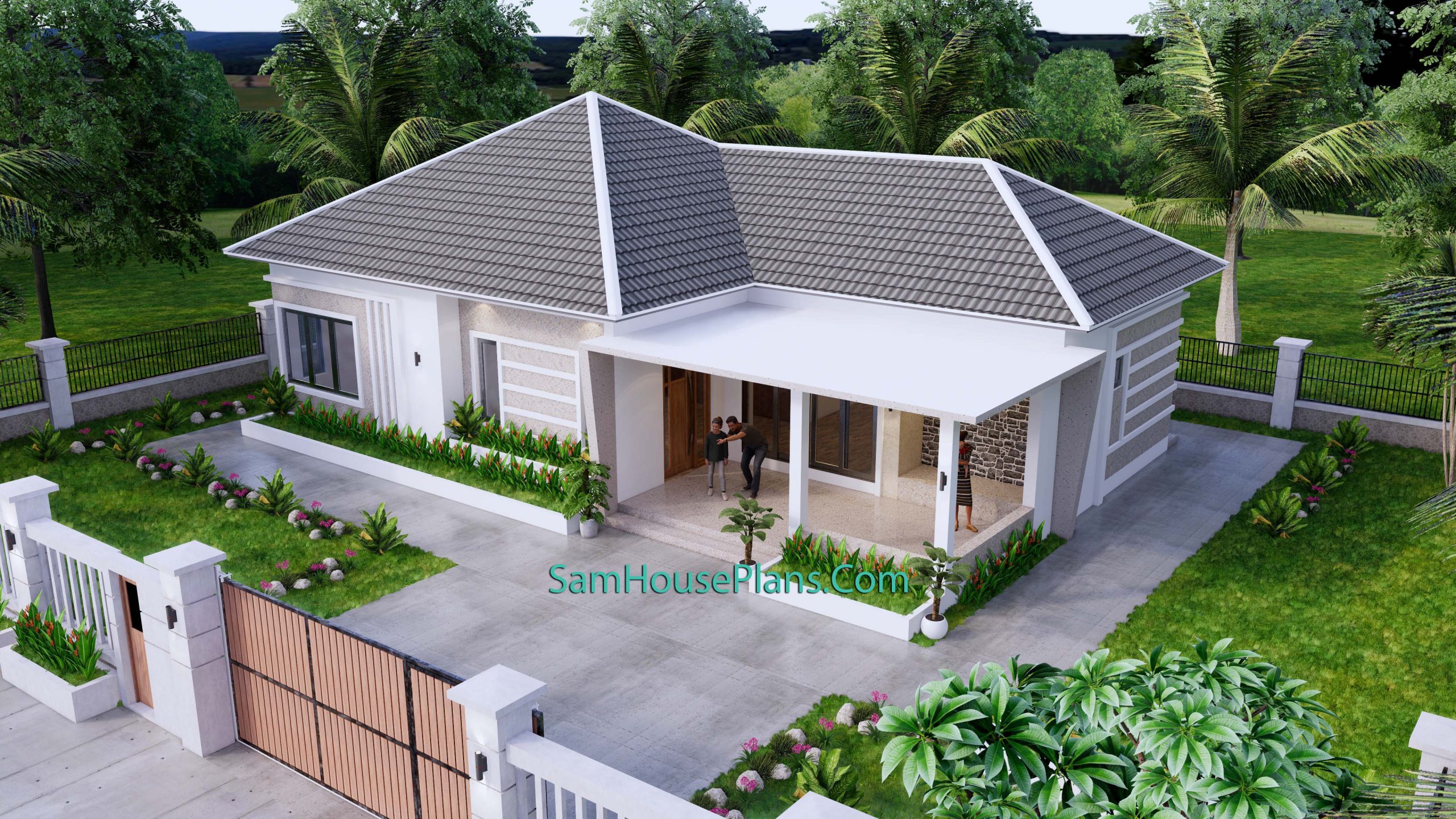

House Design Plan 15x9 M with 3 Beds PDF Full Plan

The Roof Tile:

Finally, The Hip roof type is made from Concrete tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

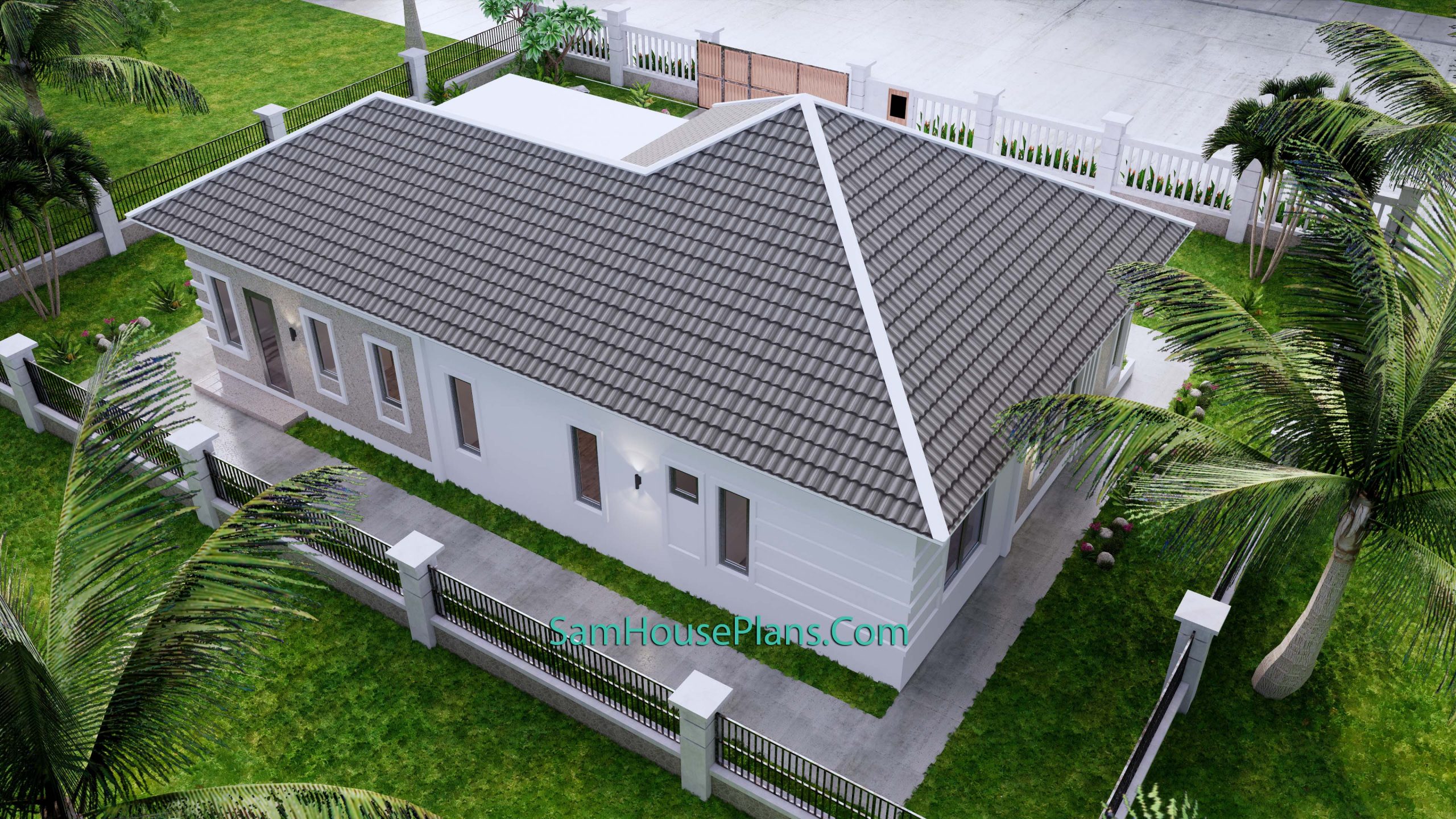

House Design Plan 15x9 M with 3 Beds PDF Full Plan 3d 8

House Short Description:

-Out door Cars Parking and garden
-Living room,
-Dining room
-Kitchen
-3 Bedrooms, 3 bathrooms
-washing

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

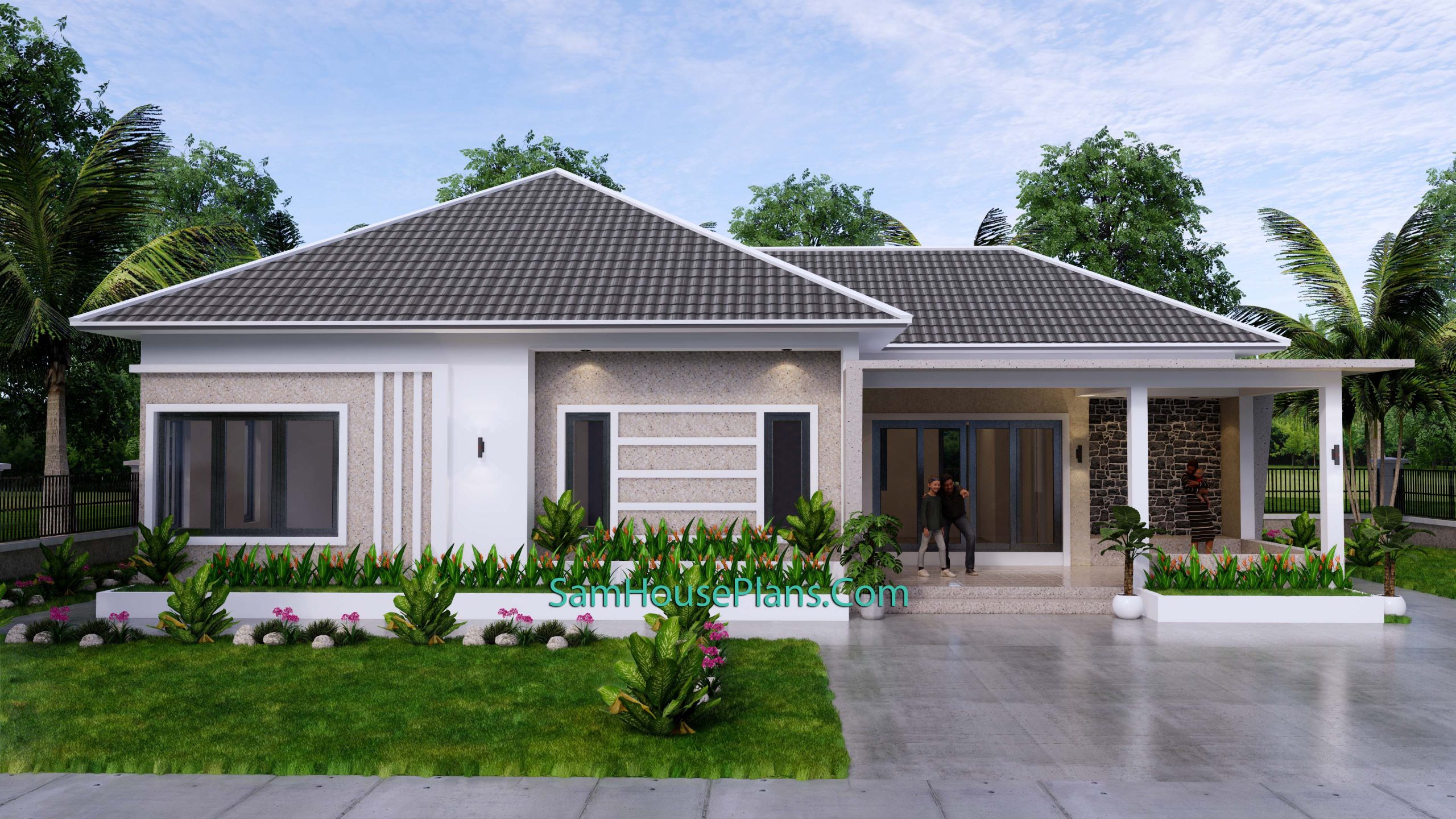

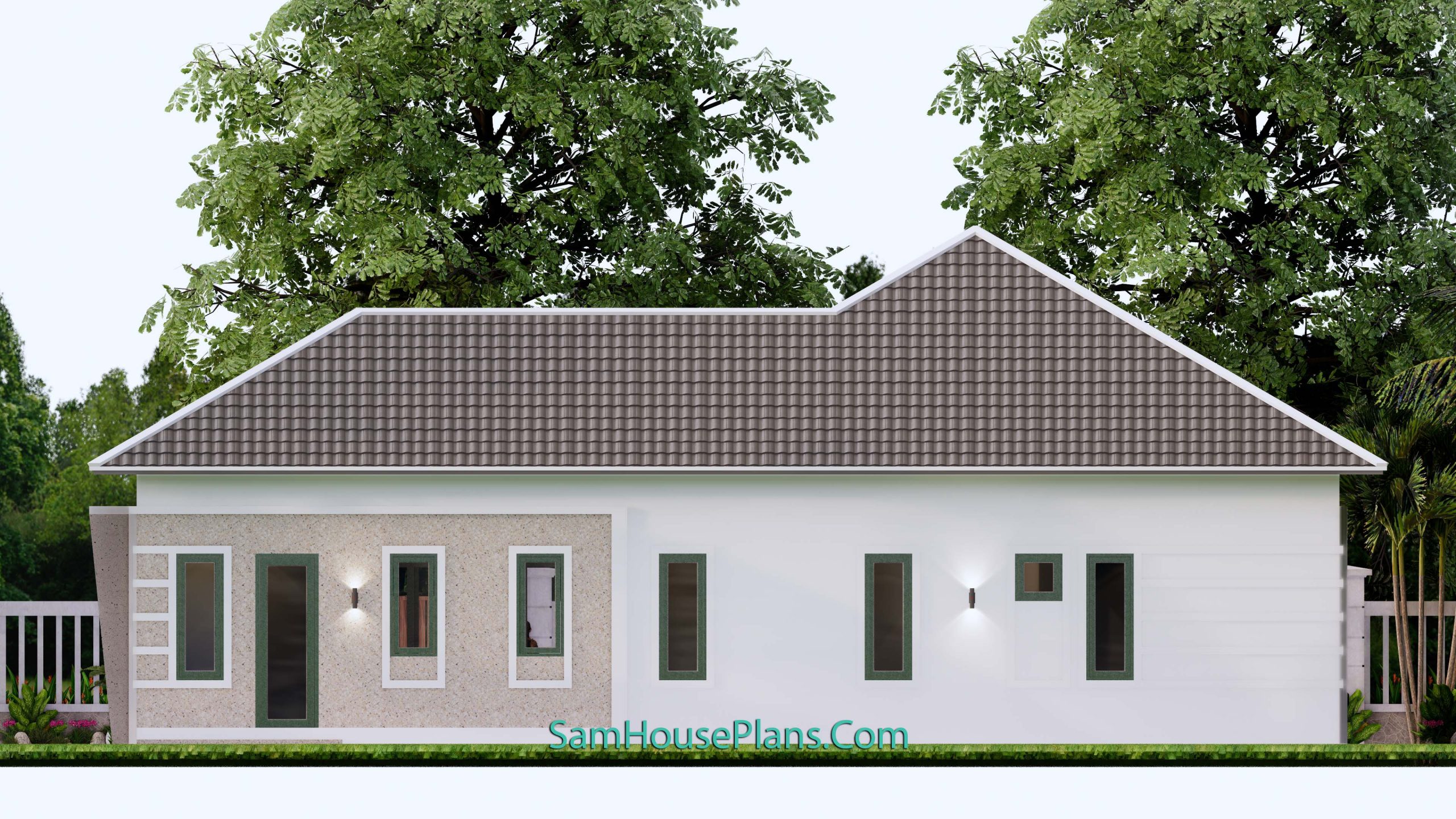

Elevation House Design Plan 15×9

House Design Plan 15x9 M with 3 Beds PDF Full Plan 3d Elevation front

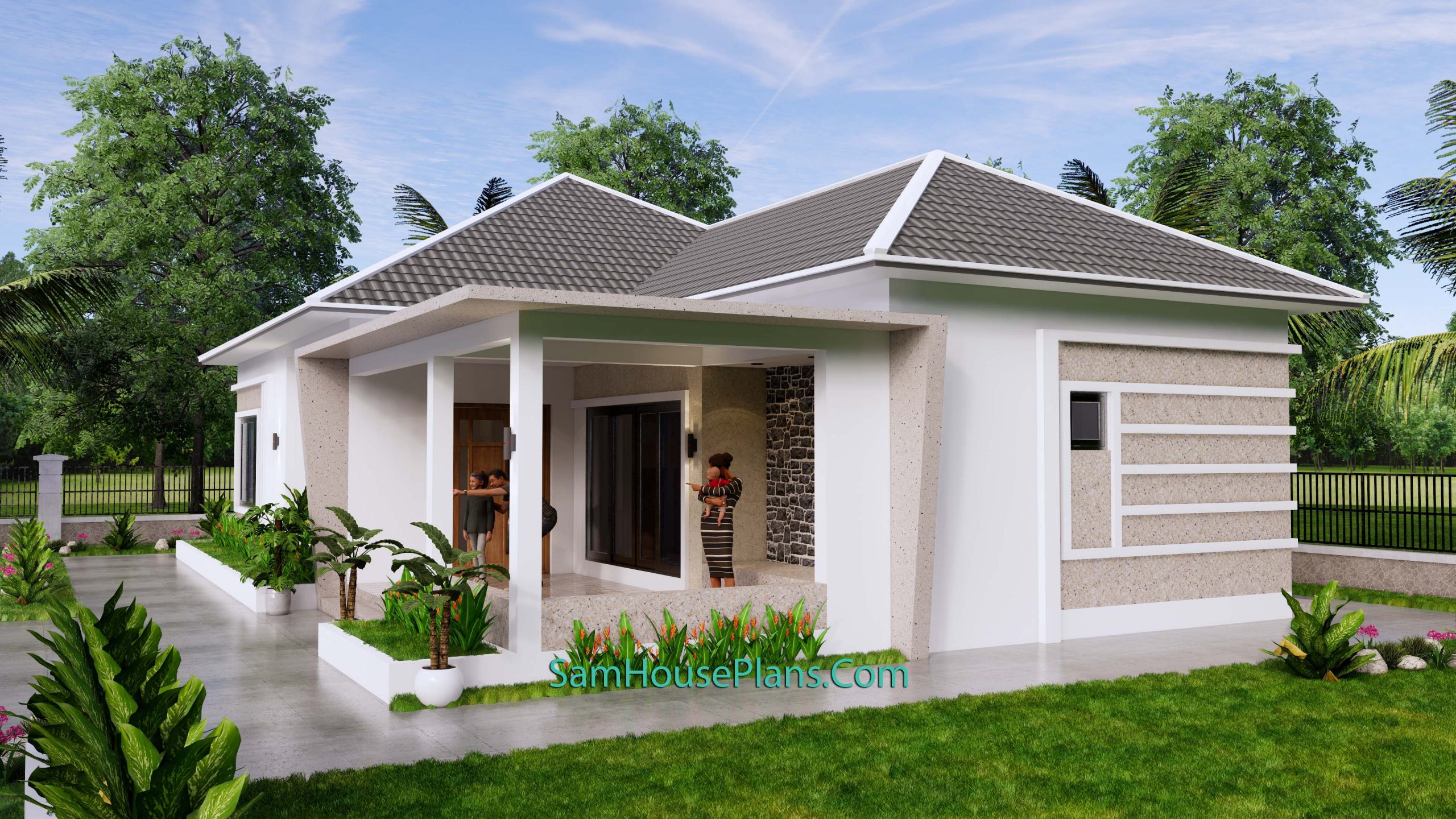

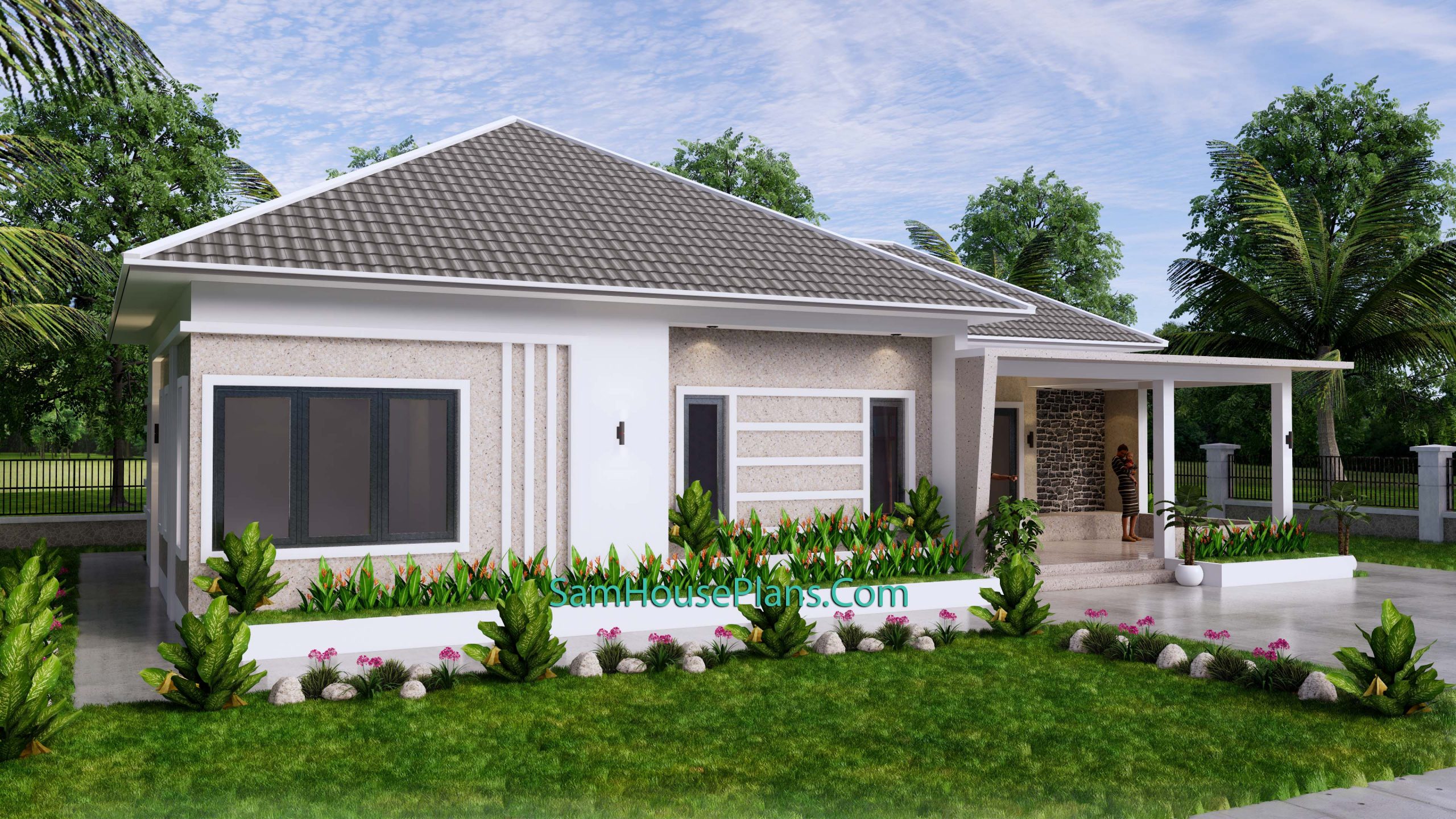

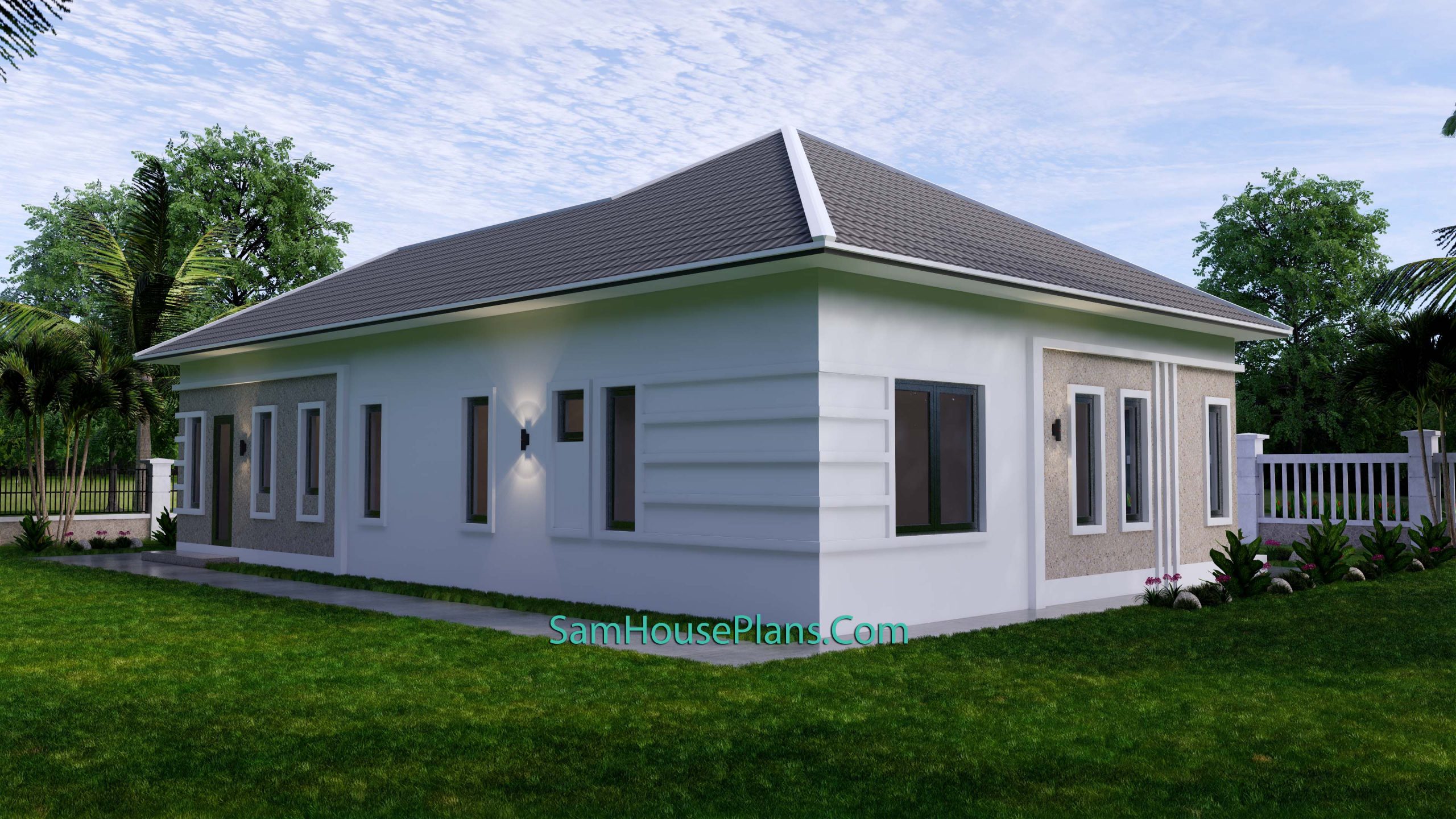

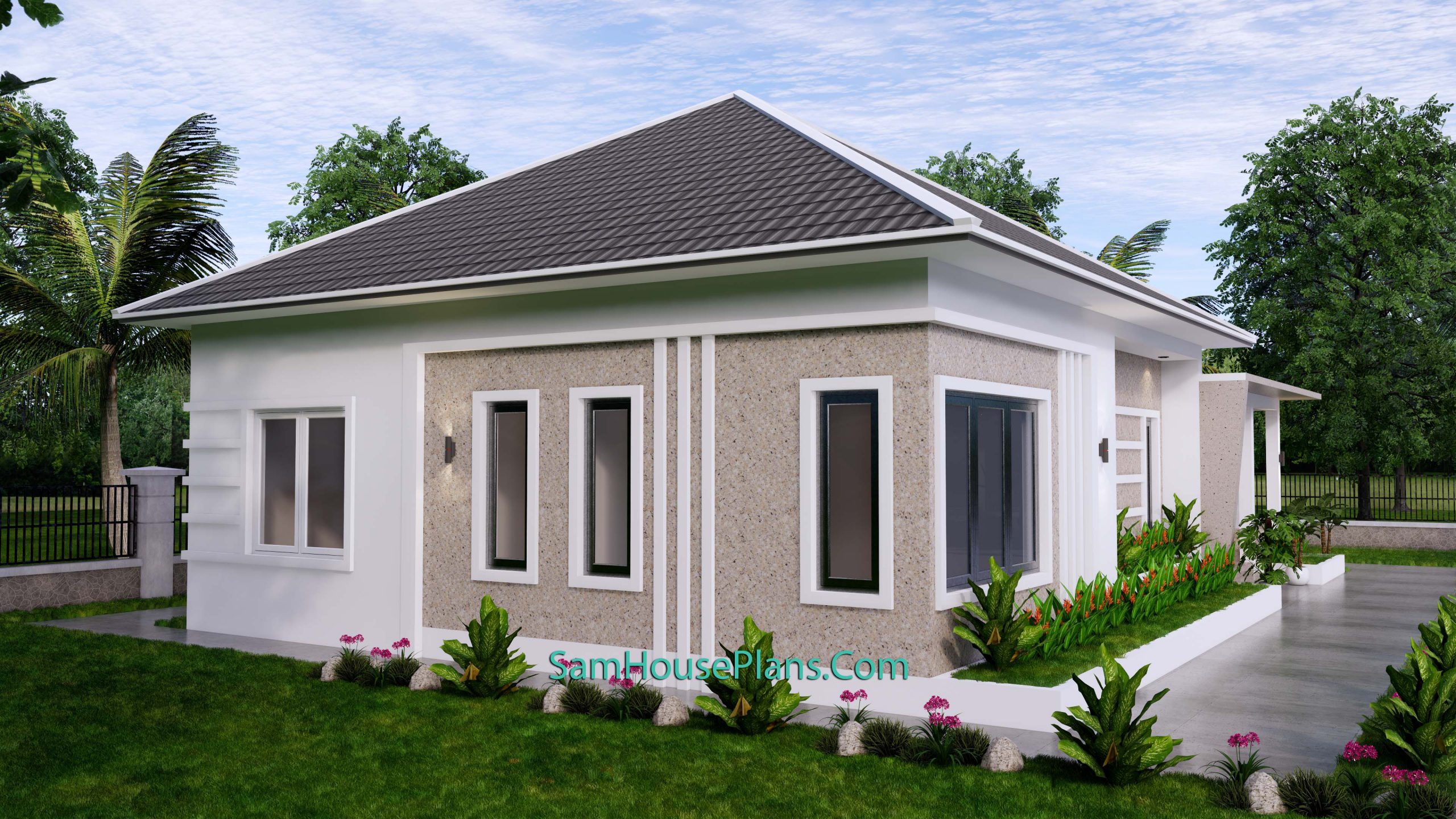

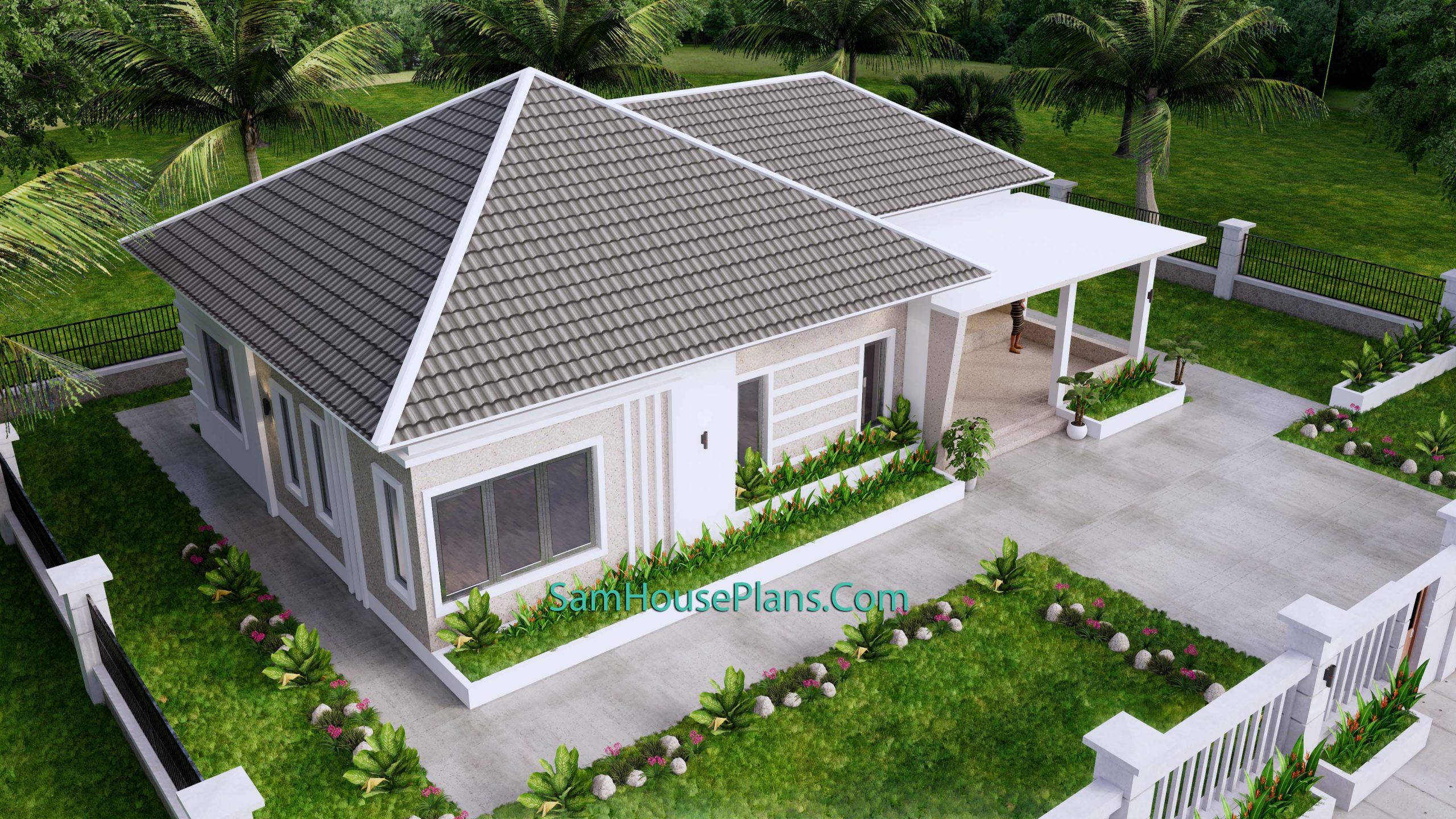

3D Exterior House Design Plan 15×9

House Design Plan 15x9 M with 3 Beds PDF Full Plan 3d 3

House Design Plan 15x9 M with 3 Beds PDF Full Plan 3d 2

House Design Plan 15x9 M with 3 Beds PDF Full Plan 3d 1

House Design Plan 15x9 M with 3 Beds PDF Full Plan 3d 4

House Design Plan 15x9 M with 3 Beds PDF Full Plan 3d 6

House Design Plan 15x9 M with 3 Beds PDF Full Plan 3d 8

Buy this house plan:

This is a PDF Plan available for Instant Download.

3-Bedrooms 3-Baths home with mini washer/dryer room.

Building size: 49 feet wide, 30 feet deep 15×9 Meters
Roof Type: Hip roof (Concrete cement, zine, cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

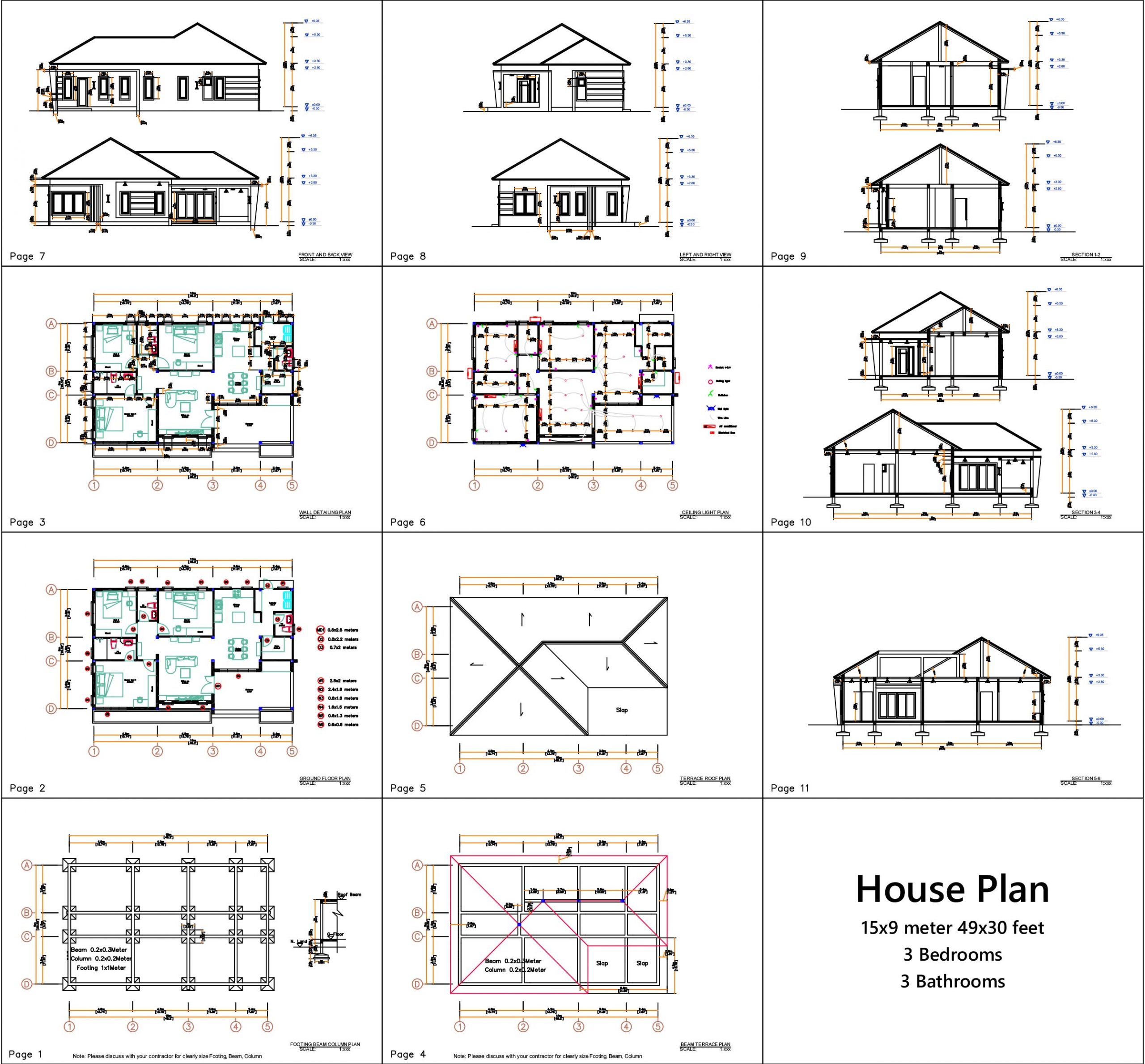

PLANS INCLUDE:

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
4 Cross Section plans
Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

CUSTOM PLANS:
Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.

Delivery Instant Download

Your files will be available to download once payment is confirmed. Here’s how.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: House Plans Channel
If you think this Plan is useful for you. Please like and share.

In link download -Ground floor, First floor, 3d photo -Sketchup file -Autocad file (Layout plan)

We give you all the files, so you can edited by your self  or your Architect, Contractor.
