House Design 3D 17×13 Meters 221 sqm 3 Bedrooms

Original price was: $99.00.Current price is: $19.99.

Buy this House Design 3D 17×13

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
2 Cross Section plans
Ceiling Lighting location Plan

-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

Click Here to Download the Sample Plan

SKU: 489799992855 Categories: , Tag:

Description

House Design 3D 17×13 Meters 221 sqm 3 Bedrooms 53×43 Feet Full Plans. This villa is perfect for family that have three bedrooms. Est. Price around 55k-70k usd.

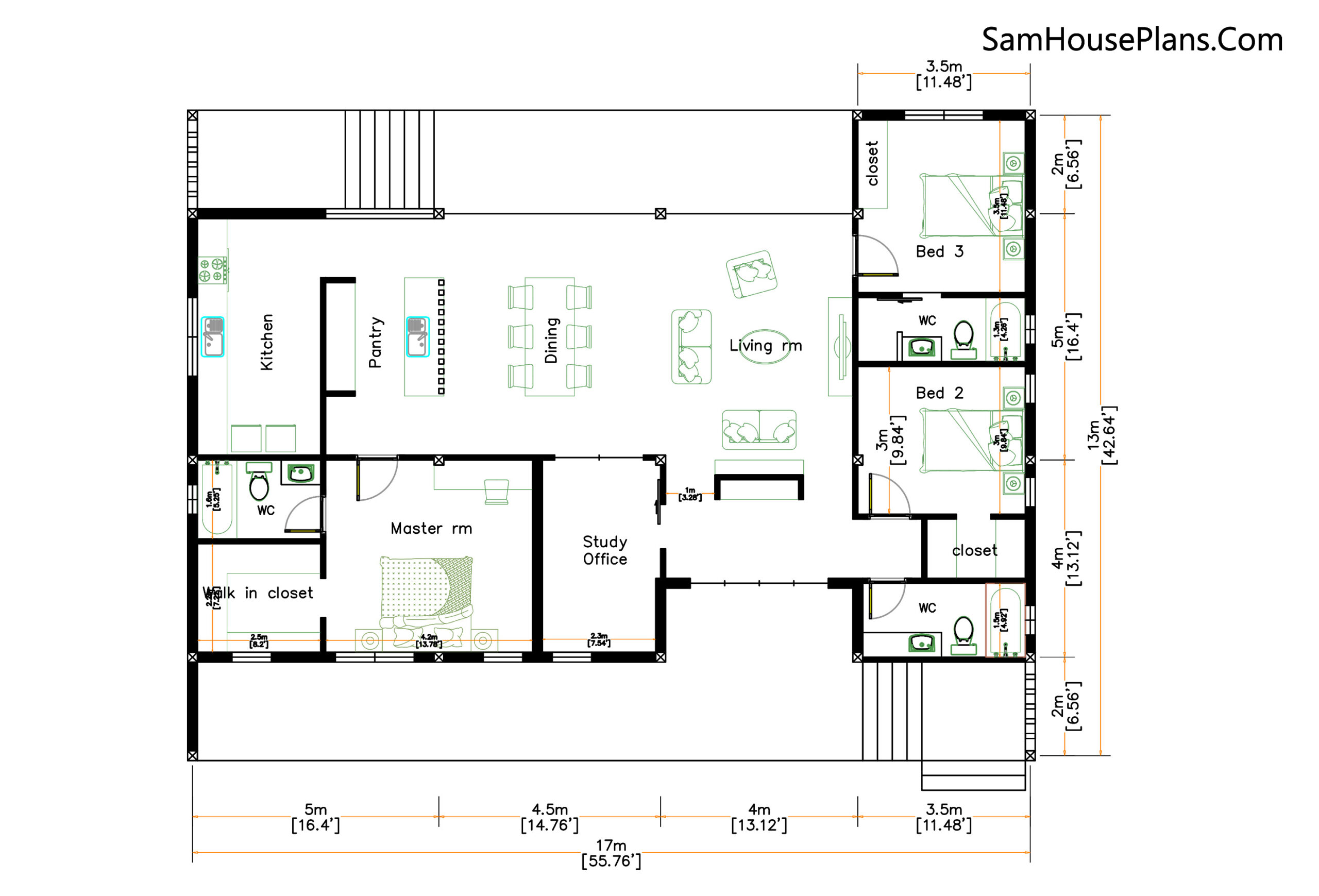

House Design 3D 17×13 Ground Floor Plans Has:

Firstly,  car Parking is at the Out side of the house. A nice Terrace entrance in front of the house 2×17 meters. When we are going from front door, hall way 2.5×4 meter, office 2.3×4 meter, after that a Living 4×5 meter is very perfect for this house it is nice and modern. Brightly dining area 4.5×5 meter open space with living room it is beautiful. Pantry 2.5×5 meter. Kitchen 2.5×5 meter. A multi Bathroom size 3.5×1.5 meters. The washing machine is in the kitchen.

The Master Bedroom size is 4.2×4 meters, it have 2 big glass windows with a queen size bed, Makeup desk and walk in closet 2.5×2.2 meter, attached with bathroom 1.8×2.5 meter. Bedroom 2 size 3×3.5 meter, Bedroom 3 3.5×3.5 meter attached with bathroom 1.3×3.5 meter.

Exterior House Design 3D 17×13:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

House plan 17x13 with 3 Bedrooms 01

The Gable Roof Tile:

Finally, The Gable roof type is made from Cement tile that cover above Gypsum board ceiling . It is make the house look simple and modern.

House plan 17x13 with 3 Bedrooms 7

House Short Description:

-Car Parking and garden
-Living room,
-Dining room
-Kitchen
-3 Bedrooms, 3 bathrooms
-Storage
-washing room

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

Exterior Design 3d:

House Design 3D 17x13 Meters 221 sqm 3 Bedrooms

House plan 17x13 with 3 Bedrooms 01

House Design 3D 17x13 Meters 221 sqm 3 Bedrooms

House Design 3D 17x13 Meters 221 sqm 3 Bedrooms

House plan 17x13 with 3 Bedrooms 7

House Design 3D 17x13 Meters 221 sqm 3 Bedrooms

House Design 3D 17x13 Meters 221 sqm 3 Bedrooms

House Design 3D 17x13 Meters 221 sqm 3 Bedrooms

Elevation Design 3d:

House Design 3D 17x13 Meters 221 sqm 3 Bedrooms

Interior Design 3d:

House Design 3D 17x13 Meters 221 sqm 3 Bedrooms

The PDF Layout Plans:



YOU WILL RECIEVED THE DETAILING AS BELOW AFTER BUYING THIS PLAN

Buy this house plan:

This is a PDF Plan available for Instant Download.

3-Bedrooms 3-Baths home with mini washer/dryer room.

Building size: 53 feet wide, 43 feet deep 17×13 Meters
Roof Type: Gable roof (Concrete cement, zine, cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
2 Cross Section plans
Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.

CUSTOM PLANS:
Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own direction.

Delivery Instant Download

Your files will be available to download once payment is confirmed. Here’s how.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
