Description

30×49 House Plans 3d 9×15 Meter 5 Bed 4 Bath PDF Full Detailing Plan with Cad files

House Short Description 30×49 House Plans 3d 9×15 Meter:

-2 Cars Parking
-Living room,
-Dining room
-Kitchen
-5 Bedrooms, 4 bathrooms
-washing, storage

Modern 30×49 House Plans 3D – 9×15 Meter with 5 Bedrooms and 4 Bathrooms

This 30×49 House Plans 3D (9×15 Meter) design showcases a modern and luxurious two-story home, perfectly suited for medium to large families. With a sleek architectural style and a smart, space-maximizing layout, this home includes 5 bedrooms, 4 bathrooms, a large living room, kitchen and pantry, balcony, and indoor car parking, all detailed in a downloadable PDF Full Detailing Plan.

Exterior Design

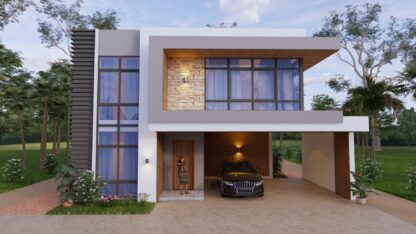

The front facade of this 9×15 meter house plan is strikingly modern, blending stone, wood, and glass textures. The upper level features a projected balcony and large glazed windows, enhancing natural lighting and promoting cross-ventilation. The use of stone cladding around the center adds a touch of elegance and texture to the otherwise clean lines of the facade. A covered carport to the right side accommodates one vehicle and leads directly to the main entryway, sheltered under an extended slab roof.

Ground Floor Layout

The ground floor of the 30×49 House Plans 3D is laid out for functionality and ease of movement, ideal for both everyday living and entertaining guests.

1. Living Room

Upon entering, you’re greeted by a spacious living area that features full-height glass panels to the front, creating an airy, welcoming space. This room is ideal for relaxation, family gatherings, or formal receptions.

2. Dining Area

Flowing from the living area, the dining room is centrally located and well-lit thanks to its proximity to the balcony and rear garden. It can comfortably seat 6–8 people, and its openness encourages a communal, connected lifestyle.

3. Kitchen and Pantry

The kitchen is neatly tucked at the rear left, designed in an L-shape for maximum workspace efficiency. A pantry or storage room is located just beside it, providing convenient access for daily use and bulk storage.

4. Guest Bedroom

A well-sized bedroom is placed on the ground floor, suitable for guests or family members. Its adjacency to the bathroom (③) makes it ideal for someone who prefers single-floor living.

5. Bathrooms

Two bathrooms on the ground floor serve both residents and guests—one located next to the guest room and another conveniently close to the stairs and living area.

6. Storage Room

Located next to the kitchen, this utility space can be used for storing household items, pantry goods, or cleaning supplies.

7. Parking Space

The garage fits one car and has direct access to the home, a great feature for rainy or hot climates.

First Floor Layout

The upper floor of this PDF Full Detailing Plan is dedicated to the family’s private quarters and offers both privacy and comfort.

1. Master Bedroom (Labeled Bedroom 01)

Generously sized and placed for privacy, the master bedroom features a large bed area, wardrobe, and a direct connection to the balcony, allowing for fresh air and natural light.

2. Bedroom 02 and Bedroom 03

These two secondary bedrooms are of equal size, with easy access to a shared bathroom (labeled ③). Each room includes a closet space and is perfect for kids or teenagers.



3. Bedroom 04

Another bedroom on the first floor serves as a flexible space—it could be used as a guest room, an office, or a hobby room.

4. Bathrooms

Two bathrooms serve the upper floor: one exclusive to the master suite and the other shared among the remaining bedrooms.

5. Balcony

The front balcony offers a great spot for morning coffee or evening relaxation, while also adding architectural flair to the front facade.

Design Features

• Total Floor Area: Approx. 270–300 square meters (30×49 feet / 9×15 meters)
• Roof Style: Flat and modern with extended overhangs for shading

• Window Style: Tall, vertical panels and sliding glass for maximum light
• Interior Flow: Open concept with natural light guiding the design

• Layout Orientation: Suitable for narrow plots with street access in front
• Style: Modern minimalist with tropical adaptation (e.g., large eaves)



PDF Full Detailing Plan Includes:

This 30×49 House Plans 3D PDF includes:

• Complete architectural drawings
• Floor plans for both levels with measurements
• Section views and elevation drawings
• Electrical and plumbing Location
• Suggested furniture layout
• 3D rendering views from various angles
• Structural layout hints for local adaptation

Ideal For:

• Families of 4–6 people
• Urban or suburban plots
• Narrow frontage lots

• Buyers seeking modern design with practical function
• Anyone looking for a professional PDF Full Detailing Plan of a 5-bedroom house

Conclusion

This 30×49 House Plans 3D (9×15 Meter) is an outstanding choice for those looking to build a modern, elegant, and spacious home. With 5 thoughtfully designed bedrooms, 4 well-placed bathrooms, and generous living and dining areas, it combines beauty with practicality. Download the PDF Full Detailing Plan to access every dimension, drawing, and perspective needed to bring this home to life.

PLANS INCLUDE 30×49 House Plans 3d 9×15 Meter:

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
Cross Section plans
Ceiling Lighting location Plan
